Nsi Industries IPL750-4 Multi-Tap Connector 250 to 750 MCM 4-Port Single Sided Entry

Product Description

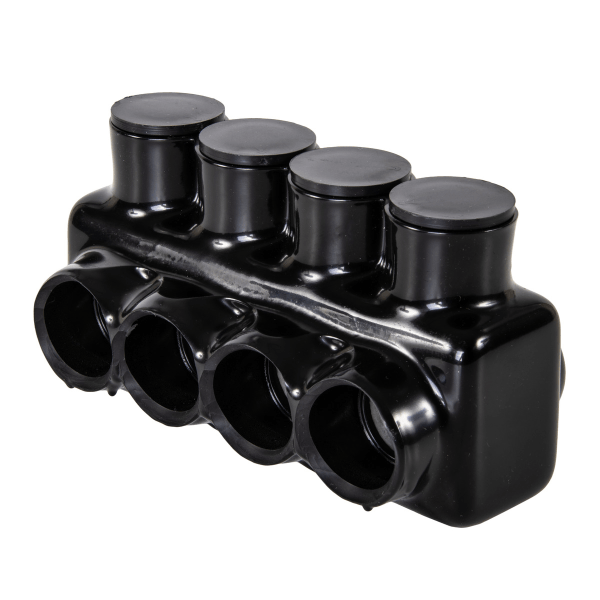

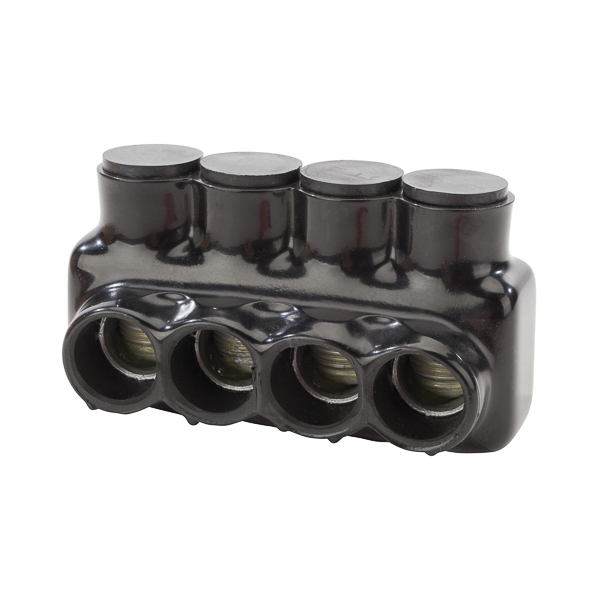

The NSI INDUSTRIES IPL750-4 is an insulated multi-tap connector designed for aluminum or copper conductors ranging from 250 to 750 kcmil. This Polaris Black connector features a single-sided entry with 4 ports. It is constructed with a plastisol finish, providing insulation and mechanical protection for wire termination applications.

• Insulated with dielectric strength plastisol for tough mechanical protection.
• Wire entry ports on one side only.
• Pre-Insulated eliminates the need for cover and taping which saves you both time and money

Product Highlights

The IPL750-4 multi-tap connector ensures secure connections with its pre-filled oxide inhibitor, UV resistance and ergonomic design.

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: IPL750-4

Technical Specifications

• Type: Single Sided Entry
• Brand: NSI Industries
• Color: Black
• Finish: Plastisol Insulated
• Voltage: 600 Volt
• Material: Plastisol
• Sub Brand: Polaris Black
• Wire Size: 250-750 kcmil
• Wire Type: B,C
• Applications: Wire Termination
• Conductor Size: 250-750 kcmil
• Number of Poles: 1 Pole
• Temperature Rating: -45 to 90 deg C
• Number of Conductors: 4
• Buy American Compliant: Y
• Conductor Material: Aluminum/Copper
• Series: IPL
• Voltage Rating: 600 V
• Part Number: IPL750-4
• GTIN: 662381916020
• UPC: 662381916020
• EAN: 662381916020
• UNSPSC: 39121409
• Ul Standard: UL 486A/B
• Wire Cable Class: Class B, Class C
• Conductor Cu Size Range: 750 MCM – 1/0 AWG
• Conductor Al Size Range: 750 MCM – 1/0 AWG
• Conductor Type: Copper, Aluminum
• Aluminum Conductor Max AMP: 930 Amp
• Aluminum Conductor Note: Dual Rated for use with copper and or aluminum cables. Not for use with fine-stranded or flexible cables, Parallel Rated to provide safety and NEC complaince when installing parallel runs.
• Copper Conductor Max: 1178 Amp
• Operating Temperature Rating: -45°C to 90°C (-49°F to 194°F)
• Number Of Conductors: 4
