Nsi Industries IPL500-6 Multi-Tap Pre-Insulated Connector 500 MCM - 4 AWG

Product Description

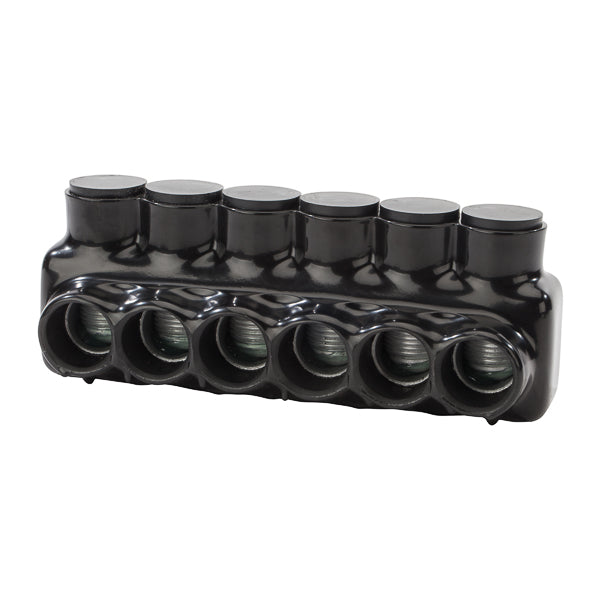

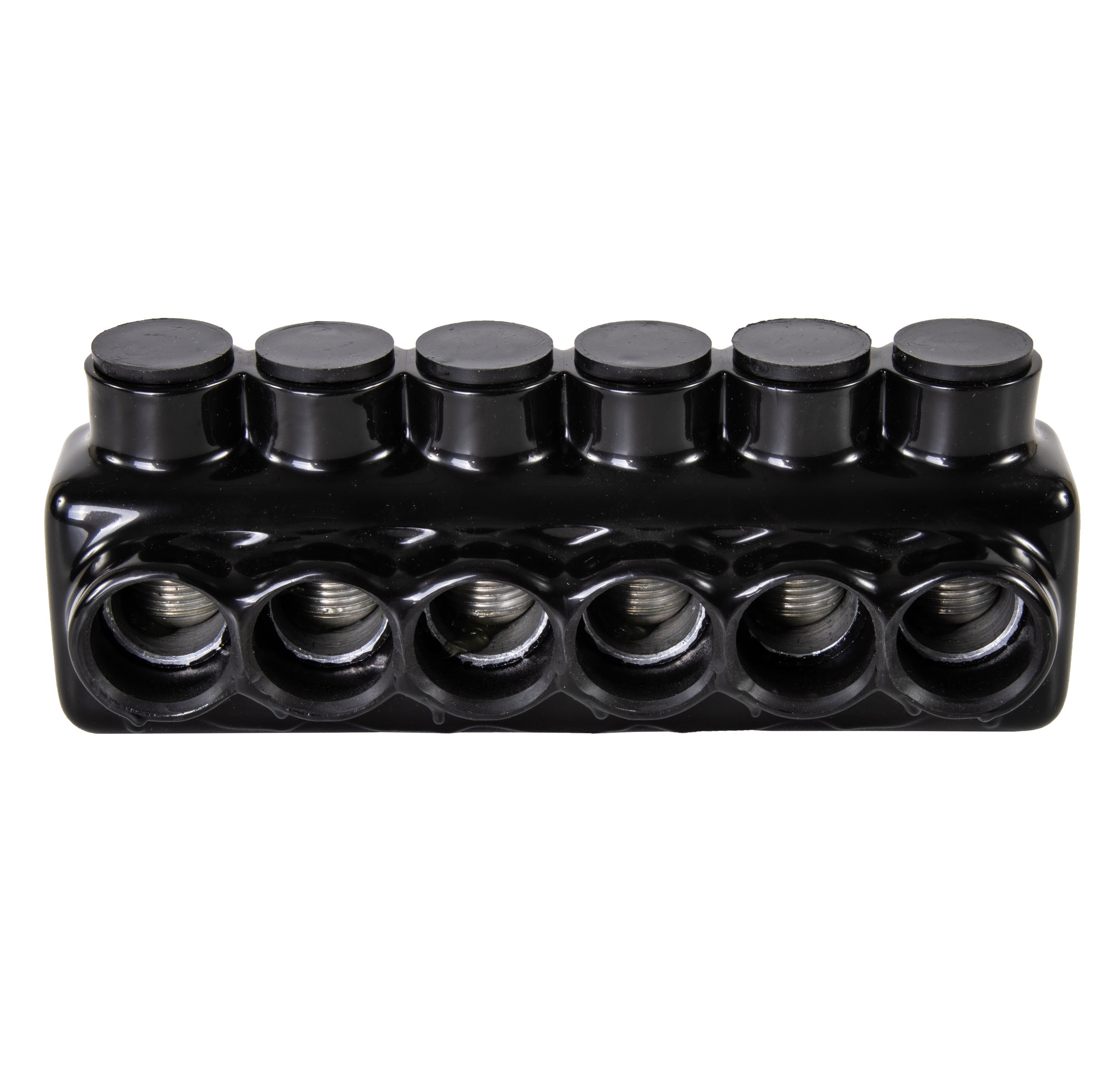

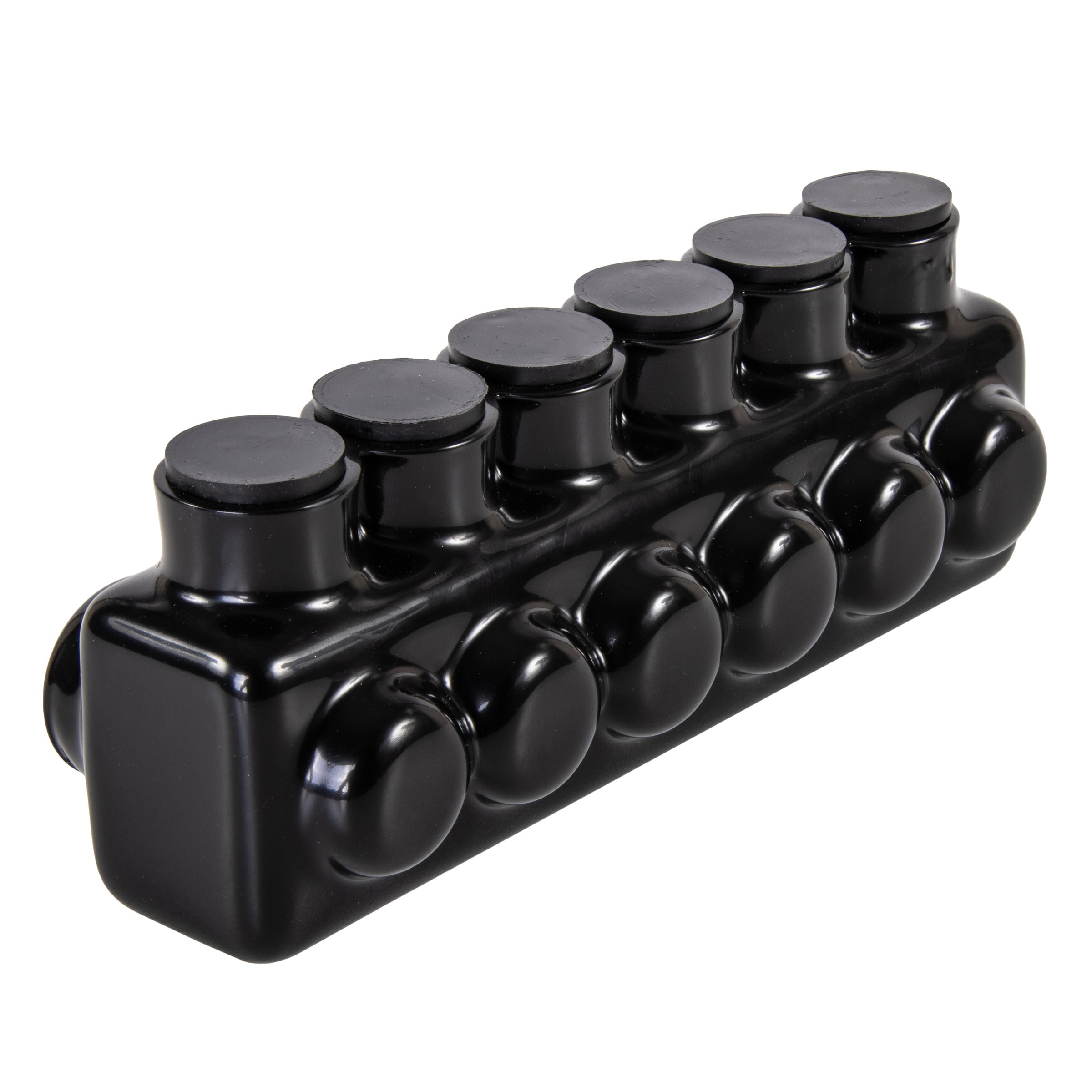

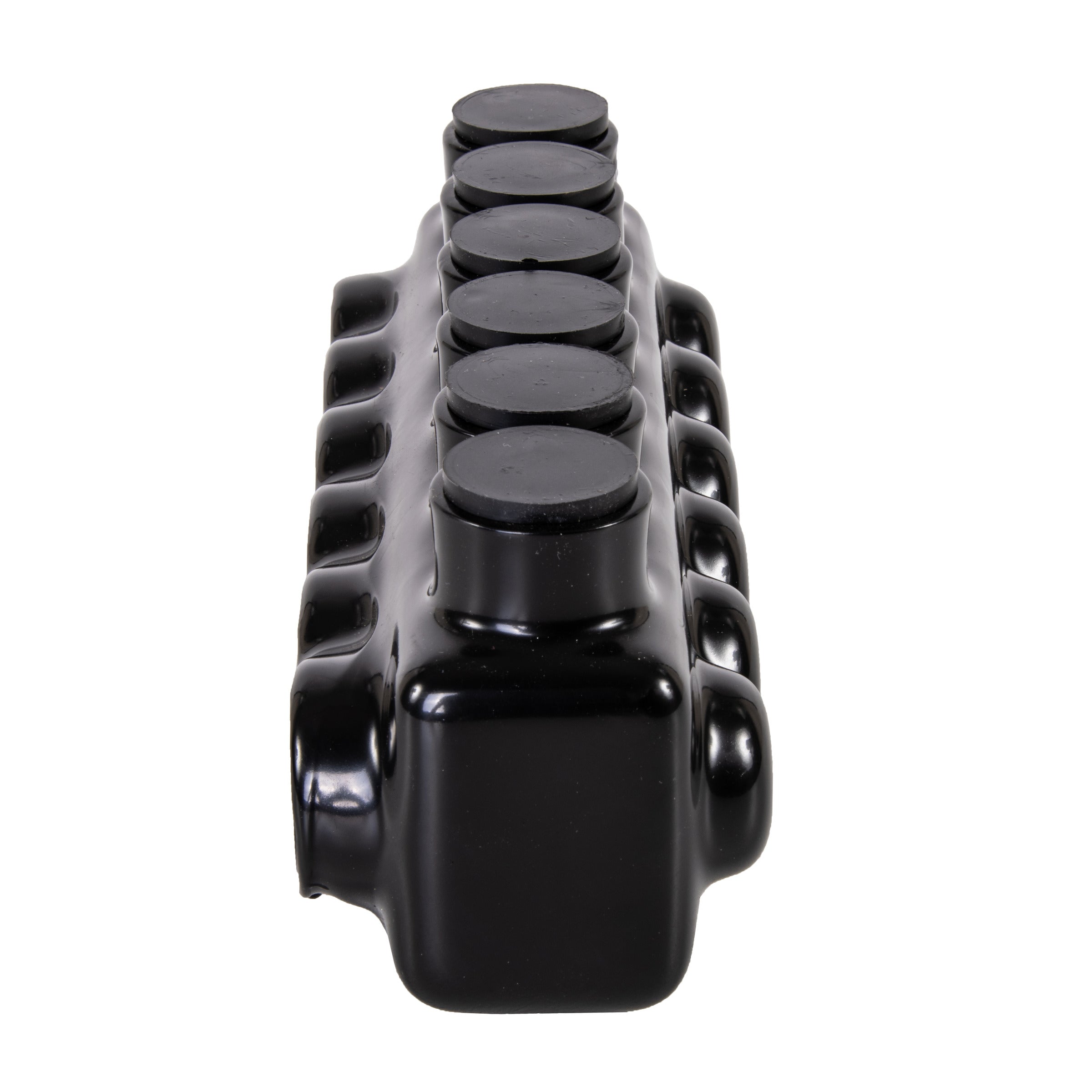

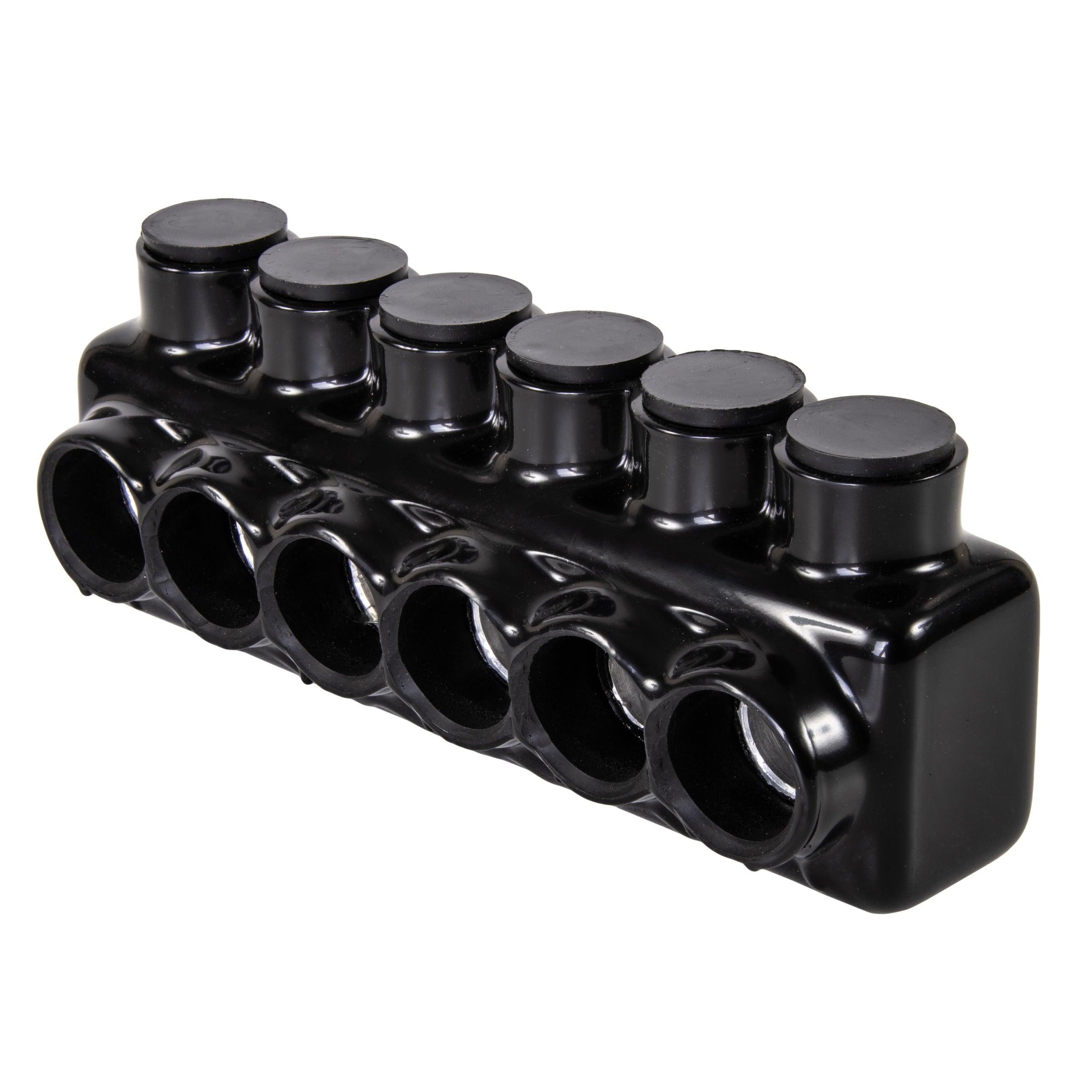

The NSI INDUSTRIES IPL500-6 multi-tap single side entry connector features 6 ports sized for 500 MCM - 4 AWG wires. The body is made from aluminum alloy wrapped in a layer of plastisol insulation. Each port is pre-loaded with an oxide inhibitor, with removable access plugs over the hex screws used to tighten the connections.

• Secure connections between multiple conductors
• Rounded design
• UV-resistant insulation coating
• Installs with a hex key and torque wrench

Product Highlights

The connector is designed for use in a wide range of splicing applications, including installation in cable trays, panel boards, ducts, raceways or troughs.

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: IPL500-6
• Country of Origin: US - United States

Technical Specifications

• ECCN: EAR99
• Country of Origin: US - United States
• UNSPSC: 39121409
• Insulation Material: Plastisol
• Applications: Wire Termination
• Conductor Size: 4 AWG
• Material: Aluminum
• Number of Conductors: 6
• Number of Poles: 1 Pole
• Standard: CULUS
• Temperature Rating: 90 degrees C
• Type: Single Sided Entry
• Voltage: 600 Volt
• Wire Size: 4 AWG
• Wire Type: B,C
• Brand: NSI Industries
• Sub Brand: Polaris Black
• Environmental Conditions: 90 degrees C
• Finish: Plastisol Insulated
• Buy American Compliant: Y
• Voltage Rating: 600 V
• Conductor Cu Size Range: 500 MCM-4 AWG
• Conductor Al Size Range: 500 MCM-4 AWG
• Conductor Type: Copper, Aluminum
• Application: Splice, Tap
• Number of Conductors/Circuits/Terminals: 6
• Product Category: Insulated Connectors
• Product Group (L2): Power Connectors and Grounding
• Product Family (L1): Connectivity
• Product Line (L4): Insulated Mechanical Connectors
• PRODUCT HEIGHT (IN): 2.95
• PRODUCT LENGTH (IN): 7.48
• PRODUCT WIDTH (IN): 2.5
• Hex Wrench Size (IN): 16-May
• Max Torque Value (IN/LBS): 450
• Fits Bolt Size (in): 5/16
• Environmental Temperature: Cold Temperature rated to -45C
• Certifications: cULus
• CERTIFICATIONS & STANDARDS: cULus, Meets NEC 230.46 Suitable for Line Side of Service
• Rated Voltage: 600 V
• No. of Poles: 1
• Size: L=7.400 - W=2.500 - H=2.940 IN
