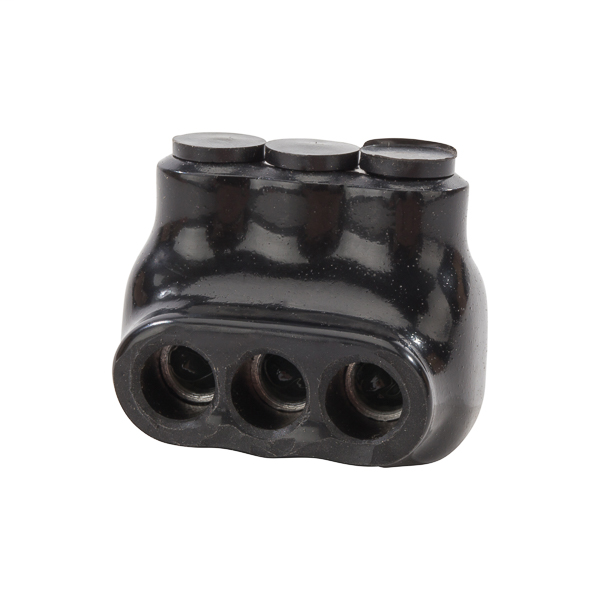

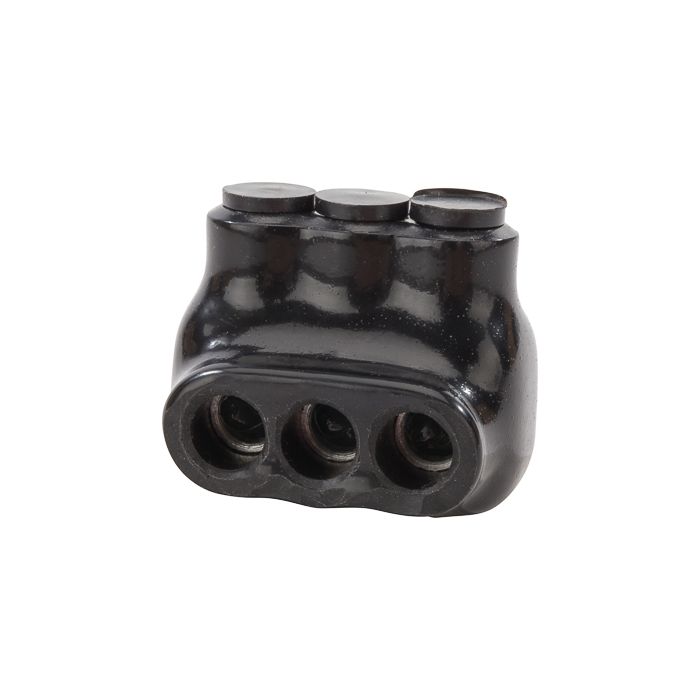

Nsi Industries IPL4-3A Polaris Insulated Multi-Tap 4

Product Description

The NSI INDUSTRIES IPL4-3A Polaris Insulated Multi-Tap Connector accommodates wire sizes from 14-4 AWG. This single sided entry connector features an Allen head screw and is insulated with plastisol for mechanical protection. It is suitable for wire termination applications and has a temperature rating of 90 degrees C.

• Insulated
• Multi-Tap Connector
• Allen Head Screw
• Single Sided Entry

Product Highlights

The IPL4-3A is a multi-tap connector for use with aluminum or copper conductors. It eliminates the need for cover and taping.

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: IPL4-3A

Technical Specifications

• Type: Single Sided Entry
• Brand: NSI Industries
• Color: Black
• Finish: Plastisol
• Voltage: 600 Volt
• Material: Plastisol
• Standard: CULUS
• Sub Brand: Polaris Black
• Wire Size: 14-4 AWG
• Wire Type: B,C
• Applications: Wire Termination
• Conductor Size: 14 to 4 AWG
• Number of Poles: 1 Pole
• Temperature Rating: -45 to 90 deg C
• Number of Conductors: 3
• Buy American Compliant: Y
• Conductor Material: Aluminum/Copper
• Entry: Single Sided
• Series: IPL
• Voltage Rating: 600 VAC
• Specifications: 1 Pole, 3 Conductor, Class B and C Wire Type, 3/8 in Hex
• Manufacturer: NSI INDUSTRIES
• Model: Polaris IPL4-3A
• MPN: IPL4-3A
