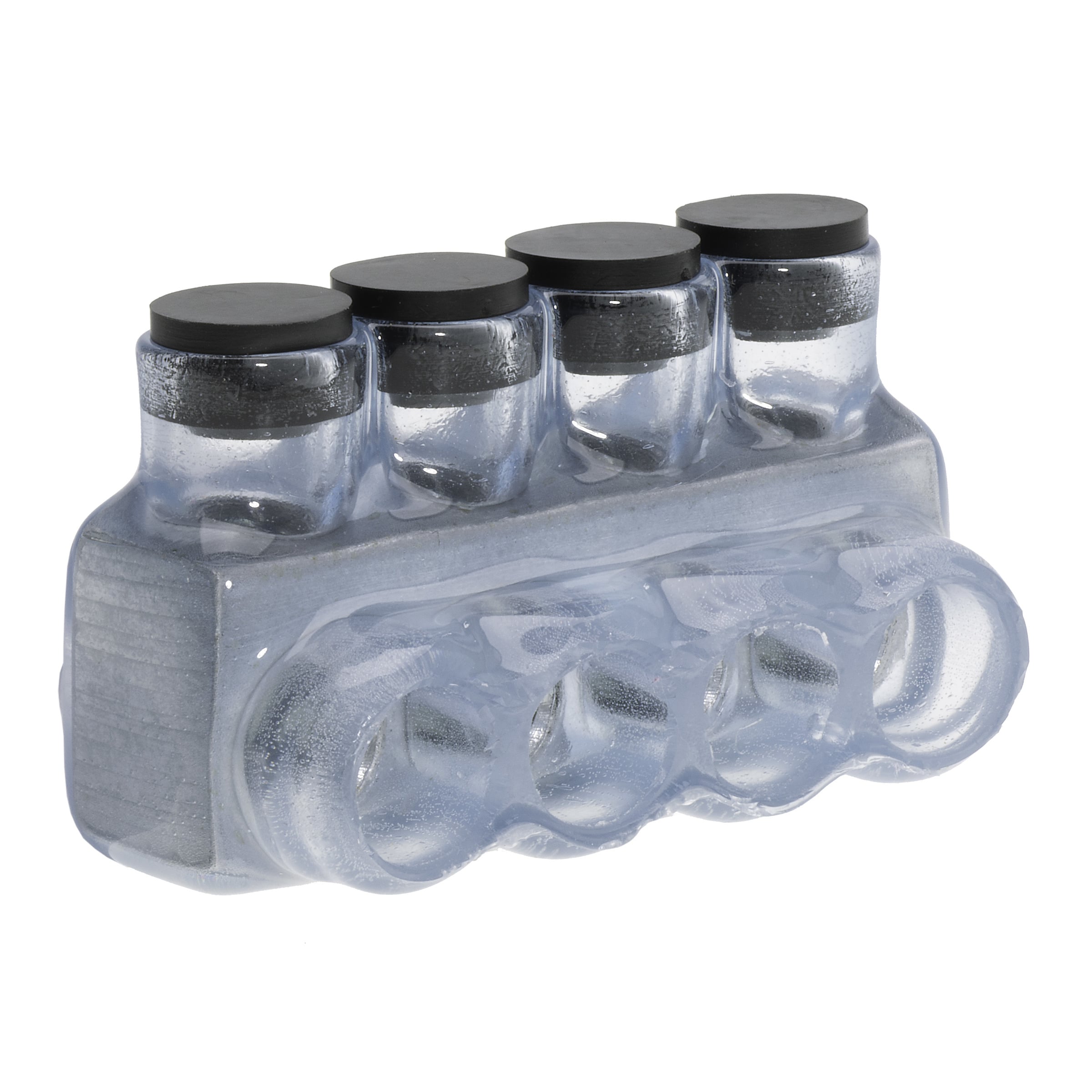

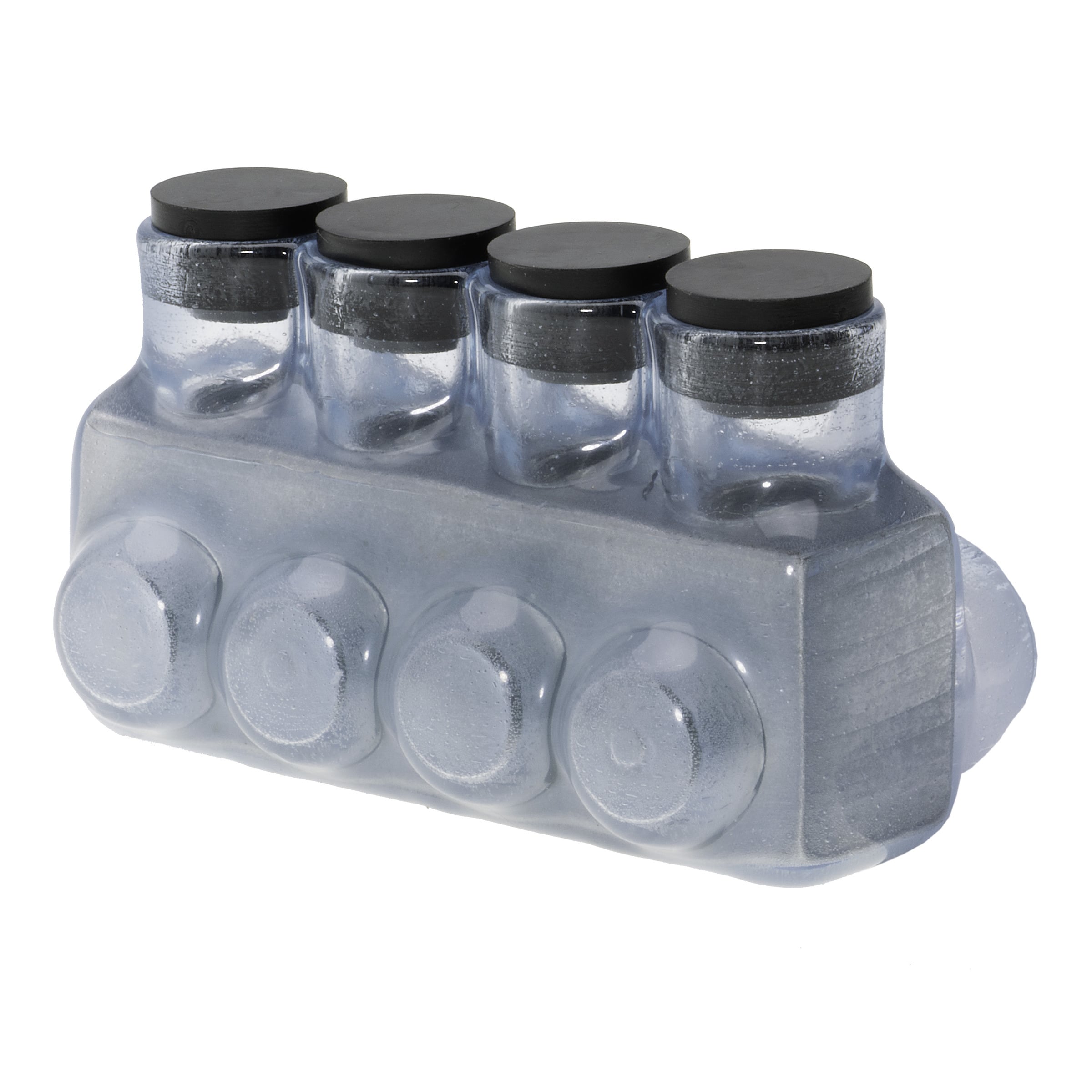

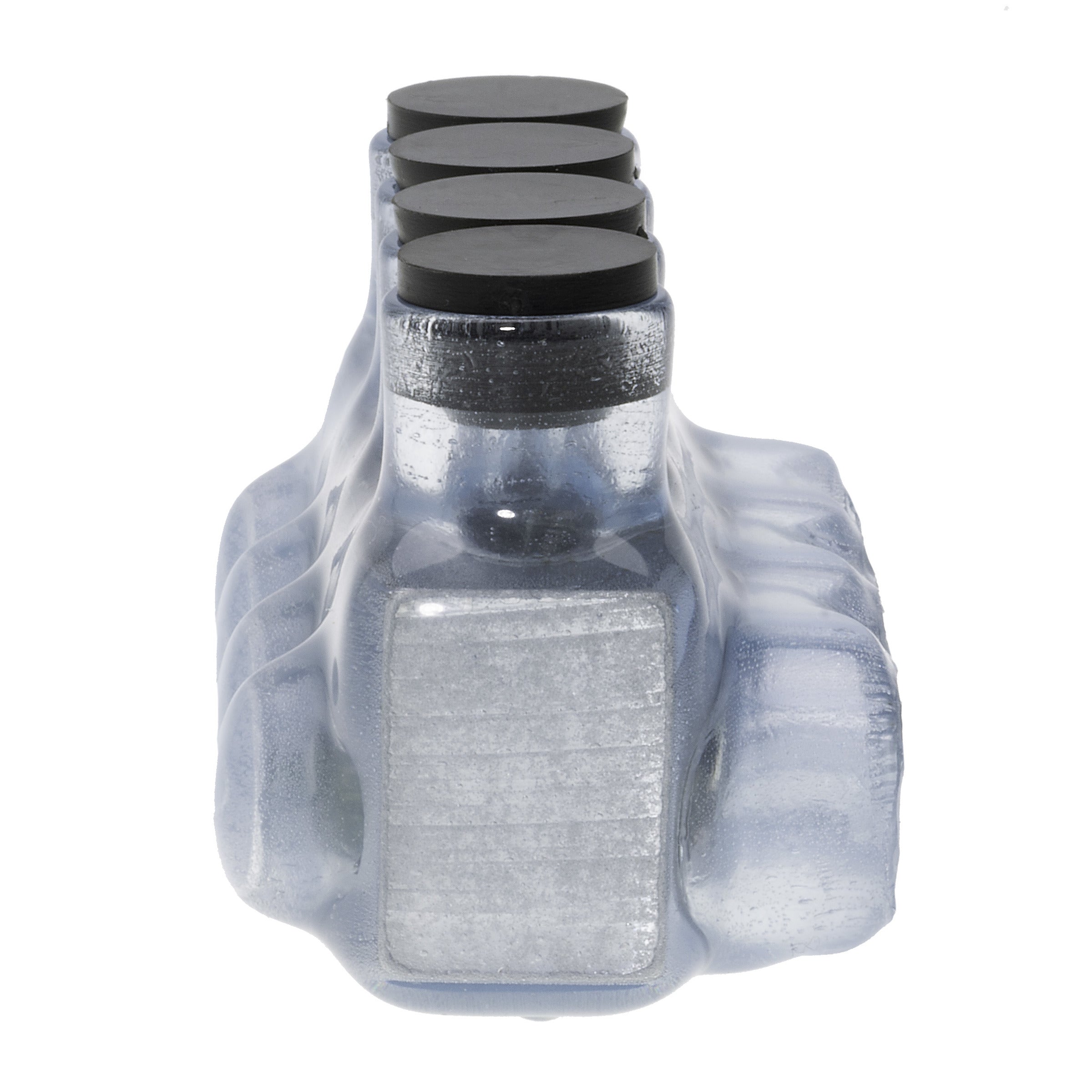

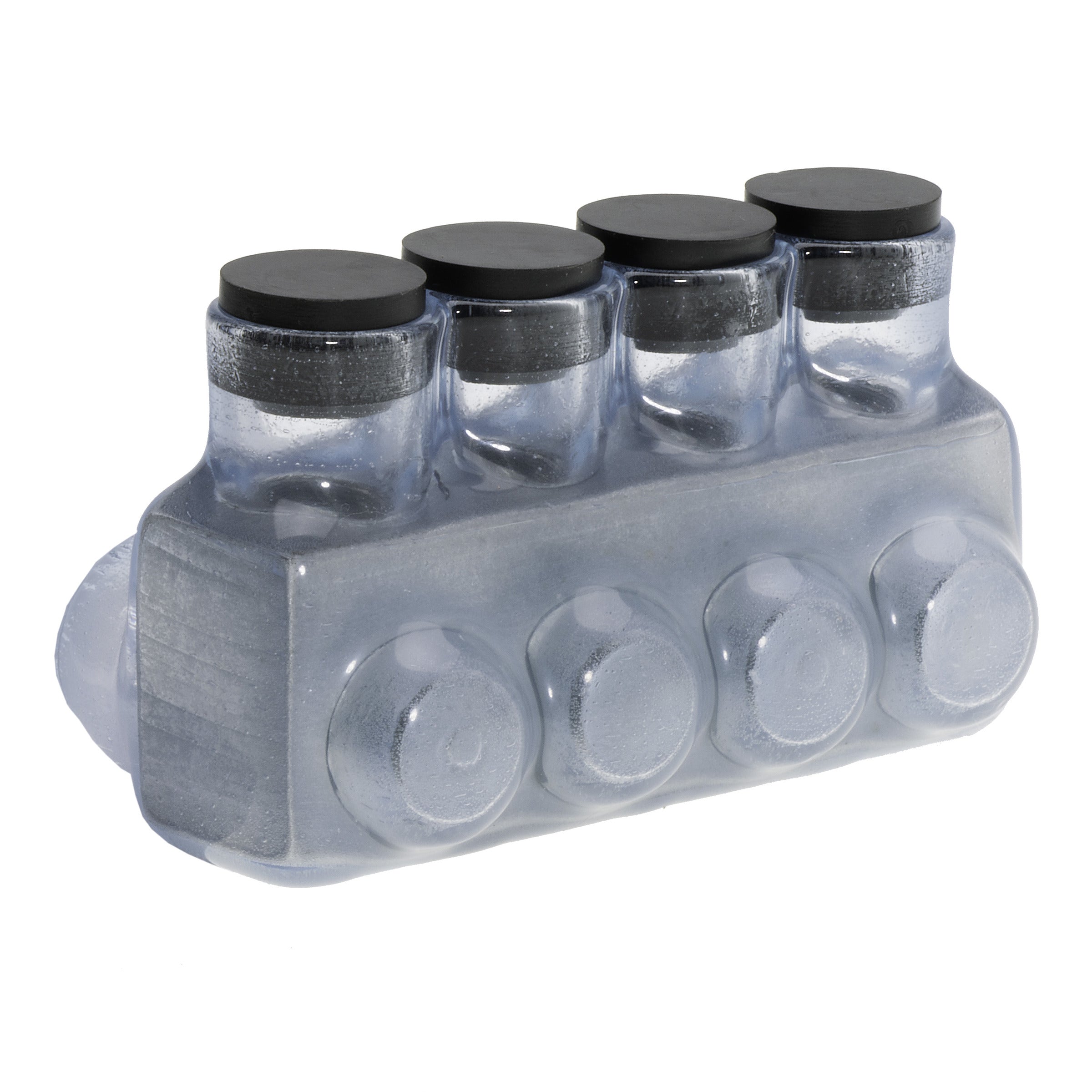

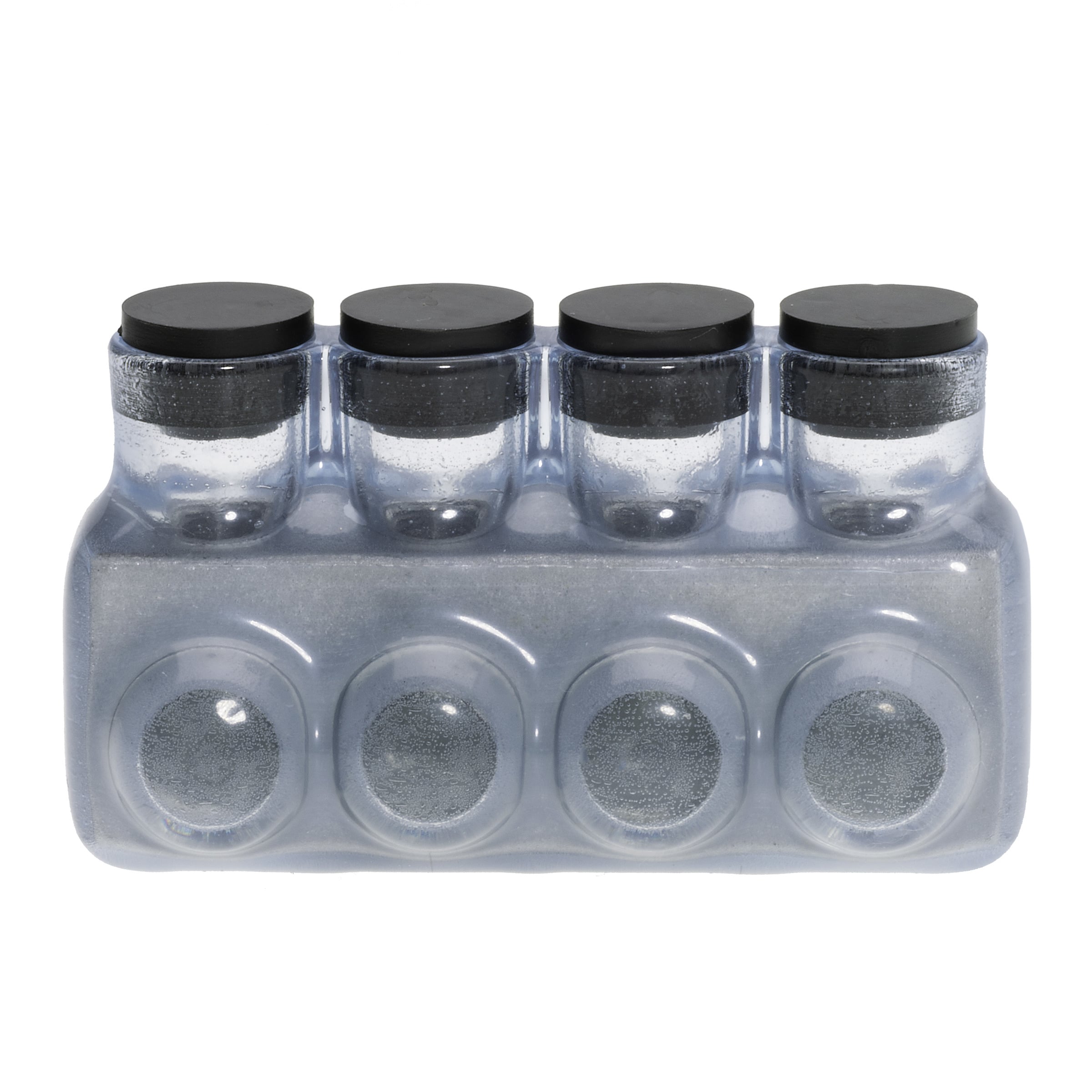

Nsi Industries IPL1/0-4C Polaris Vision Tap Insulated Multi-Tap Connector 600 V (4-Port)

Product Description

Nsi Industries IPL1/0-4C is a Polaris Vision Tap insulated multi-tap connector that provides four single-sided entry ports sized for 1/0�14 AWG conductors. The clear plastisol enclosure allows visual confirmation of conductor placement and each port is pre-filled with oxide inhibitor gel. The connector is dual rated for copper and aluminum, rated 600 V, 90�C, and meets UL 486A/B for wire termination, splicing, and tapping applications.

• Accepts 1/0 to 14 AWG conductors; dual rated for copper and aluminum; 1-pole, 4-conductor single-sided entry
• Clear plastisol vision body with pre-filled oxide inhibitor gel, removable port plugs, and 3/16 in hex set screws
• Electrical ratings: 600 V, 90�C; meets UL 486A/B; cold temperature rated to -45�C; max torque 80 in-lbs

Product Highlights

4-port single-sided insulated connector with clear plastisol body, pre-filled oxide inhibitor gel, 600 V/90�C rating, accepts 1/0�14 AWG copper or aluminum.

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: IPL1/0-4C
• Country of Origin: US

Technical Specifications

• Brand: Nsi Industries
• Manufacturer Part Number: IPL1/0-4C
• Series: IPL
• Product Name: Polaris Vision Tap insulated multi-tap connector
• Number of Conductors: 4
• Poles: 1 Pole
• Entry Type: Single-sided entry
• Wire Range: 14 AWG to 1/0 AWG
• Conductor Type: Copper, Aluminum
• Voltage Rating: 600 V
• Temperature Rating: 90 �C (cold temperature rated to -45 �C)
• Insulation Material: Plastisol
• Terminal Material: Aluminum
• Enclosure: Clear plastisol (vision tap)
• Pre-filled Oxide Inhibitor Gel: Yes
• Hex/Wrench Size: 3/16 in
• Max Torque: 80 in-lbs
• UL Standard: UL 486A/B
• UL File Number: E186991
• Certifications: cULus Listed; RoHS Compliant; Buy American Act Compliant; ARRA Compliant
• Suitable For: Wire termination, splice, tap; suitable for line side of service (meets NEC 230.46)
• Not Suitable For: Fine-stranded or flexible wire
• Dimensions (L x W x H): 2.89 in x 1.50 in x 1.688 in
• GTIN/UPC: 00662381996633 / 66238199663
