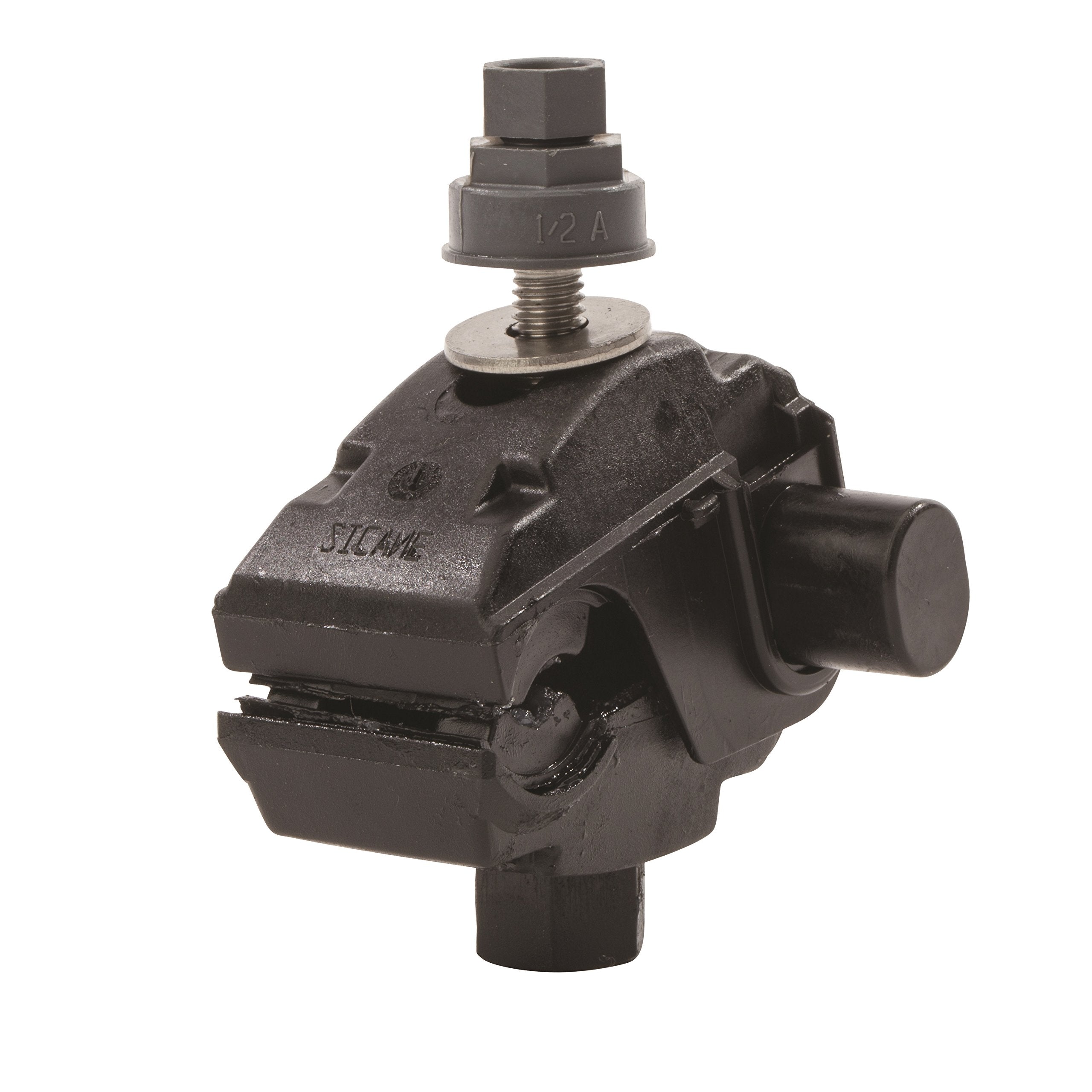

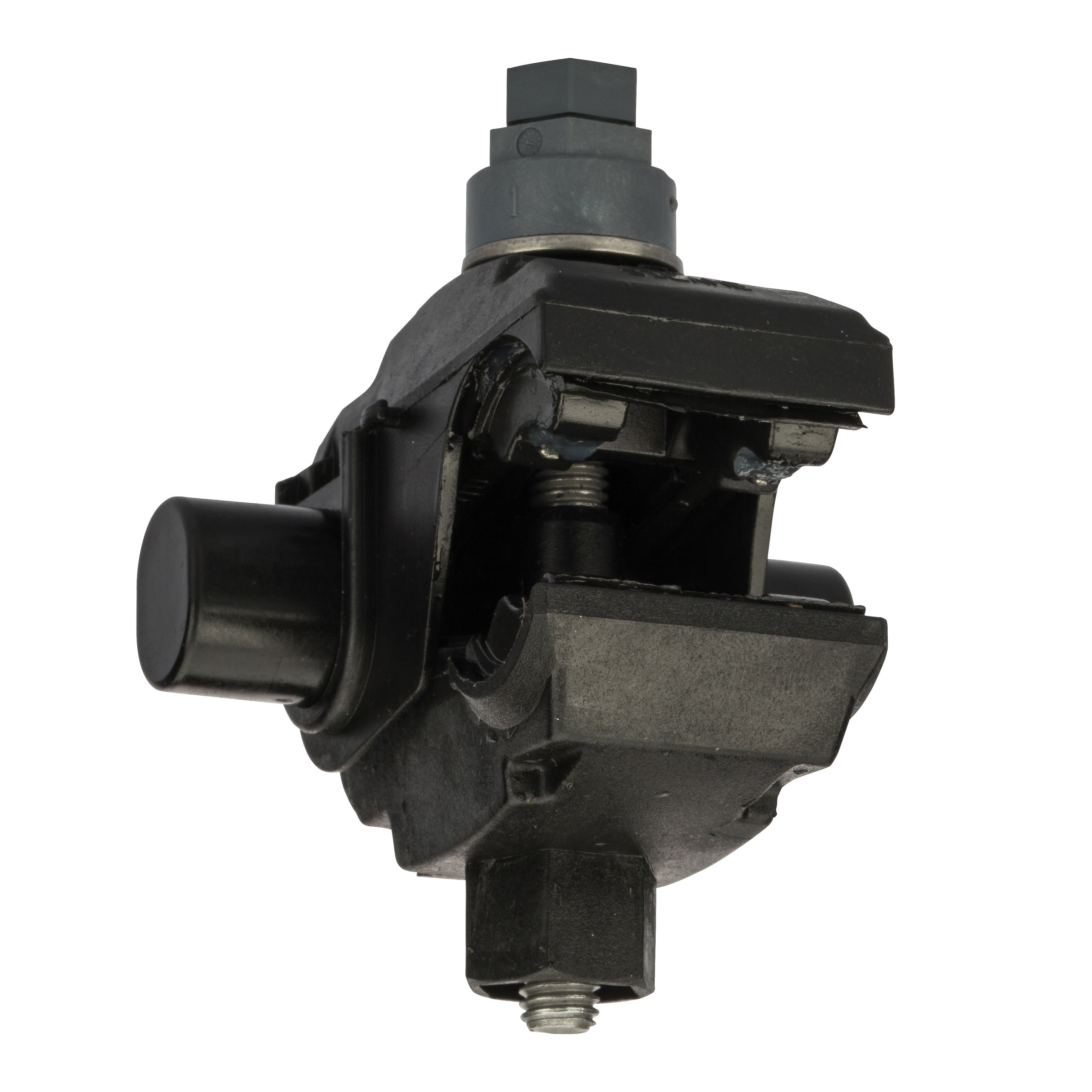

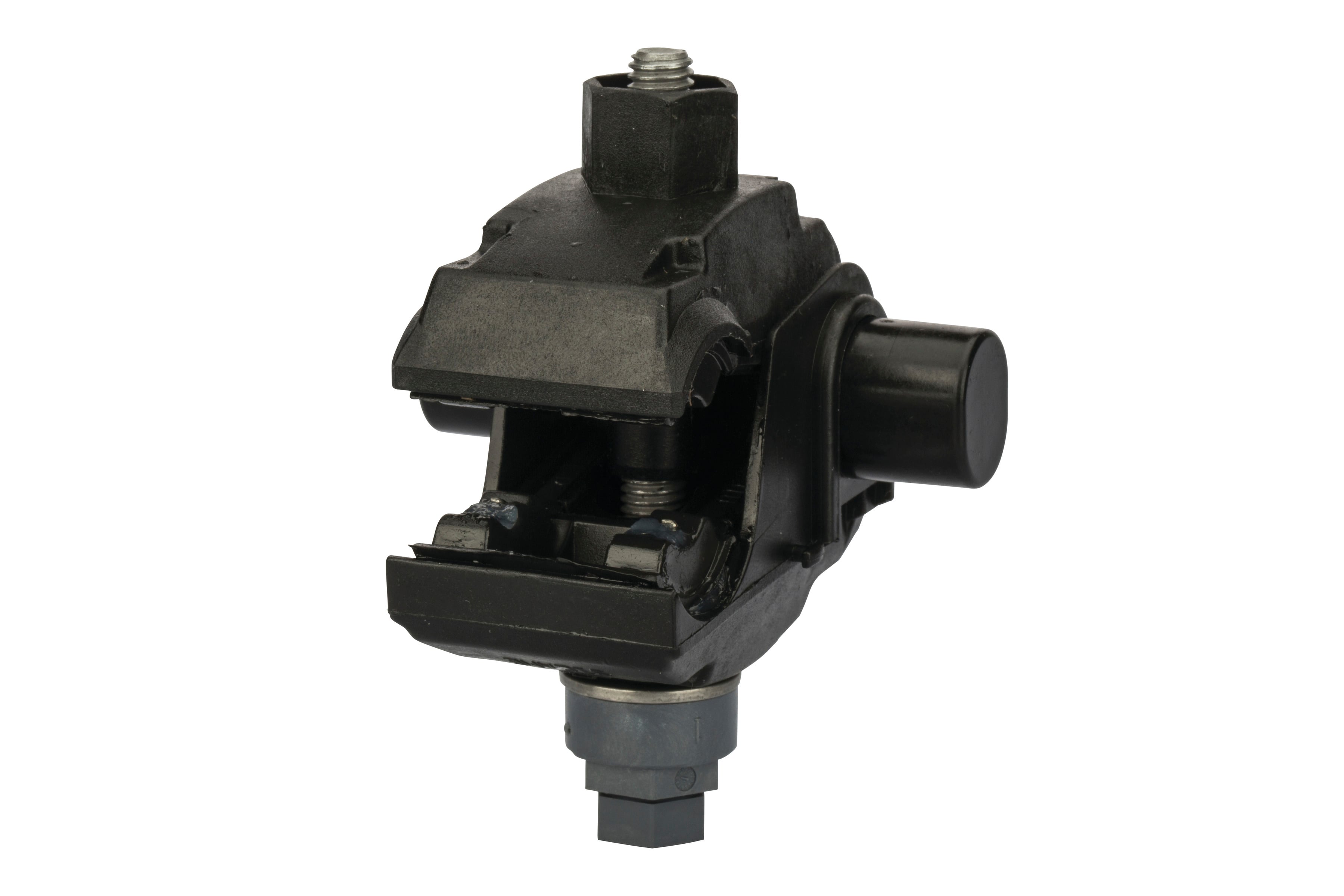

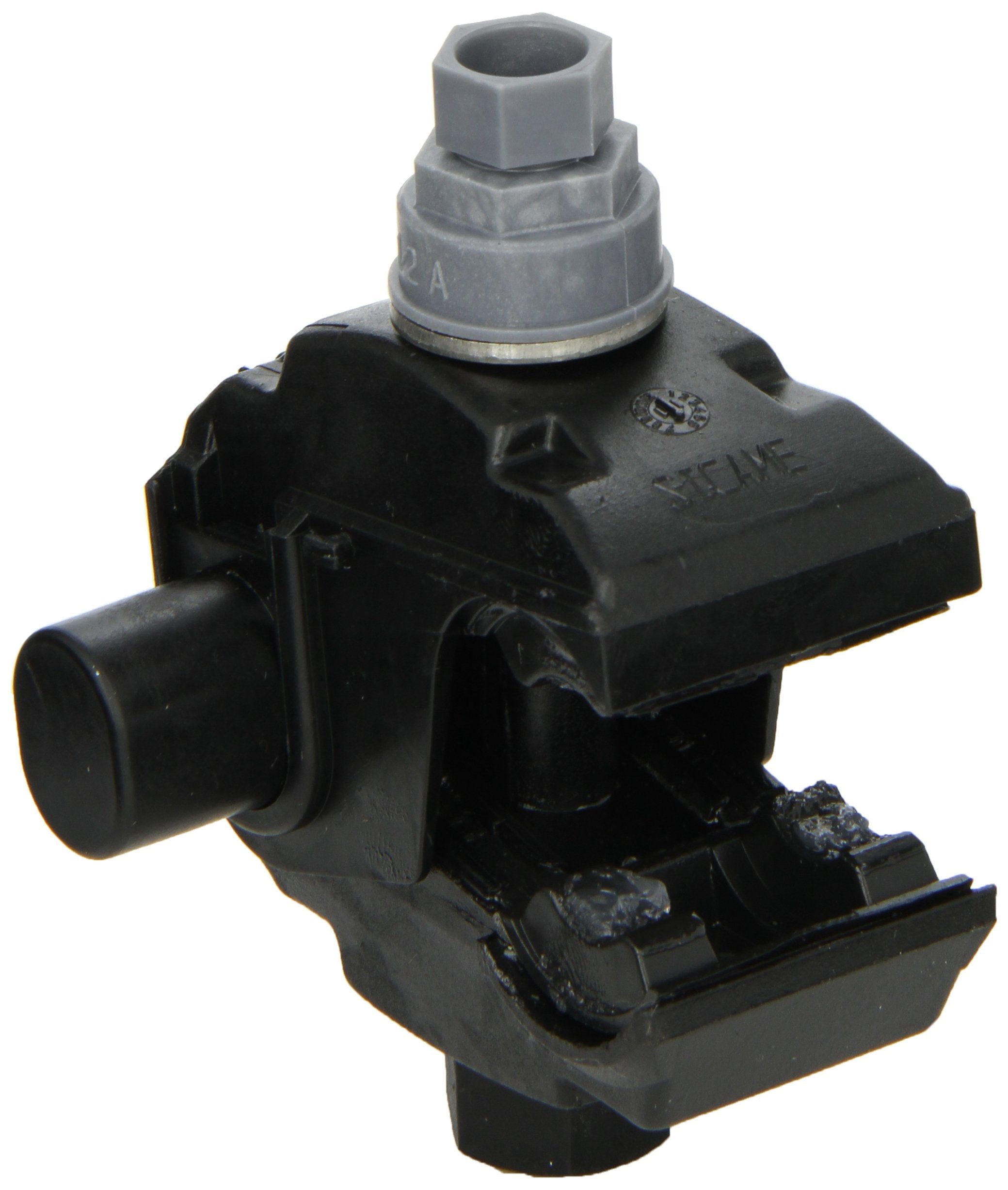

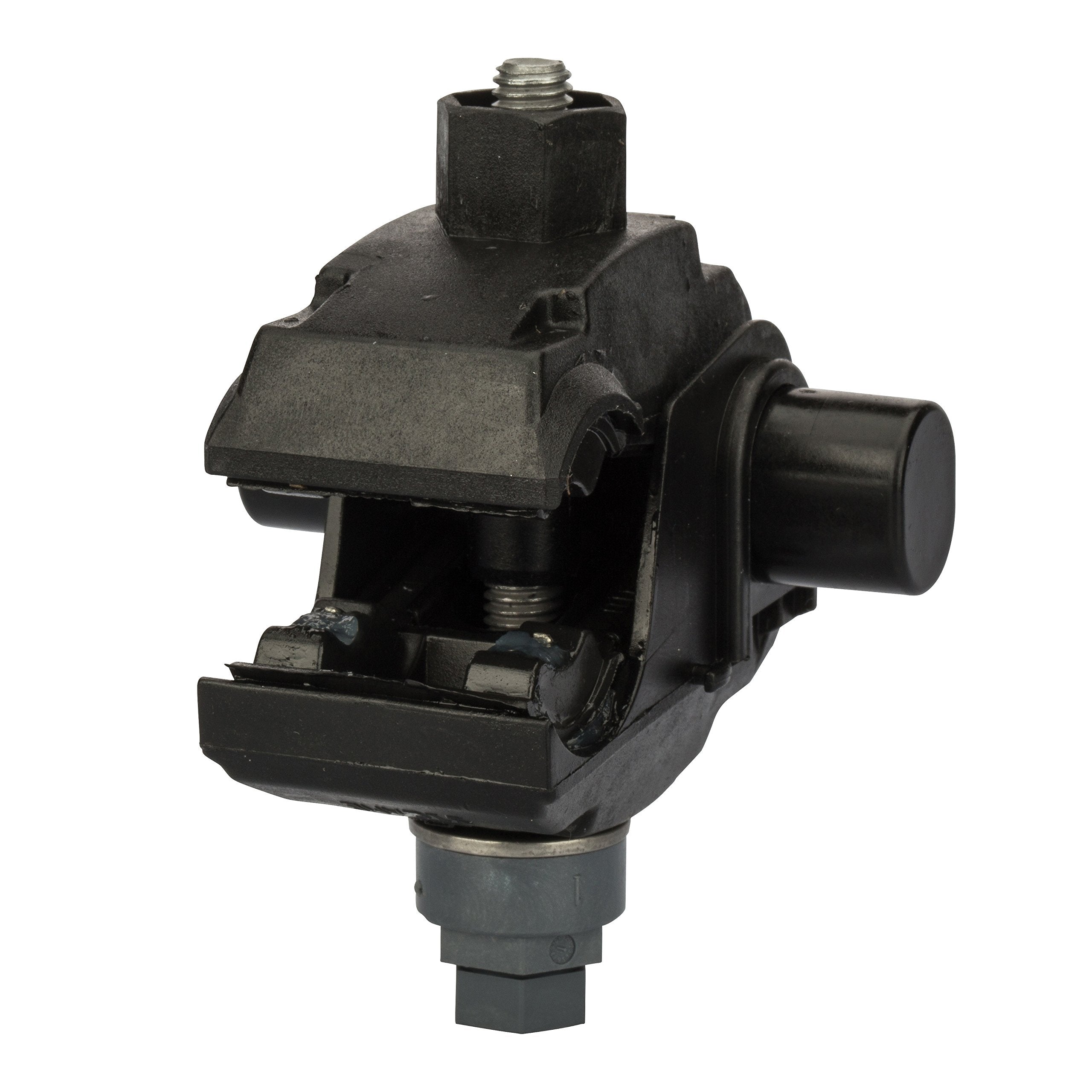

Nsi Industries IPCS7501 Insulation Piercing Connector 600 V (750 MCM to 3/0 Main 14-10 AWG Tap)

Product Description

Nsi Industries IPCS7501 is an insulation-piercing connector designed for tapping or splicing power conductors, accepting main conductors from 750 MCM to 3/0 AWG and tap conductors from 14 to 10 AWG. The connector is fully insulated for installation on energized conductors without stripping, is constructed of fiber-reinforced thermal plastic, and is rated 600 V and 90 degrees C with UL 486B and ANSI C119.4 approvals.

• Accepts 750 MCM to 3/0 AWG main conductors and 14 to 10 AWG tap conductors; rated 600 V.
• Fully insulated insulation-piercing design permits installation on energized conductors without stripping; exclusive turbo spacer keeps tap open during tightening.
• Fiber-reinforced thermal plastic construction with watertight rubber grommet sealing; current ratings 55 A (copper) and 40 A (aluminum); UL 486B listed, meets ANSI C119.4.

Product Highlights

Insulation-piercing tap/splice connector for 750 MCM�3/0 main and 14�10 AWG tap; 600 V, 90�C; UL 486B and ANSI C119.4 compliant.

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: IPCS7501
• Country of Origin: France
