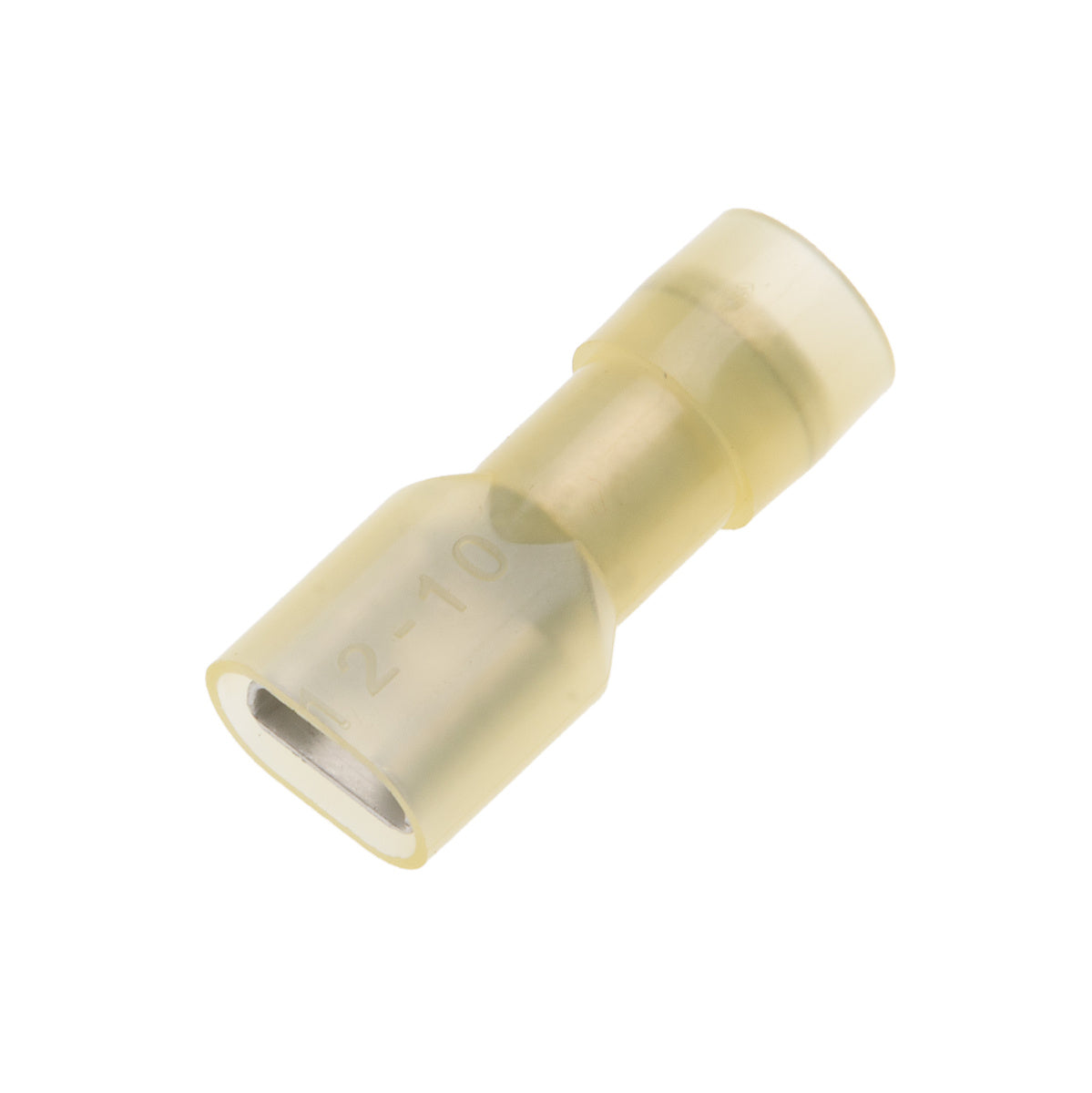

NSI Industries IF12-250-3N-S Wire Terminal Fully Insulated Female Disconnect Nylon 12-10 Awg .250 X .03

Product Description

The NSI Industries IF12-250-3N-S is a fully insulated female disconnect designed for use with twelve to ten AWG conductors. This product is part of the IF Series and is suitable for various electrical applications.

• Rated for 600 volts and 105 degrees Celsius
• Features a tab size of 0.25 x 0.032 inches
• Constructed from nylon for durability and insulation

Product Highlights

This disconnect is ideal for wire termination applications, ensuring a reliable connection in electrical systems.

Product Information

Standard Information

• Manufacturer: NSI Industries Inc
• UPC: 662381077141

Technical Specifications

• Color: Yellow
• Conductor Size: 12 to 10 AWG
• Dimensions: 0.964 inches long x 0.259 inches wide
• Insulated: Fully Insulated
• Series: IF Series
• Specifications: 1-Terminal, Nylon Insulated
• Tab Size: 0.25 x 0.032 inches
• Temperature Rating: 105 degrees Celsius
• Voltage Rating: 600 volts
