Nsi Industries HWHS14-6-48 Heavy wall heat shrink 1000 Volt (48 In / 3 Pack)

Product Description

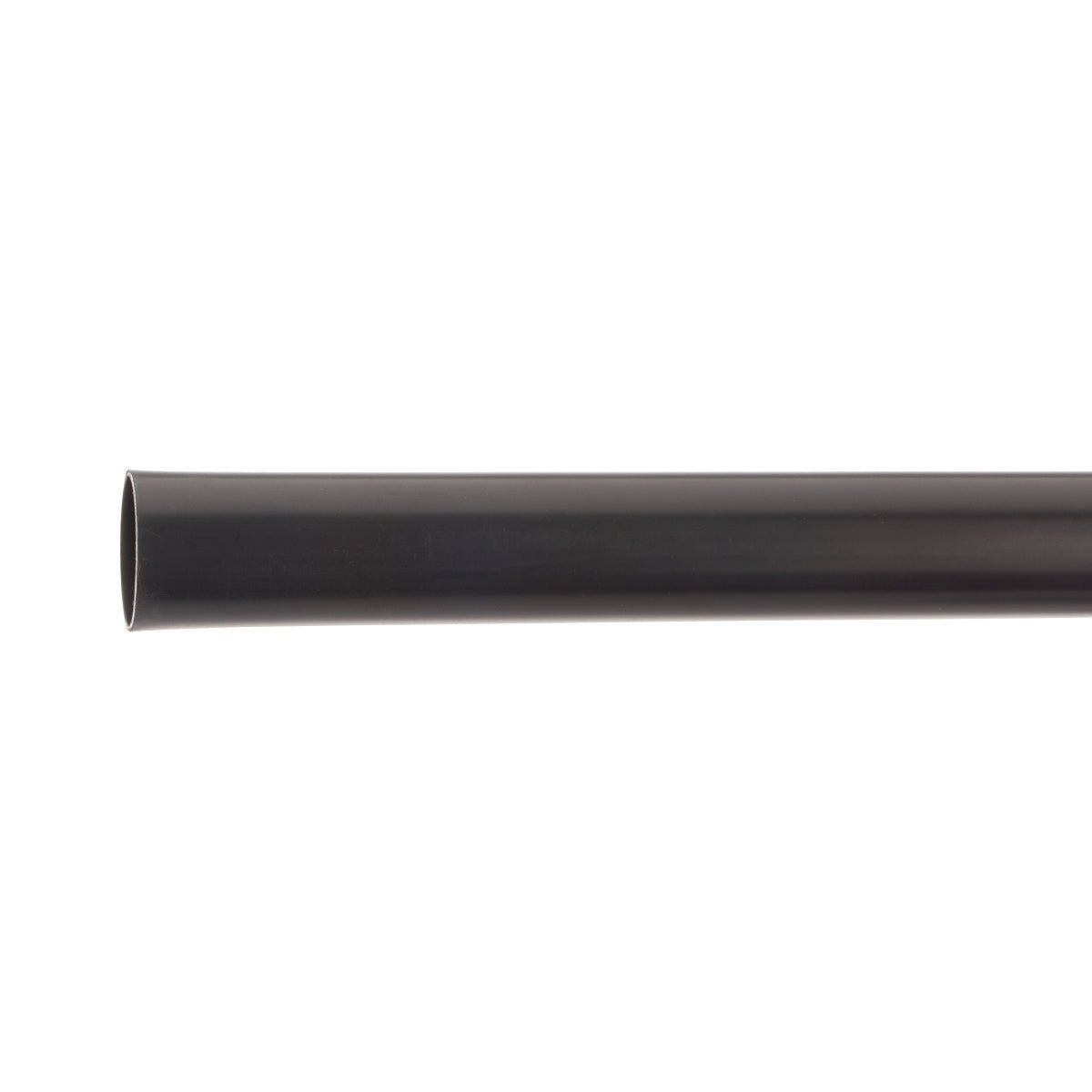

Nsi Industries HWHS14-6-48 heavy wall polyolefin heat shrink is a 48-inch adhesive-lined sleeve for insulating and sealing 14�6 AWG conductors. Rated to 1000 V and 121�135 �C, the irradiated and thermally stabilized material provides elastic memory and permanently shrinks to conform to irregular shapes. The sleeve is UL 486D listed, CSA C22.2 compliant, RUS accepted, and qualified to ANSI C119.1 for underground splicing; suitable for jacket repair, splice covers, direct burial and submersible applications.

• Adhesive-lined interior forms a watertight seal after shrinking; recommended cut length guidance provided for connector sizes.
• Fits 14�6 AWG conductors; 48 in length; expanded diameter 0.39 in and recovered diameter 0.13 in; heavy wall round construction.
• Electrical rating 1000 V; temperature rating 121�135 �C; approvals include UL 486D, CSA C22.2, ANSI C119.1 and RUS acceptance.

Product Highlights

48-inch heavy wall polyolefin heat shrink for 14�6 AWG with adhesive-lined watertight seal; 1000 V, 121�135 �C; UL 486D, CSA C22.2, ANSI C119.1; RUS accepted.

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: HWHS14-6-48
• Country of Origin: Germany
