Nsi Industries GLC-4DBP Lay-In Connector 4 to 14 AWG

Product Description

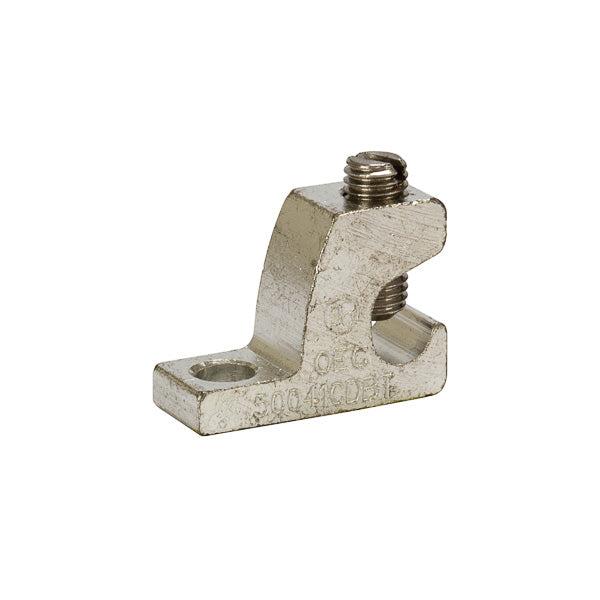

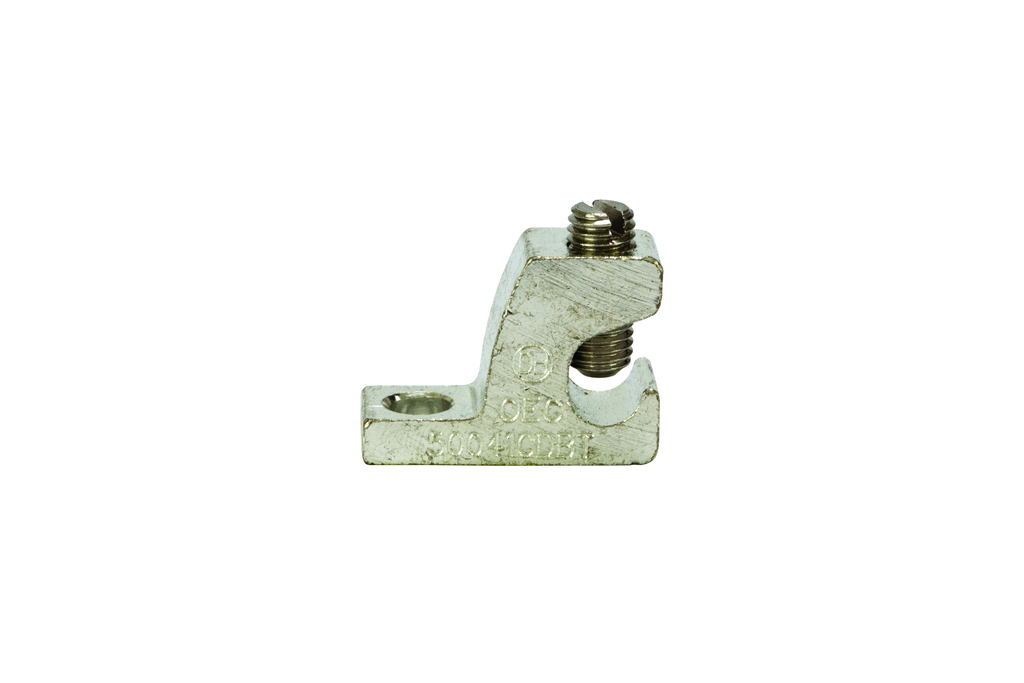

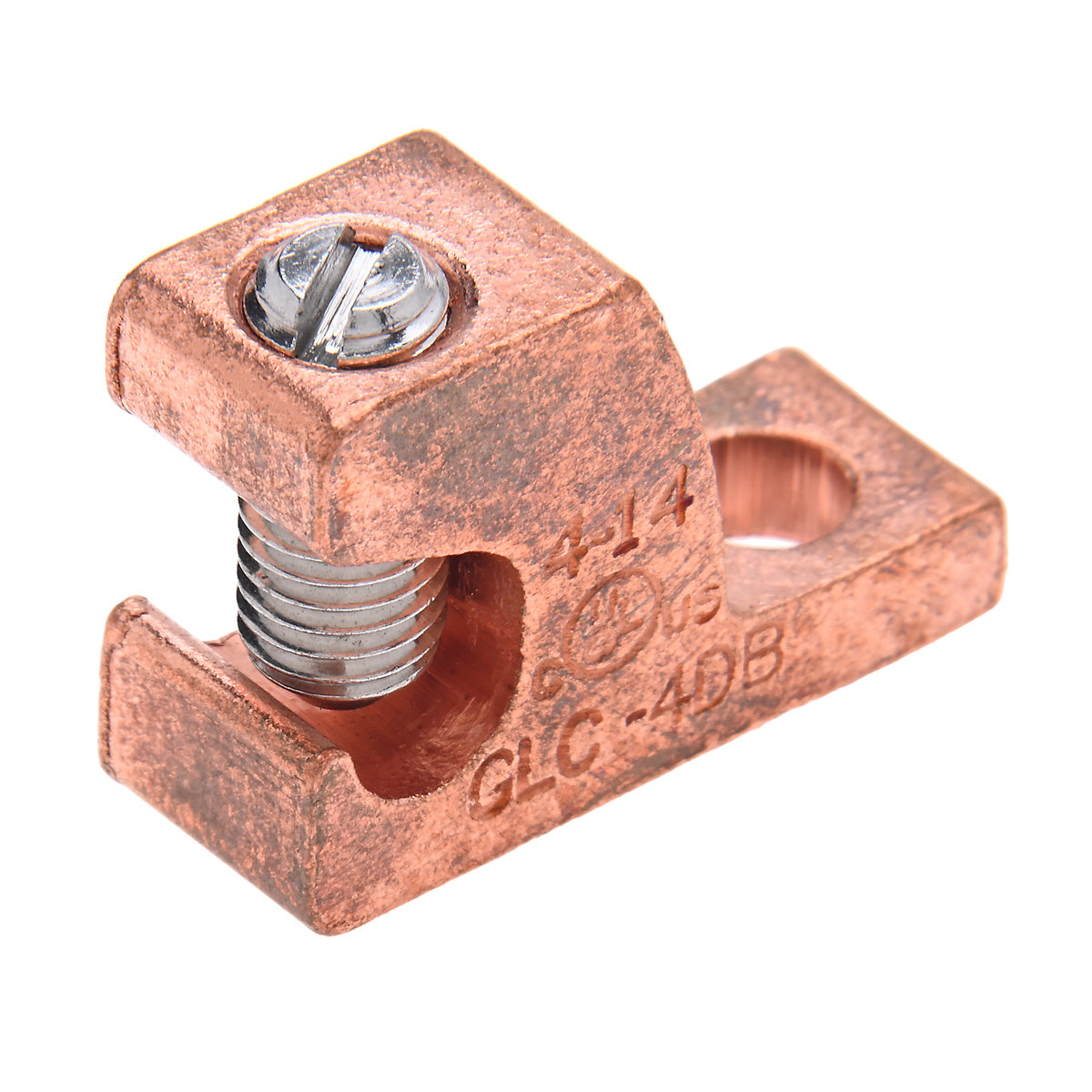

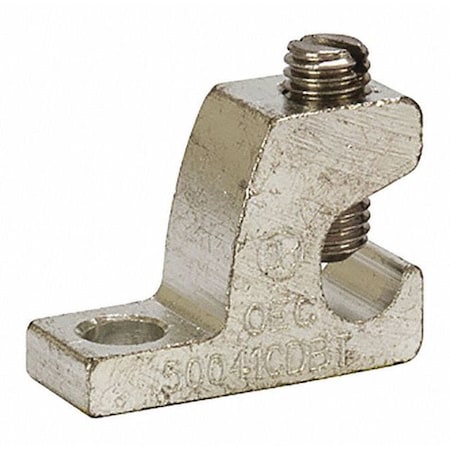

The NSI INDUSTRIES GLC-4DBP direct burial tin-plated copper ground connector grounds copper conductors in outdoor applications. The tin-plated copper body and stainless-steel screws are cULus Listed for direct burial in earth and concrete when used with copper wiring. Accommodates conductors in the range of 4 to 14 AWG with a temperature rating of 90 degrees Celsius and a voltage rating of 600V.

• UL Listed for direct burial in both earth and concrete when used with copper wire, providing flexible outdoor use
• The tin-plated copper body and strong stainless-steel screws are made from reliable, high-quality metals that provide durable performance in a range of applications
• Features a lay-in lug design for connecting wires, offering even greater flexibility as compared to traditional grounding holes

Product Highlights

The NSI Industries GLC-4DBP is suitable for grounding or continuous loop bonding of copper wire in direct burial applications.

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: GLC-4DBP
• Country of Origin: India

Technical Specifications

• Type: Lay-In Ground Lug Direct Burial
• Brand: NSI Industries
• Color: Bronze
• Width: .396 in
• Finish: Tin Plated
• Height: 0.98 Inch
• Length: 1.312 Inch
• Voltage: 600 Volt
• Material: Copper
• Standard: CULUS
• Sub Brand: Grounding
• Wire Size: 14-4 AWG
• Applications: Grounding Wire
• Conductor Size: 14-4 AWG
• Insulation Color: Bronze
• Insulation Material: Tin Plated Copper
• Cable Size: 14 to 4 AWG
• Application: Direct Burial
• Conductor Range: 4 to 14 AWG
• Screws: Stainless Steel
• Temperature Rating: 90 .C
• Voltage Rating: 600V
• Listing: cULus Listed 467 for grounding and bonding. UL A Listed 486 wire connector
• Dimensions: 1.31 in L x 0.396 in W x 0.908 in H
• Country of Origin: India
