Product Description

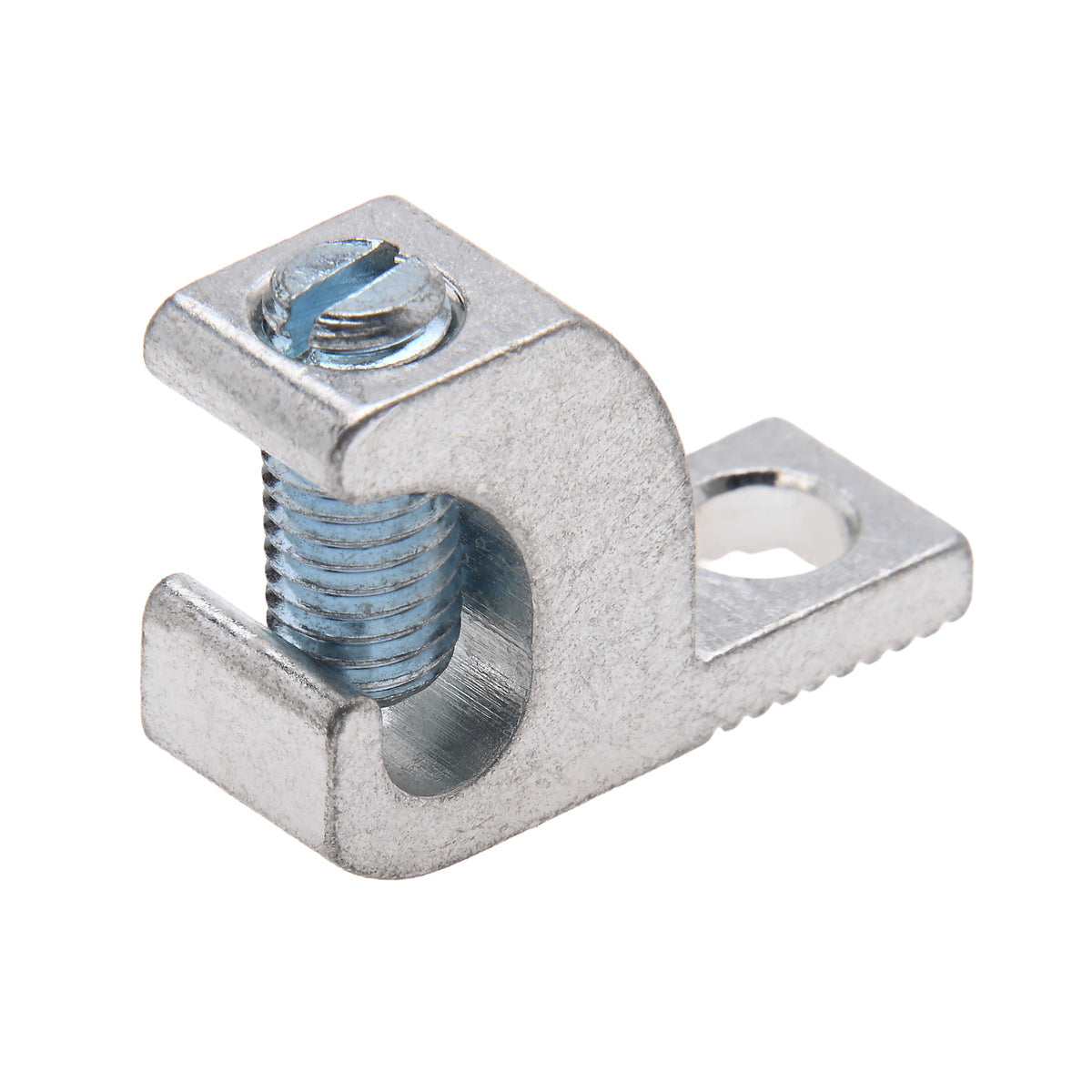

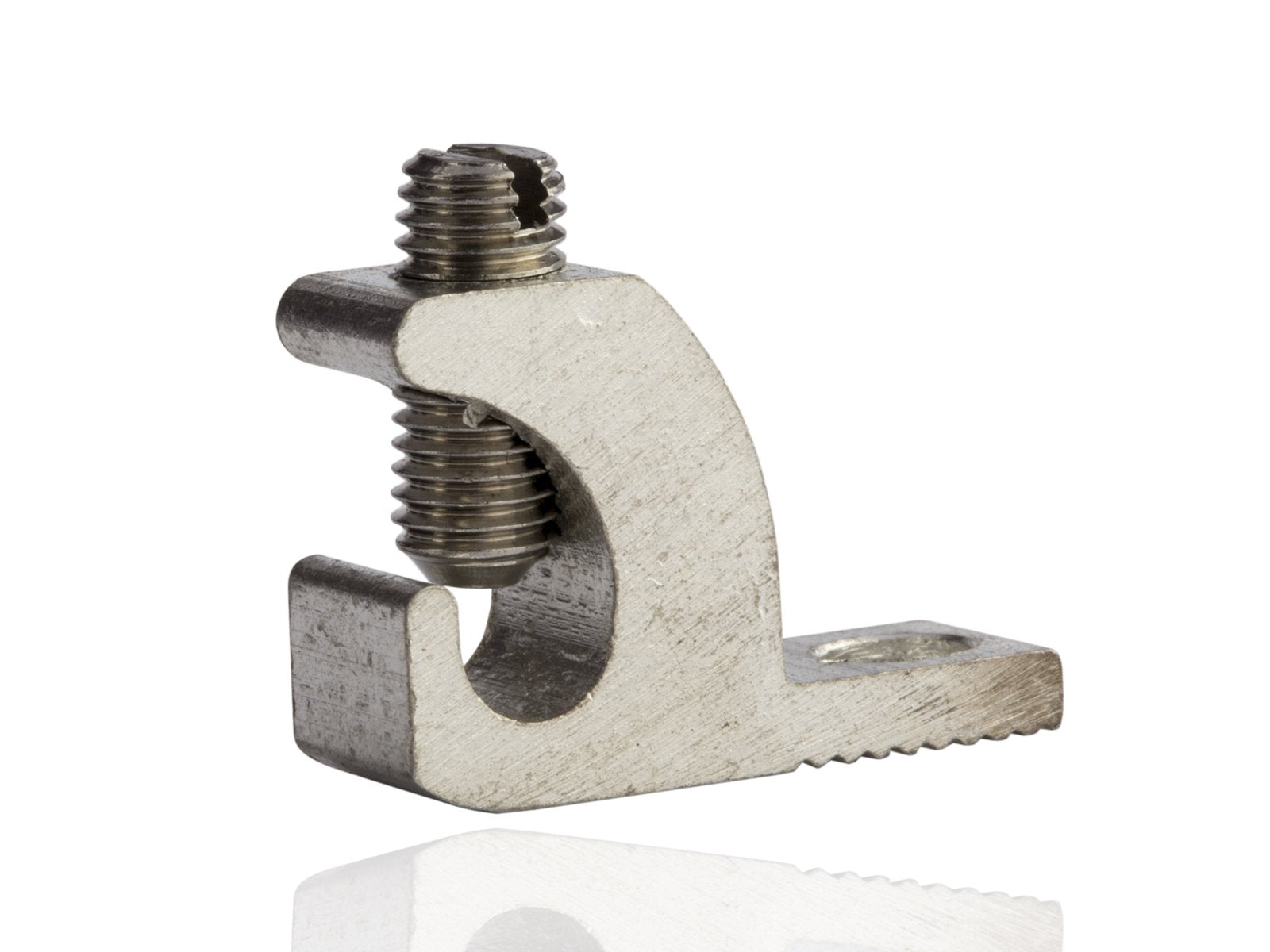

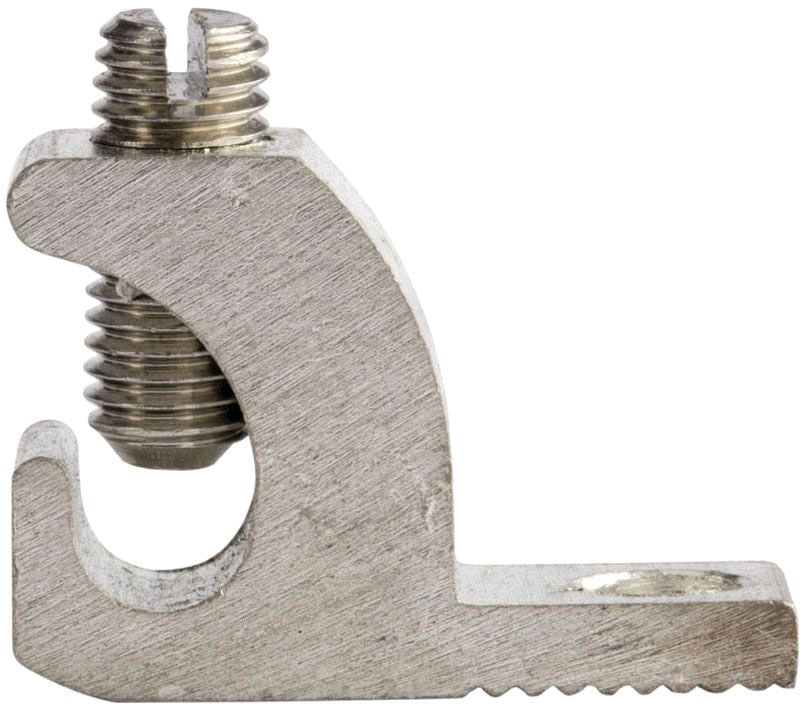

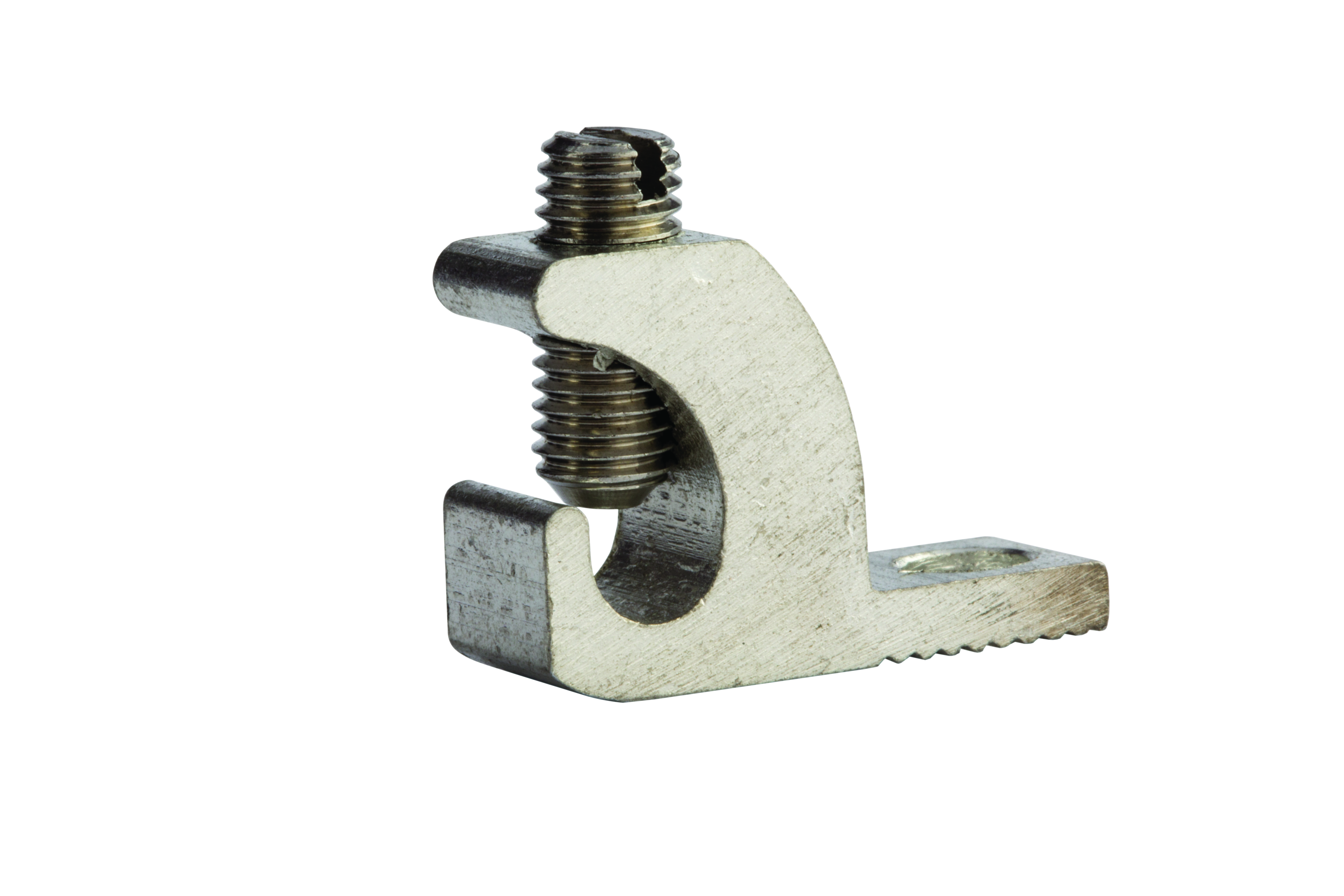

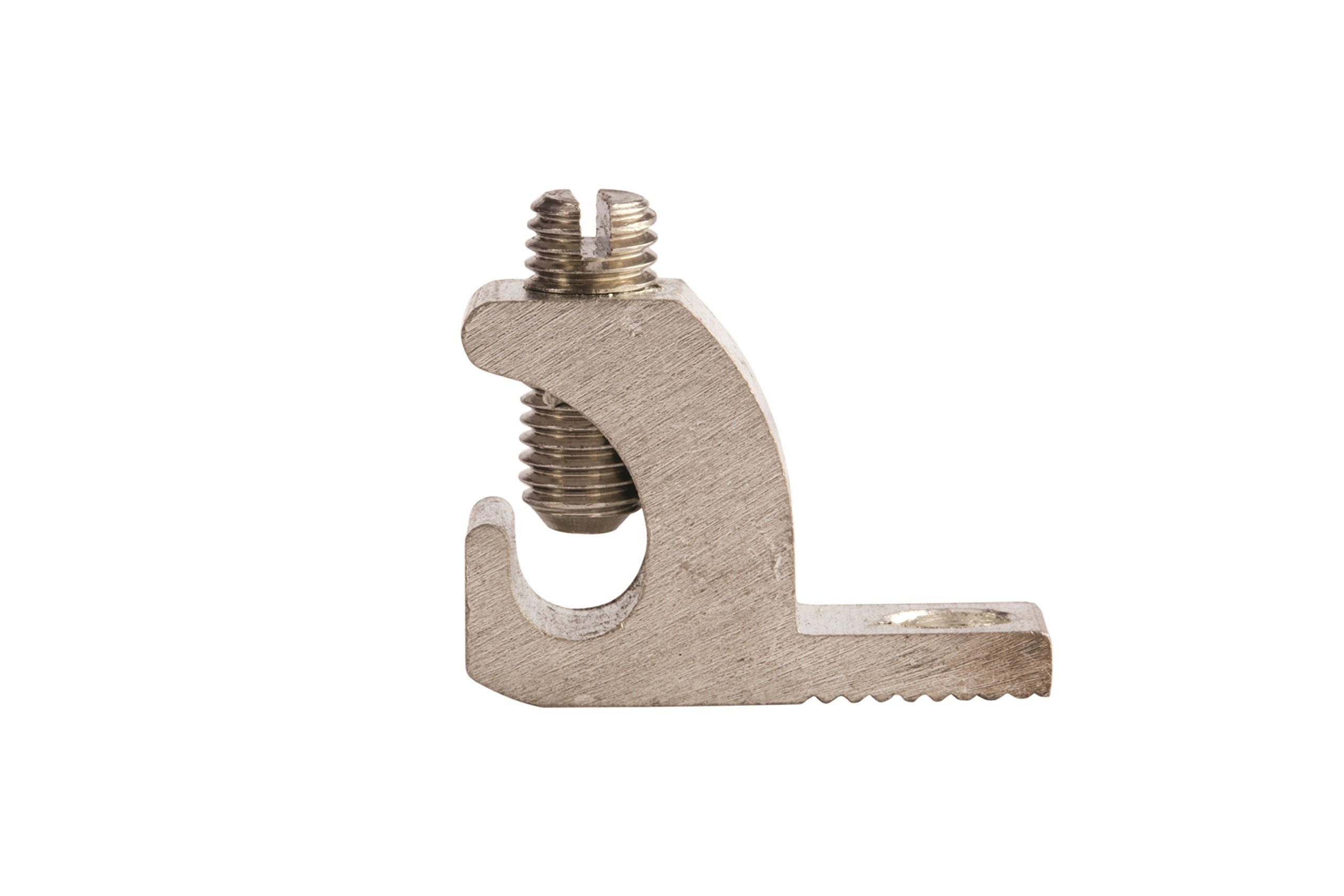

The NSI INDUSTRIES GLA-4 lay-in connector offers flexibility for grounding and continuous loop applications. Constructed from 6061T-6 aluminum alloy with electro-tin plating for low contact resistance. It is suitable for use with both copper and aluminum conductors. Rated to 600V and a max temperature of 90 degrees C.
- Lay-in connectors offer the ultimate in flexibility
- Excellent for grounding and continuous loop applications
- Made of 6061T-6 aluminum alloy
Product Highlights
The NSI GLA-4 lay-in connector is ideal for wire termination, grounding, and continuous loop applications, ensuring a reliable connection for both copper and aluminum conductors.
Product Information
Standard Information
-
Brand: NSI INDUSTRIES
-
Manufacturer Part Number: GLA-4
-
Country of Origin: India
Technical Specifications
-
Type: Dual Rated Lay-In
-
Brand: NSI Industries
-
Color: Aluminum
-
Width: 0.380 in
-
Finish: Aluminum
-
Height: 0.75 Inch
-
Length: 1.07 Inch
-
Voltage: 600 Volt
-
Material: 6061T-6 Aluminum Alloy
-
Standard: CULUS
-
Sub Brand: Mechanical Connector
-
Wire Size: 14-4 AWG
-
Wire Type: AL/CU
-
Applications: Wire Termination
-
Conductor Size: 4 to 14 AWG
-
Max Temperature: 90 degrees C
-
Number of Poles: 1 Pole
-
Country of Origin: India
-
Temperature Rating: 90 deg C
-
Number of Conductors: 1
-
Buy American Compliant: Y
-
Environmental Conditions: 90 degrees C
-
Mounting Hole: 7/32"
-
Voltage Rating: 600 V
-
Application: Grounding and continuous loop applications
-
Screw Material: Steel
-
Mounting Base: No
-
Environmental Temperature: 90C
-
Field Application: Terminate
-
Tang Thickness: 0.15 IN
-
Conductor Type: Copper, Aluminum
-
Product Assortment: Aluminum Mechanical Terminations
-
Product Series: GLA
-
Mounting Hole Position: 0.190 IN
-
Ul Standard: UL 467
-
Assortment: Aluminum Mechanical Terminations
-
Number of Bolt Holes: 1
-
Series: GLA
-
Specifications: 1 Pole, 1 Conductor
-
Stud Size: 0.187 in
-
Tongue Size: 0.19 in L x 3/8 in W x 0.15 in T
-
Tongue Style: Straight
-
Voltage Rating (AC): 4 AWG - 14 AWG
-
Dimensions: 1.07 in L x 0.38 in W x 0.75 in H
-
MPN: GLA-4
-
Manufacturer: NSI Industries
-
PRODUCT HEIGHT (IN): 0.75
-
PRODUCT LENGTH (IN): 1.070
-
Wire Range ACSR - Main: end
-
Strip Length (in): 0.15
-
PRODUCT WIDTH (IN): 0.380
-
Drive Type: No
-
Max Temperature (C): 90
-
Min Installation Temperature (C): 90
