Nsi Industries GLA-250 Lay In Connector 250 MCM - 6 AWG

NSI INDUSTRIES
Brand: NSI INDUSTRIES
SKU: GLA-250
Availability: In Stock

Ships same day if ordered by 12 pm
$31.11
$31.11
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

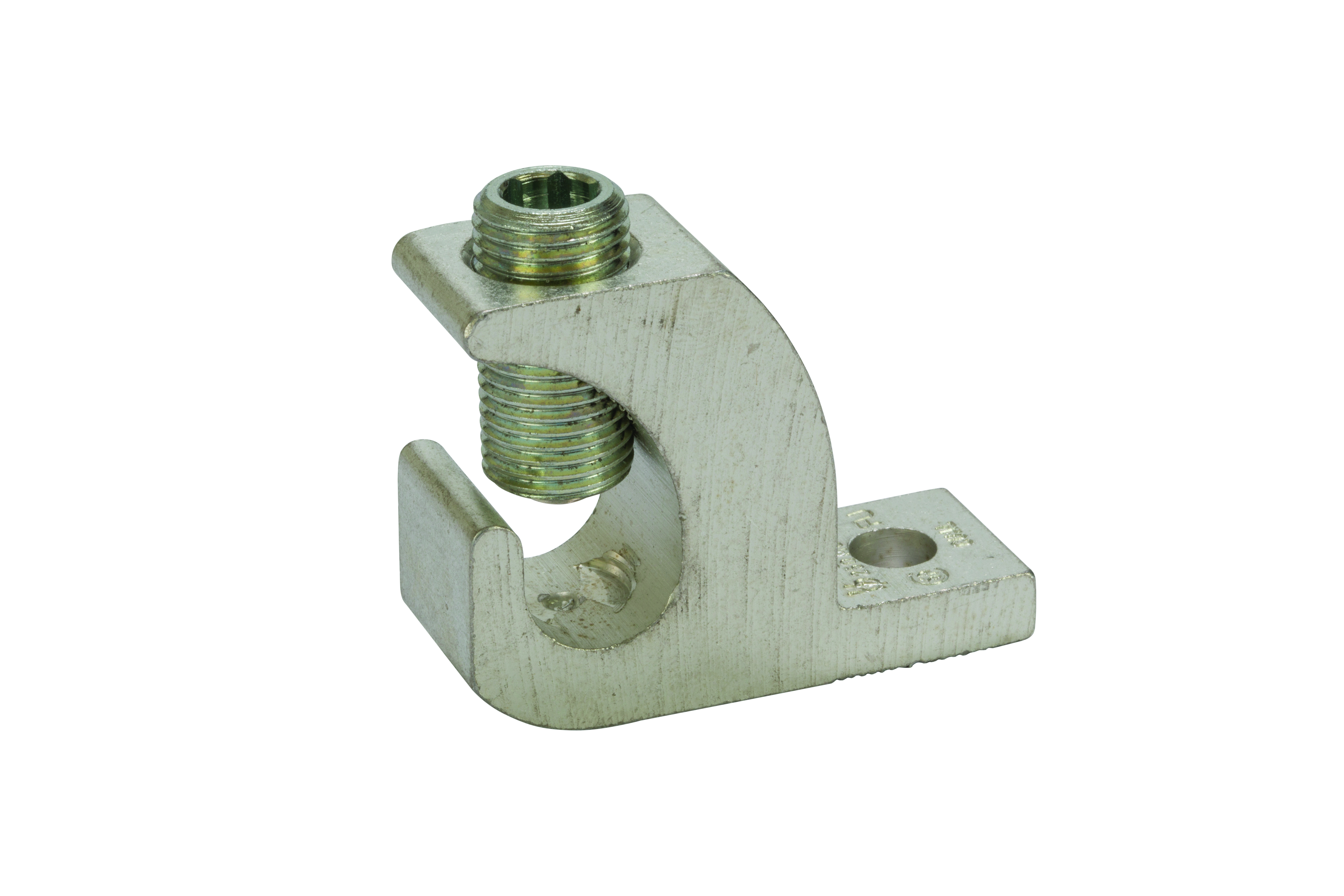

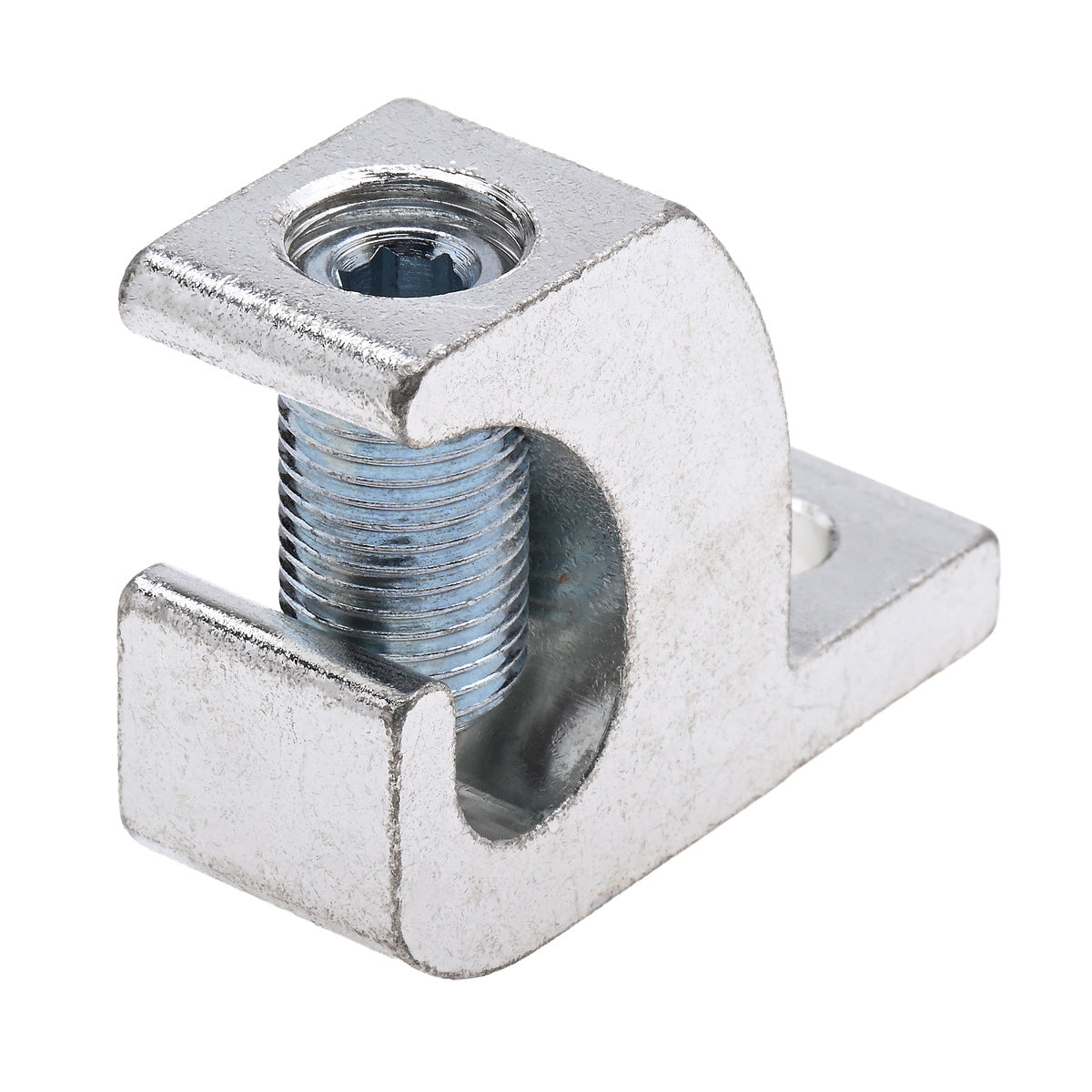

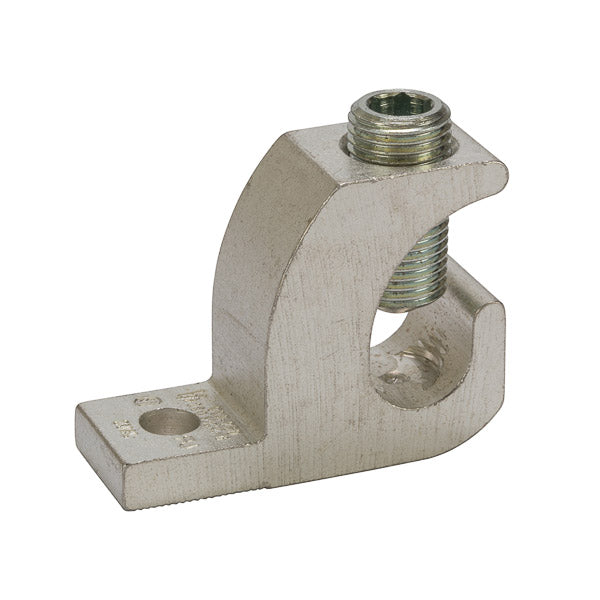

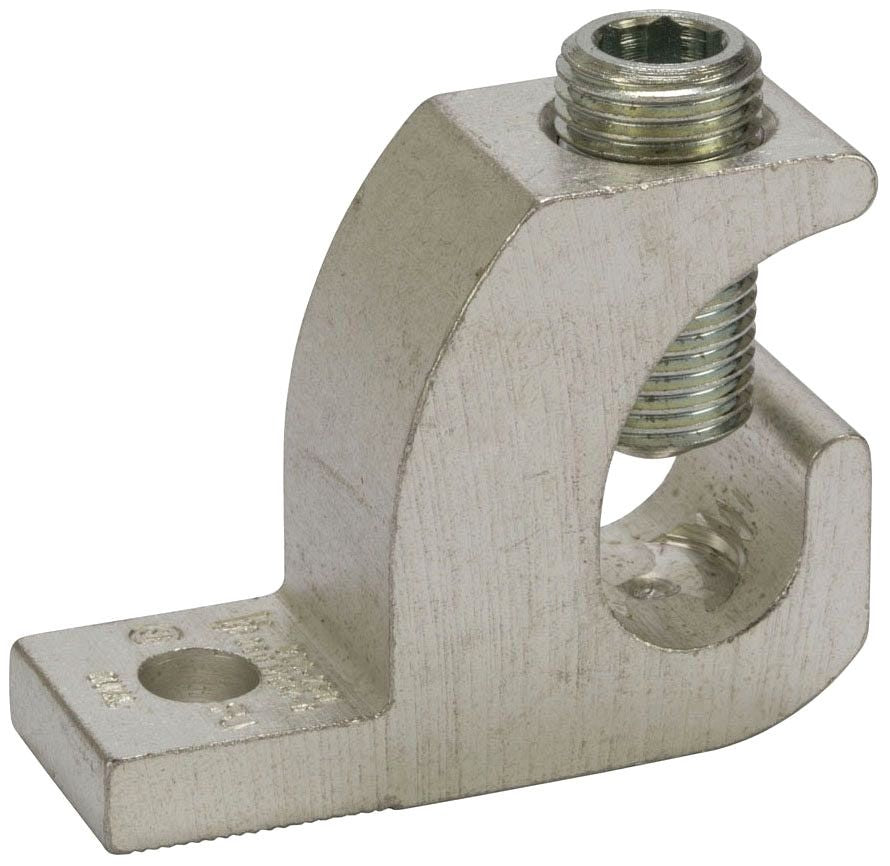

The NSI INDUSTRIES GLA-250 is a lay-in connector for termination and splicing applications, suitable for indoor and outdoor use. It is dual rated and made of 6061T-6 aluminum alloy with electro-tin plating for low contact resistance. This mechanical terminal lug is designed for use with both copper and aluminum conductors.

  • Lay-in connectors offer the ultimate in flexibility
  • Made of 6061T-6 aluminum alloy
  • Electro-tin plated for low contact resistance

Product Highlights

The NSI GLA-250 lay-in connector is ideal for grounding, continuous loop applications, and wire termination. It supports conductor sizes from 250 MCM to 6 AWG and has a voltage rating of 600V.

Product Information

Standard Information

  • Brand: NSI INDUSTRIES
  • Manufacturer Part Number: GLA-250
  • Country of Origin: India
Technical Specifications
Conductor Size
250 MCM - 6 AWG
Termination/Splice
TERMINATION
Indoor/Outdoor
INDOOR/OUTDOOR
Voltage
600 V
Application
For grounding and continuous loop applications and wire termination
Conductor Type
Aluminum/Copper
Finish
Electro-Tin Plated
Manufacturer Part Number
GLA-250
Material
6061T-6 Aluminum Alloy
Number of Bolt Holes
1
Series
GLA
Specifications
1 Pole, 1 Conductor
Standards/Approvals
ARRA Compliant|Buy American Act Compliant|PROP65: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Stud Size
3/8 in
Temperature Rating
90 deg C
Tongue Size
0.4 in L x 0.7968 in W x 0.3 in THK
Tongue Type
Straight
Type
Ground Rods and Grounding Systems
Voltage Rating
600 VAC
Length
2.200 in
Width
0.800 in
Height
1.7 in
Screw Material
Steel
Mounting Base
No
Field Application
Terminate
Max Temperature
90 C
Mounting Hole Position
0.400 IN
Product Assortment
Aluminum Mechanical Terminations
Tang Thickness
0.3 IN
Ul Standard
UL 486B
Assortment
Aluminum Mechanical Terminations
Tongue Style
Straight
Standard & Approvals
cULus, UL Listed
PRODUCT HEIGHT (IN)
1.7
PRODUCT LENGTH (IN)
2.200
PRODUCT WIDTH (IN)
0.800
PRODUCT LINE
Mechanical Terminals
PRODUCT CATEGORY
Mechanical Connectors
PRODUCT GROUP
Power Connectors and Grounding
COUNTRY OF ORIGIN
IN
PACK SIZE
1
PRODUCT NUMBER
GLA-250
PRODUCT SERIES
GLA
WIRE RANGE ACSR - MAIN
250 MCM - 6 AWG
TANG THICKNESS (IN)
0.3
STRIP LENGTH (IN)
0.3
Brand
NSI Industries
MPN
GLA-250
UPC
66238100193
Manufacturer
NSI Industries
Weight
3.20
Country of Origin
United States
