Nsi Industries GLA-000 Mechanical Lug 3/0-6awg

NSI INDUSTRIES
SKU: GLA-000
Availability: Out Of Stock
$24.82
$24.82
HAVE A QUESTION?

Our team is ready to help!

  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Product Description

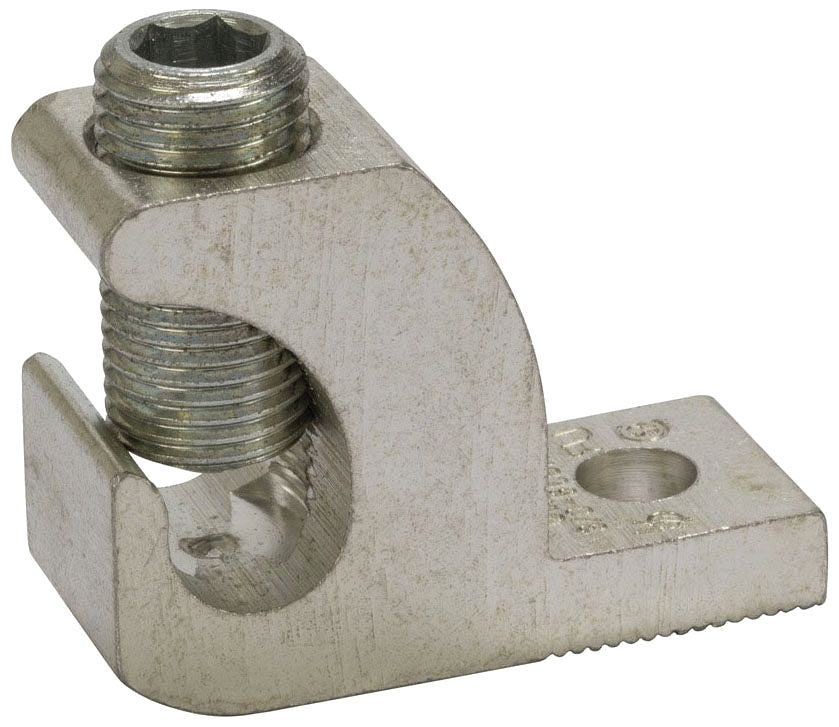

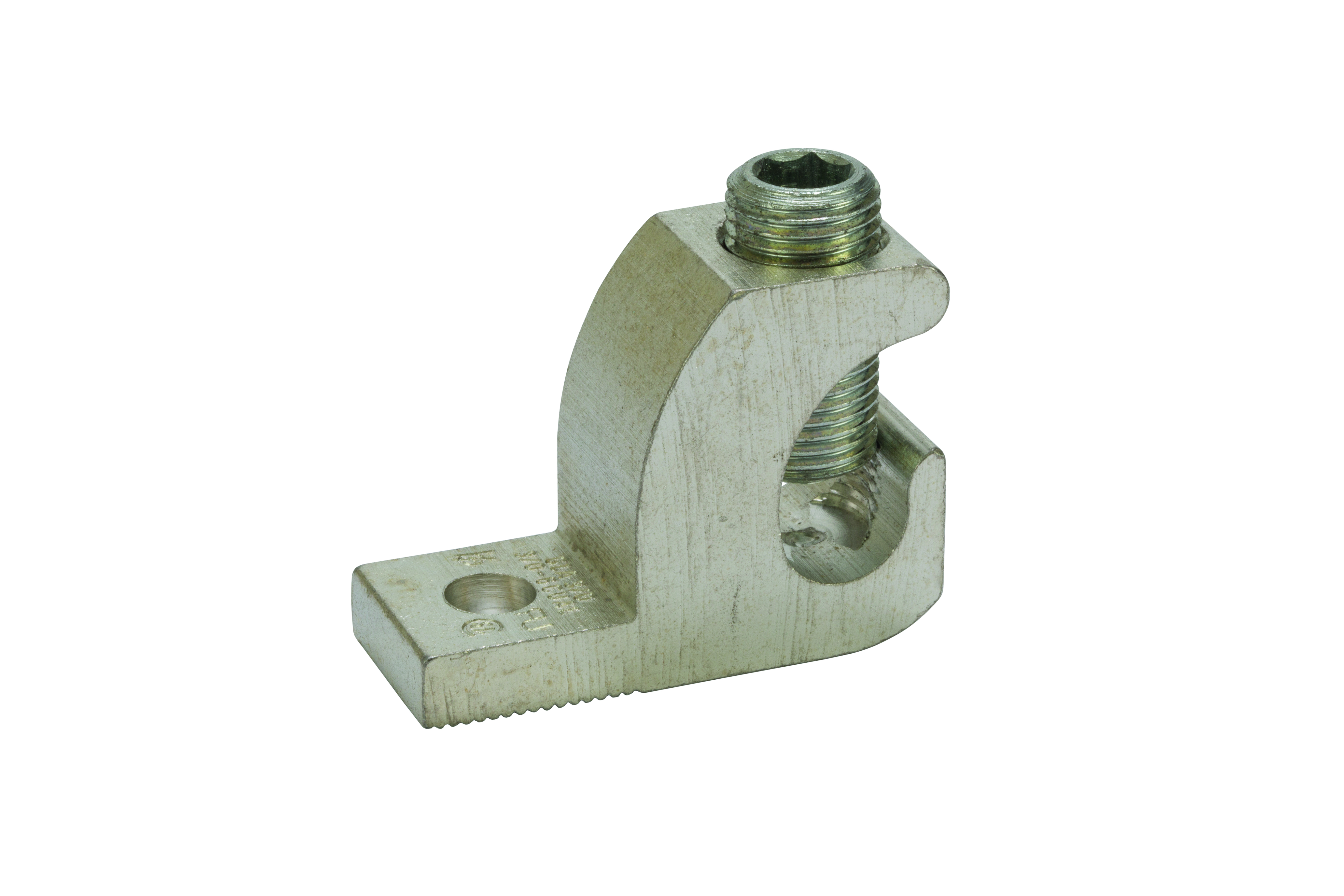

The NSI INDUSTRIES GLA-000 mechanical lug is a lay-in connector that offers flexibility for grounding and continuous loop applications. It is electro-tin plated for low contact resistance and suitable for use with copper or aluminum conductors. This mechanical cable lug is made of 6061T-6 aluminum alloy.

  • Lay-In Connectors Offer the Ultimate in Flexibility
  • Excellent for Grounding and Continuous Loop Applications
  • Electro-Tin Plated for Low Contact Resistance
  • For Use with Copper/Aluminum Conductors

Product Highlights

The NSI GLA-000 is ideal for wire termination and provides a secure and reliable connection for a range of conductor sizes.

Product Information

Standard Information

  • Brand: NSI INDUSTRIES
  • Manufacturer Part Number: GLA-000
  • Country of Origin: India
Technical Specifications
Approval
UL (Canada and US)
Conductor Material
Aluminum/Copper
Manufacturer Name
NSi Industries
Material
Aluminum Alloy
Maximum Conductor Size
3/0 AWG
Minimum Conductor Size
6 AWG
Number Of Conductors
1
Number Of Pad Holes
1
PDW ID
ECL988980
Pad Size
0.8 Inch W x 0.3 Inch Thk
Pad Type
Straight
Product UPC
66238100192
Screw Type
0.25 Inch Hex Socket
Stud Size
3/8 in
Type
Dual Rated Lay-In
Country of Origin
India
Length
2.000 in
Width
0.800 in
Height
1.5 in
Screw Material
Steel
Mounting Base
No
Wire Range
3/0 AWG - 6 AWG
Field Application
Terminate
FINISH
Tin Plated
Max Temperature
90 C
Mounting Hole Position
0.400 IN
Product Assortment
Aluminum Mechanical Terminations
Product Series
GLA
Tang Thickness
0.3 IN
VOLTAGE RATING
600 V
Conductor Type
Copper, Aluminum
Voltage Rating
600 VAC
Finish
Electro-Tin Plated
Temperature Rating
90 deg C
Dimensions
2 in L x 0.8 in W x 1.5 in H
Tongue Size
0.4 in L x 0.7968 in W x 0.3 in THK
Tongue Type
Straight
Specifications
1 Pole, 1 Conductor
Application
For Grounding and Continuous Loop Applications and Wire Termination
Standard & Approvals
cULus, UL Listed( 486A/B)
Conductor Size
6 to 3/0 AWG
