Product Description

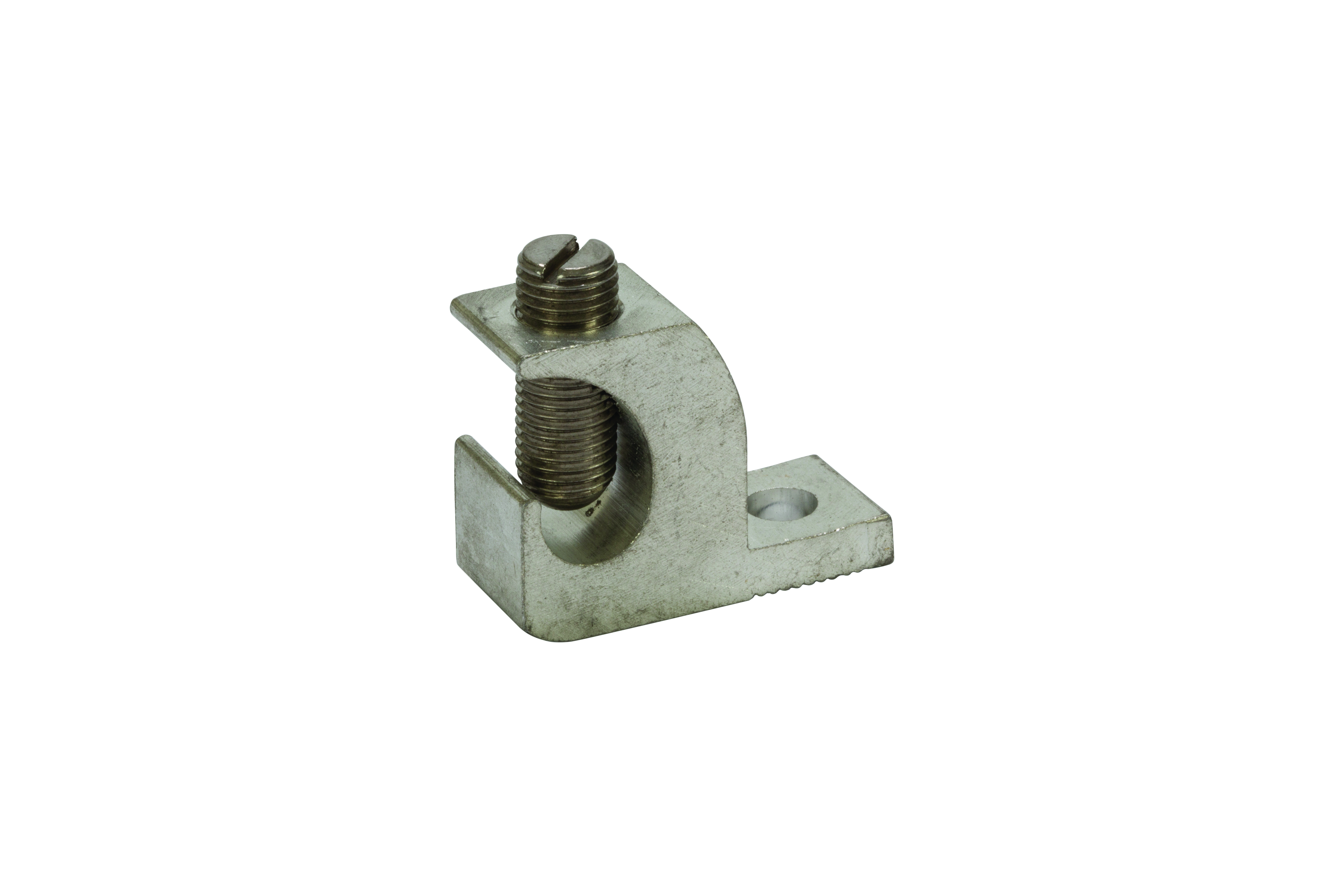

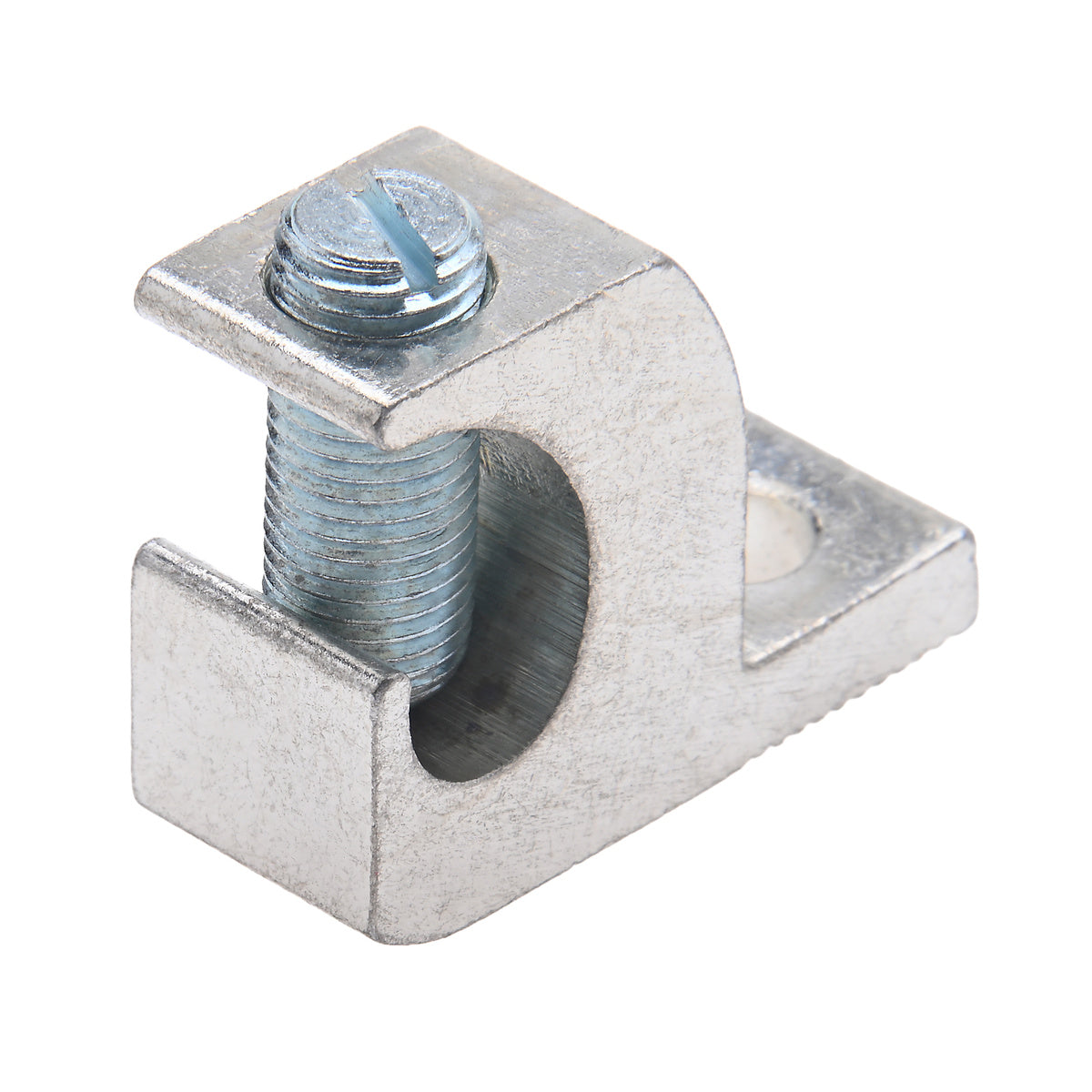

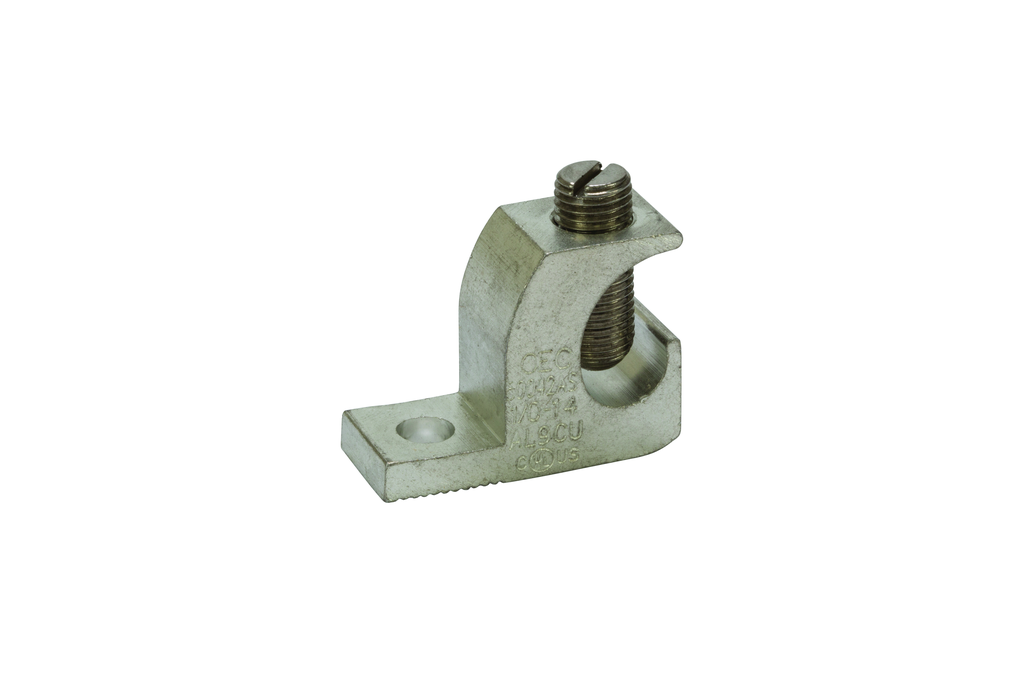

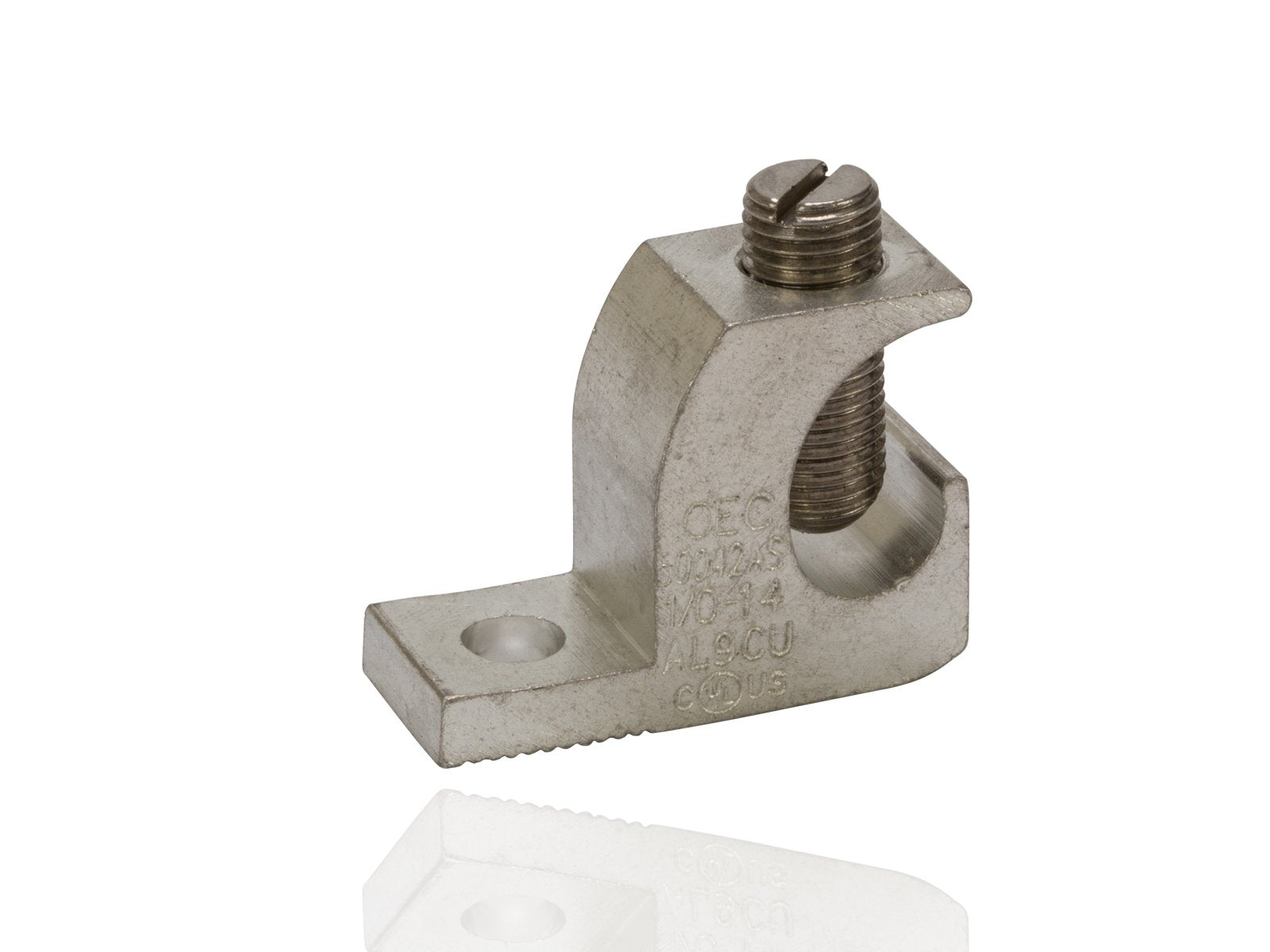

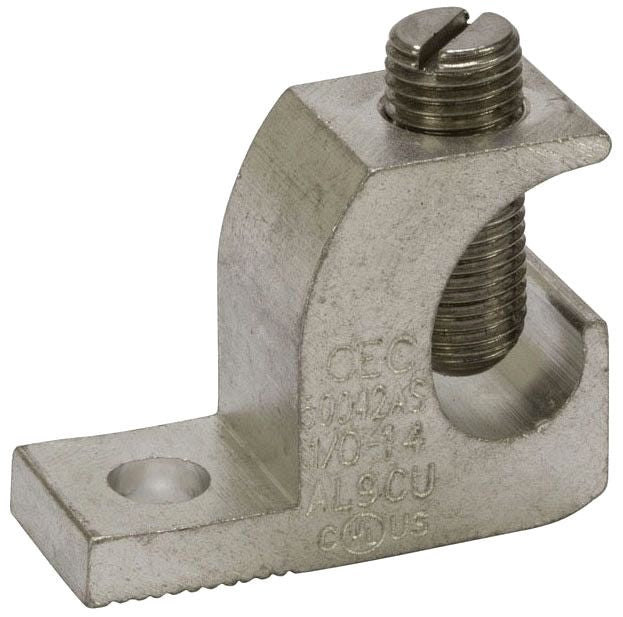

The NSI INDUSTRIES GLA-0 is a lay-in connector designed for flexibility in grounding and continuous loop applications. Constructed from 6061T-6 aluminum alloy with electro-tin plating for low contact resistance. It is suitable for use with both copper and aluminum conductors. Rated at 600V with a temperature rating of 90 degrees C.
- Lay-in connectors offer the ultimate in flexibility
- Excellent for grounding and continuous loop applications
- Made of 6061T-6 aluminum alloy
Product Highlights
Ideal for grounding and termination, this connector ensures reliable electrical connections for both indoor and outdoor applications.
Product Information
Standard Information
-
Brand: NSI INDUSTRIES
-
Manufacturer Part Number: GLA-0
-
Country of Origin: India
Technical Specifications
-
Conductor Size: 1/0-8
-
Termination/Splice: TERMINATION
-
Indoor/Outdoor: INDOOR/OUTDOOR
-
Voltage: 600V
-
UNSPSC Code: 39121400
-
Type: Aluminum Lay-In Lug
-
Brand: NSI Industries
-
Width: 0.600 in
-
Finish: Tin Plated
-
Height: 1.1 Inch
-
Length: 1-1/2 Inch
-
Material: 6061T-6 Aluminum Alloy
-
Standard: CULUS
-
Sub Brand: Mechanical Connector
-
Wire Size: 8-0 AWG
-
Wire Type: AL/CU
-
Product UPC: 66238100191
-
12-Digit UPC: 662381001917
-
Applications: Wire Termination
-
Max Temperature: 90 degrees C
-
Number of Poles: 1 Pole
-
Country of Origin: India
-
Temperature Rating: 90 degrees C
-
Number of Conductors: 1
-
Buy American Compliant: Y
-
Environmental Conditions: 90 degrees C
-
Mounting Hole: 17/34"
-
Application: grounding and continuous loop
-
Screw Material: Steel
-
Mounting Base: No
-
Field Application: Terminate
-
Product Assortment: Aluminum Mechanical Terminations
-
Product Series: GLA
-
Tang Thickness: 0.22 IN
-
VOLTAGE RATING: 600 V
-
Conductor Type: Copper, Aluminum
-
Number of Ports: 1
-
Compatible Wire Gauge (AWG): 1-5
