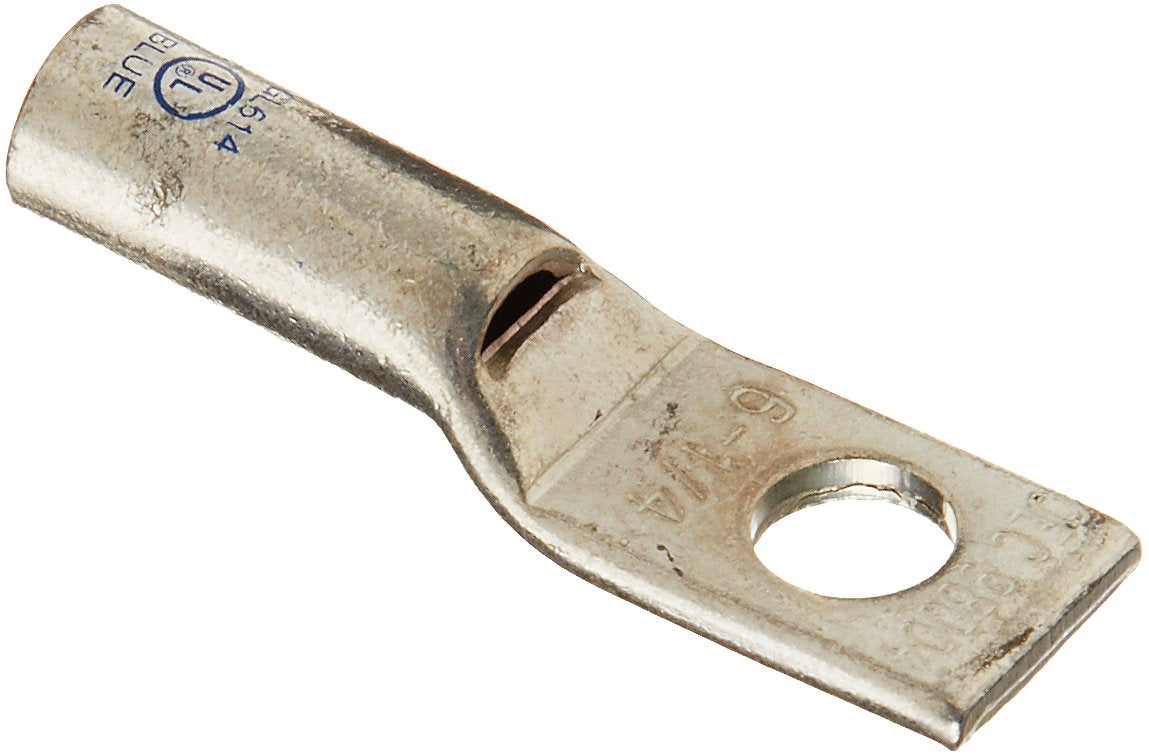

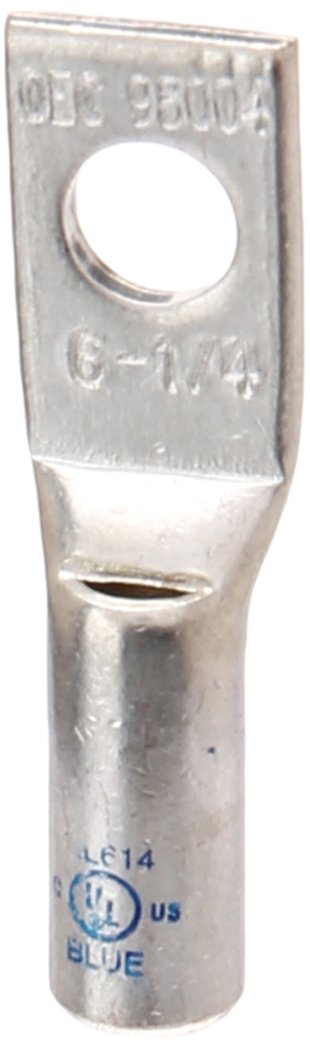

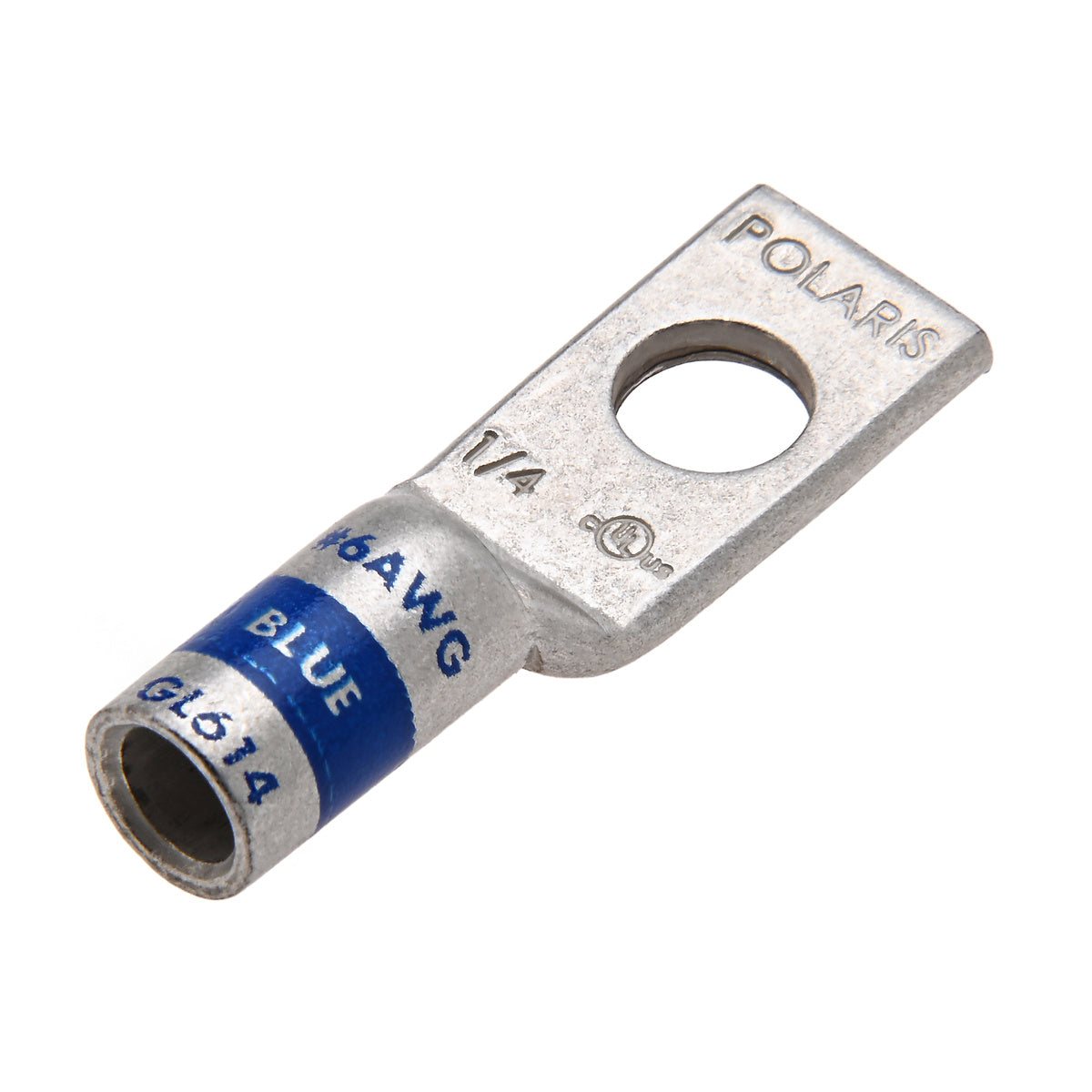

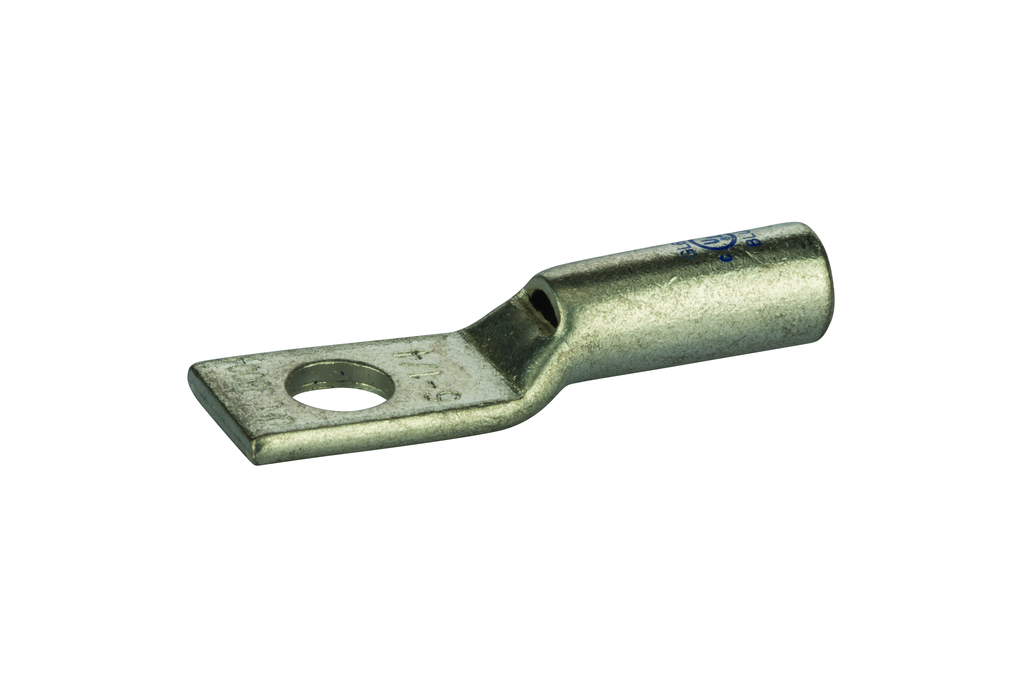

The NSI INDUSTRIES GL614 copper compression short lug features a standard installation hole, sized for 1/4" mounting bolts, and a chamfered port to terminate a 6 AWG conductor. Connectors are made from tin-plated copper for improved conductivity and corrosion resistance. It is suitable for power distribution, grounding and data transmission.
- Strong Conductivity - Produced from high-conductivity copper tubing
- Corrosion-Resistant - Tin-plated to provide corrosion and low-contact resistance
- Die-Indexed - Marked with die index and color-coded blue
Product Highlights
The NSI GL614 compression lug allows easy inspection of the termination to assure complete cable insertion and is listed for 35 kV maximum when properly installed.
Product Information
Standard Information
-
Brand: NSI INDUSTRIES
-
Manufacturer Part Number: GL614
-
Country of Origin: India
Technical Specifications
-
Barrel: SHORT
-
Bolt Hole: 1/4 INCH
-
Gauge: 6 AWG
-
Holes: 1 HOLE
-
Lug Material: COPPER
-
Type: 1-Hole
-
Brand: NSI Industries
-
Finish: Tin Plated
-
Voltage: 600 Volt
-
Material: Copper
-
Standard: UL486
-
Stud Size: 1/4 in
-
Sub Brand: Copper Compression
-
Cable Size: 6 AWG
-
Applications: Terminate, Splice, Tap Power Connectors
-
Mounting Type: 1/4 Mounting Hole
-
Max Temperature: 194 degrees F
-
Number of Holes: 1 Hole
-
Environmental Conditions: 90 degrees C
-
ECCN: EAR99
-
Country of Origin: India
-
Lug Wire Size: 6 AWG
-
Strip Length: 15/16"
-
Outer Diameter: 0.30"
-
Thickness: 0.08"
-
WIRE RANGE: 6 AWG
-
EXPANDED WIRE RANGE: 6-8 AWG
-
COLOR CODE: Blue
-
BOLT SIZE: 1/4
-
ID: 0.205
-
OD: 0.295
-
END OF CONN. TO CTR.: 0.295
-
TANG LENGTH: 0.669
-
BARREL LENGTH: 0.709
-
TANG THICKNESS: 0.083
-
MTG. HOLE DIA.: 0.252
-
Item [Specifications]: One-Hole Lug Compression Connector
-
Width [Specifications]: 0.421"
-
Length [Specifications]: 1.496"
-
Material [Specifications]: Tin-Plated High Conductivity Copper
-
Cable Size [Specifications]: 6 AWG
-
Color Code [Specifications]: Blue
-
Connector Type [Specifications]: Short Barrel with Peep Hole
-
Country of Origin (subject to change) [Specifications]: India
-
Voltage Rating: 600 VAC
-
Ul Standard: UL 486A-486B, UL467
-
Wire Cable Class: Class B, Class C
-
Conductor Type: Copper
-
Tang Thickness: 0.08
-
Tang Length: 0.67
-
Assortment: Copper Compression Terminations
-
Die Color Code: Blue
-
Mounting Bolt Size: 1/4
-
Mounting Hole Diameter: 0.25
-
Barrel Style: Short
-
Catalog ID: NSIGL614
-
Conductor Size: 6 AWG
-
Temperature Rating: 90 deg C
-
Tongue Size: 0.67 in L x 0.42 in W x 0.08 in THK
-
Application: For Terminate, Splice and Tap Power Connectors
-
Standards: UL486, CUL Listed
-
Size: 1.500 inch L x 0.420 inch W
-
No. of Holes: 1
