Nsi Industries GL60048 Lug Short 600 MCM 1/2 Bolt

Product Description

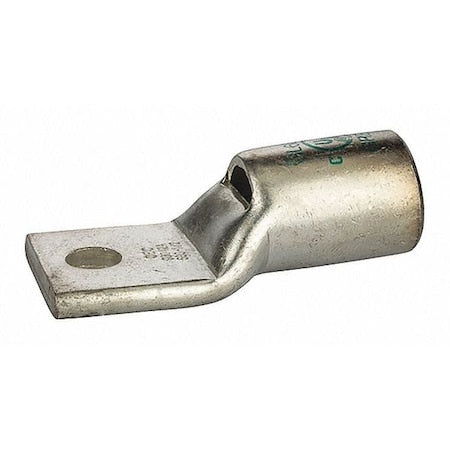

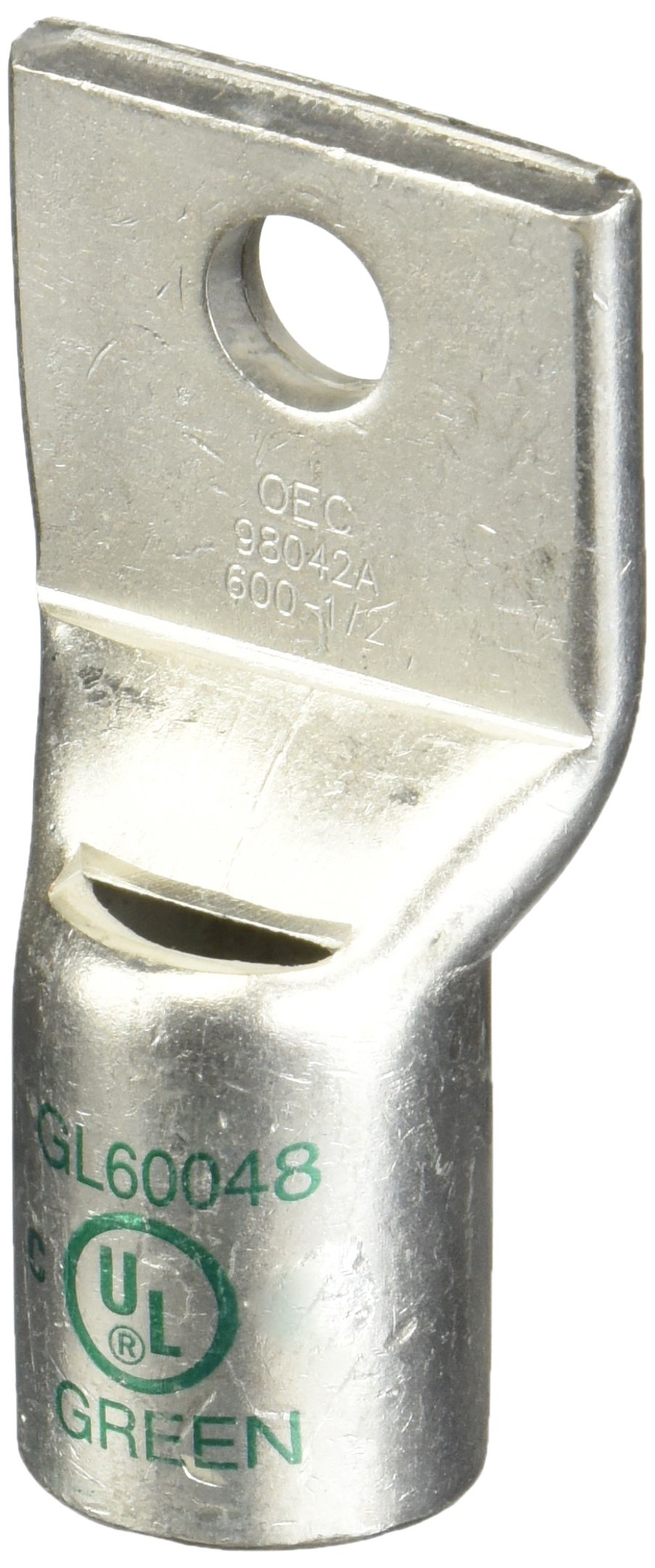

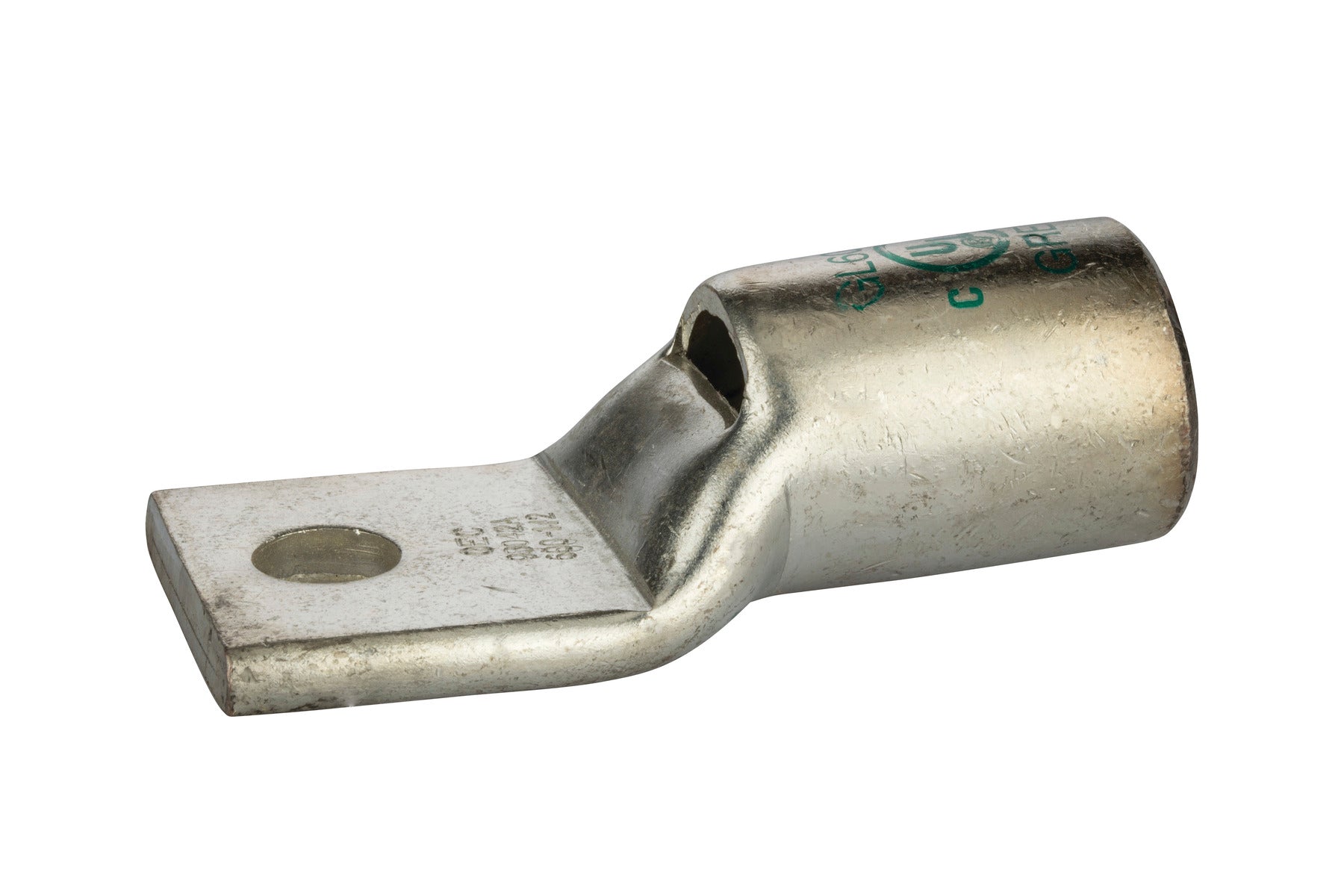

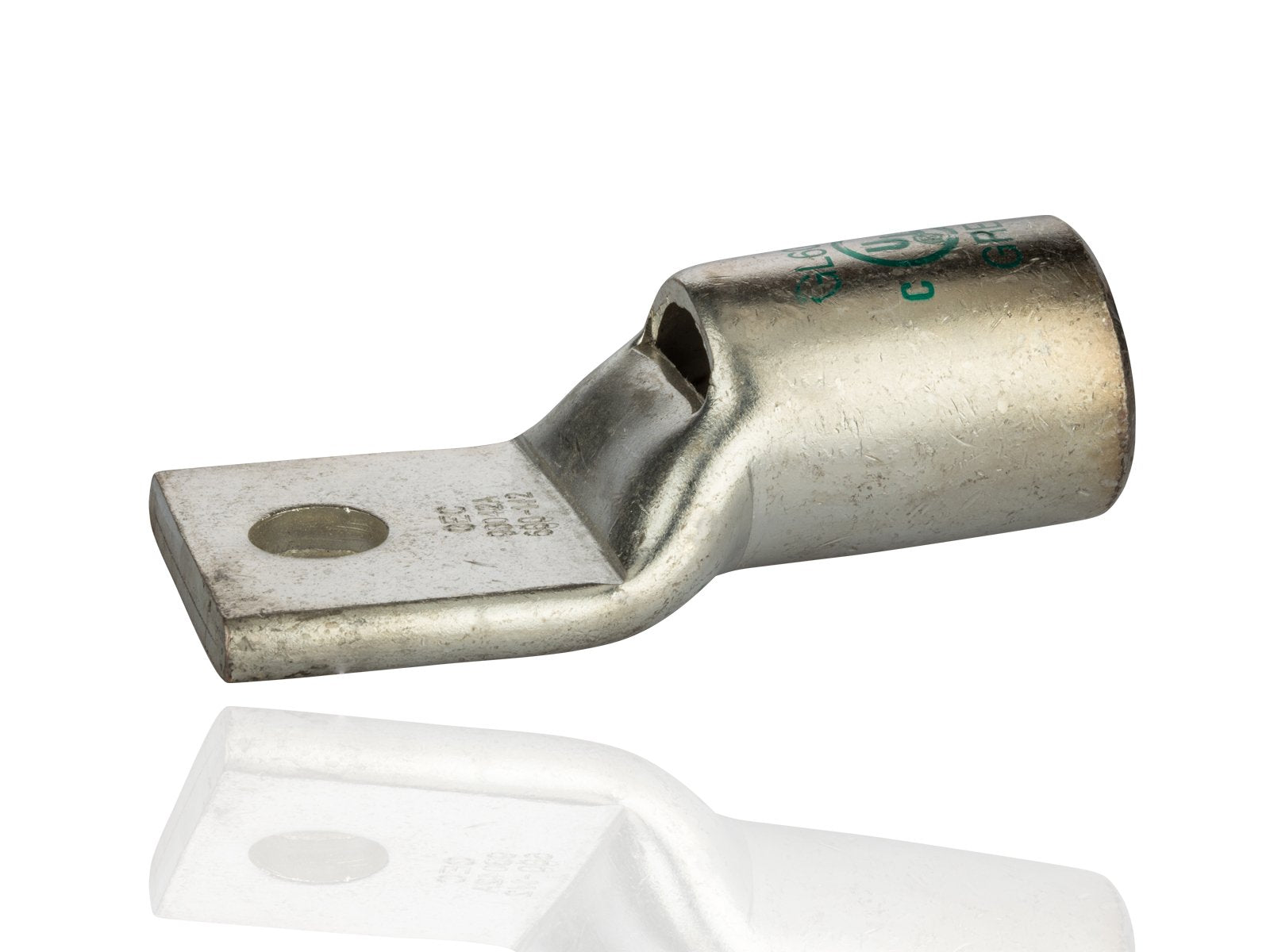

The NSI Industries GL60048 is a high-conductivity copper compression lug designed for reliable electrical connections. Manufactured from premium copper tubing, this short barrel lug features a tin plating that enhances corrosion resistance and ensures low contact resistance for optimal performance. Its single-hole mounting design uses a 1/2" bolt.

• Constructed from high-conductivity copper tubing for superior electrical performance.
• Tin-plated finish provides excellent corrosion resistance and low contact resistance.
• Peep hole allows for visual confirmation of complete cable insertion.

Product Highlights

This lug is rated for 35kV maximum when properly installed, making it suitable for high-voltage applications exceeding 2000V. It is UL486A Listed and cULus Listed (155027).

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: GL60048
• Country of Origin: India

Technical Specifications

• QUANTITY: 1 Count
• RATED: 35KV Max
• HOLES: 1
• WIRE RANGE: 600 MCM
• EXPANDED WIRE RANGE: 600-250 MCM
• COLOR CODE: Green
• BOLT SIZE: 1/2
• ID: 0.925
• OD: 1.189
• LENGTH: 3.504
• WIDTH: 1.717
• END OF CONN. TO CTR.: 0.520
• TANG LENGTH: 1.457
• BARREL LENGTH: 1.496
• TANG THICKNESS: 0.252
• MTG. HOLE DIA.: 0.512
• Brand: NSI
• Manufacturer: NSi Industries
• Model / MPN: GL60048
• Item [Specifications]: One-Hole Lug Compression Connector
• Material [Specifications]: Tin-Plated High Conductivity Copper
• Cable Size [Specifications]: 600 MCM
• Connector Type [Specifications]: Short Barrel with Peep Hole
• Voltage Rating: 600 VAC
• Material: Copper
• Finish: Tin Plated
• UNSPSC: 39121405
• Ul Standard: UL 486A-486B
• Wire Cable Class: Class B, Class C
• Conductor Type: Stranded
• Mounting Bolt Size: 1/2
• Mounting Hole Diameter: 0.51
• Assortment: Copper Compression Terminations
• Die Color Code: Green
• Stud Size: 1/2 in
• Conductor Size: 600 kcmil
• Barrel Type: Short
• Barrel Size: 0.93 in ID x 1.19 in OD x 1.5 in L
• Tongue Size: 1.46 in L x 1.72 in W x 0.25 in THK
• Temperature Rating: 90 deg C
• Mounting Hole Size: 1/2 in
• Overall Length: 3-1/2 in
• Type: 1-Hole
• Series: GL Series
• Height: 1.189 in
• Application: Terminate, Splice, Tap Power Connectors
• Environmental Conditions: 90 C
• Mounting: 1/2 Mounting Hole
• Number Of Holes: 1
• Size: L=3.50 - W=1.72 - OD=1.19 - ID=.930
• Special Features: 600 MCM (STR) - 1/2 Mounting Hole
• Standard: UL486A/B
