Product Description

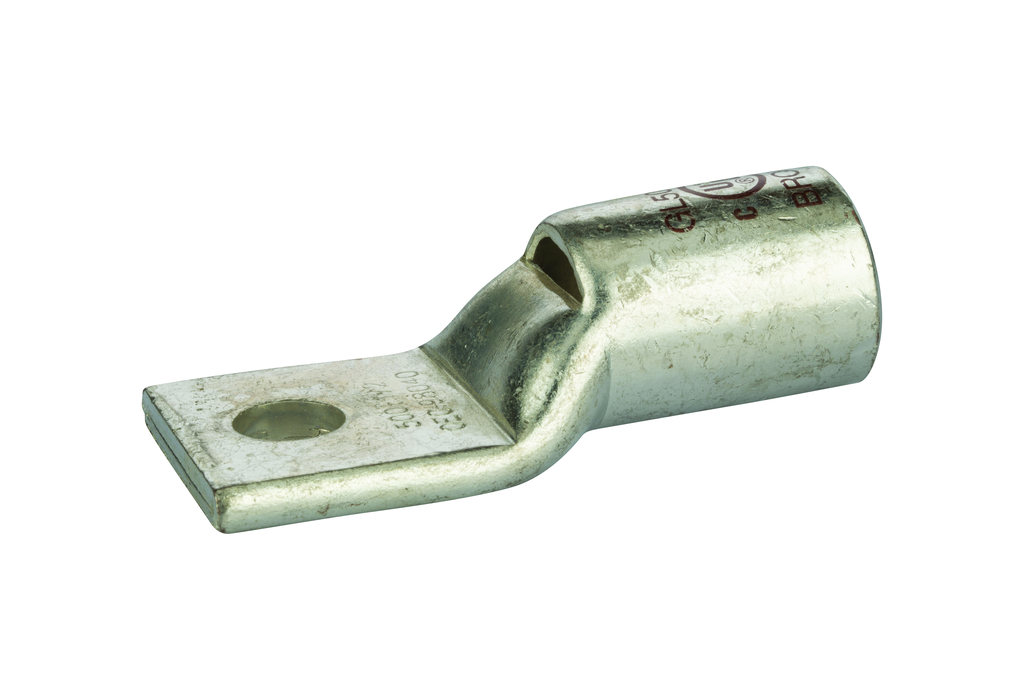

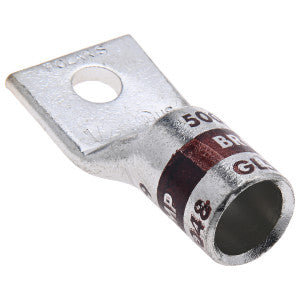

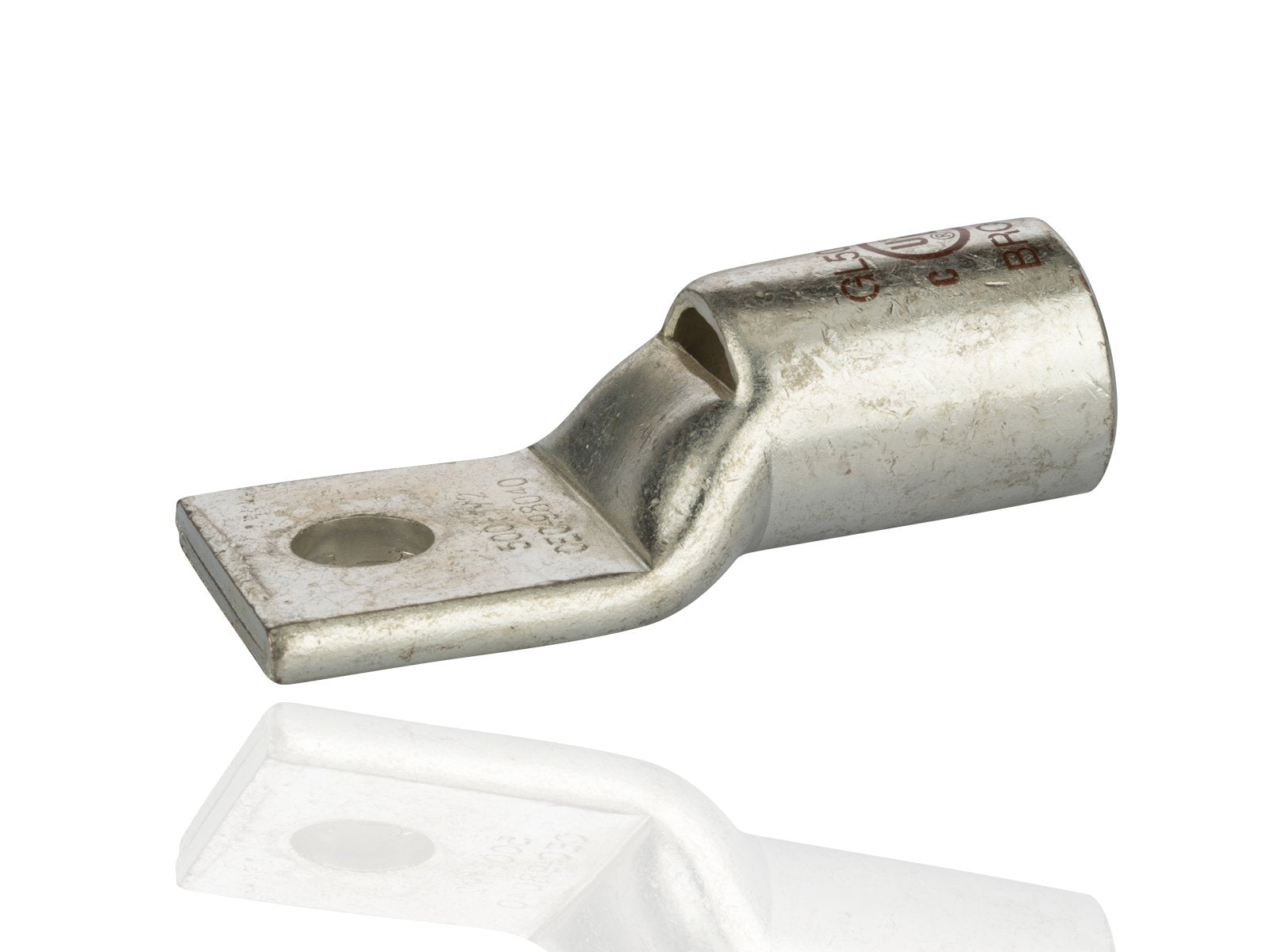

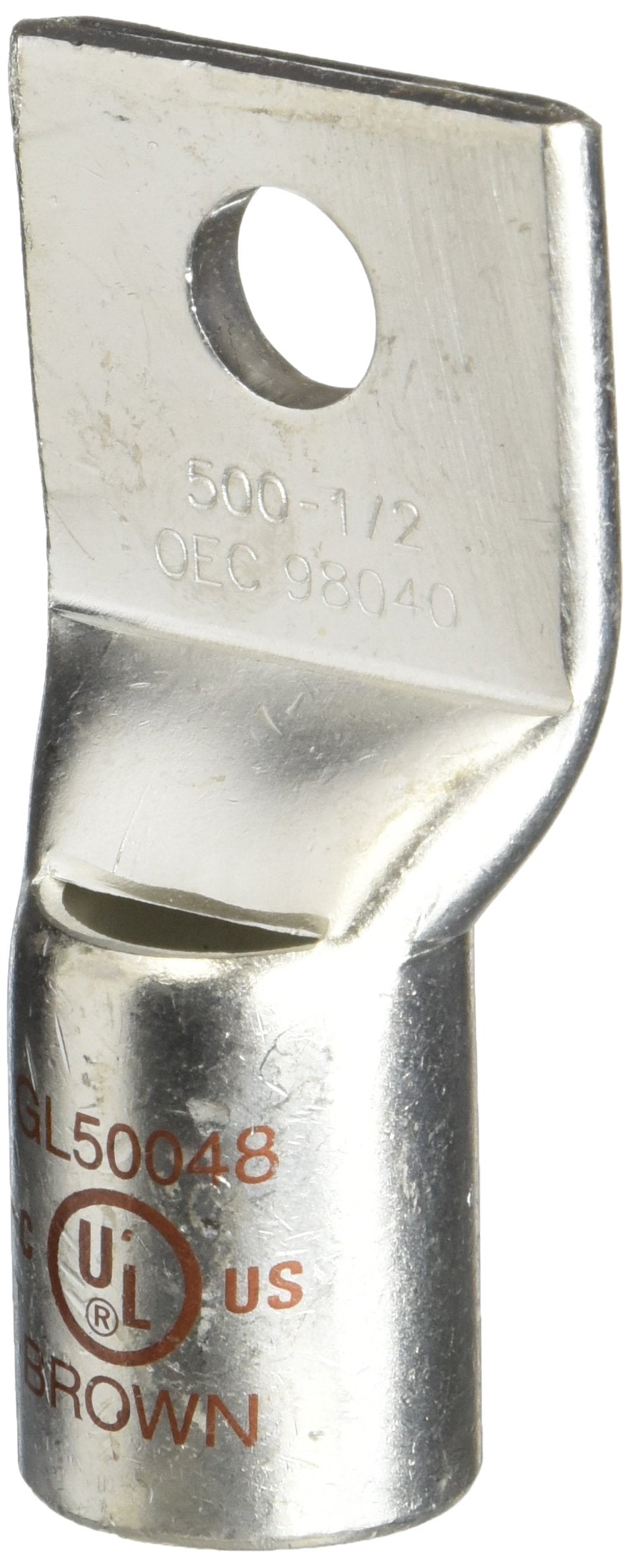

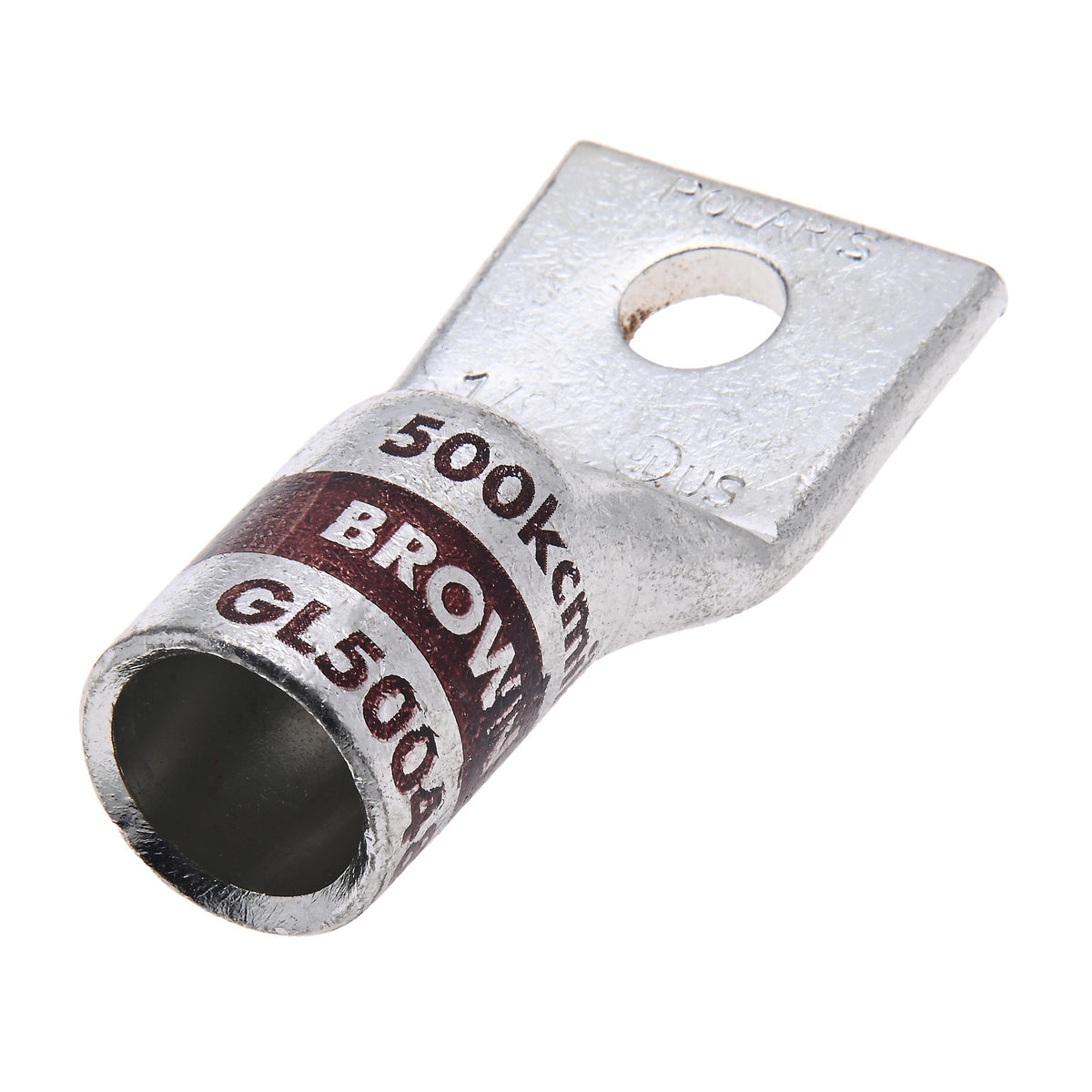

The NSI INDUSTRIES GL50048 copper compression short lug features a standard installation hole, sized for 1/2 mounting bolts, and a chamfered port to terminate a 500 MCM conductor. Made from tin-plated copper for improved conductivity and corrosion resistance. Installs easily with just a crimp tool.
- Strong Conductivity - Produced from high-conductivity copper tubing
- Corrosion-Resistant - Tin-plated to provide corrosion and low-contact resistance
- Die-Indexed - Marked with die index and color-coded brown
Product Highlights
The NSI GL50048 is ideal for secondary power distribution in buildings, power plants, industrial applications or with electrical equipment.
Product Information
Standard Information
-
Brand: NSI INDUSTRIES
-
Manufacturer Part Number: GL50048
-
Country of Origin: India
Technical Specifications
-
GTIN: 00662381036186
-
Size: 500 MCM
-
Type: Short Barrel - One Hole
-
Brand: NSI Industries
-
Width: 0.22 in
-
Finish: Tin Plated
-
Height: 1.06 Inch
-
Length: 1.38 Inch
-
Voltage: 600 Volt
-
Material: Copper
-
Standard: UL486
-
Stud Size: 1/2 in
-
Sub Brand: Copper Compression
-
Cable Size: 500 MCM
-
Product UPC: 66238103618
-
12-Digit UPC: 662381036186
-
Applications: Terminate, Splice, Tap Power Connectors
-
Mounting Type: 1/2 Mounting Hole
-
Max Temperature: 194 degrees F
-
Number of Holes: 1 Hole
-
Country of Origin: India
-
Environmental Conditions: 90 degrees C
-
ECCN: EAR99
-
UNSPSC: 39121405
-
Model / MPN: GL50048
-
QUANTITY: 1 Count
-
RATED: 35KV Max
-
HOLES: 1
-
WIRE RANGE: 500 MCM
-
EXPANDED WIRE RANGE: 500-250 MCM
-
COLOR CODE: Brown
-
BOLT SIZE: 1/2
-
ID: 0.835
-
OD: 1.063
-
END OF CONN. TO CTR.: 0.520
-
TANG LENGTH: 1.378
-
BARREL LENGTH: 1.378
-
TANG THICKNESS: 0.217
-
MTG. HOLE DIA.: 0.512
-
BRAND EQUIVALENT: Penn Union BLU050S2Panduit LCA500-12-6Burndy YA34L6Ilsco CRA500-12Thomas & Betts 54117Morris Products 94094
-
Voltage Rating: 35kV
-
Pack Qty: 6
-
Wire Cable Class: Class B, Class C
-
Conductor Type: Copper
-
Mounting Bolt Size: 1/2
-
Mounting Hole Diameter: 0.51
-
Ul Standard: UL 486A-486B
-
No. of Holes: 1
-
Lug Type: Compression
-
Make: NSI Industries
-
Model: GL50048
-
Rated Voltage: 600 V
-
Color Family: Brown
-
Barrel Size: 0.83 in ID x 1.06 in OD x 1.38 in L
-
Barrel Type: Short
-
Conductor Size: 500 kcmil
-
Temperature Rating: 90 deg C
-
Tongue Size: 1.38 in L x 1.54 in W x 0.22 in THK
-
Overall Length: 3.28 in
-
Series: GL Series
