Nsi Industries GL35048 Copper Compression Lug 350 MCM 1/2 inch

Product Description

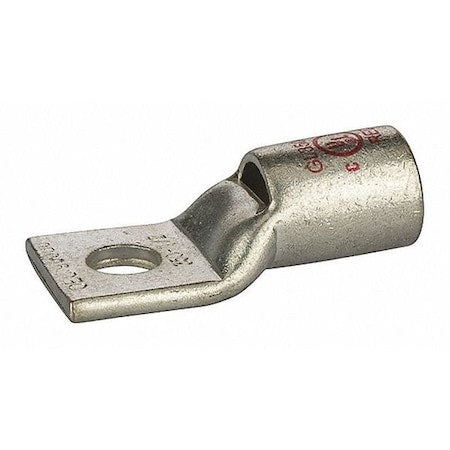

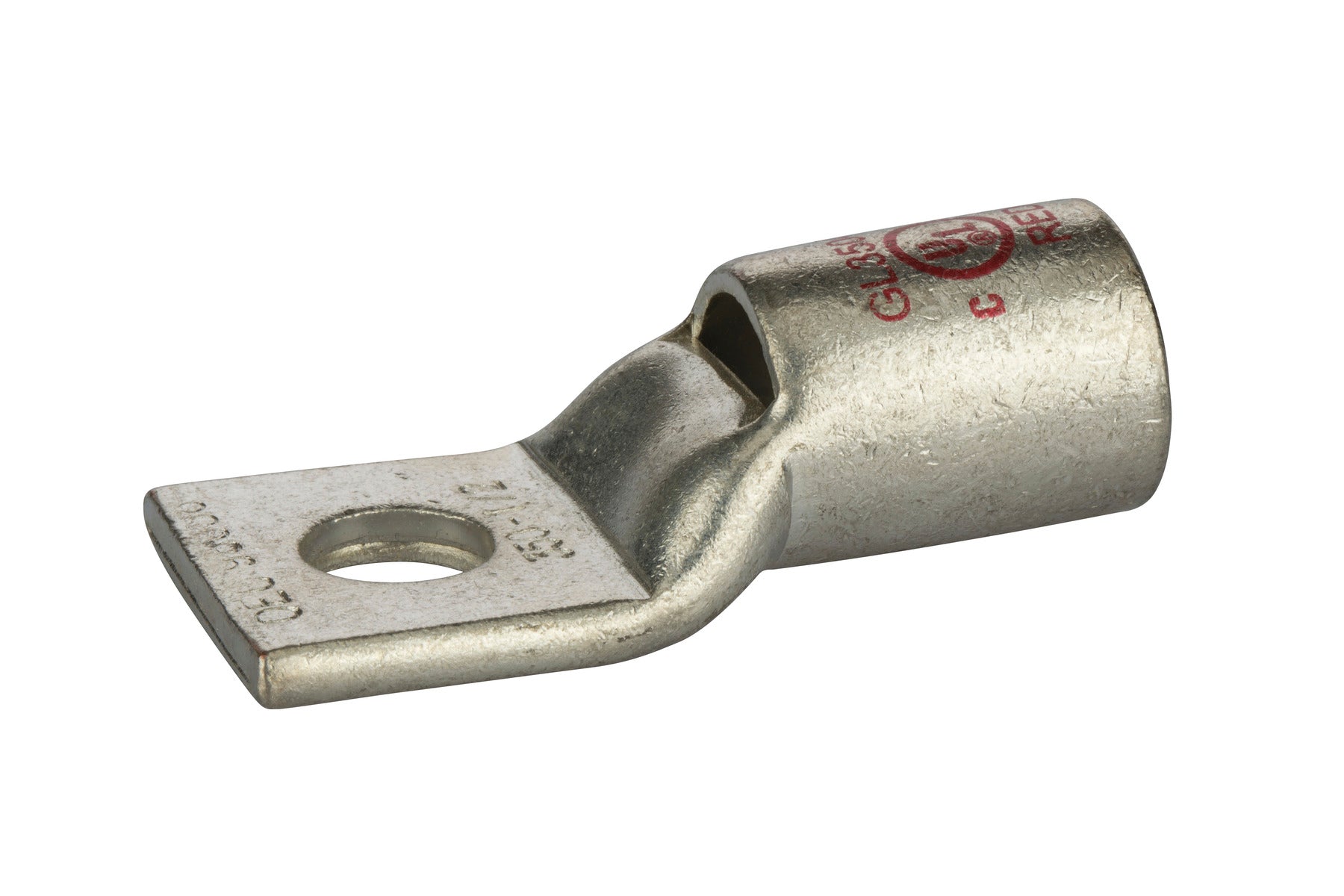

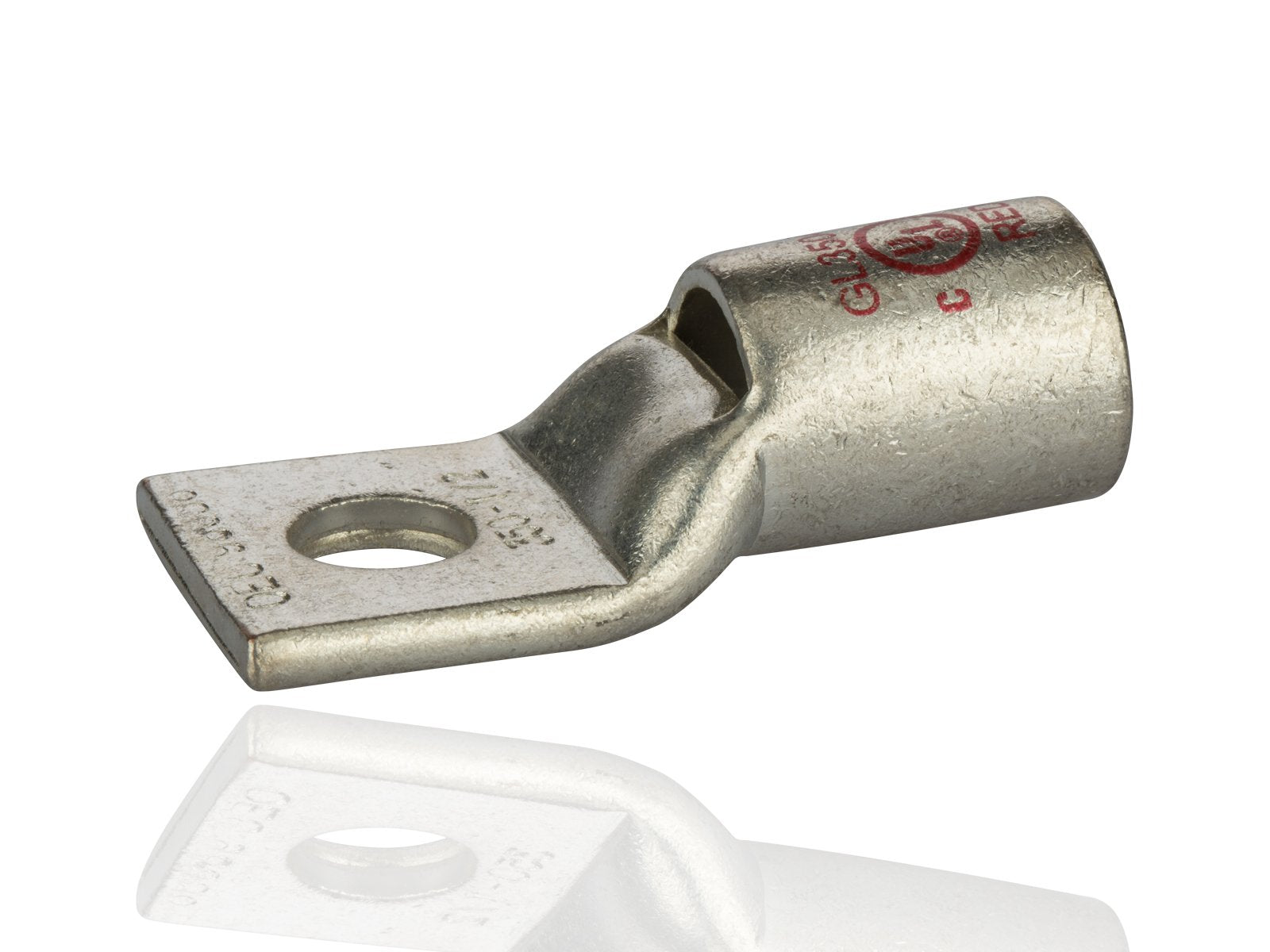

The NSI INDUSTRIES GL35048 Copper Compression Short Lug features a standard installation hole, sized for 1/2 mounting bolts, and a chamfered port to terminate a 350 MCM conductor. Connectors are made from tin-plated copper for improved conductivity and corrosion resistance. Use for secondary power distribution, power plants or industrial applications.

• Strong Conductivity - Produced from high-conductivity copper tubing
• Corrosion-Resistant - Tin plated to provide corrosion and low contact resistance
• Die-Indexed - Marked with die index and color-coded red

Product Highlights

The NSI GL35048 compression lug creates a vibration-resistant connection. It has a peep hole that allows easy inspection of the termination.

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: GL35048
• Country of Origin: India

Technical Specifications

• Type: Short Barrel - One Hole
• Brand: NSI Industries
• Finish: Tin Plated
• Material: Copper
• Standard: UL486
• Stud Size: 1/2 in
• Sub Brand: Copper Compression
• Cable Size: 350 MCM
• Applications: Terminate, Splice, Tap Power Connectors
• Mounting Type: 1/2 Mounting Hole
• Max Temperature: 194 degrees F
• Number of Holes: 1 Hole
• Voltage: 600 Volt
• Width: 0.17 in
• Height: 0.874 Inch
• Length: 1.1 Inch
• Product UPC: 66238103616
• 12-Digit UPC: 662381036162
• Environmental Conditions: 90 degrees C
• ECCN: EAR99
• UNSPSC: 39121405
• Model / MPN: GL35048
• Voltage Rating: 35kV
• Pack Qty: 12
• Ul Standard: UL 486A-486B
• Wire Cable Class: Class B, Class C
• Conductor Type: Copper
• Tang Thickness: 0.17
• Tang Length: 1.06
• Wire Range: 350 MCM
• Assortment: Copper Compression Terminations
• Expanded Wire Range: 350 MCM ">– 3/0 AWG
• Die Color Code: Red
• Mounting Bolt Size: 1/2
• Mounting Hole Diameter: 0.51
• Barrel Length: 1
• Rated Voltage: 600 V
• No. of Holes: 1
• Standards: UL486, CUL Listed
• UPC: Does Not Apply
