Nsi Industries GL3038 Compression Lug 3/0 AWG (STR) 3/8 inches Stud Size

NSI INDUSTRIES
Brand: NSI INDUSTRIES
SKU: GL3038
Availability: In Stock

Ships same day if ordered by 12 pm
$33.77
$33.77
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

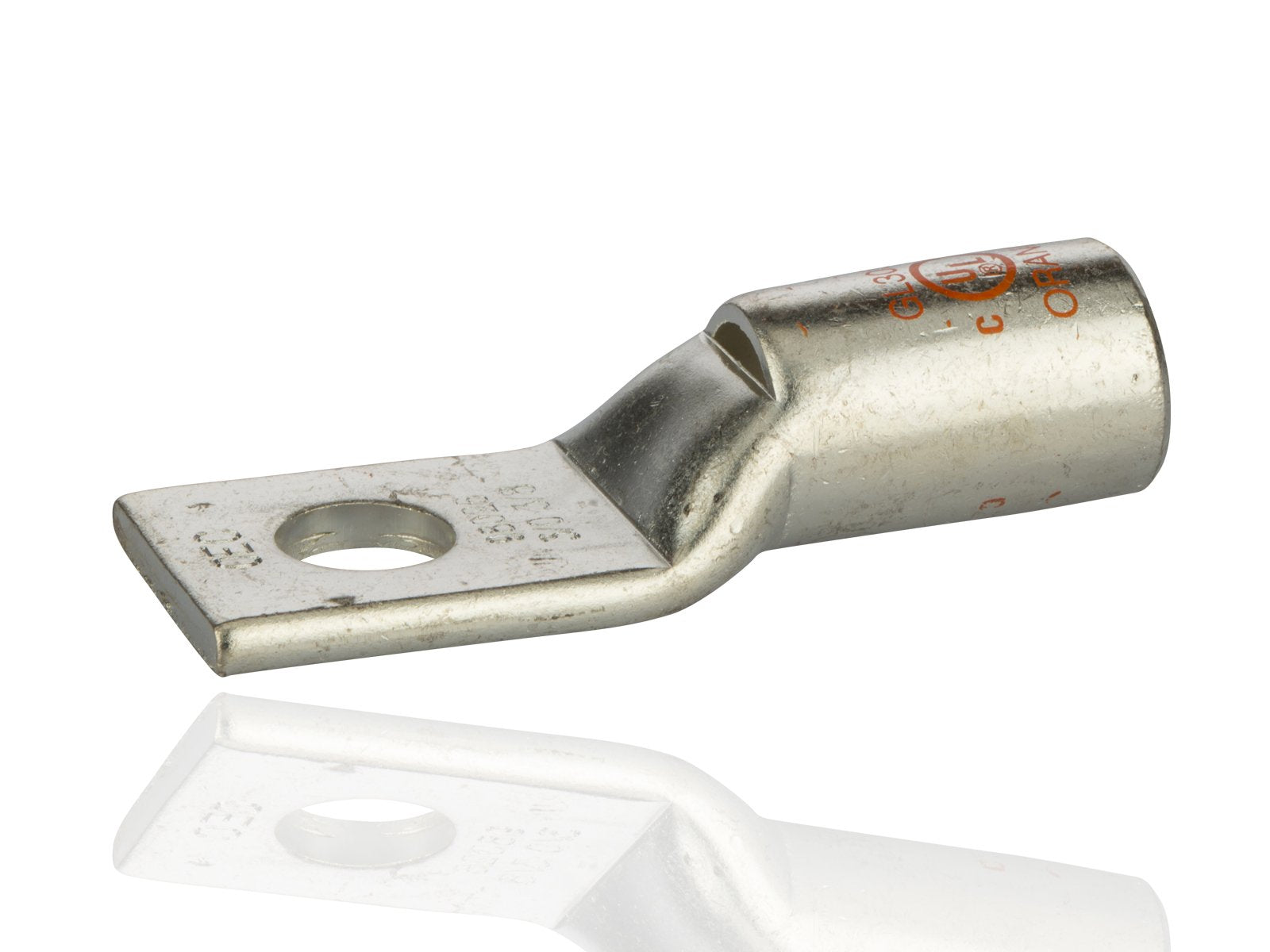

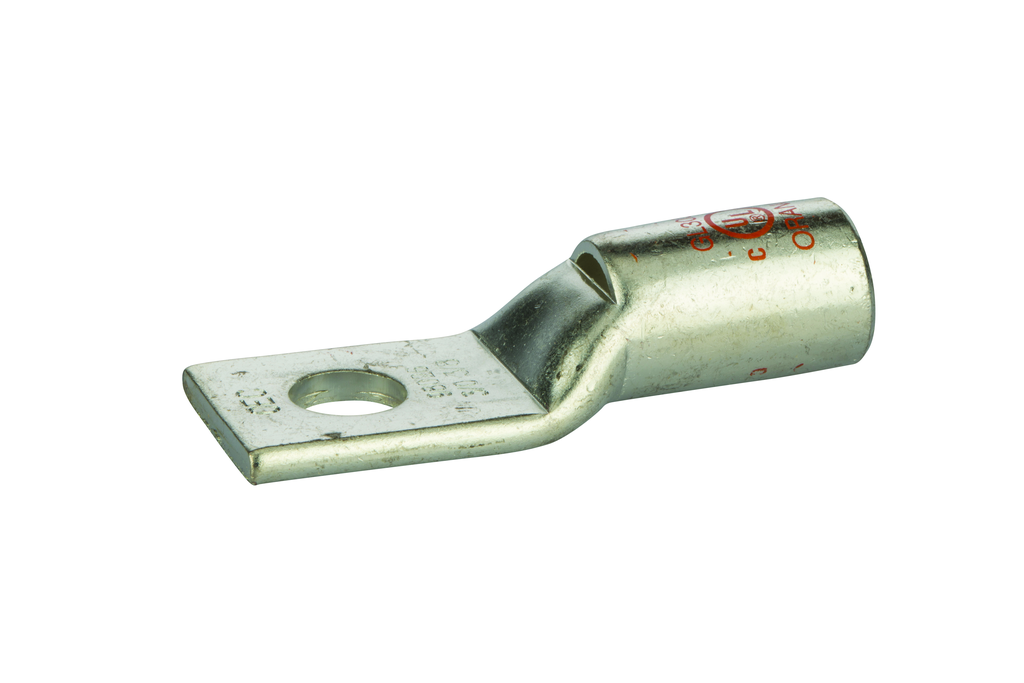

The NSI INDUSTRIES GL3038 compression lug features a 1-hole design with an inspection window and a short barrel. Constructed from copper, it accommodates a 3/0 AWG (STR) wire size and has a 3/8" stud size. It is suitable for secondary power distribution in buildings, power plants, and industrial applications.

  • Made from high-conductivity copper tubing for strong conductivity
  • Tin-plated for corrosion resistance and low contact resistance
  • Features a peep hole for easy inspection of termination

Product Highlights

This copper compression lug ensures a reliable connection with easy inspection and corrosion resistance.

Product Information

Standard Information

  • Brand: NSI INDUSTRIES
  • Manufacturer Part Number: GL3038
  • Country of Origin: India
Technical Specifications
Barrel
SHORT
Bolt Hole
3/8 INCH
Gauge
3/0 AWG
Holes
1 HOLE
Inspection Hole
NO
Lug Material
COPPER
Type
STANDARD COMPRESSION
Size
L=2.36 - W=.900 - OD=.620 - ID=.490
Brand
NSI Industries
Finish
Tin Plated
Height
0.622 Inch
Length
0.98 Inch
Voltage
600 Volt
Material
Copper
Standard
UL486
Stud Size
3/8 in
Sub Brand
Copper Compression
Cable Size
3/0 AWG
Product UPC
66238103611
12-Digit UPC
662381036117
Applications
Terminate, Splice, Tap Power Connectors
Mounting Type
3/8 Mounting Hole
Max Temperature
194 degrees F
Number of Holes
1 Hole
Country of Origin
India
Environmental Conditions
90 degrees C
Model / MPN
GL3038
ID
0.492
OD
0.622
End of Connection to Center
0.472
Tang Length
1.063
Barrel Length
0.984
Tang Thickness
0.126
Mounting Hole Diameter
0.413
Rated
35KV Max
Wire Range
3/0 AWG
Expanded Wire Range
3/0-2 AWG
Die Color Code
Orange
Wire Cable Class
Class B, Class C
Conductor Type
Stranded
Mounting Bolt Size
3/8
Assortment
Copper Compression Terminations
Ul Standard
UL 486A-486B, UL467
Temperature Rating
90 deg C
Overall Length
2.36 in
Tongue Size
1.06 in L x 0.9 in W x 0.13 in THK
Conductor Size
3/0 AWG
Barrel Size
0.49 in ID x 0.62 in OD
Barrel Type
Short
