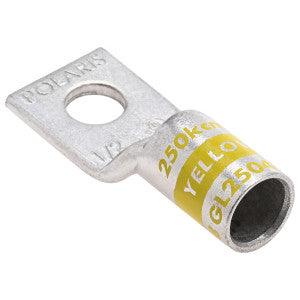

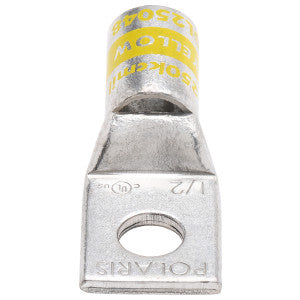

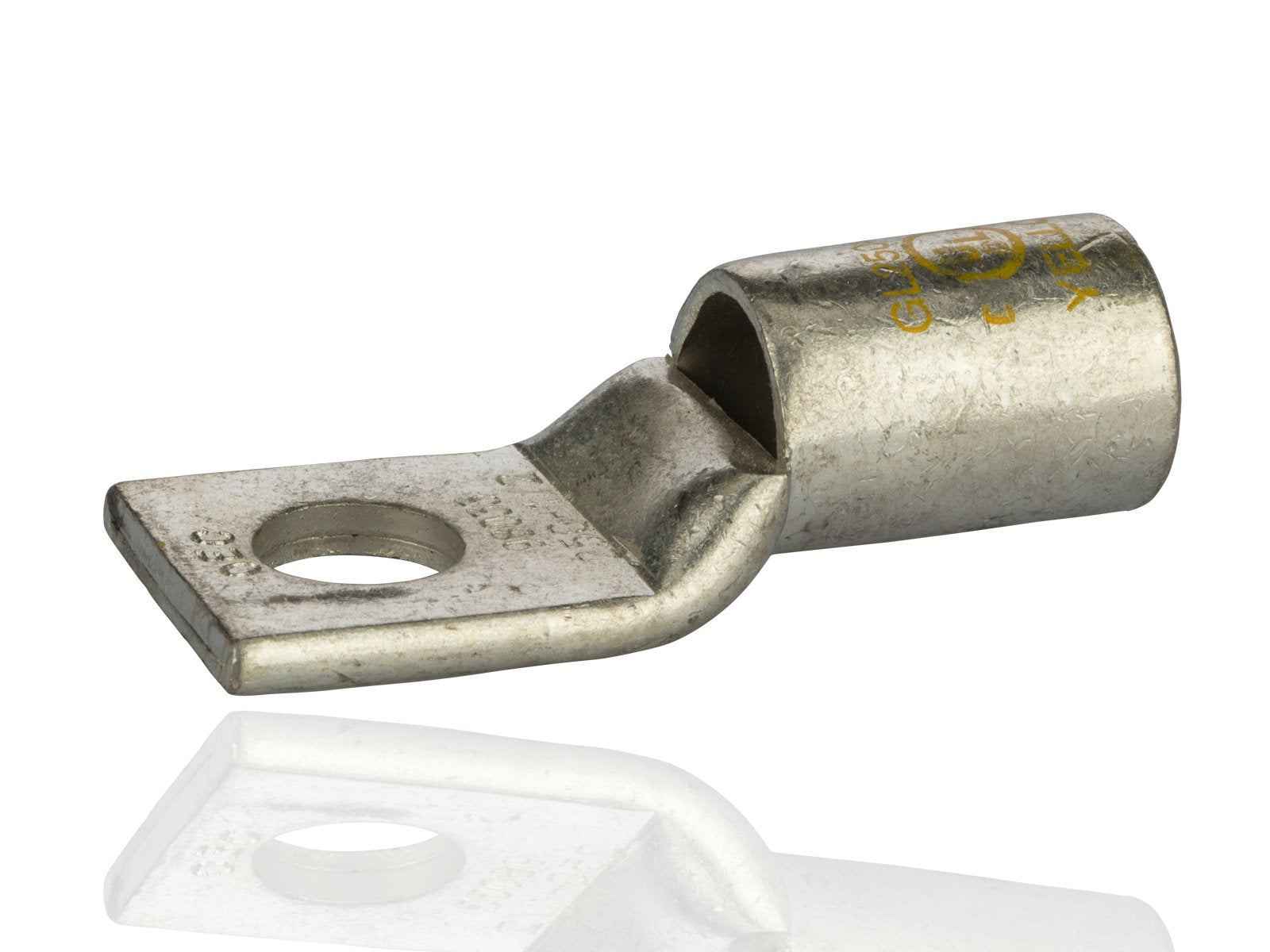

Nsi Industries GL25048 GL Compression Peep Hole Copper Lug, 250 kcmil, 1/2 inches Stud

Product Description

The NSI INDUSTRIES GL25048 copper compression connector is produced from high conductivity copper D tubing. Tin-plated to provide corrosion resistance, it is marked with a die index and color-coded. This lug is listed for 35 KV maximum when properly installed and for applications greater than 2000 volts.

• Produced from high conductivity copper D tubing
• Tin-Plated to provide corrosion resistance
• Marked with die index and color coded

Product Highlights

The NSI GL25048 is a reliable copper compression lug with a peep hole, designed for secure and efficient electrical connections.

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: GL25048
• Country of Origin: India

Technical Specifications

• Brand: NSI
• Manufacturer: NSi Industries
• Model / MPN: GL25048
• Item [Specifications]: One-Hole Lug Compression Connector
• Width [Specifications]: 1.091"
• Length [Specifications]: 2.48"
• Material [Specifications]: Tin-Plated High Conductivity Copper
• Cable Size [Specifications]: 250 MCM
• Connector Type [Specifications]: Short Barrel with Peep Hole
• Material: Copper
• Overall Length: 2.48 in
• Stud Size: 1/2 in
• Temperature Rating: 90 deg C
• Type: Short Barrel - One Hole
• Voltage Rating: 600 VAC
• Application: Terminate, Splice, Tap Power Connectors
• Standard & Approvals: UL 486 Listed, RoHS Compliant
• Conductor Size: 250 kcmil
• Barrel Style: Short
• Conductor Type: Stranded
• Barrel Type: Short
• Barrel Size: 0.59 in ID x 0.75 in OD
• Tongue Size: 1.06 in L x 1.09 in W x 0.15 in THK
• Mounting Hole Size: 1/2 in
• Finish: Tin Plated
• Rated Voltage: 600 V
