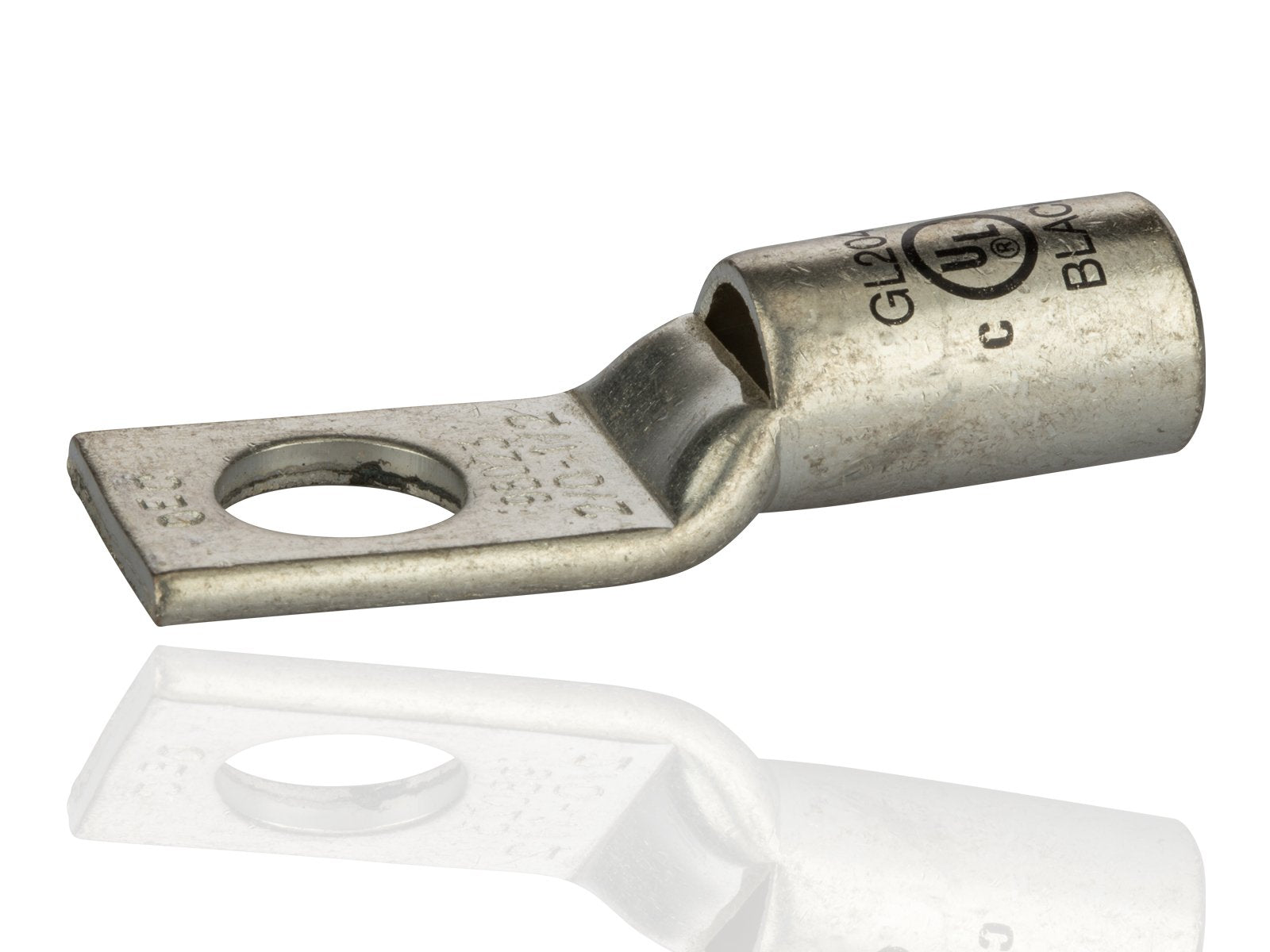

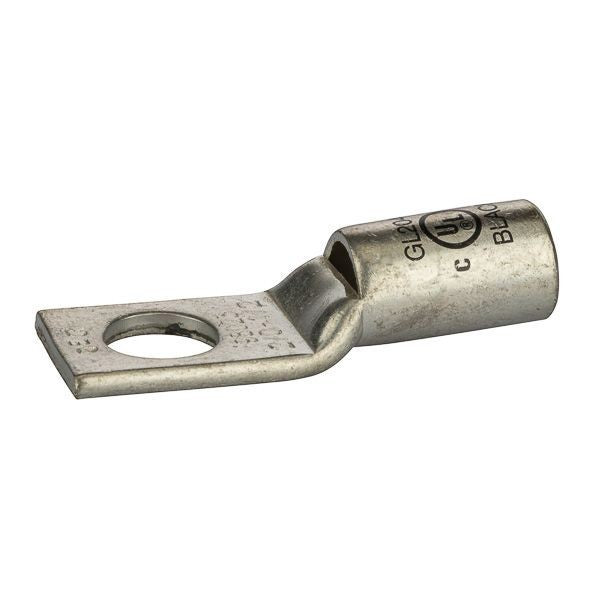

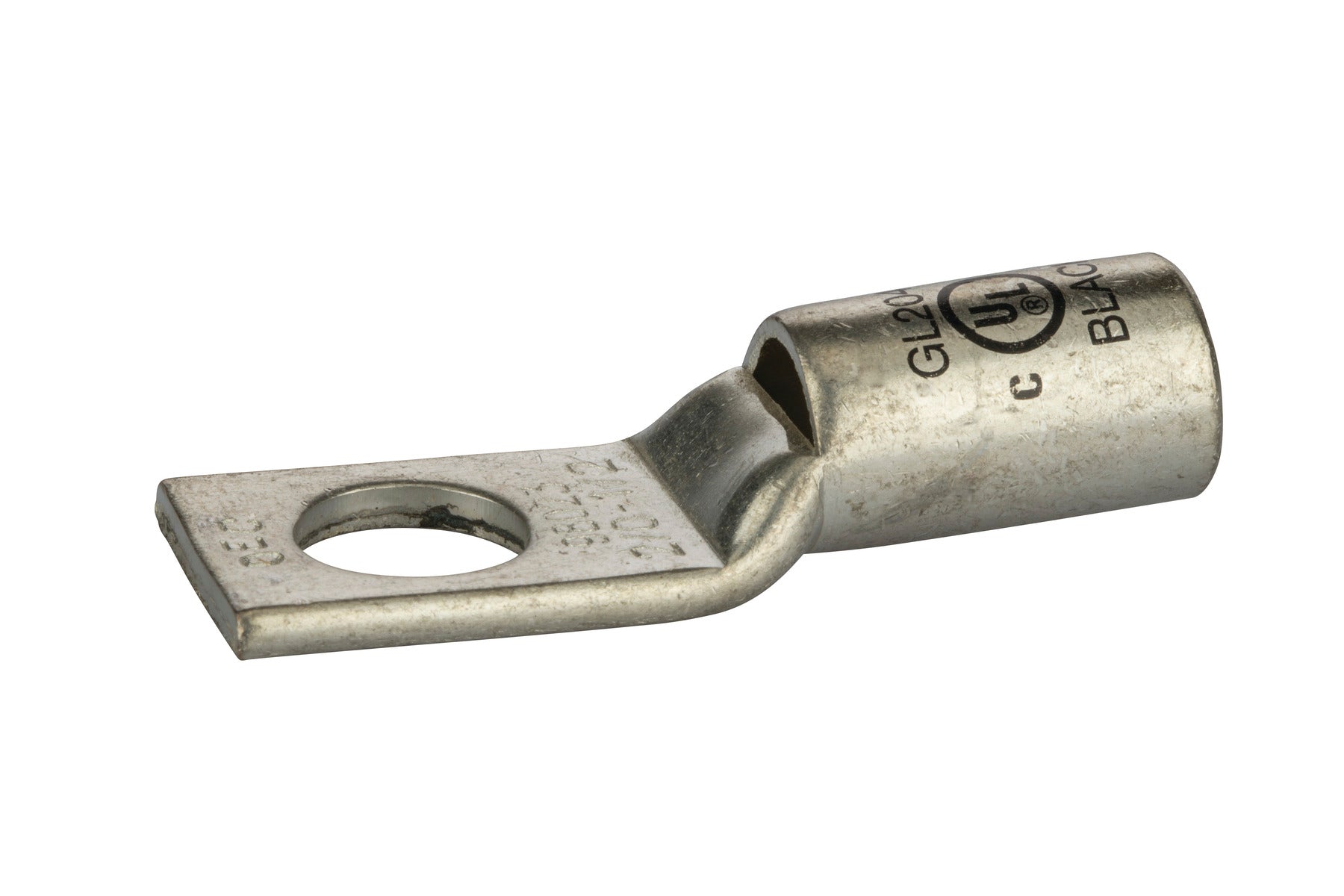

Nsi Industries GL2048 1/2 inch 2/0 AWG Black Copper Short Barrel 1-Hole Compression Lug

Product Description

The NSI INDUSTRIES GL2048 Copper Compression Lug Short features a standard installation hole, sized for 1/2 mounting bolts, and one chamfered port to terminate a 2/0 AWG conductor. Connectors are made from tin-plated copper for improved conductivity and corrosion resistance. Use for secondary power distribution in buildings, power plants, industrial applications or with electrical equipment.

• Strong Conductivity - Produced from high-conductivity copper tubing
• Corrosion-Resistant - Tin-plated to provide corrosion and low-contact resistance
• Die-Indexed - Marked with die index and color-coded black

Product Highlights

The closed barrel design is simple, reliably functional and sealed against moisture or contamination. When bonded, it creates a homogenous connection between the connector and conductor.

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: GL2048
• Country of Origin: India

Technical Specifications

• GTiN: 00662381036100
• Type: 1-Hole
• Brand: NSI Industries
• Color: Black
• Width: 0.815"
• Finish: Tin Plated
• Height: 0.563 Inch
• Length: 2.244"
• Voltage: 600 Volt
• Material: Copper
• Standard: UL486
• Stud Size: 1/2 in
• Sub Brand: Copper Compression
• Cable Size: 2/0 AWG
• Product UPC: 66238103610
• 12-Digit UPC: 662381036100
• Applications: Terminate, Splice, Tap Power Connectors
• Mounting Type: 1/2 Mounting Hole
• Max Temperature: 194 degrees F
• Number of Holes: 1 Hole
• Country of Origin: India
• Environmental Conditions: 90 degrees C
• Quantity: 1 Count
• Rated: 35KV Max
• ID: 0.441
• OD: 0.563
• End of Conn. to Ctr.: 0.472
• Tang Length: 1.063
• Barrel Length: 0.945
• Tang Thickness: 0.118
• Mtg. Hole Dia.: 0.512
• Brand Equivalent: Ilsco CRB20Burndy YA26-L6BOXPenn Union BLU20S4Panduit LCAS2/0-12-XThomas & Betts 54160
• Model / MPN: GL2048
• Part ID / MPN: GL2048
• Product Group: BISS
• Item [Specifications]: One-Hole Lug Compression Connector
• Material [Specifications]: Tin-Plated High Conductivity Copper
• Connector Type [Specifications]: Short Barrel with Peep Hole
• Voltage Rating: 600 VAC
• Mounting Hole Size: 1/2 in
• Overall Length: 2.24 in
• Series: GL Series
• Temperature Rating: 90 deg C
• Tongue Size: 1.06 in L x 0.81 in W x 0.12 in THK
• Standard & Approvals: UL 486, KM Approved, cULus 155027
• Conductor Size: 2/0 AWG
• Barrel Size: 0.44 in ID x 0.56 in OD x 0.94 in L
• Barrel Type: Short
• Conductor Type: Copper
• Wire Cable Class: Class B, Class C
• Die Color Code: Black
• Mounting Bolt Size: 1/2
• Mounting Hole Diameter: 0.51
• Ul Standard: UL 486A-486B, UL467
• Wire Range: 2/0 AWG
• Expanded Wire Range: 2/0 AWG – 4 AWG
