Nsi Industries GL2038 Compression Lug 2/0 AWG 3/8 inches Stud Size

NSI INDUSTRIES
Brand: NSI INDUSTRIES
SKU: GL2038
Availability: In Stock

Ships same day if ordered by 12 pm
$29.66
$29.66
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

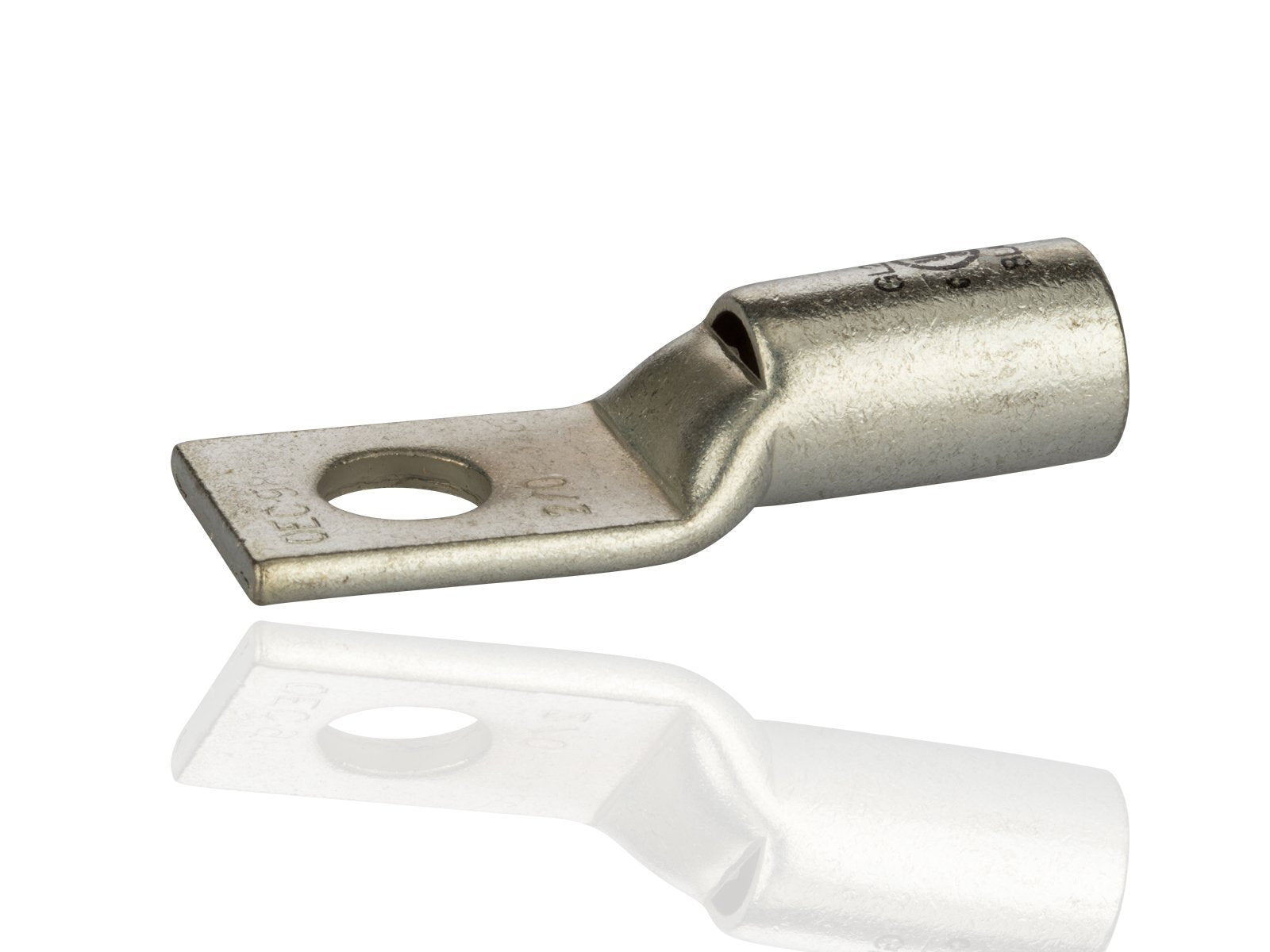

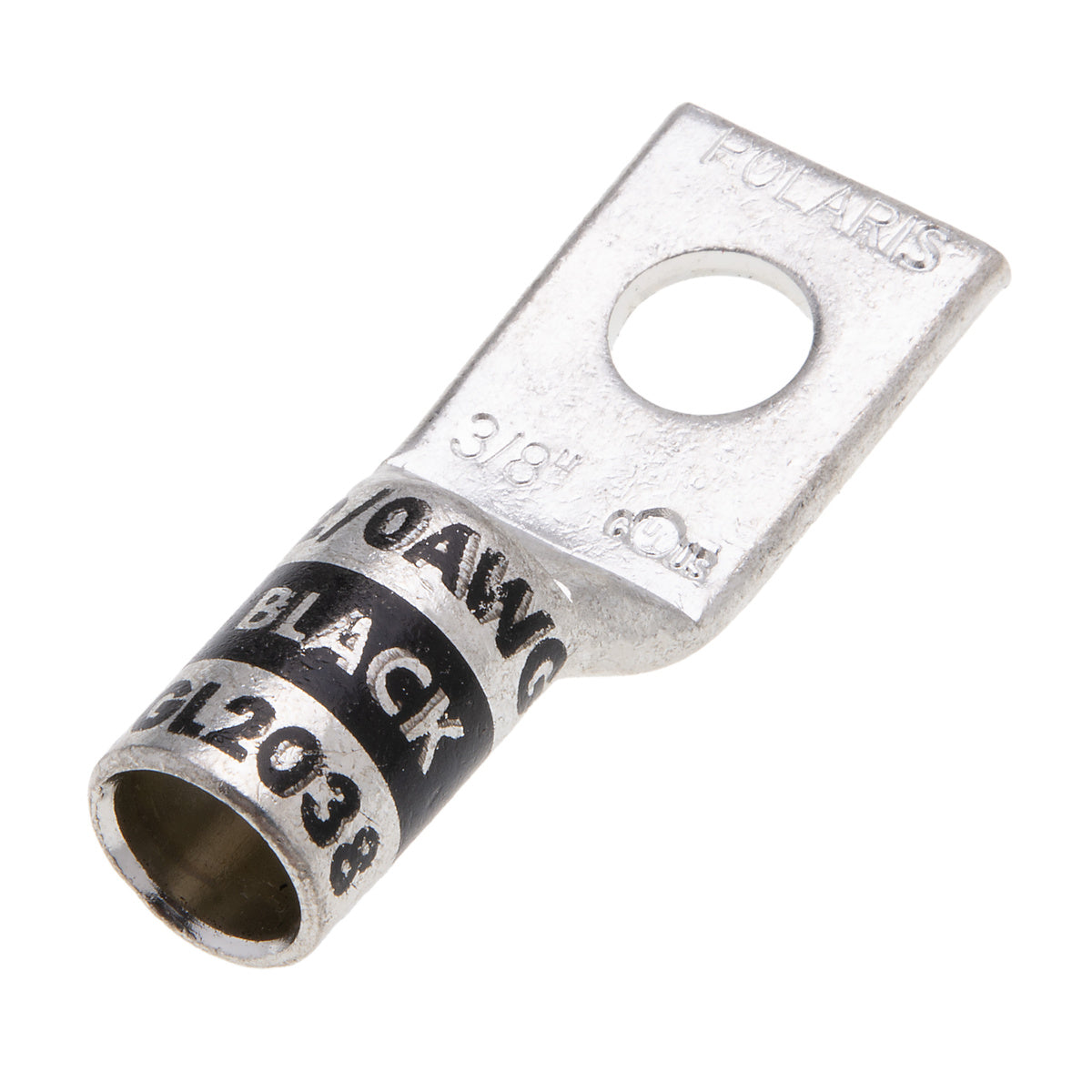

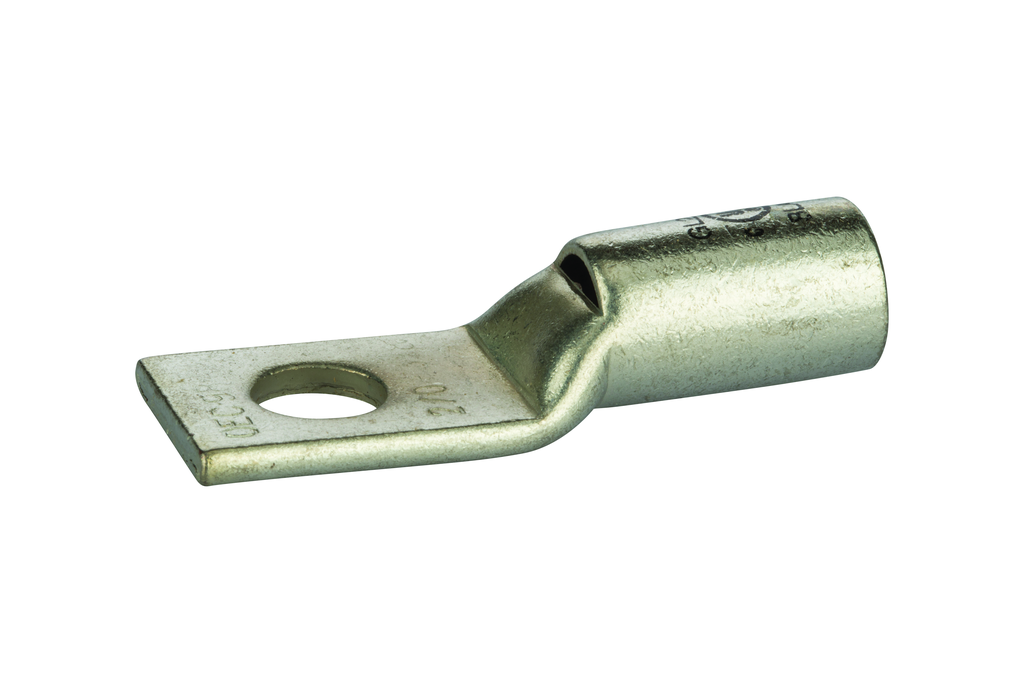

The NSI INDUSTRIES GL2038 is a compression lug with 1 hole, inspection window, and short barrel made of copper. It accommodates a 2/0 AWG (STR) gauge and has a 3/8" stud size. These connectors are made from tin-plated copper for improved conductivity and corrosion resistance. Use for secondary power distribution in buildings, power plants, industrial applications or with electrical equipment.

  • Produced from high-conductivity copper tubing
  • Tin-plated to provide corrosion and low-contact resistance
  • Marked with die index and color-coded black

Product Highlights

The NSI GL2038 copper compression lug ensures a reliable connection with easy inspection and strong termination.

Product Information

Standard Information

  • Brand: NSI INDUSTRIES
  • Manufacturer Part Number: GL2038
  • Country of Origin: India
Technical Specifications
Barrel
SHORT
Bolt Hole
3/8 INCH
Gauge
2/0 AWG
Holes
1 HOLE
Inspection Hole
NO
Lug Material
COPPER
Type
1-Hole
UNSPSC Code
39121400
Brand
NSI Industries
Finish
Tin Plated
Height
0.563 Inch
Length
0.94 Inch
Voltage
600 Volt
Material
Copper
Standard
UL486
Stud Size
3/8 in
Sub Brand
Copper Compression
Cable Size
2/0 AWG
Product UPC
66238103609
12-Digit UPC
662381036094
Applications
Terminate, Splice, Tap Power Connectors
Mounting Type
3/8 Mounting Hole
Max Temperature
194 degrees F
Number of Holes
1 Hole
Environmental Conditions
90 degrees C
Rated
35KV Max
Wire Range
2/0 AWG
Expanded Wire Range
2/0-4 AWG
Color Code
Black
Bolt Size
3/8
ID
0.441
OD
0.563
End of Connection to Center
0.472
Tang Length
1.063
Barrel Length
0.945
Tang Thickness
0.118
Mounting Hole Diameter
0.413
Brand Equivalent
Ilsco CRA-2/0Burndy YA26-LBOXPenn Union BLU20SPanduit LCAS2/0-38-XThomas & Betts 54110
Item [Specifications]
One-Hole Lug Compression Connector
Material [Specifications]
Tin-Plated High Conductivity Copper
Cable Size [Specifications]
2/0 AWG
Color Code [Specifications]
Black
Connector Type [Specifications]
Short Barrel with Peep Hole
Voltage Rating
35kV
Wire Cable Class
Class B, Class C
Conductor Type
Copper
Assortment
Copper Compression Terminations
Die Color Code
Black
Conductor Size
2/0 AWG
Barrel Type
Short
Barrel Size
0.44 in ID x 0.56 in OD
Tongue Size
1.06 in L x 0.81 in W x 0.12 in THK
Temperature Rating
90 deg C
Mounting Hole Size
3/8 in
Overall Length
2.24 in
Width
0.12 in
