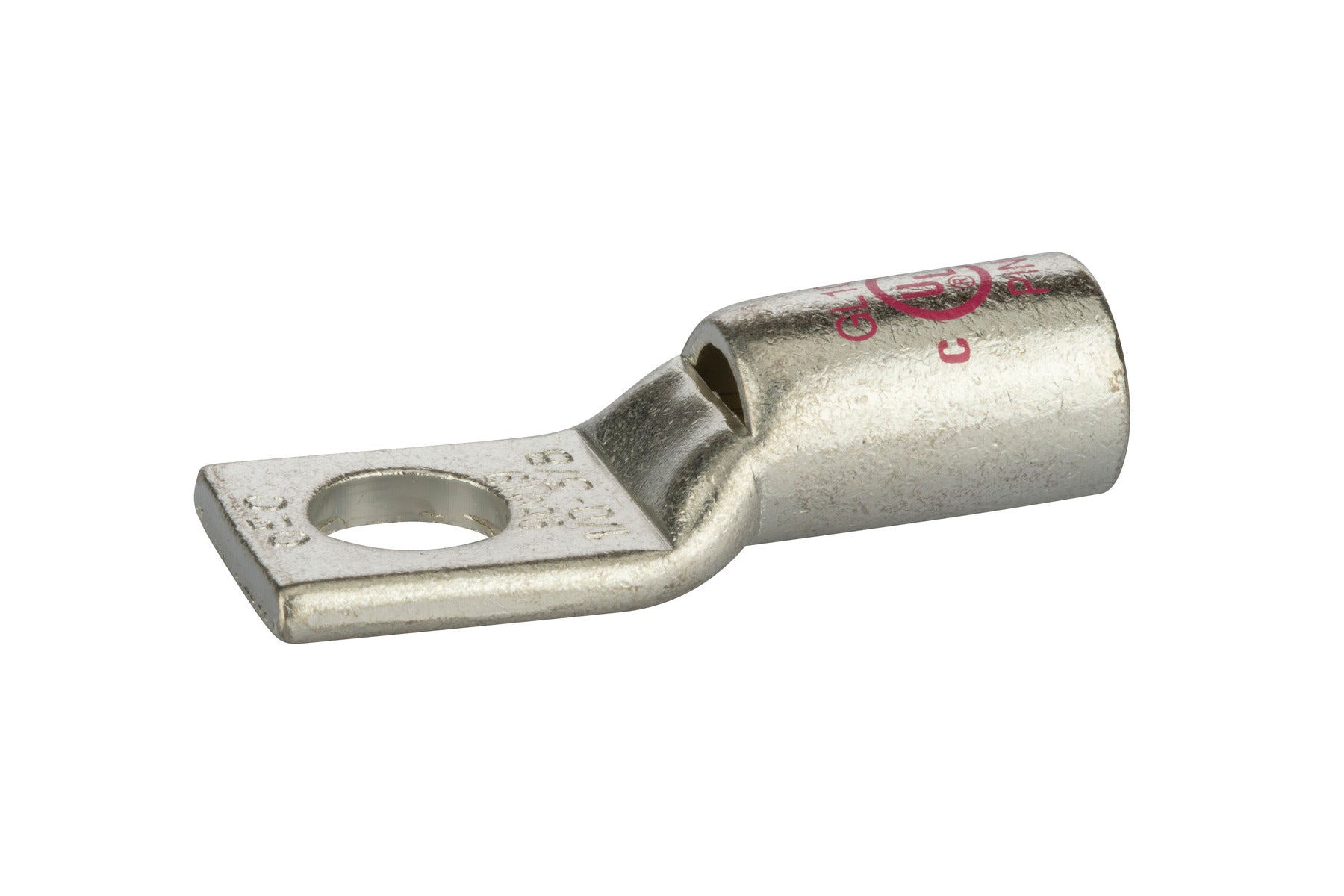

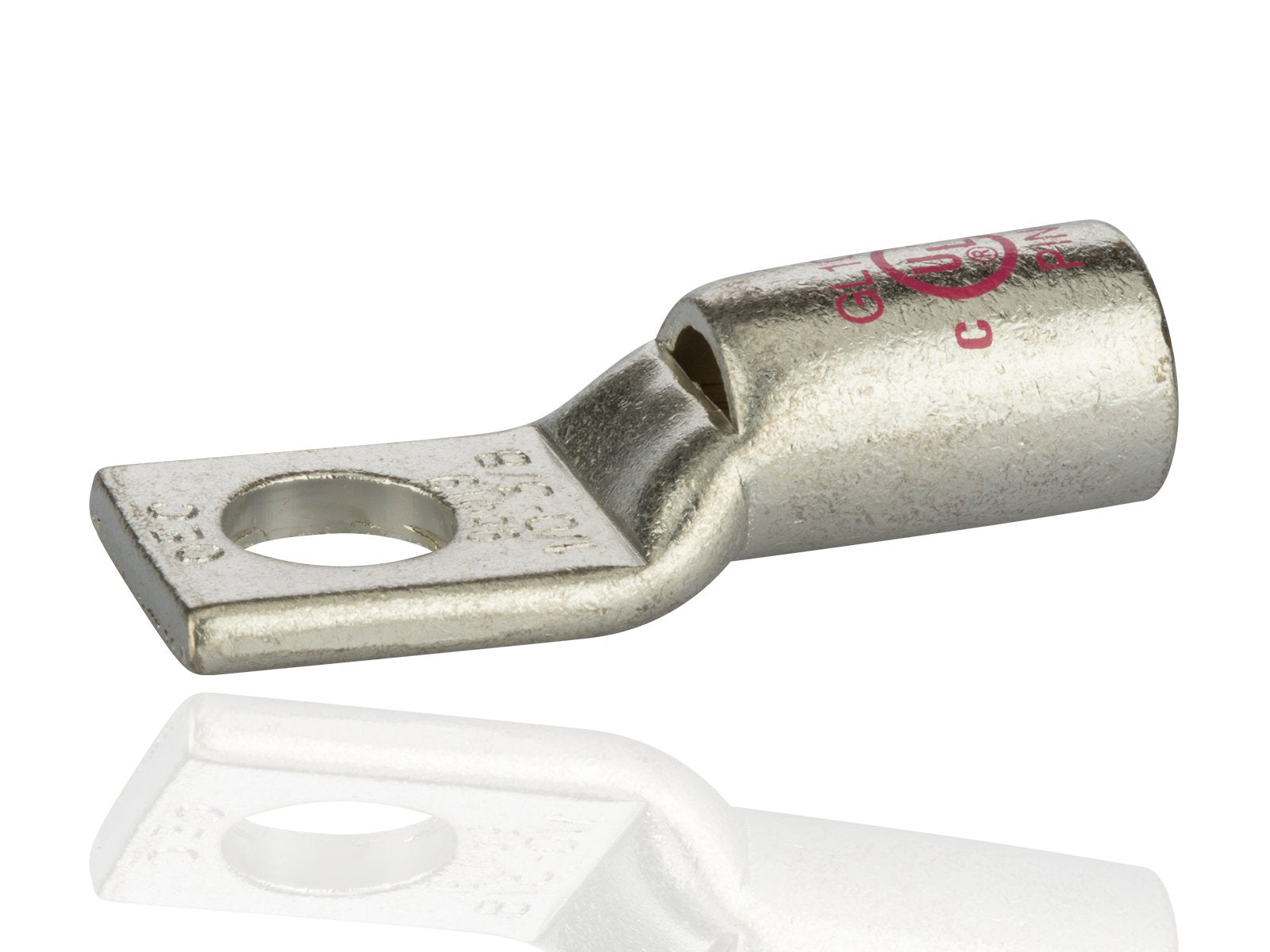

Nsi Industries GL1038 3/8 Inch 1/0 AWG Copper Short Barrel 1-Hole Compression Lug

Product Description

The NSI INDUSTRIES GL1038 1-Hole Standard Copper Compression Lug features one standard installation hole, sized for 3/8. mounting bolts, and one chamfered port to terminate a 1/0 AWG conductor. These connectors are made from tin-plated copper for improved conductivity and corrosion resistance. Use these lugs for secondary power distribution in buildings, power plants, industrial applications or with electrical equipment.

• Compression Lug - This single-hole barrel compression lug is rated for safe use in professional applications up to 35kV
• Functional Design - One-piece construction and closed barrel design made from tin-plated copper is simple and durable
• Easy to Install - Save time with a chamfered port, clear color-coded die index and a design that only requires a crimp tool to install

Product Highlights

NSI compression lugs are built for professionals, with a reliable one-piece construction produced from high-conductivity copper tubing and a closed barrel design that protects against moisture and contaminants.

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: GL1038
• Country of Origin: India

Technical Specifications

• Type: Short Barrel - One Hole
• Brand: NSI Industries
• Finish: Tin Plated
• Height: 0.52 Inch
• Length: 0.83 Inch
• Voltage: 600 Volt
• Material: Copper
• Standard: UL486
• Stud Size: 3/8 in
• Sub Brand: Copper Compression
• Cable Size: 1/0 AWG
• Applications: Terminate, Splice, Tap Power Connectors
• Mounting Type: 3/8 Mounting Hole
• Max Temperature: 194 degrees F
• Number of Holes: 1 Hole
• Width: 0.13 in
• Series: GL
• Strip Length: 1"
• Outer Diameter: 0.52"
• Thickness: 0.13"
• Conductor Size: 1/0 AWG
• Conductor Type: Stranded
• Manufacturer Part Number: GL1038
• Mounting Hole Size: 3/8 in
• Temperature Rating: 90 deg C
• Voltage Rating: 600 VAC
• Ul Standard: UL 486A, UL 467
• Wire Cable Class: Class B, Class C
• Wire Range: 1/0 AWG
• Die Color Code: Pink
• Barrel Length: 0.83
• No. of Holes: 1
• Barrel Type: Short
