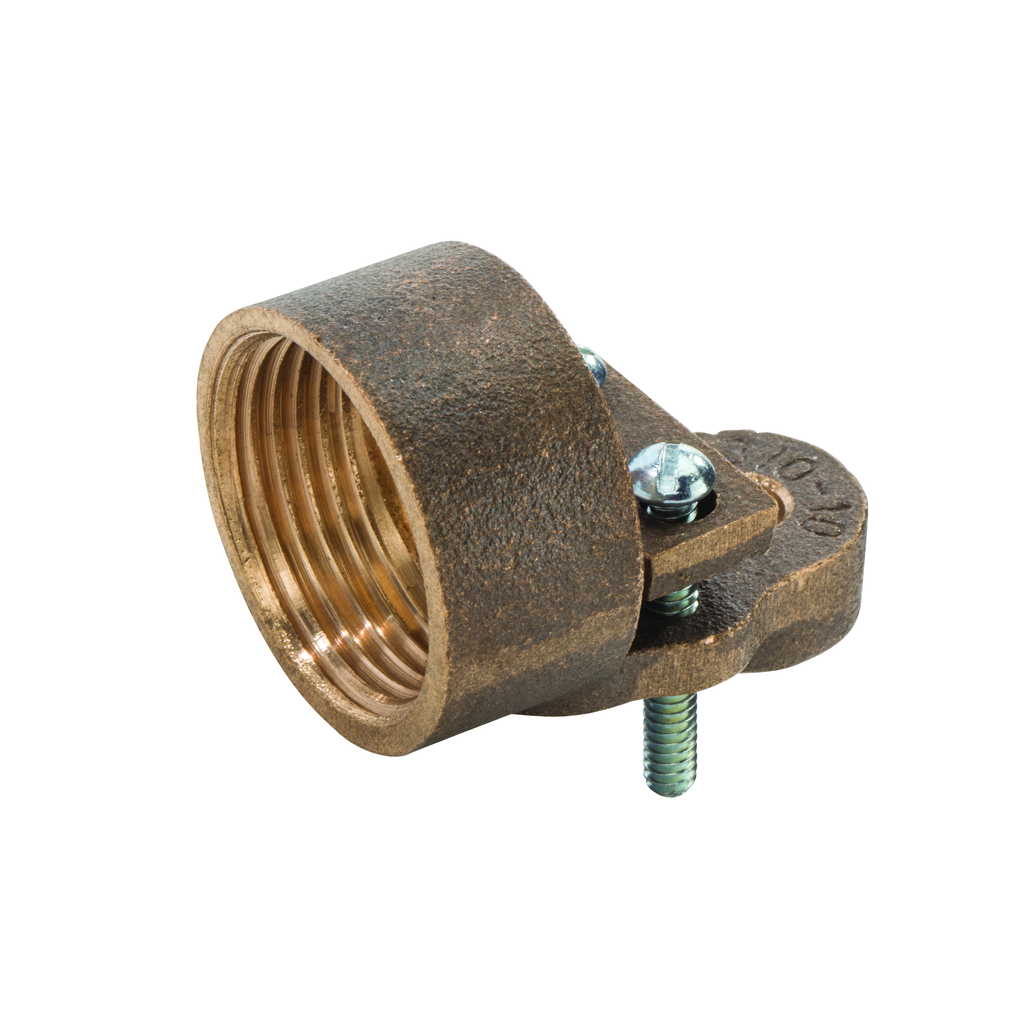

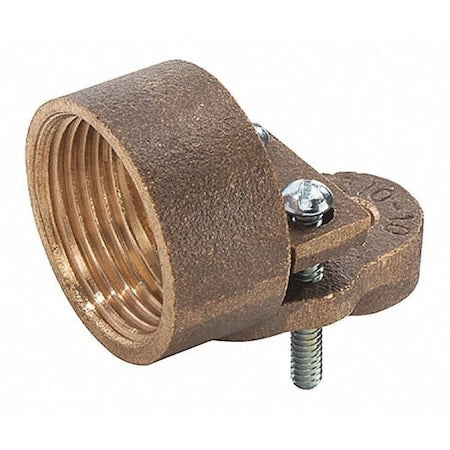

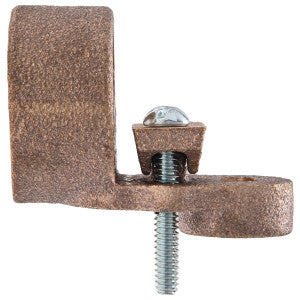

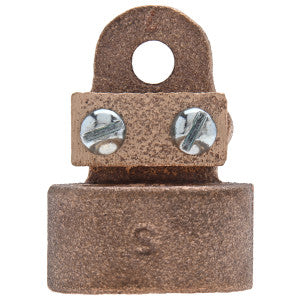

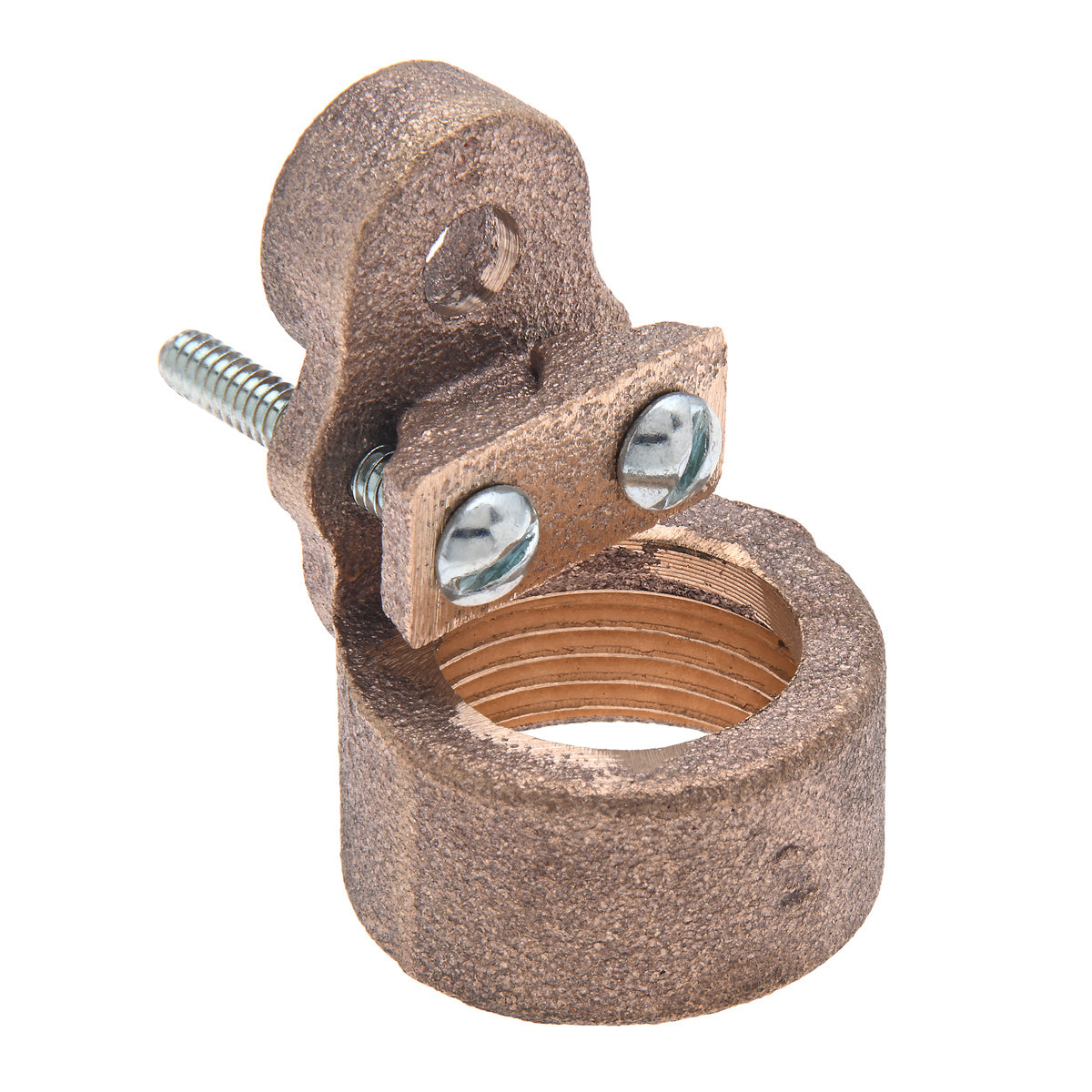

Nsi Industries GHM-100 10 Sol - 3/0 Str 360 Degree Swing Type 1 Inch Conduit Hub

Product Description

The NSI INDUSTRIES GHM-100 360 Degree Swing Type Conduit Hub is used alongside NSI ground clamps with serrated hubs to ground copper grounding conductor to water pipes in indoor environments. This 1 inch adapter hub swings 360 degrees to make alignment simple and offer greater flexibility in installation.

• Rotating Hub - Swing type conduit hubs rotate 360 degrees around the grounding clamp to make alignment simple, no matter the direction of your install
• Range of Sizes - The GHM-100 360 Degree Swing Type Conduit Hub fits 1? rigid conduit or ground conductors in the range of 10 SOL to 3/0 STR
• Bronze and Steel - The conduit hub is made from bronze, while the tightening screws are made from reliable zinc-plated steel, both of which provide durable long-term use

Product Highlights

The GHM-100 conduit hub allows for entry from any direction and fits 1 inch conduit or wire in the range of 10 SOL to 3/0 STR.

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: GHM-100
• Country of Origin: India

Technical Specifications

• UNSPSC Code: 39121400
• Type: Ground Hub Swing Type
• Brand: NSI Industries
• Material: Bronze
• Sub Brand: Grounding
• Product UPC: 66238101038
• 12-Digit UPC: 662381010384
• Applications: Grounding Wire
• Country of Origin: India
• Insulation Material: Silicon Bronze
• Item [Specifications]: Conduit Hub Swing,1"
• Color: Bronze
• Application [Specifications]: Grounding Wire
• Insulation Type [Specifications]: Silicon Bronze
• Manufacturer: NSi Industries
• Model / MPN: GHM-100
• Size: 1"
• IGCC: 7520
• Family group: GROUNDING
• Clamp Material: 10 SOL - 3/0 STR
• Special Features: 1 Hub Size - 10 SOL - 3/0 STR IN
• WES Product code: 2918172000
• Pack Qty: 15
• UNSPSC: 46182103
• Assortment: Copper Ground Clamps
• Conductor Size: 10 to 3/0 AWG
• Connection Type: Thread
• Manufacturer Name: NSi Industries
• Series: GHM
• Trade Size: 1 in
• Standard & Approvals: CSA Certified, UL Listed
• MDM Pkg GTiN: 00662381010384
