Nsi Industries GCA-2 Aluminum Ground Clamp 1-1/4 - 2 inches

Product Description

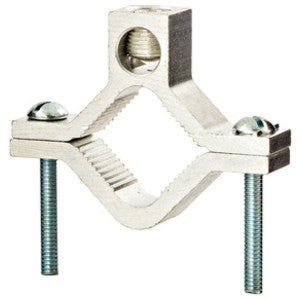

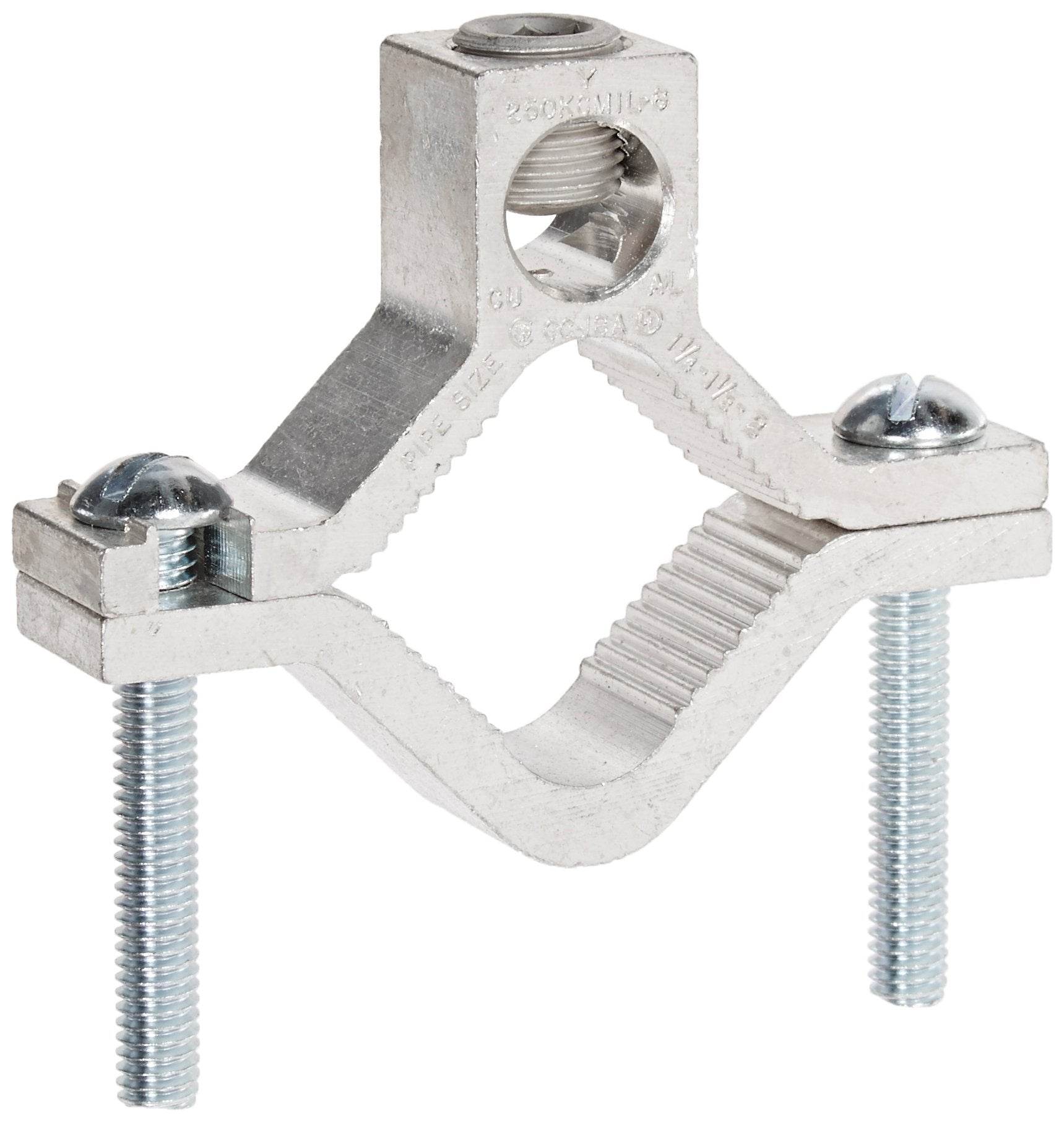

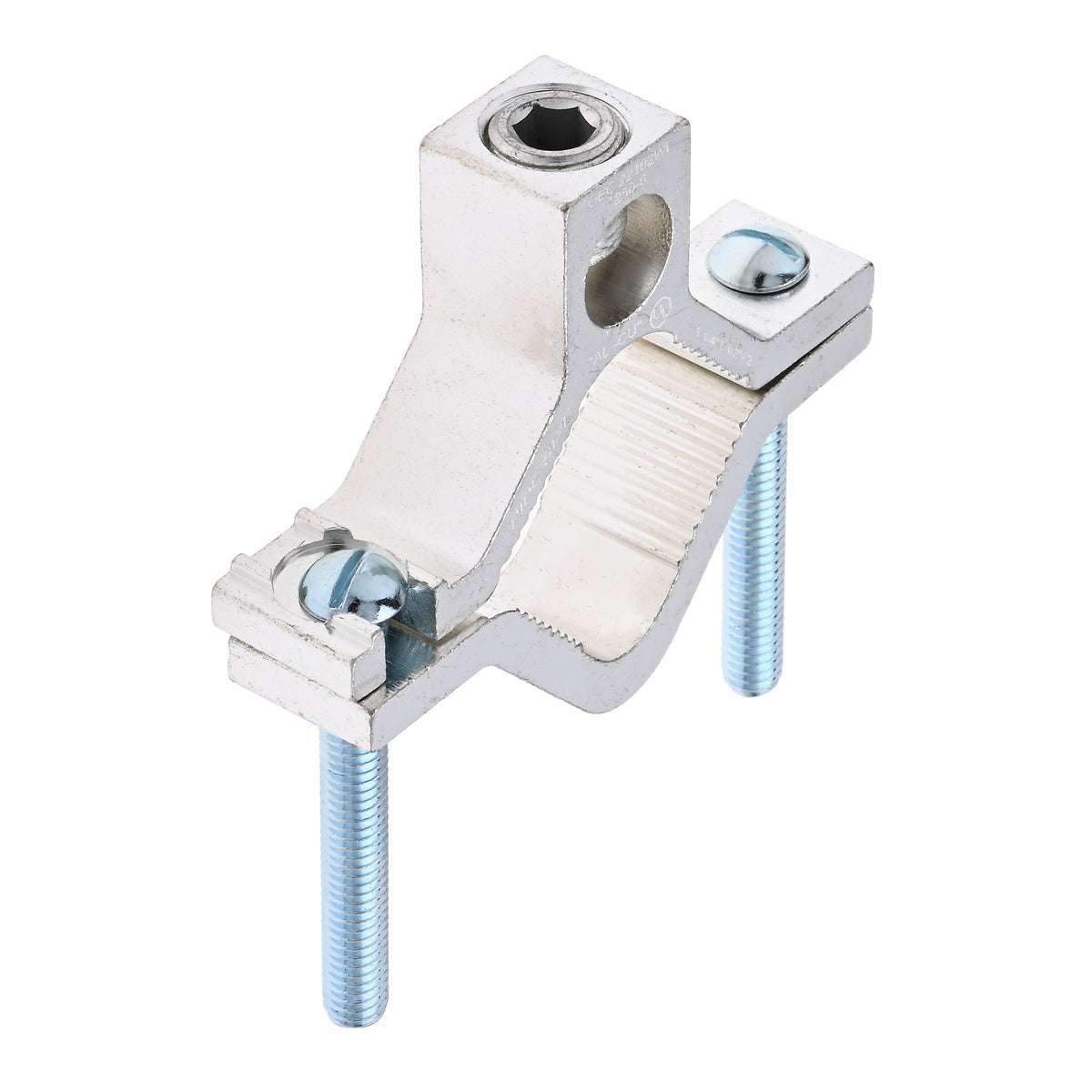

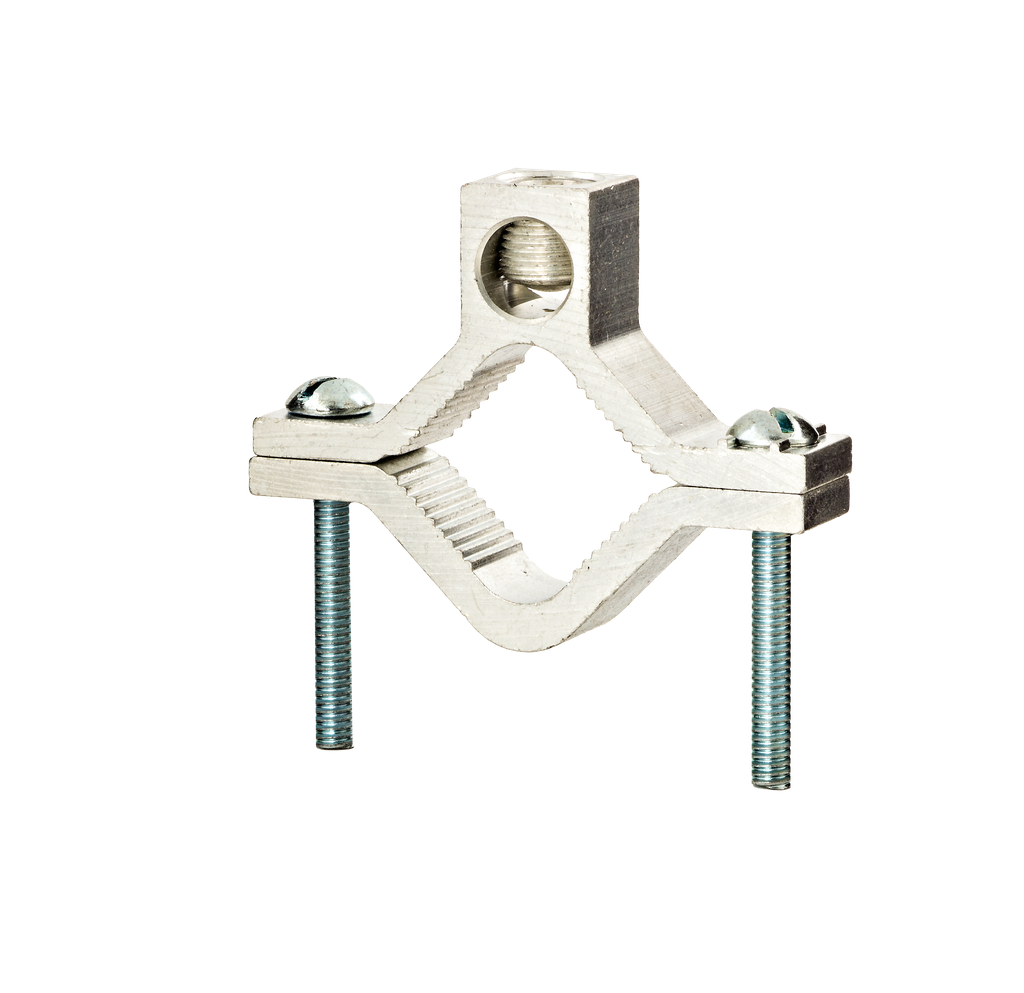

The NSI INDUSTRIES GCA-2 aluminum ground clamp is designed for grounding and bonding applications. It fits pipes between 1-1/4 to 2 inches in diameter and accommodates 250 MCM to 6 AWG cables. Constructed from high-strength extruded aluminum alloy, it features zinc-plated steel set screws for secure, long-term installation. This clamp is UL Listed 467 for grounding and bonding.

• Fits pipes between 1-1/4 to 2 inches in diameter
• Accommodates 250 MCM to 6 AWG cables
• Made from high-strength extruded aluminum with zinc-plated steel set screws

Product Highlights

The NSI GCA-2 aluminum ground clamp provides a durable and reliable solution for grounding copper or aluminum cables to pipes and conduits.

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: GCA-2
• Country of Origin: India

Technical Specifications

• UNSPSC Code: 39121400
• Type: Aluminum Ground Clamp
• Brand: NSI Industries
• Material: Aluminum
• Standard: CULUS
• Sub Brand: Grounding
• Wire Size: 250 kcmil
• Product UPC: 66238101001
• 12-Digit UPC: 662381010018
• Applications: Grounding Wire
• Conductor Size: 250 kcmil
• Country of Origin: India
• Insulation Material: Aluminum
• Buy American Compliant: Y
• ECCN: EAR99
• Model / MPN: GCA-2
• Size: 1-1/4 - 2"
• Pipe Size: 1 1/4-2 Pipe Size
• Nominal Size: 1-1/4 to 2 inch
• Lower Width: 0.828 inch
• Overall Height: 2.93 inch
• Overall Length: 3.76 inch
• Standards: cULus Listed
• Length: 3.76
