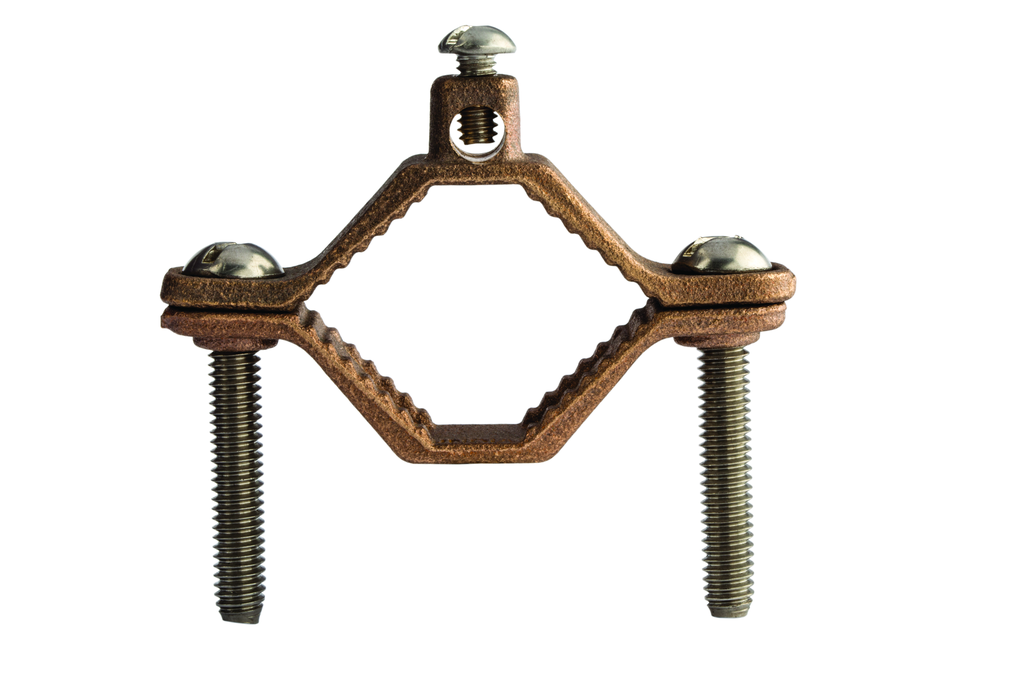

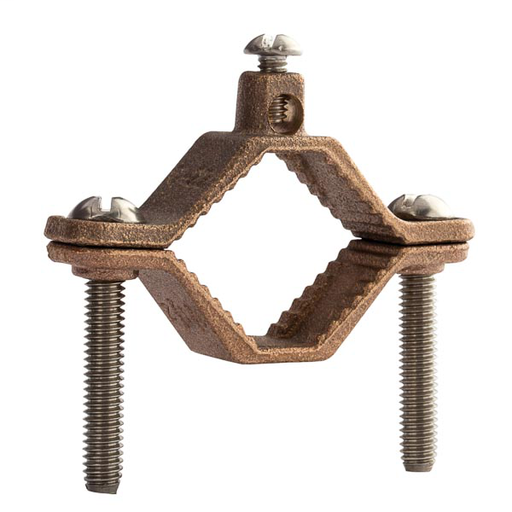

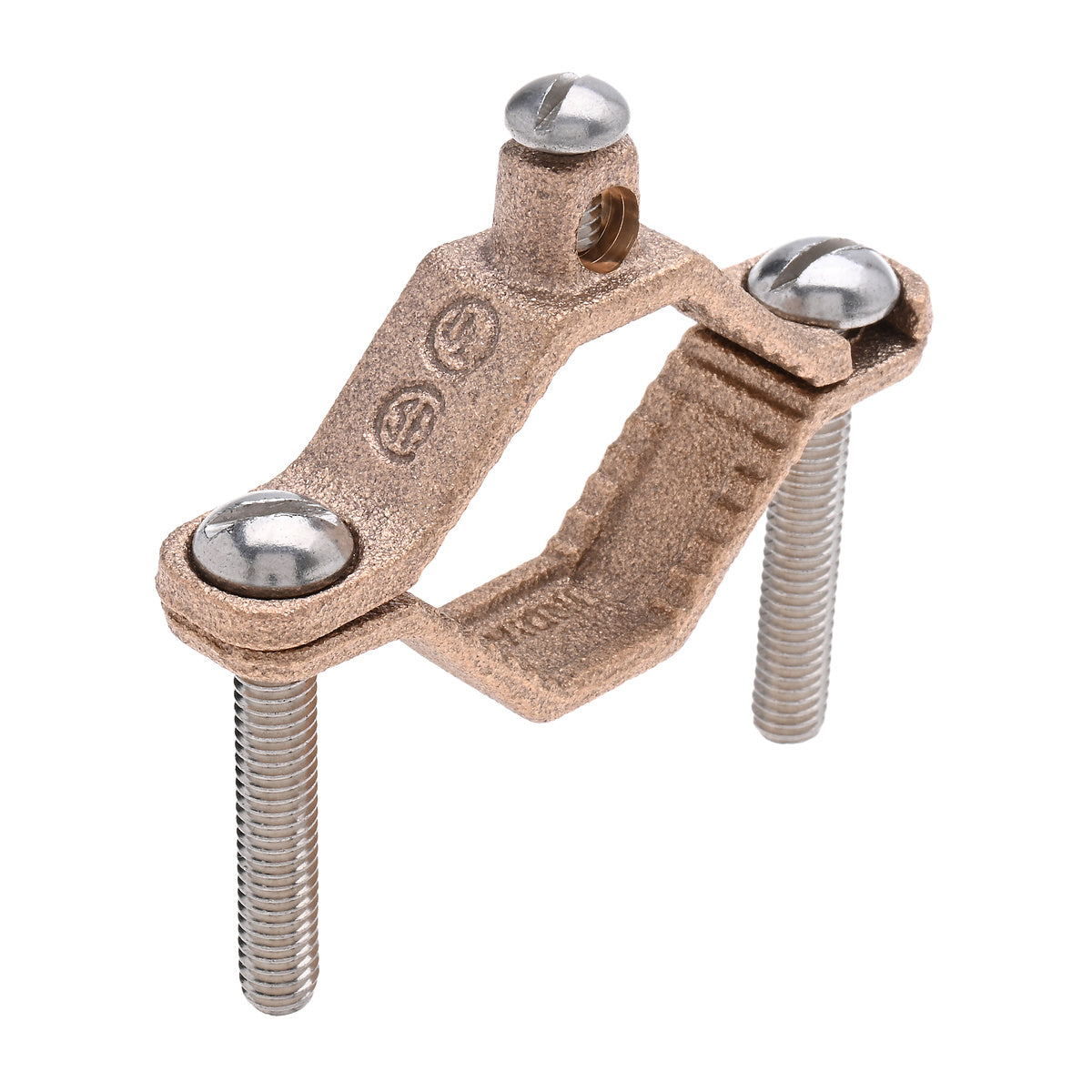

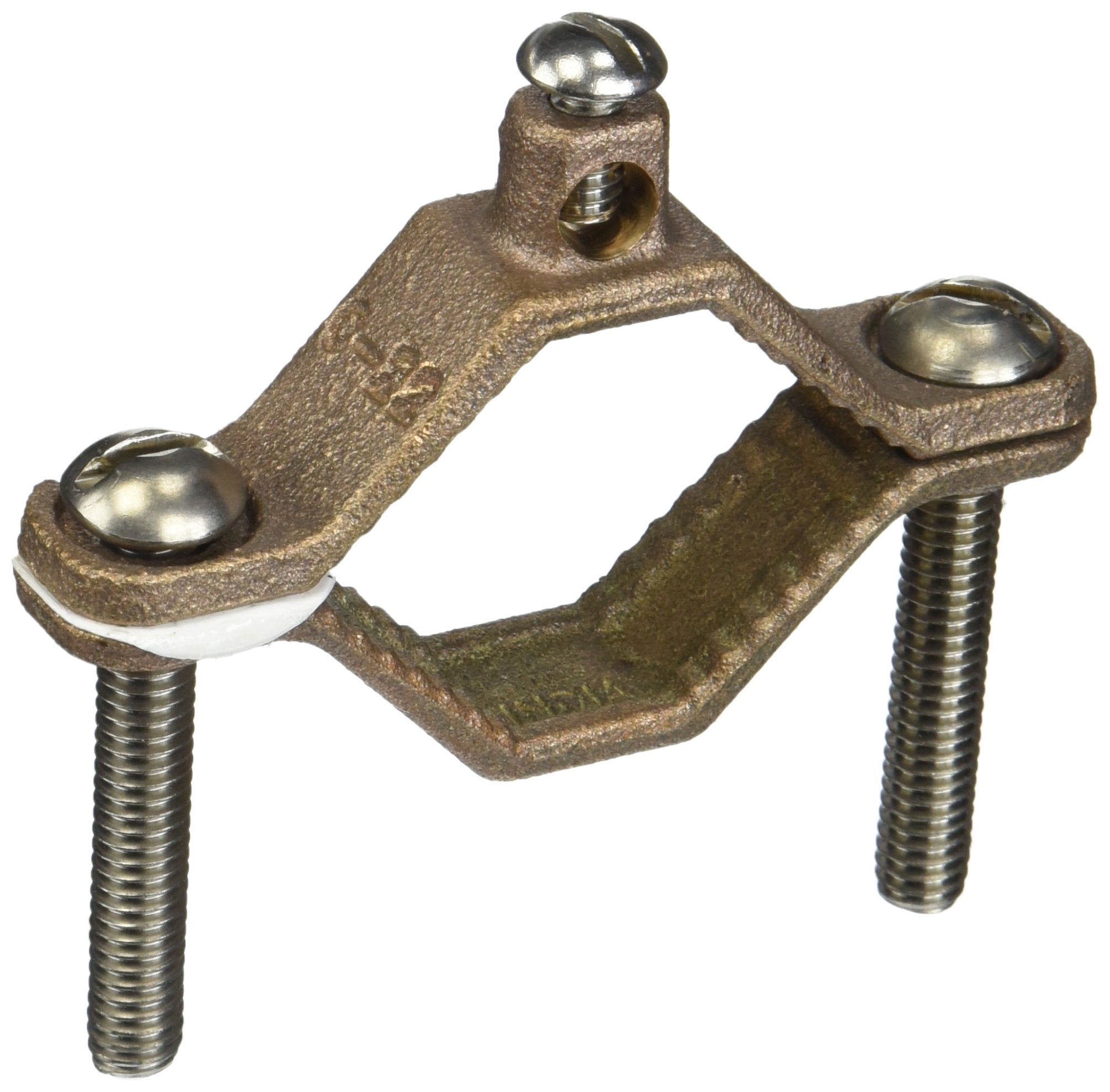

Nsi Industries G-2-SDB Heavy Duty Direct Burial Bronze Ground Clamp for 1.25-2 in.

Product Description

The NSI INDUSTRIES G-2-SDB Heavy Duty Bronze Ground Clamp is designed for direct burial applications, gripping pipes from 1-1/4 to 2 inches in diameter. It features 304 stainless steel screws and a cast bronze clamp body, ensuring durable performance. This clamp is UL Listed 467 for Grounding and Bonding, making it suitable for attaching grounding conductors to various pipe sizes.

• Suitable for direct burial applications.
• Fits pipes between 1-1/4 to 2 inches in diameter.
• Constructed with 304 stainless steel screws and a cast bronze clamp body.

Product Highlights

Heavy-duty bronze ground clamp for grounding electrical infrastructure. Interchangeable adapters and hubs allow for greater installation flexibility.

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: G-2-SDB
• Country of Origin: India

Technical Specifications

• UNSPSC Code: 39121400
• Type: Heavy Duty Direct Burial Ground Clamp
• Brand: NSI Industries
• Material: Bronze
• Standard: CULUS
• Sub Brand: Grounding
• Product UPC: 66238101009
• 12-Digit UPC: 662381010094
• Applications: Grounding Wire
• Insulation Material: Silicon Bronze
• ECCN: EAR99
• Country of Origin: India
• Series: G-S-DB Series
• Pipe Size: 1-1/4 to 2
• Length: 3.6 in.
• GROUND WIRE BOLT SIZE: 1/4"-20 x 1/2"
• GROUND CLAMP BOLT SIZE: 5/16"-18 x 2"
• GROUND WIRE RANGE: 10 sol - 2 str
• QUANTITY: 1 Count
• WIDTH: 0.750
• HEIGHT: 1.69
• BRAND EQUIVALENT: Burndy C-22DDottie DB27Greaves G2S-DBIlsco BGC-2DBMorris 90630
• MANUFACTURER: NSi Industries
• PART NUMBER: G-2-S DB
• Category: GROUND RODS & GROUNDING SYSTEMS
