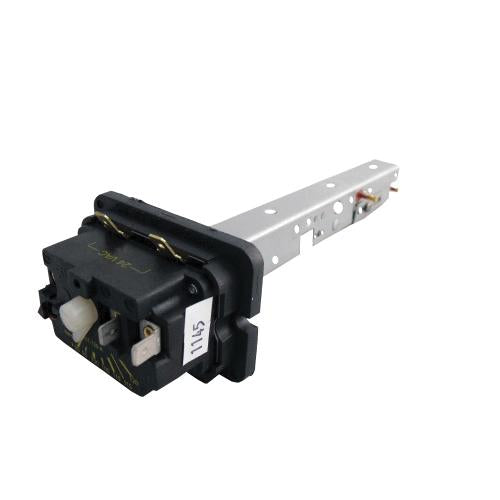

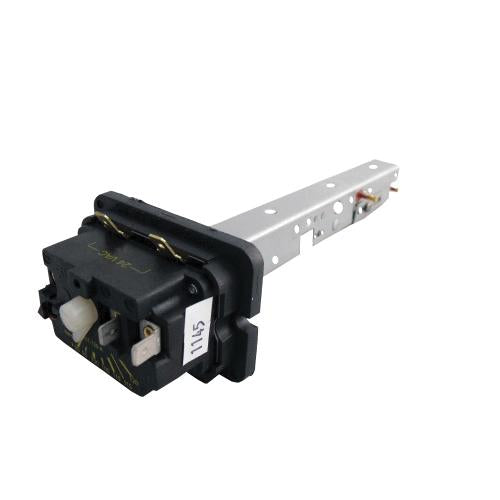

Nsi Industries FALTS57C05T120A Camstat fan and limit control, SPST switch, 40 VA, 7 in L

Product Description

The NSI INDUSTRIES FALTS57C05T120A Camstat Fan and Limit Control is an SPST switch designed for heating control components. It operates within a temperature range of 90 to 120 degrees F with a 30-degree F differential and has a 40 VA pilot duty rating. This 7-inch long control ensures precise fan operation and adjustable furnace temperature limits for various heating systems.

• Time delay turns on blower as function of time and/or temperature after "call for heat"
• Turns off blower as a function of temperature at dial setting for fan
• Adjustable furnace temperature limit to match existing setting

Product Highlights

Provides precise fan and limit control for heating systems, ensuring efficient and safe operation.

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: FALTS57C05T120A

Technical Specifications

• Series: FALTS
• Switch Type: SPST
• Temperature Rating: 90 to 120 deg F, 30 deg F Differential
• Pilot Duty Rating: 40 VA
• Heat Assist Electrical Rating: 0.08 A at 24 VAC
• Fan Full Load Current: 13.8 A at 120 VAC/8 A at 240 VAC
• Fan Locked Rotor Current: 82.8 A at 120 VAC, 48 A at 240 VAC
• Limit Full Load Current: 4.4 A at 120 VAC
• Limit Locked Rotor Current: 26.4 A at 120 VAC
• Limit Temperature Range: 150 - 250 deg F
