Product Description

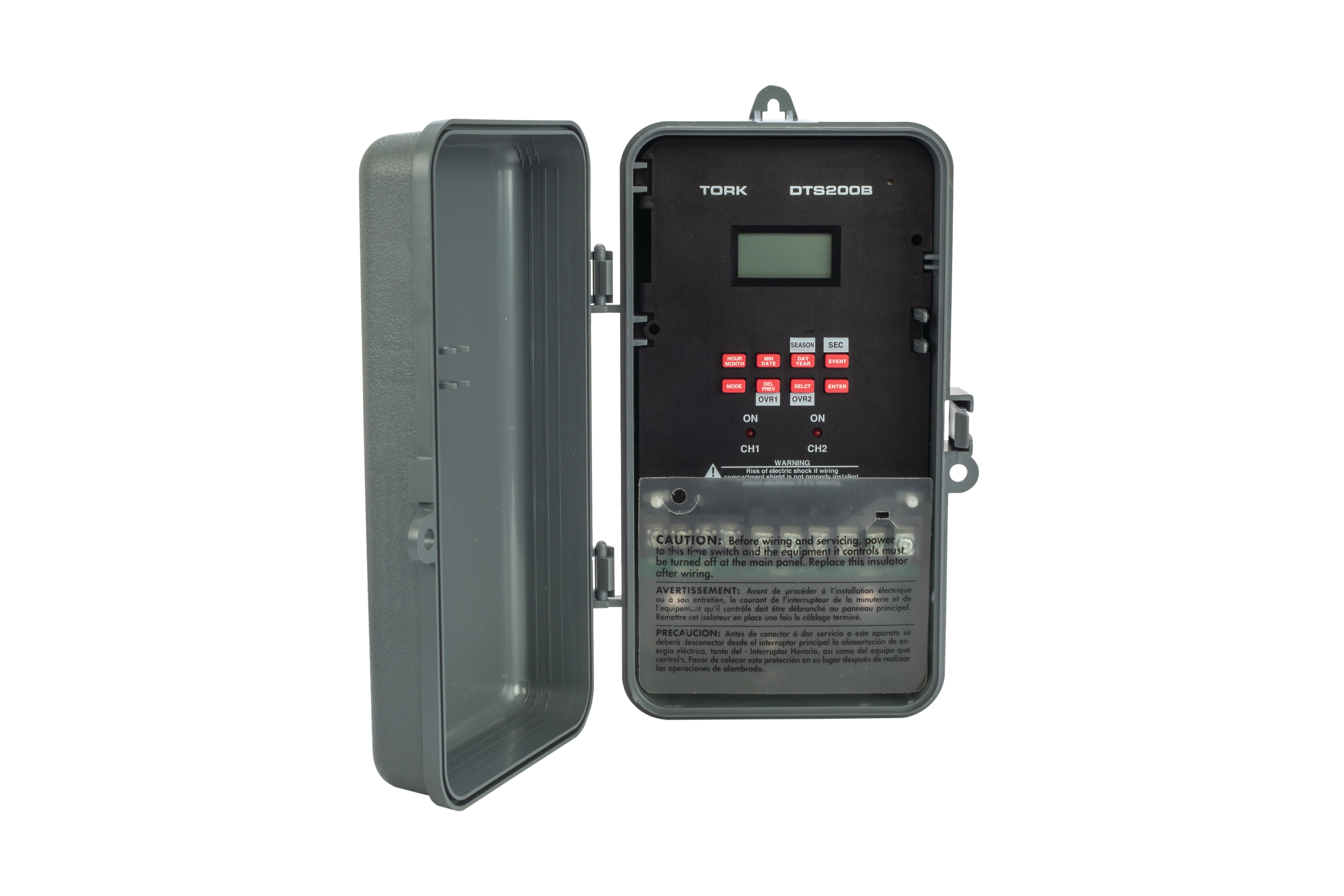

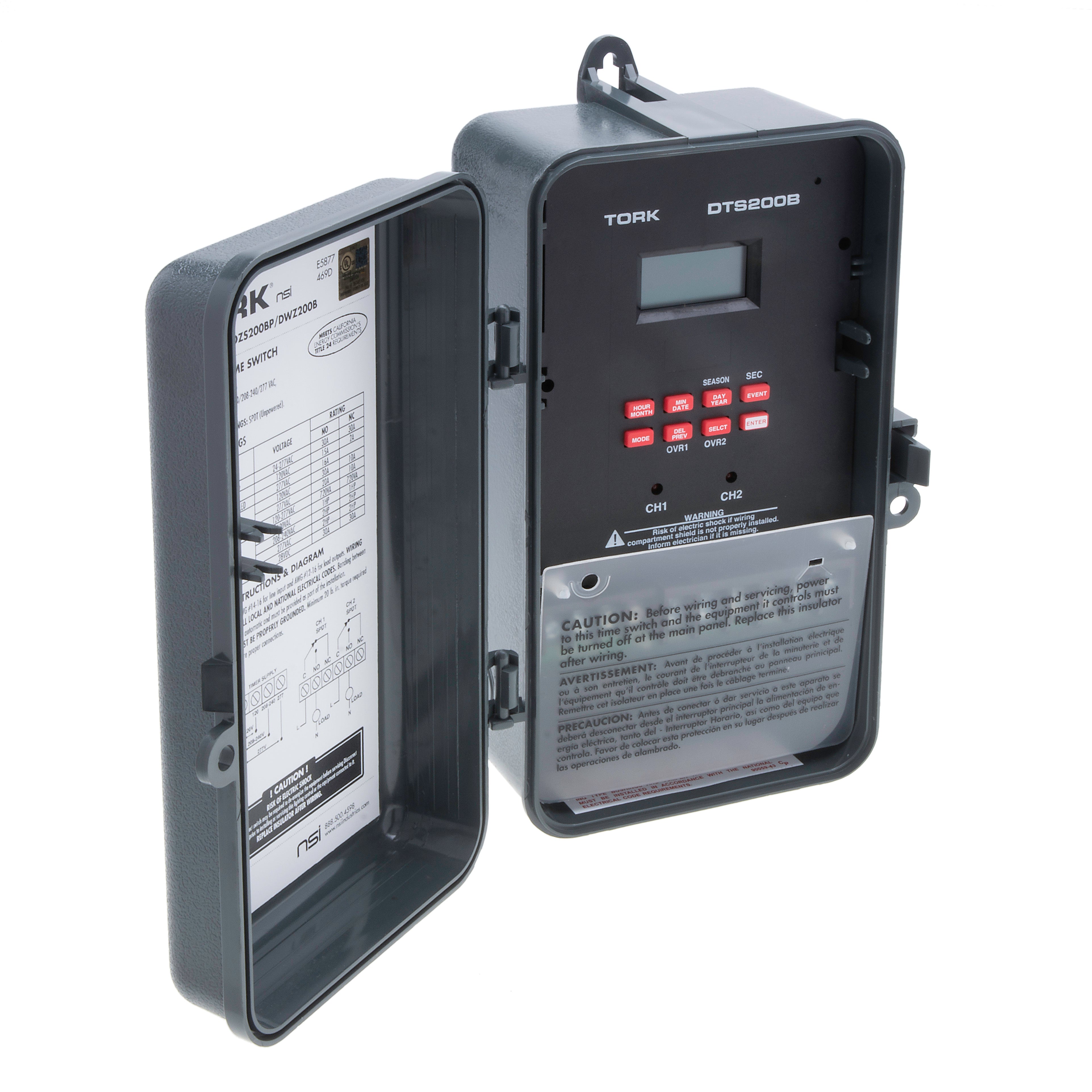

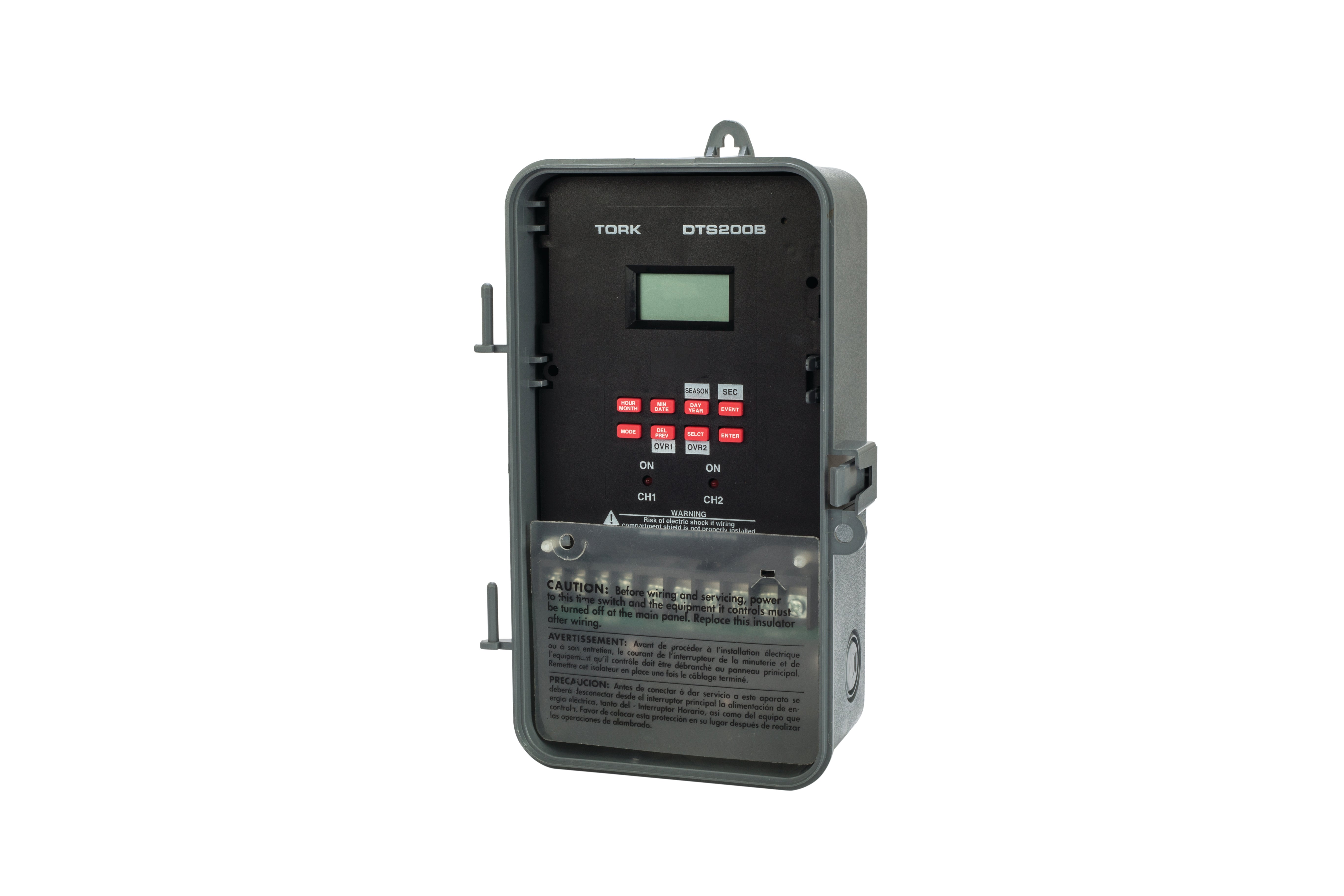

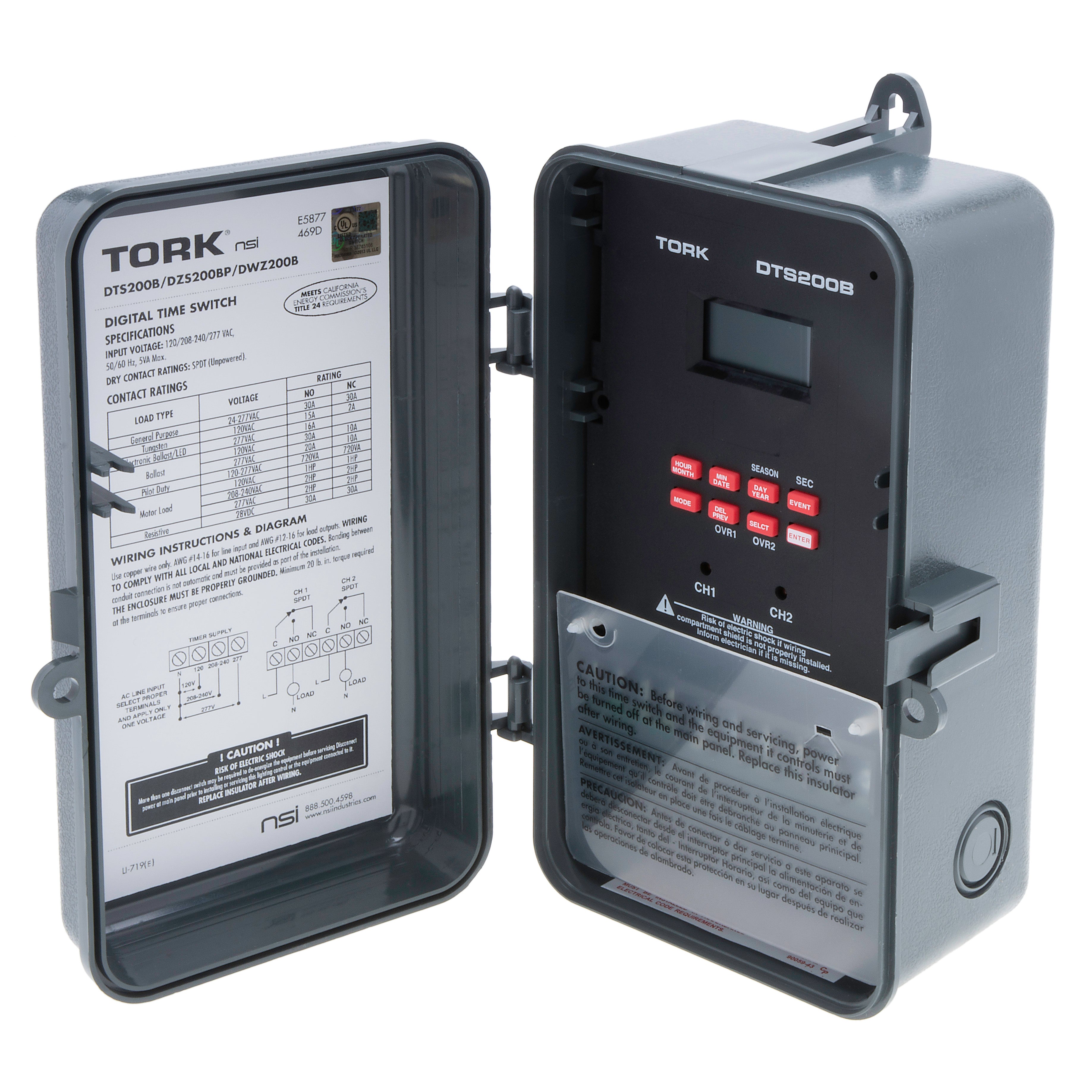

The NSI INDUSTRIES DTS200B is a digital time switch that accepts 120/208-240/277 VAC input. Its SPDT output contacts can activate a 30 amp load or 2 hp motor on each of two channels. This timer includes 99 pairs of on/off set points, and has a minimum cycle time of one minute, suitable for individualized daily operation.
- Automatic on/off control for individualized daily operation of two channels
- Digital 7-day, 24-hour display with 99 on/off cycles each day, one-minute minimum cycle, manual override switch
- Automatic compensation for daylight saving time and leap year
Product Highlights
Automate and control indoor or outdoor loads such as lights, heaters, air conditioners, and motors with the NSI Industries DTS200B digital timer.
Product Information
Standard Information
-
Brand: NSI INDUSTRIES
-
Manufacturer Part Number: DTS200B
-
Country of Origin: US - United States
Technical Specifications
-
Type: On/Off
-
Timer Switch Type: SPDT
-
Switch type: Digital 7-day, 24-hour timer with 99 unique set points each day of the week. Two channel operation.
-
Input power supply: 120/208-240/277 VAC, 50/60 Hz, 6 W power consumption, rechargeable super capacitor backup
-
Output contacts: SPDT contacts, 30 amp load rating, 2 hp motor load rating
-
On/off control: One-minute minimum on/off cycle, up to 99 cycles per 24 hours
-

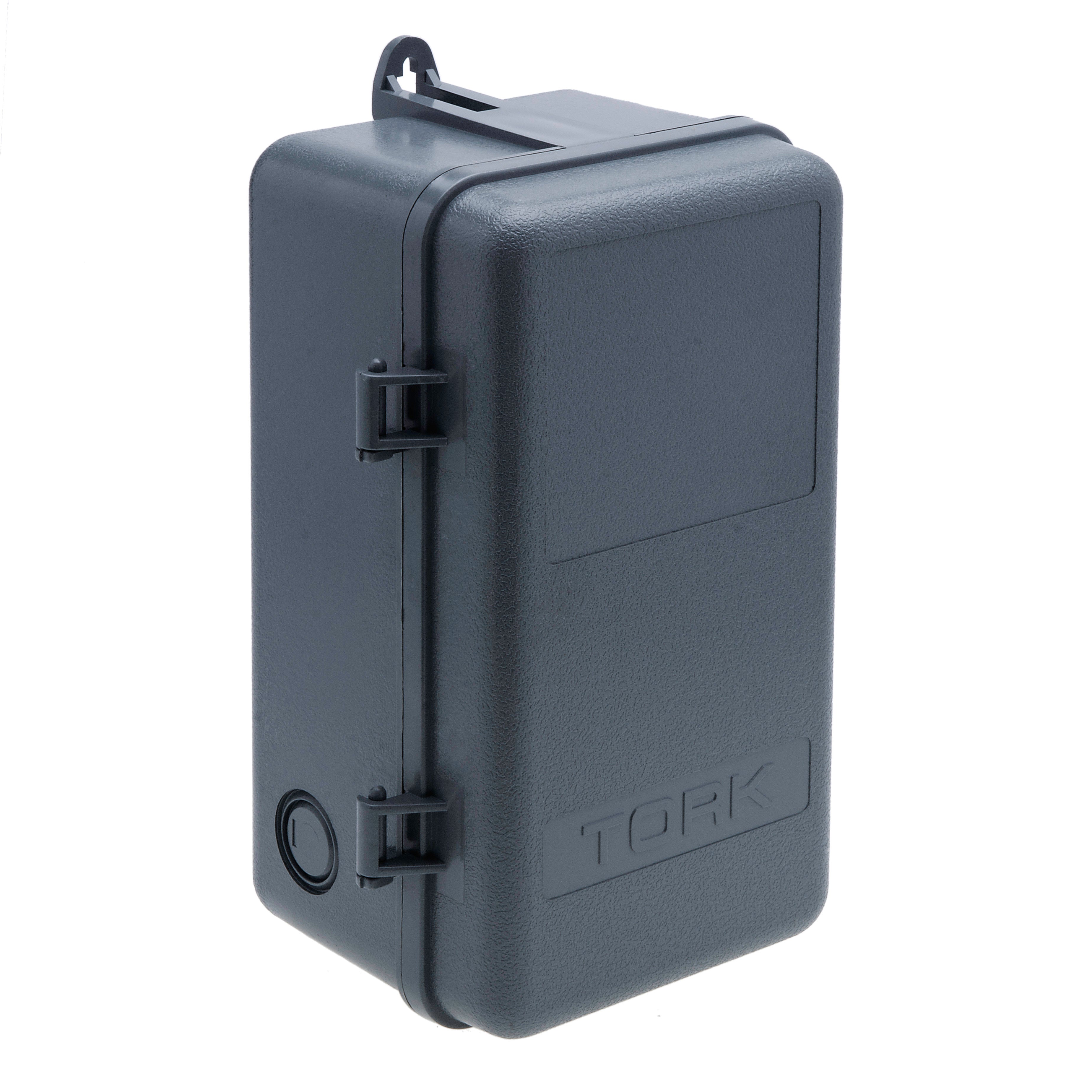

Enclosure: NEMA-3R Noryl plastic alloy enclosure with clear Lexan cover, indoor/outdoor use, external surface mount
-
Terminal wire size range: #12 to #16 AWG (American wire gauge)
-
Operating temperature range: -40 to +149 degrees F (-40 to +65 degrees C)
-
Standards met: UL Listed, CSA certified
-
Amperage Rating: 30 A
-
Application: Indoor/Outdoor Lighting, Heating and Air Conditioning, Security Systems, Horns and Bells, Low Voltage Lighting, Misting and Spraying, Roof Cooling, Process Functions and Clock Correction Systems
-
Contact Form: SPDT
-
Display Type: Digital LCD
-
Enclosure Type: NEMA 3R
-
Horsepower: 2 hp
-
Mfg Standards/Approvals: cULus Listed, California Title 24 Compliant, ASHRAE 90.1
-
Mounting Type: Threaded
-
Number of Channels: 2
-
Number of Poles: 1
-
On/Off Ratio: 99
-
Operation Mode: 365/7 days
-
Pulse Duration: 1 to 99 s
-
Series: DTS
-
Temperature Rating: -40 to 149 deg F
-
Voltage Rating: 120/208/240/277 VAC
-
Action: SPDT
-
Applications: Indoor-Outdoor Lighting-HVAC-Security Systems-Horns And Bells-Low Voltage Lighting-Misting And Spraying
-
Base: Screw
-
Contact Rating: 120-208-240-277 VAC
-
Frequency: 50-60 Hz
-
Frequency Rating: 50/60 Hz
-
Material: Plastic
