Product Description

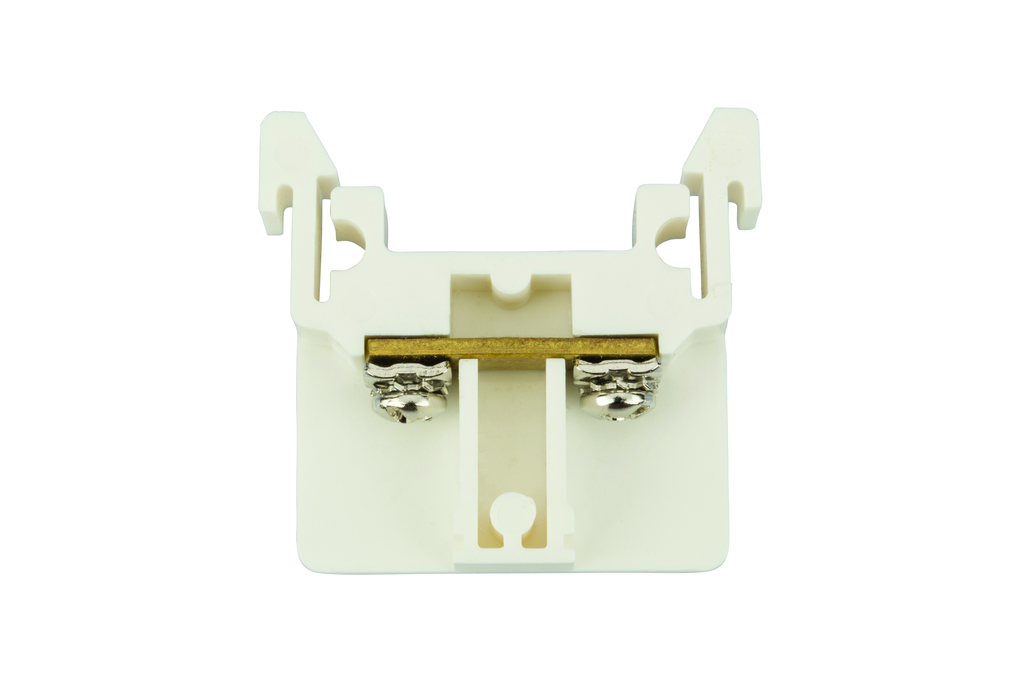

The NSI Industries DRTB25F is a 25 Amp Din Rail mount power distribution terminal block. It is designed to accept wire sizes ranging from #22 to two #12 wires per terminal, ensuring versatility in electrical connections. The block features captive wire clamps suitable for both stranded and solid wire, making it easy to use with ring terminals. This terminal block is rated for 25 Amps and 600 Volts, providing reliable performance.
- Accepts #22 to two #12 wires per terminal
- Captive wire clamps for stranded or solid wire
- Rated 25 Amps and 600 Volts
Product Highlights
This terminal block provides a cost-effective solution for connecting various sizes of wiring on a Din Rail. The installation is streamlined, with individual blocks easily inserted or removed without disturbing those adjacent. The snap-lock mounting enables quick setup and adjustments.
Product Information
Standard Information
-
Brand: NSI Industries
-
Type: Din Rail
Technical Specifications
-
Voltage Rating: 600 Volt
-
Material: Thermal Plastic
-
Color: White
-
Dimensions: L=1.75 inches, W=0.375 inches, H=1.625 inches
-
Wire Size Acceptance: 22 AWG to two 12 AWG Solid/Stranded
-
Mounting Type: Snap Lock
-
Approval: UL Listed
-
Warranty Length: 1 year
