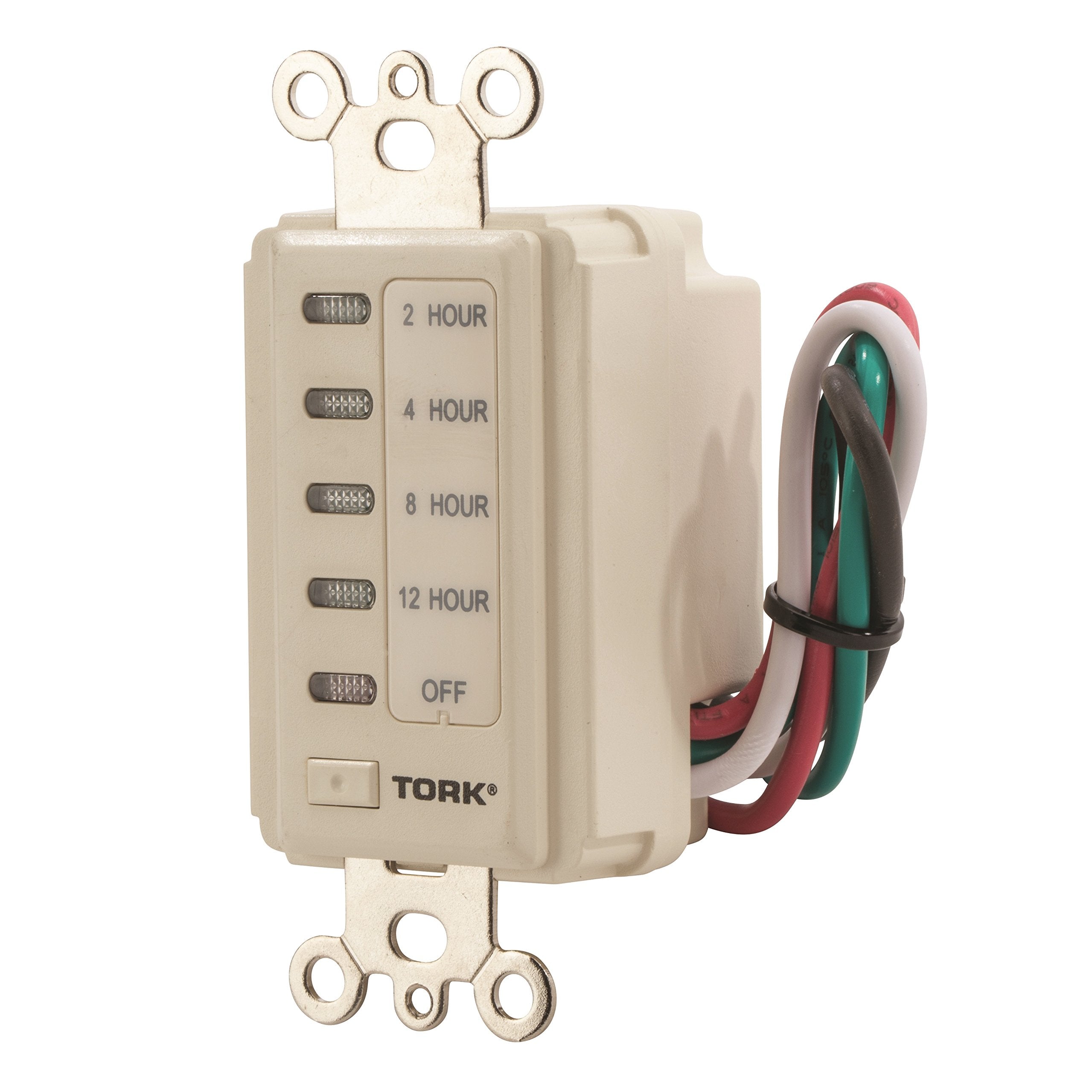

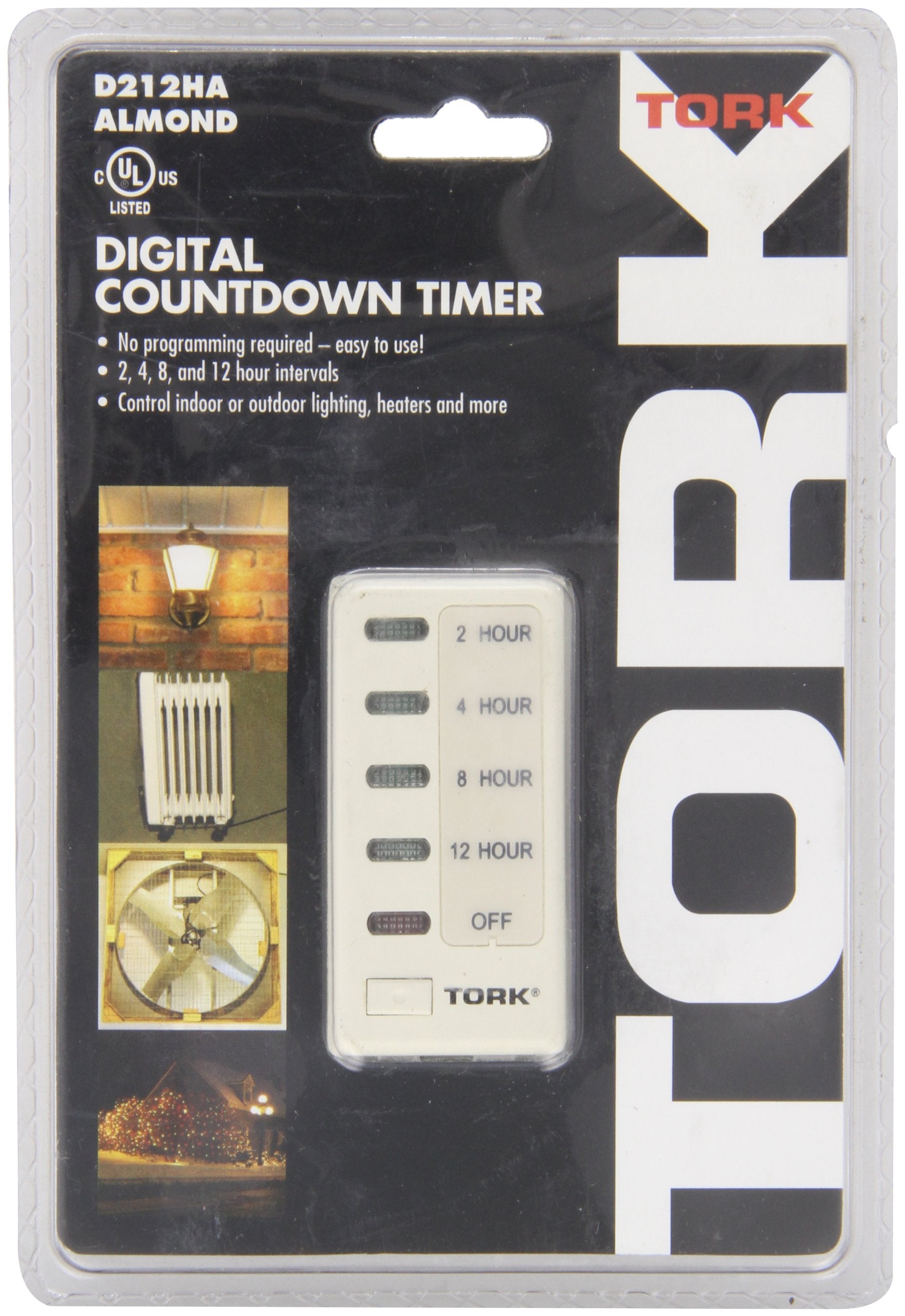

Nsi Industries D212HA D Series Electronic Auto Off In-Wall Time Switch 120 VAC (2, 4, 8, 12 Hours)

Product Description

The NSI Industries D212HA electronic timer can handle up to 15 amp general purpose loads, 8 amp tungsten lighting loads, or 1/4 hp motor loads at 120 VAC. This timer features two, four, eight, and twelve hour countdown interval settings. The housing fits in a standard electrical box for in-wall mounting. Suitable for controlling indoor lights, outdoor lights, appliances, and small equipment motors.

• Handles up to 15 amp general purpose loads, 8 amp tungsten lighting loads, or 1/4 hp motor loads at 120 VAC
• Two, four, eight, and twelve hour countdown interval settings
• Fits in standard electrical box for in-wall mounting

Product Highlights

Electronic timer with pushbutton time selection and LED indicators. It is UL listed for quality assurance and suitable for indoor use.

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: D212HA

Technical Specifications

• Input Supply: 120 VAC 60 Hz
• Time Setting: 2/4/8/12 hr
• Mounting Type: Wall
• Number Of Poles: 1
• Operation Mode: ON/Auto OFF
• Amperage Rating: 15 A
• Contact Form: SPST
• Display Type: LED
• Series: D Series
• Temperature Rating: 32 to 122 deg F
• Voltage Rating: 120 VAC
• Application: Whole House Fans, Indoor/Outdoor Lighting, Bathroom Fans and Self Storage Control Applications
• Standard & Approvals: cULus Listed
• Horsepower: 1/4 hp
• Type: Electronic Auto Off In Wall Time Switch
