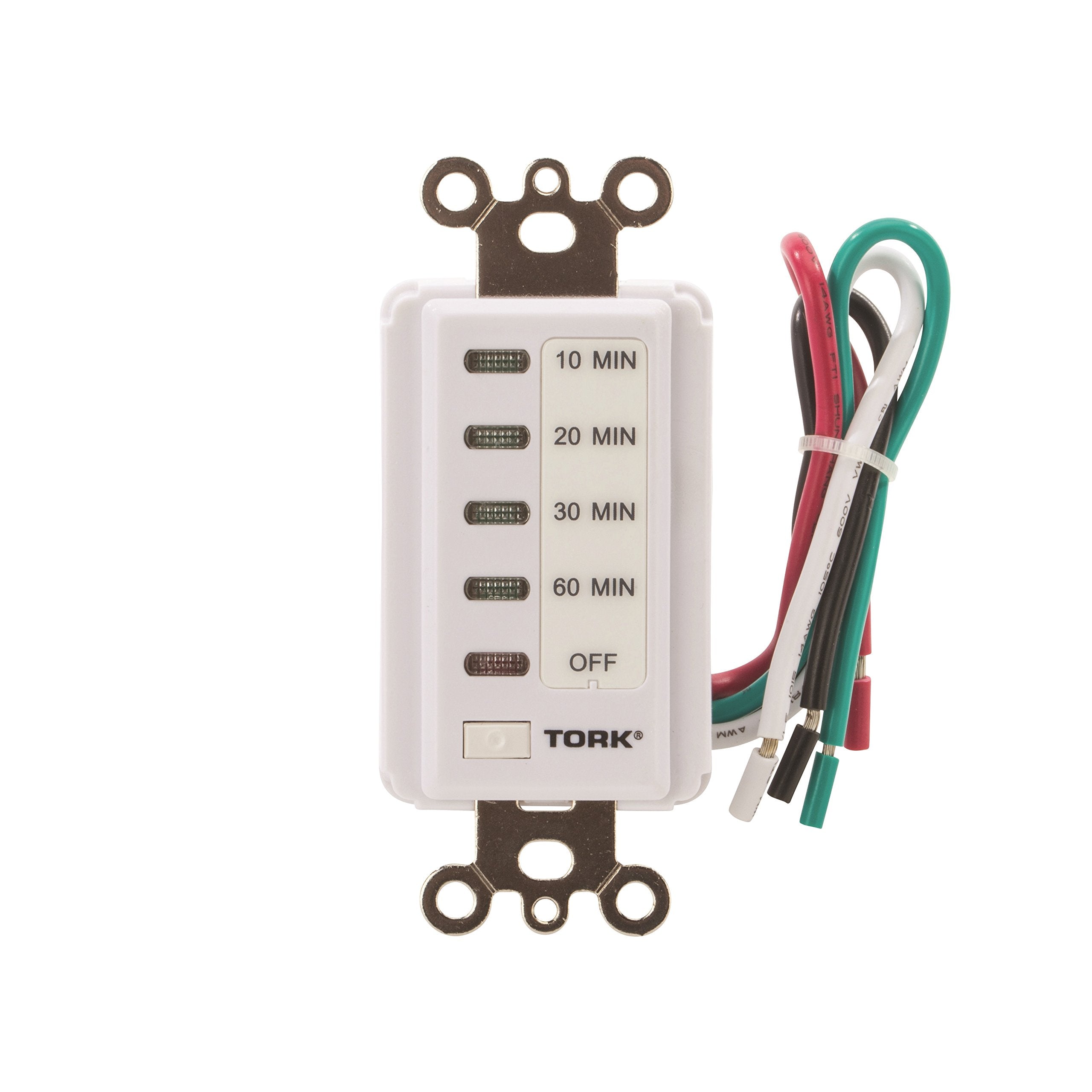

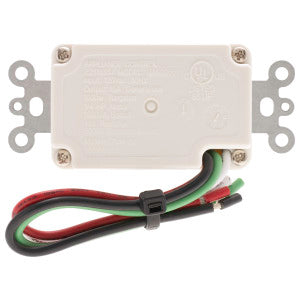

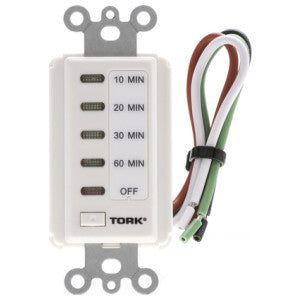

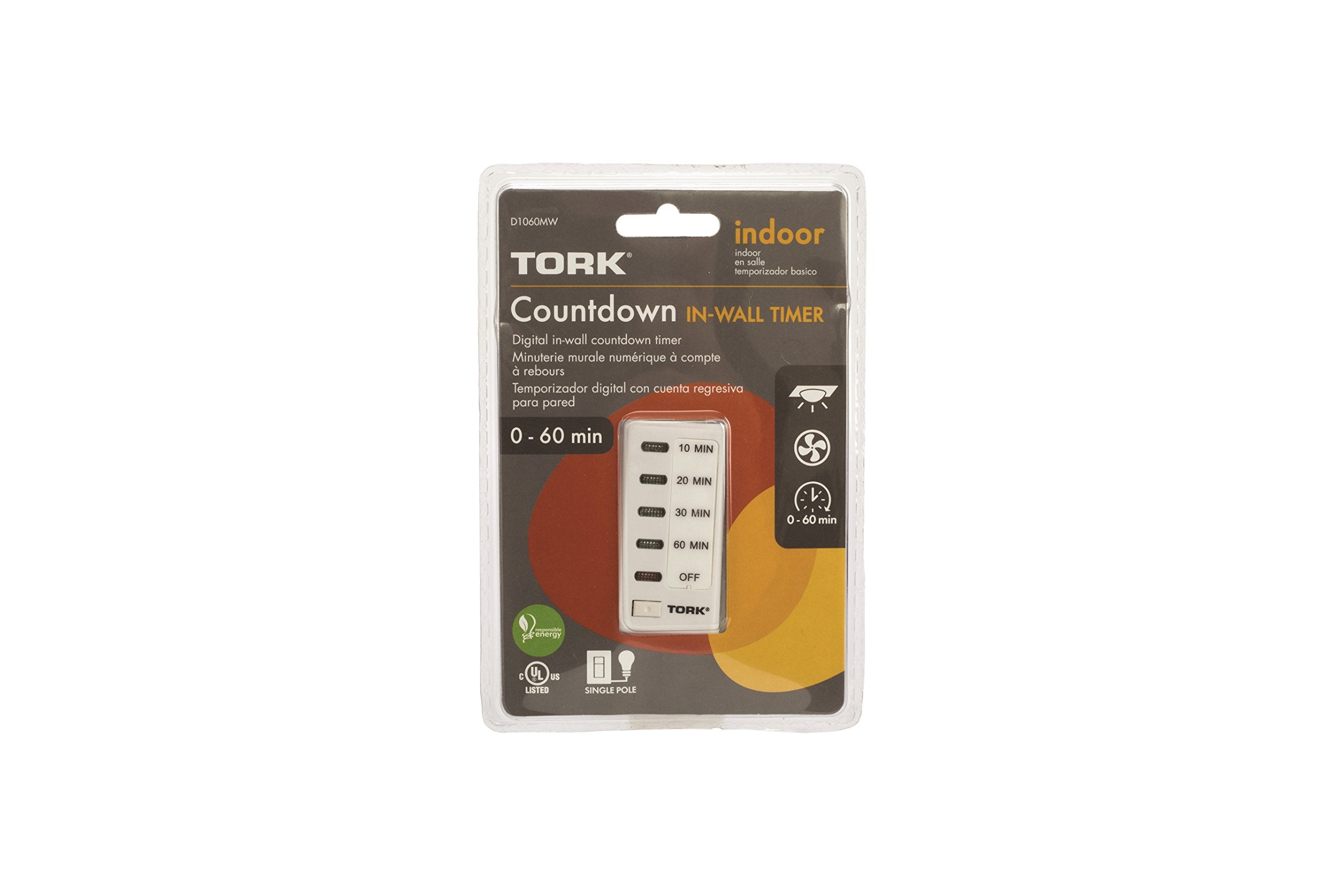

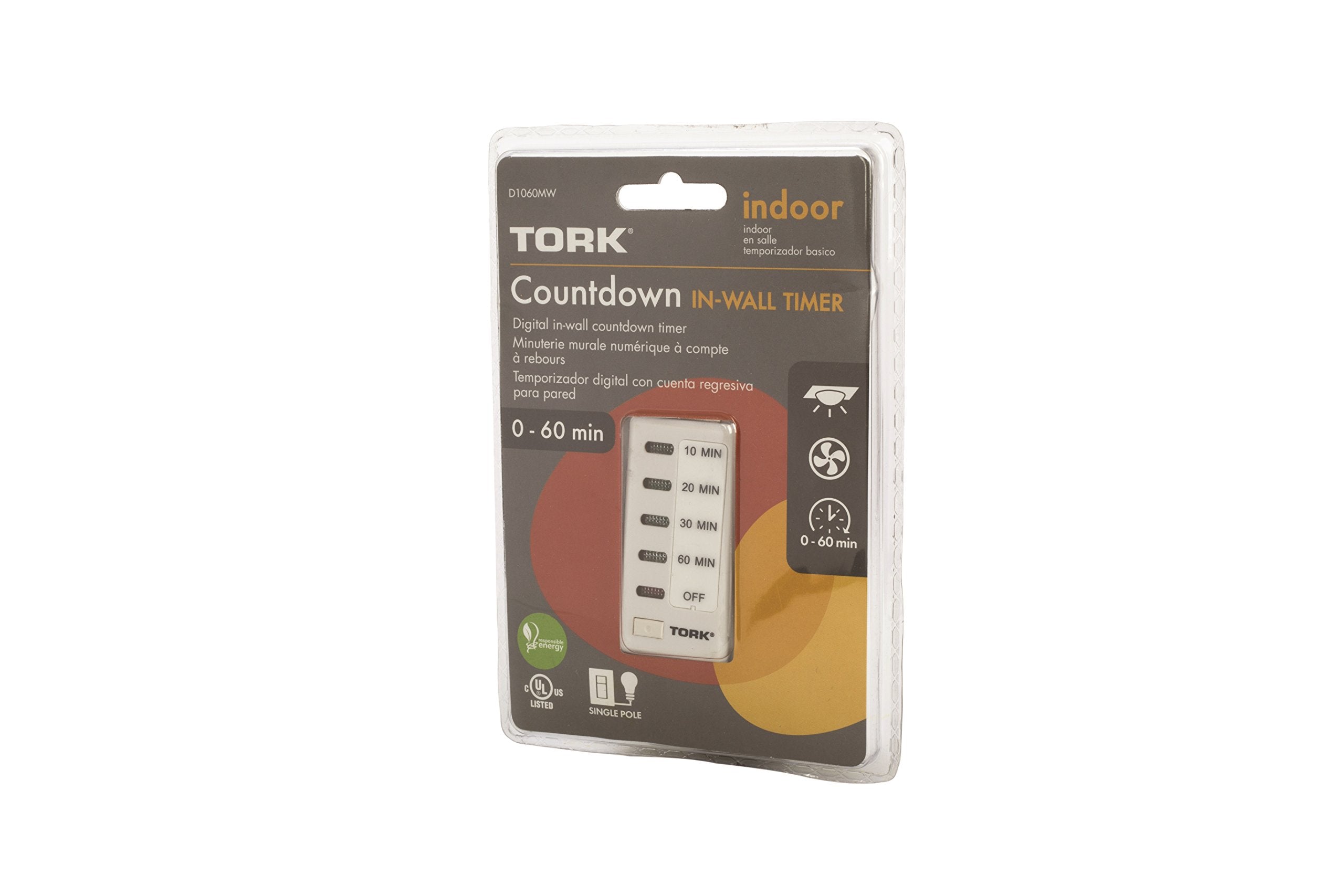

Nsi Industries D1060MW Interval Timer, 60 Min, 120V

Product Description

The NSI Industries D1060MW interval timer with auto OFF function conveniently runs whole house fans, indoor/outdoor lighting, bathroom fans and lights, as well as self-storage appliances for a predetermined length of time before automatically shutting OFF. Features running countdown times of 10, 20, 30 and 60 minutes. The timer fits into a standard electrical box and requires a neutral for wiring.

• Digital auto off countdown timer
• Fits into a standard electrical box for in-wall mounting
• Can handle up to 15 Amp general purpose loads, 8 Amp tungsten lighting loads or 1/4 HP motor loads at 120 VAC

Product Highlights

This electronic timer is UL-Listed for quality assurance and is suitable for indoor use to control lighting and appliances.

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: D1060MW
• Country of Origin: China

Technical Specifications

• Time Range: 1 to 60 Minutes
• Action: SPST
• Manufacturer: NSi Industries
• Brand: NSI
• Model / MPN: D1060MW
• Product Type: TIMER
• Mounting Type: Screw
• Number Of Poles: 1
• Series: D
• Temperature Rating: 32 to 122 deg F
• Time Setting: 10 to 60 min
• Voltage Rating: 120 VAC
• Application: For whole house fans, indoor/outdoor lighting, bathroom fans and lights and self storage
• Standard & Approvals: cULus Listed
• Amperage Rating: 15 A
• Contact Form: SPST
• Display: LED
• Horsepower: 1/4 hp
• Frequency Rating: 60 Hz
• Phase: Single-Phase
• Operation Mode: 10/20/30/60 min
