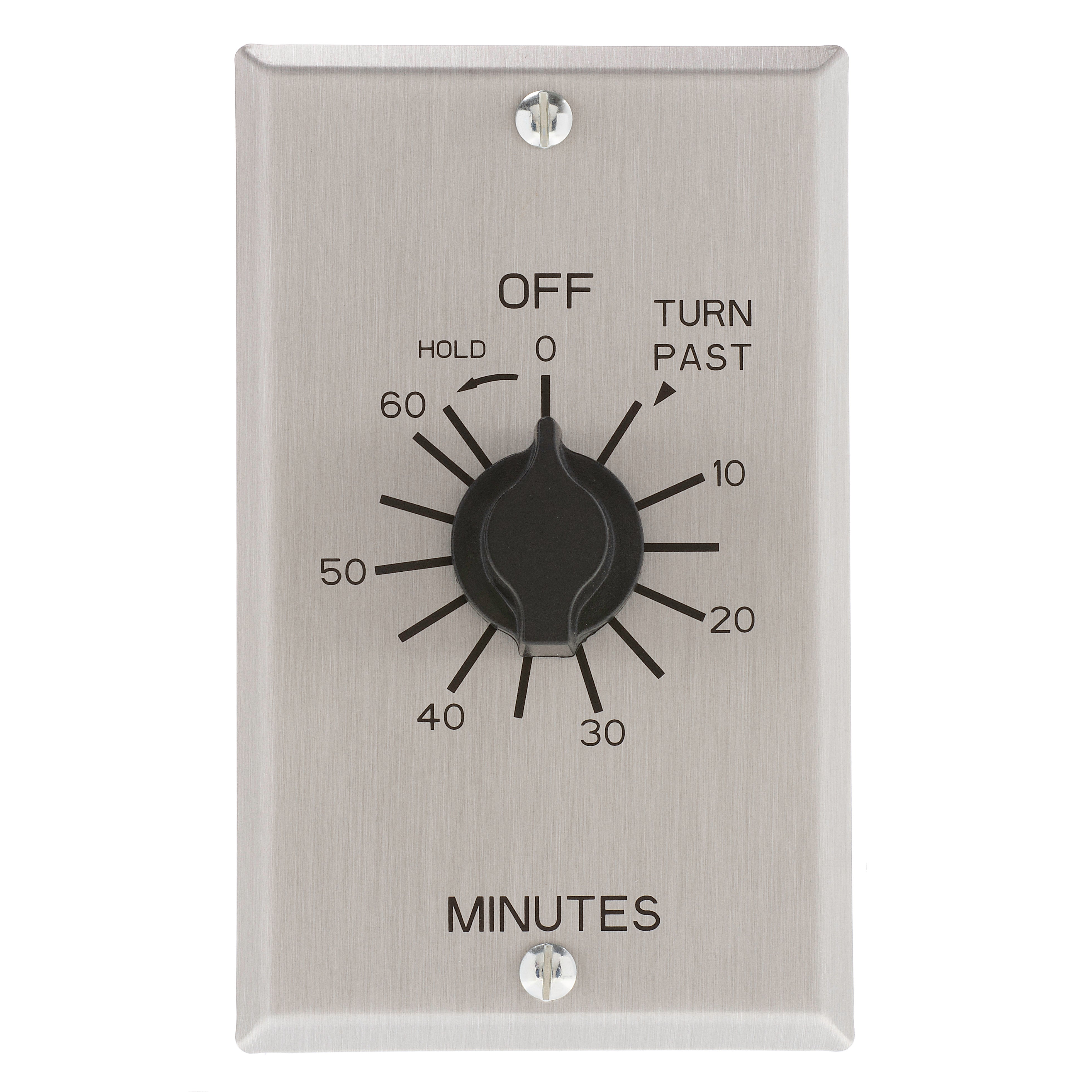

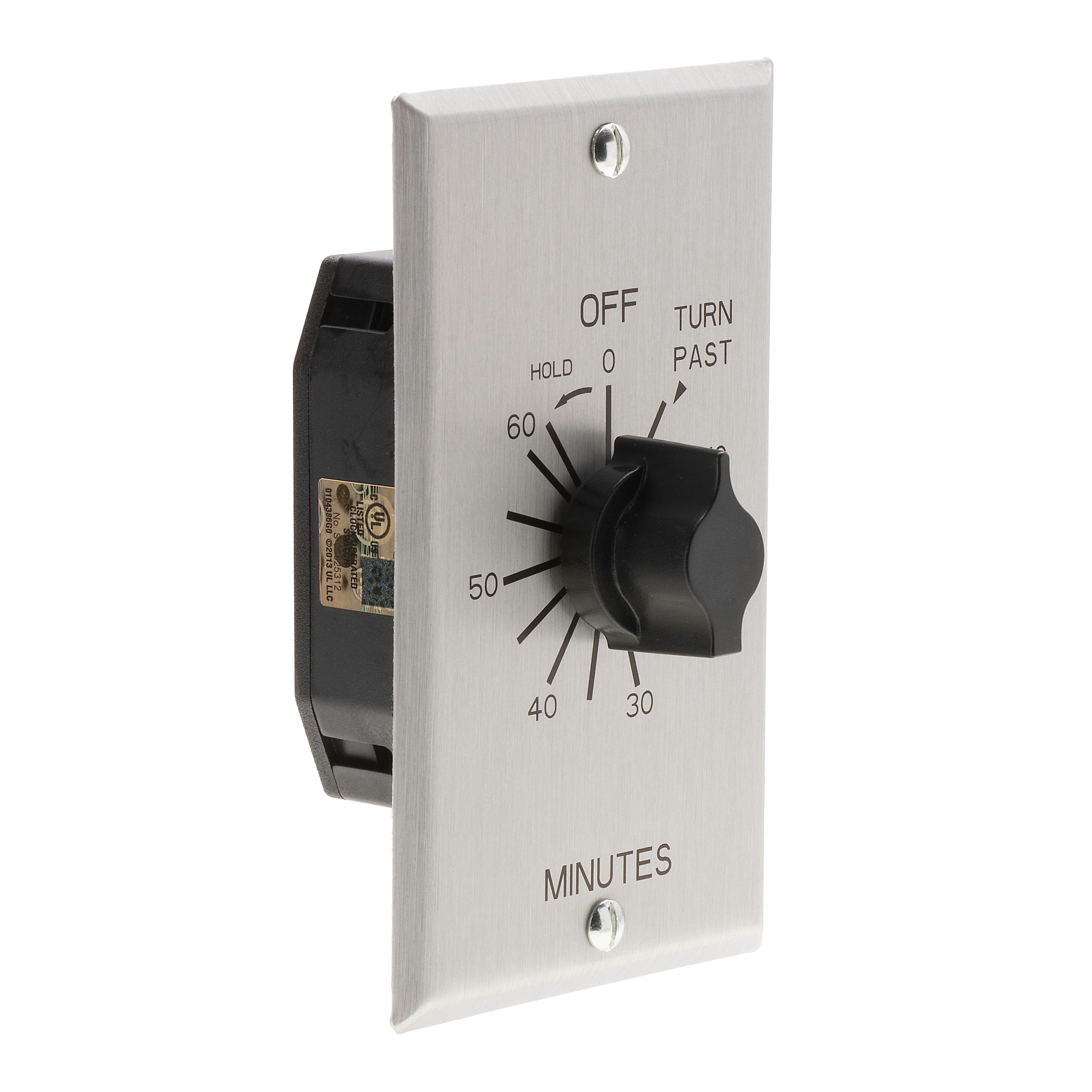

Nsi Industries C560MH C Series Commercial Style Springwound Auto Off In-Wall Time Switch 60 Minute

Product Description

The NSi Industries C560MH mechanical timer can handle up to 20 amp resistive loads, 7 amp tungsten lighting loads, or 1 hp motor loads at 125 VAC. This timer features a 60 minute maximum variable time setting and a constant ON setting. The housing fits in a standard electrical box for in-wall mounting.

• Handles up to 20 amp resistive loads, 7 amp tungsten lighting loads, or 1 hp motor loads at 125 VAC
• 60 minute maximum variable time setting
• Fits in standard electrical box for in-wall mounting

Product Highlights

The C560MH timer also accepts 250 and 277 VAC input voltages for commercial applications and is UL Listed for quality assurance. Suitable for use indoors to control lighting and appliances.

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: C560MH
• Country of Origin: China

Technical Specifications

• Switch Type: SPST
• Timer Length: 60 Minute
• Application: Commercial
• UNSPSC: 39121523
• EAN/UCC-13: 786261155061
• Prop 65 Flag: Yes
• Color: Metal
• Range: 0 - 60 min
• Supply Voltage (Nominal): 120 VAC
• Mount: Wall
• Amperage Rating: 20/10 A
• Dimensions: 5 in H x 3 in W
• Mounting Type: Wall
• Operation Mode: 60 min
• Series: C Series
• Temperature Rating: 32 to 122 deg F
• Type: Auto Off Interval Mechanical
• Time Setting: 60 min
• Voltage Rating: 125/250/277 VAC
• Horsepower: 1 hp, 2 hp hp
• Contact Form: SPDT
• Number of Poles: 1
• Brand: NSI Industries
• Part Number: C560MH
• GTIN: 786261155061
• UPC: 786261155061
• EAN: 786261155061
• Action: SPDT
• Base: Wall Plate
• Contact Rating: 125-250-277 VAC
• Enclosure: Single Gang Wall Plate
• Environmental Conditions: 32-122 F
• Frequency Rating: 50-60 Hz
• Initiation: Contact
• Timing Range: 60 Minutes
• Special Features: With Hold 60 Minutes Commercial Grade In Wall Time Switch
• Standard: cULus
• Operating Temperature: 32-122 F
• Phase: Single Phase
• Size: H=5.00 ">– W=3.00 IN
