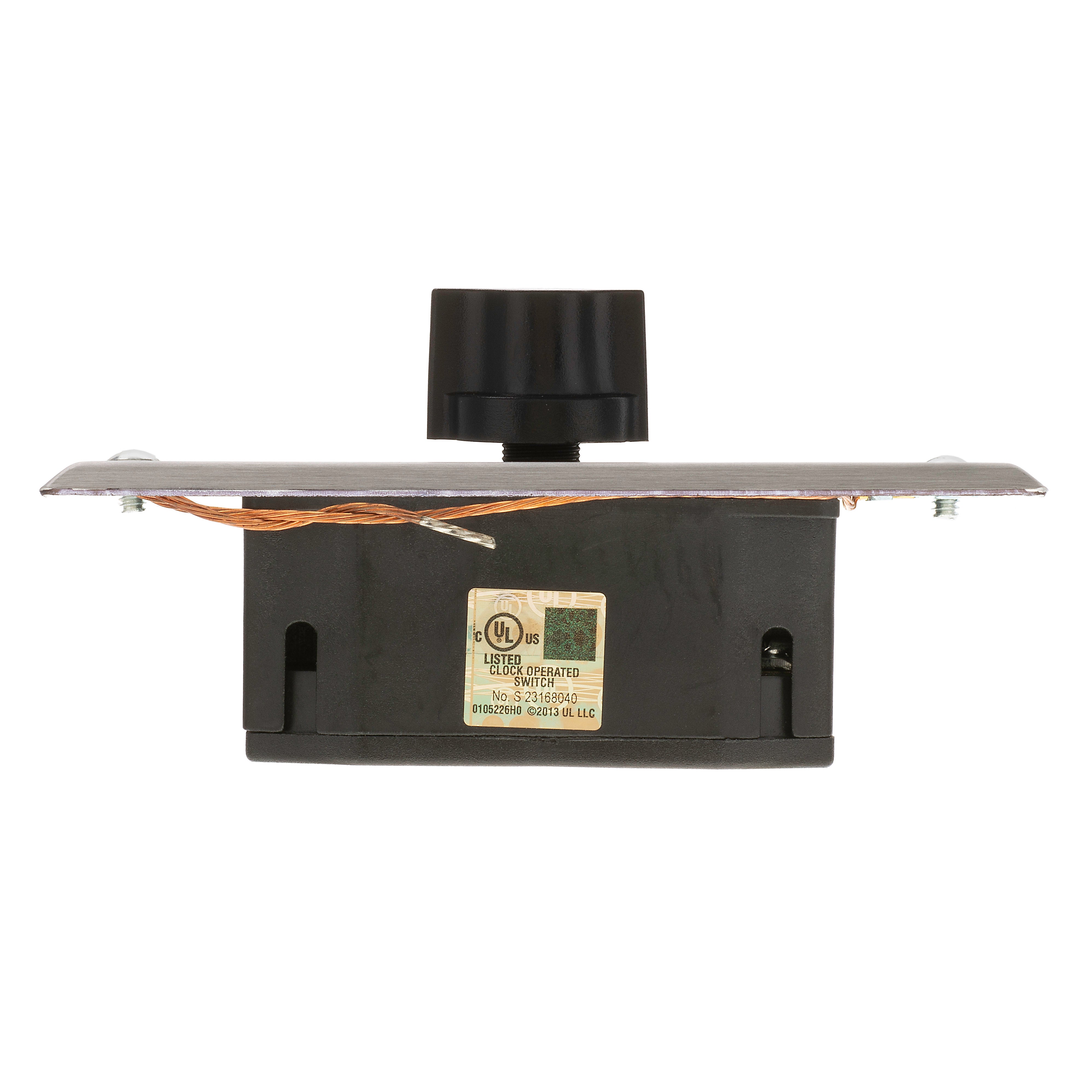

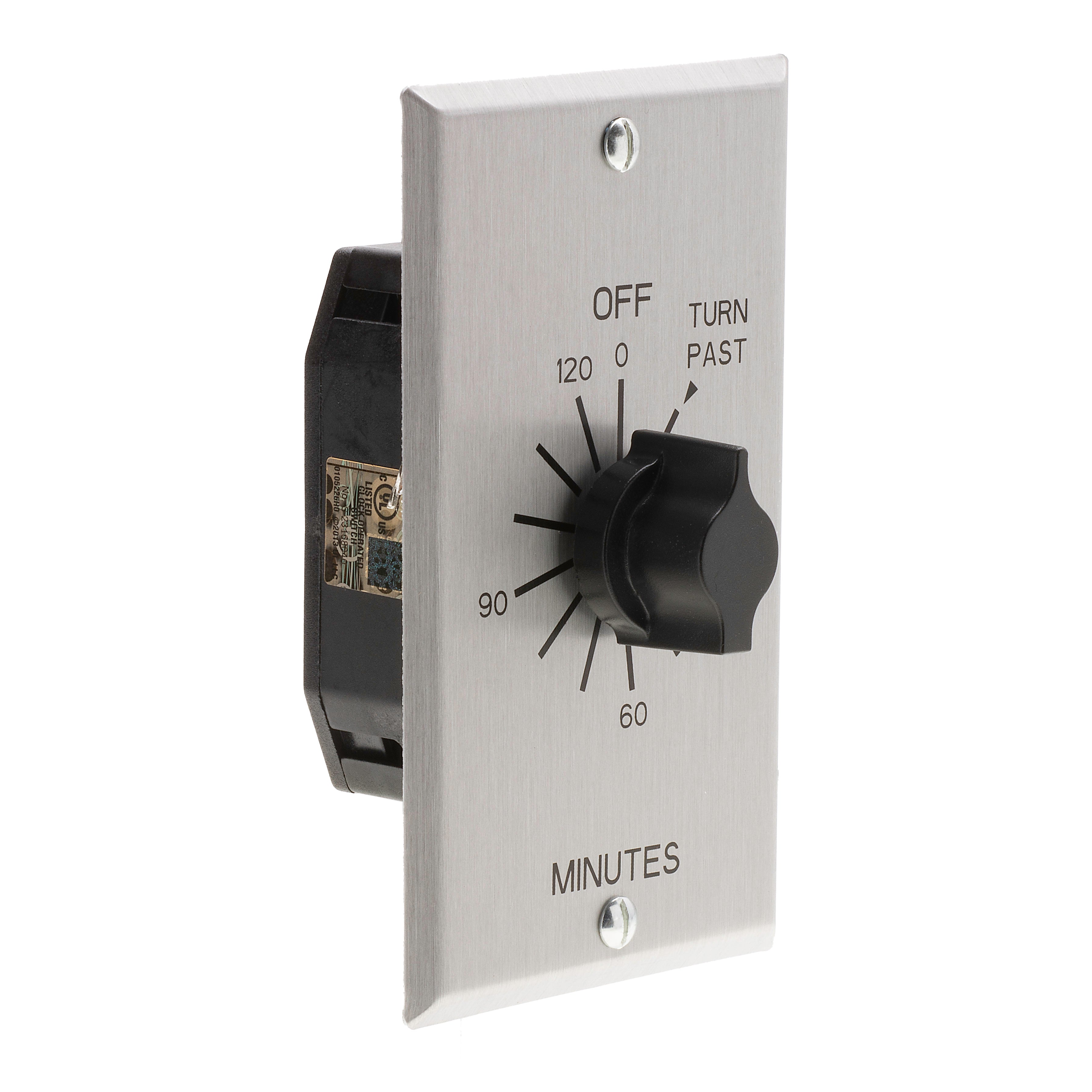

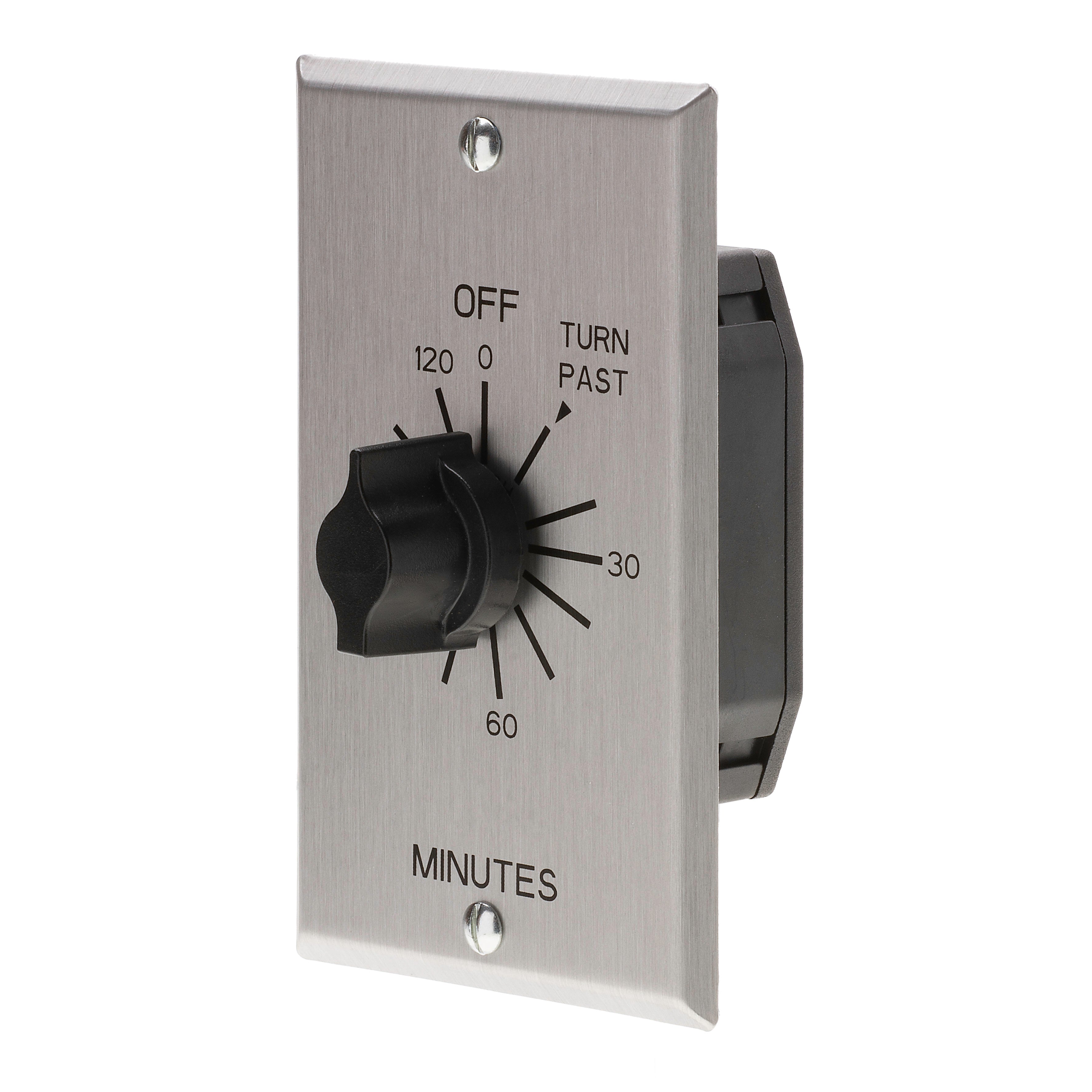

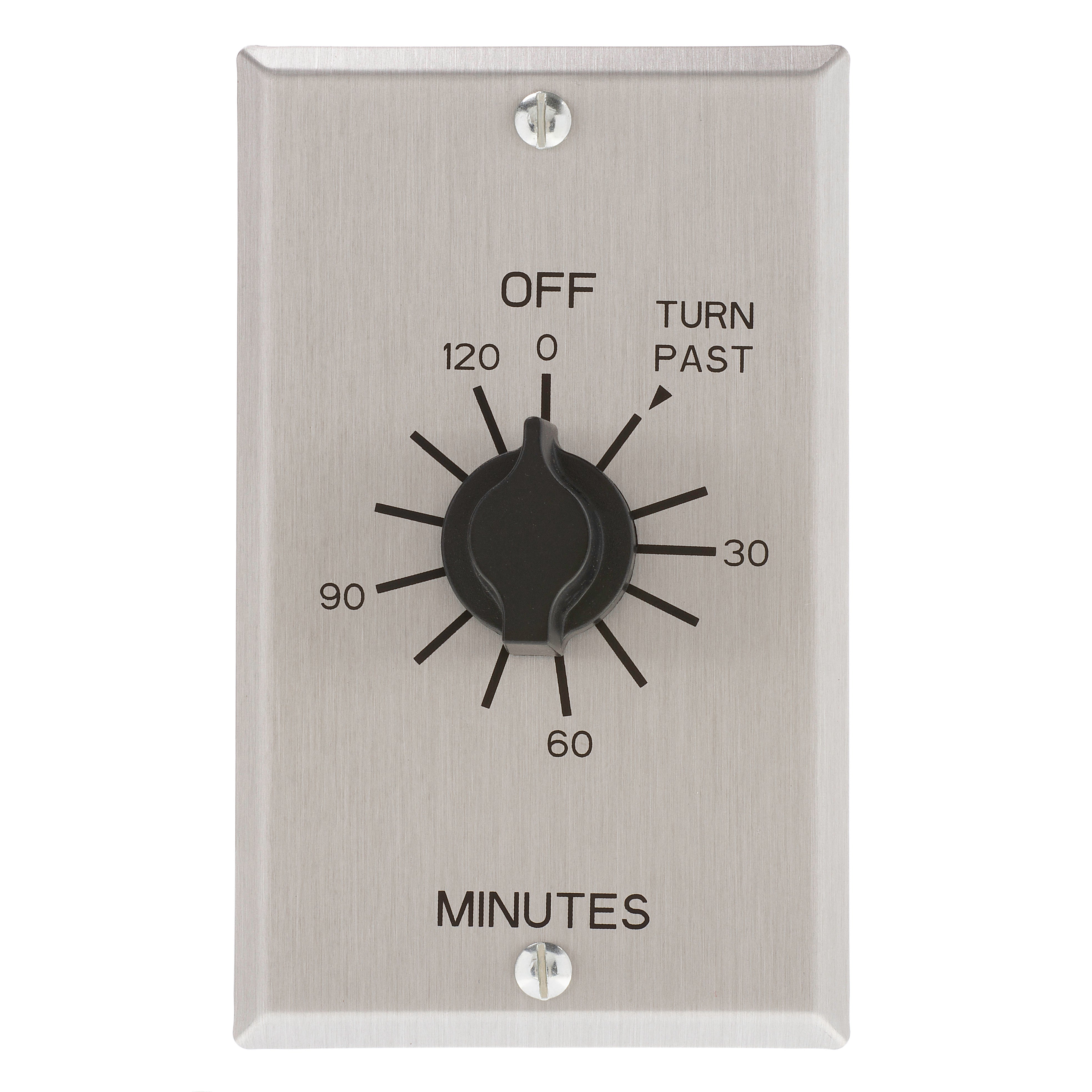

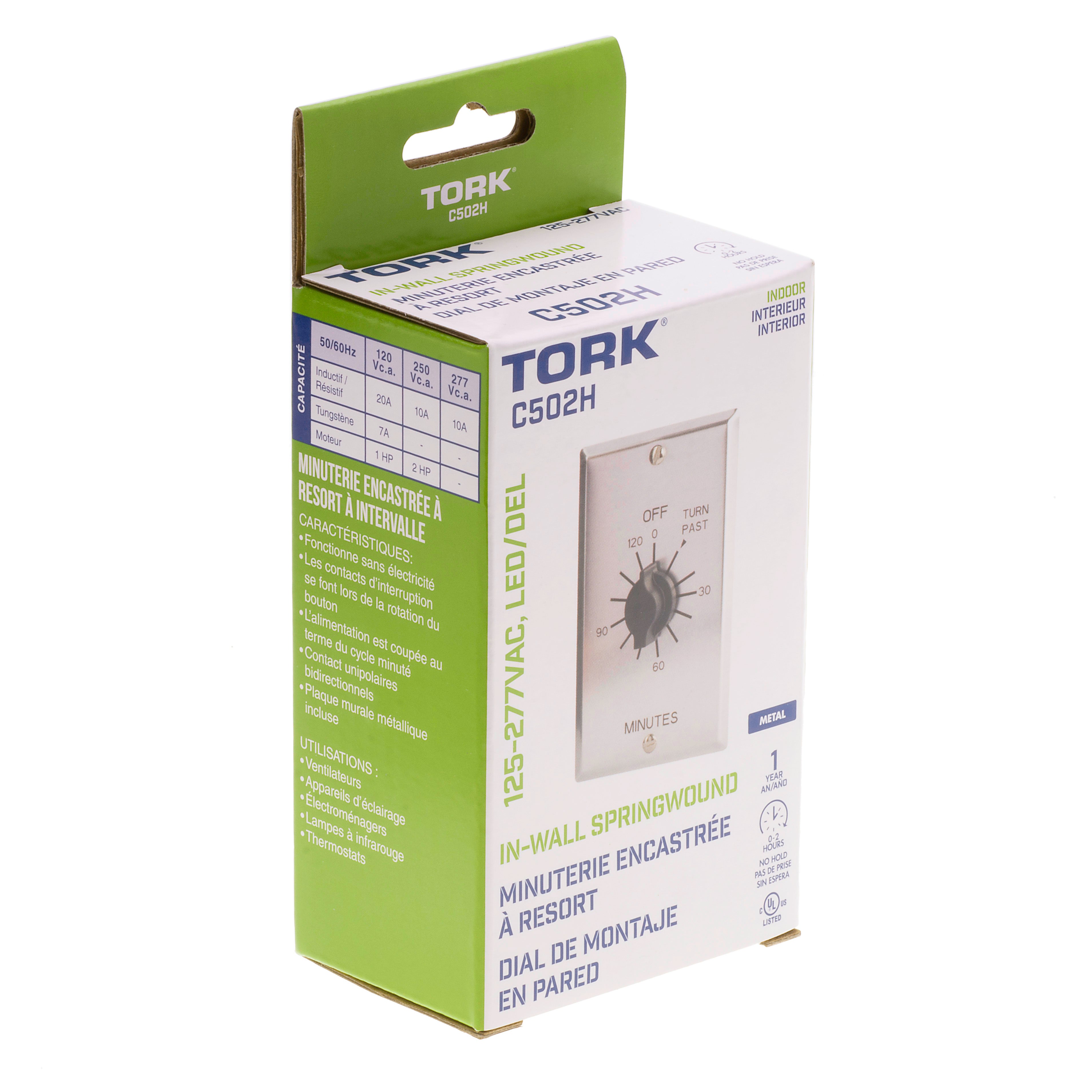

Nsi Industries C502H Interval Timer, 2 Hour Metal

Product Description

The NSI Industries C502H Interval Timer is a 2-hour metal timer designed for various applications. It features a twist knob for setting the time, with lengths varying by model, and some models include a position for constant ON. Easy to set up with no adjustments needed, it's also easy to wire with no neutral required, making it great for retrofit installations.

• Easy set: no adjustment
• Easy wiring, no neutral required
• Wall plate includes real metal wall plate with screw mounting

Product Highlights

This interval timer is mechanically spring wound, requiring no electricity to operate. It is suitable for ventilating fans, HVAC systems, motors, and pumps.

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: C502H
• Country of Origin: China

Technical Specifications

• Type: SWITCH
• UNSPSC Code: 32150000
• ECCN: EAR99
• UNSPSC: 39121523
• Timer Switch Type: SPDT
• Application: Ventilating fans, HVAC, whirlpools, self storage, motors and pumps
• Switch Type: SPST
• Timer Length: 2 Hours
• Input Voltage: 125/250/277 VAC, 50/60 Hz
• Terminal Size: #12AWG
• Operating Temperature: 32 to 122 degrees F (0 to 50 degrees C)
• Frequency [Specifications]: 50/60 Hz
• Standards [Specifications]: cULus
• Application [Specifications]: Ventilating Fans; HVAC; Whirlpools; Self Storage; Motors; Pump Control
• Contact Form [Specifications]: SPDT
• Timing Range [Specifications]: 0 to 2 hr
• Number of Gangs [Specifications]: 1
• Operating Temp. Range [Specifications]: 32 to 122
