Product Description

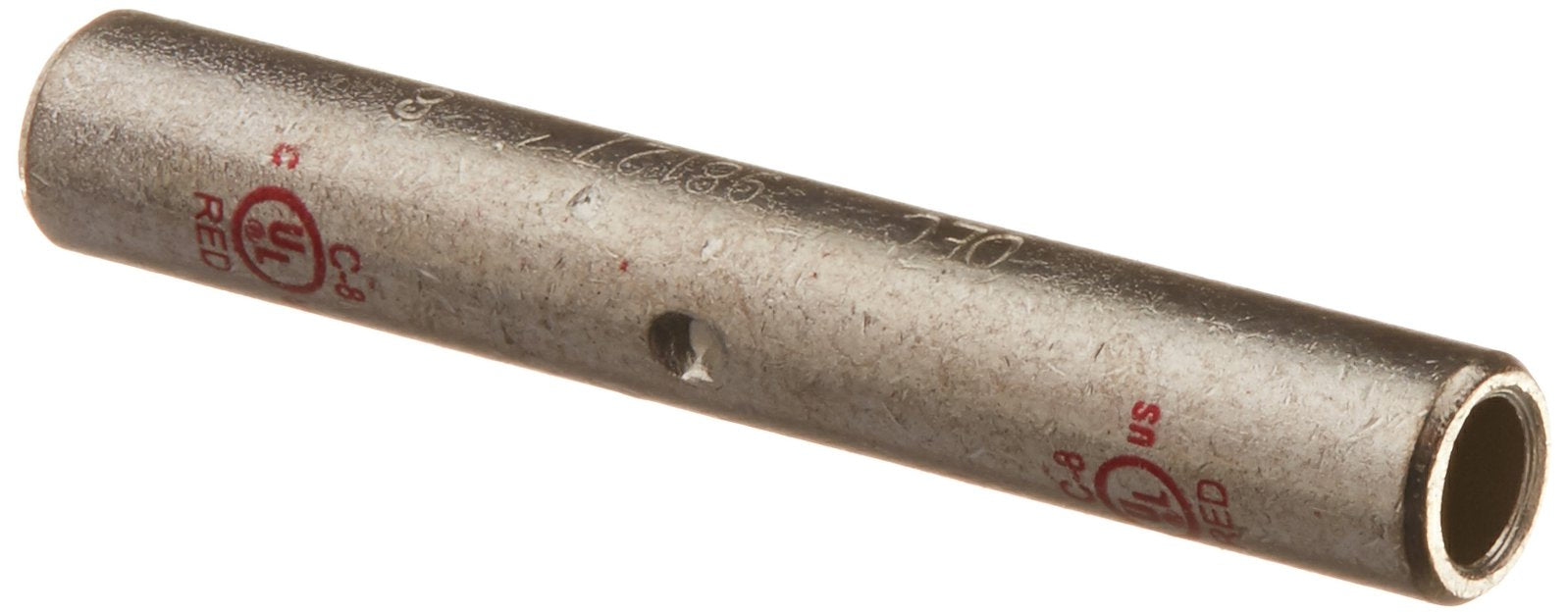

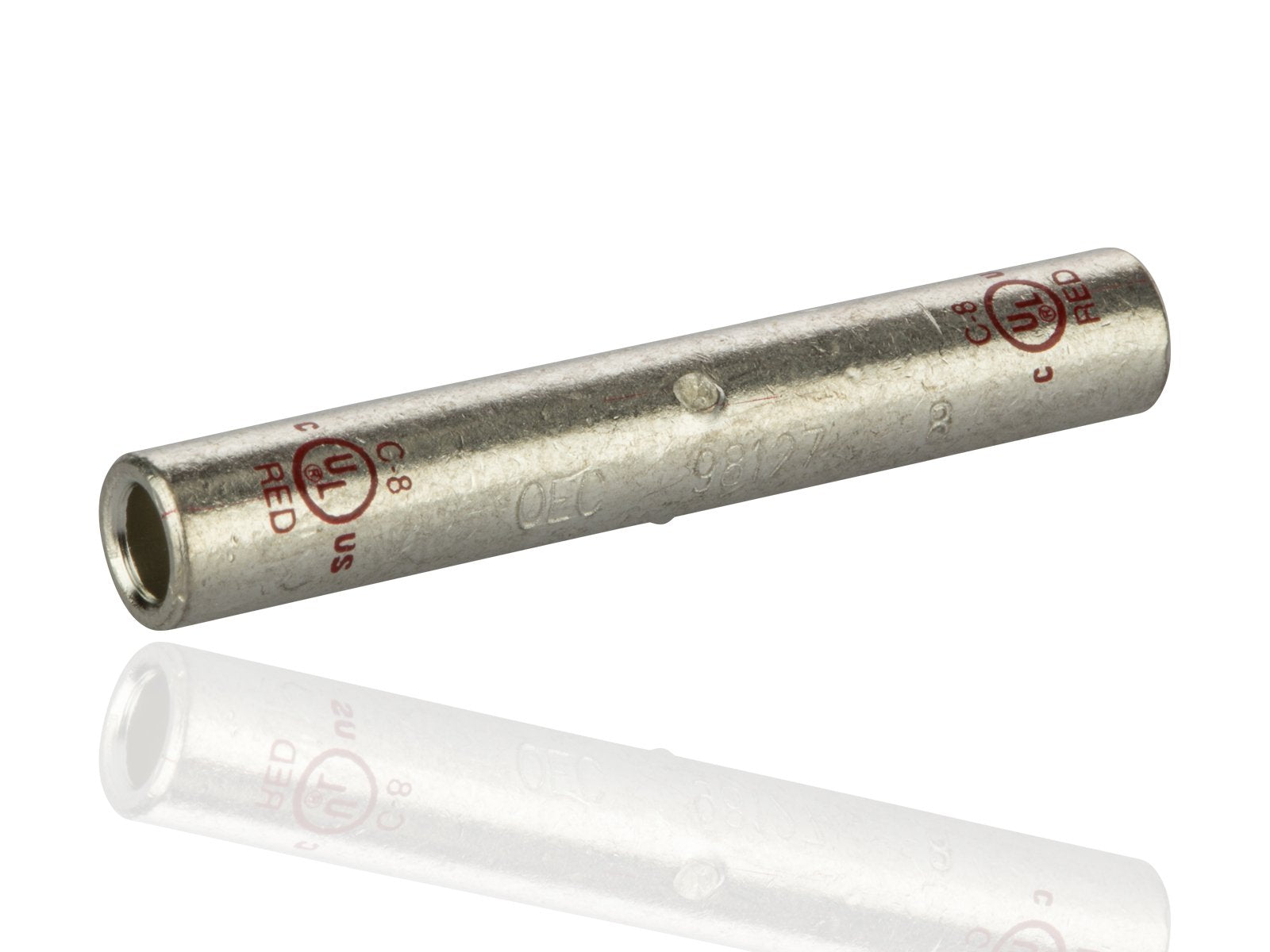

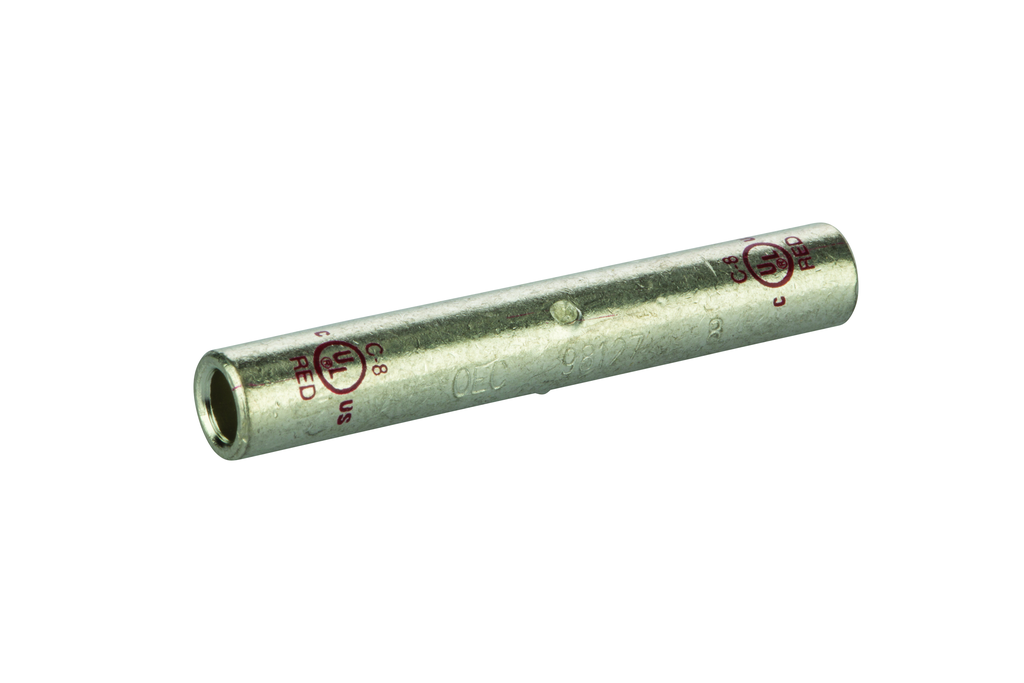

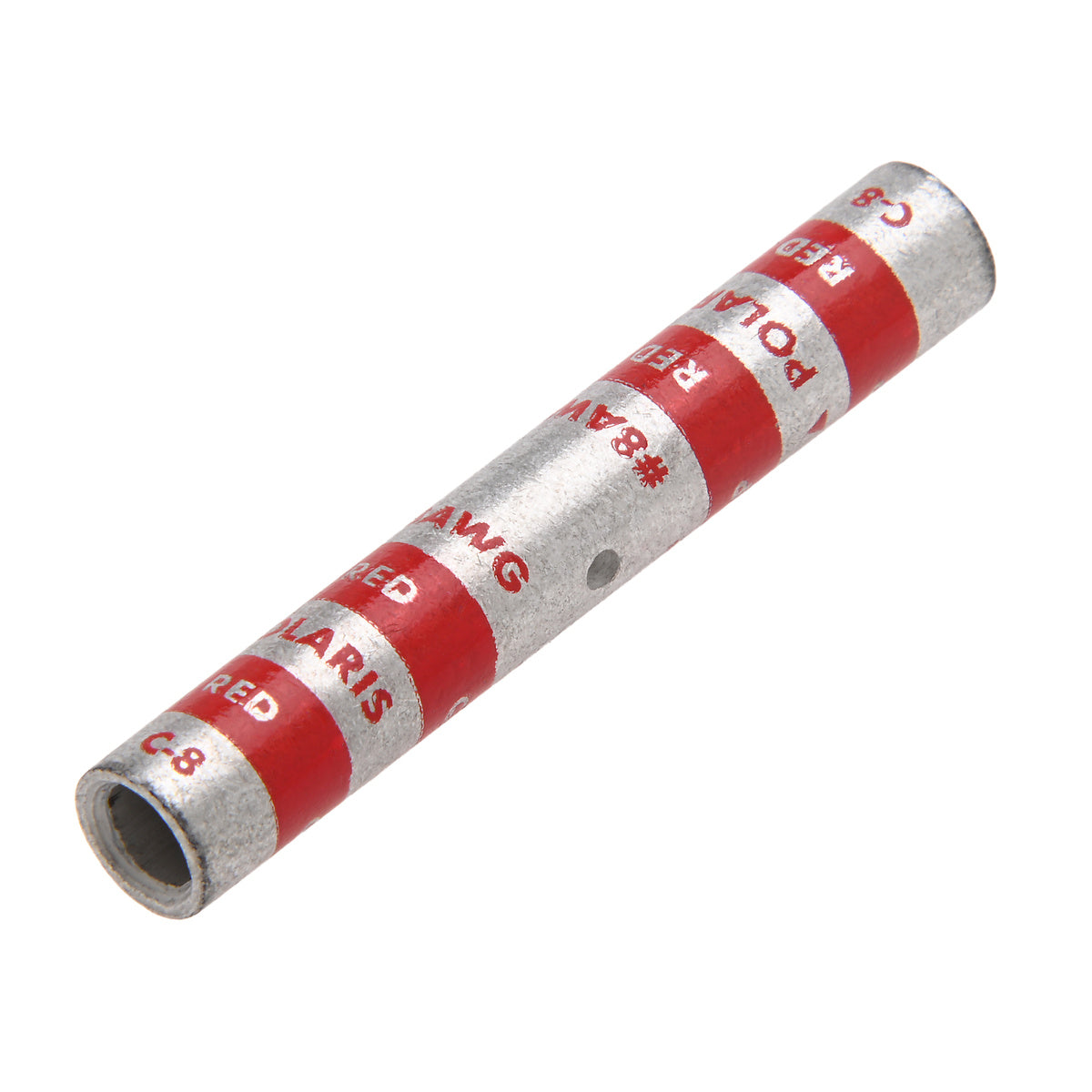

The NSI INDUSTRIES C-8 is a long barrel tinned copper splice produced from high conductivity copper tubing. It is tin-plated to provide corrosion resistance and marked with die index and color coded for easy reference. This splice is UL486 listed for a maximum of 35KV when properly installed.
- Produced from high conductivity copper tubing
- Serrations indicate proper crimp locations
- Tin-plated to provide corrosion resistance
Product Highlights
The NSI INDUSTRIES C-8 splice is ideal for making quick in-line connections and repairing damaged wiring. It is suitable for use at voltages up to 35kV when properly installed.
Product Information
Standard Information
-
Brand: NSI INDUSTRIES
-
Manufacturer Part Number: C-8
-
Country of Origin: India
Technical Specifications
-
Size: L=1.75 - OD=.270 - ID=.170
-
Type: Long Barrel - CU Splice
-
Brand: NSI Industries
-
Width: 0.27 in
-
Finish: Tin Plated
-
Height: 0.27 Inch
-
Length: 1.75 Inch
-
Voltage: 600 Volt
-
Material: Copper
-
Standard: UL486
-
Sub Brand: Copper Compression
-
Product UPC: 66238103749
-
12-Digit UPC: 662381037497
-
Applications: Terminate, Splice, Tap Power Connectors
-
Conductor Size: 8 AWG
-
Max Temperature: 194 degrees F
-
Number of Poles: 1 Pole
-
Country of Origin: India
-
Temperature Rating: 90 degrees C
-
Number of Conductors: 2
-
Environmental Conditions: 90 degrees C
-
Quantity: 1 Count
-
Rated: 35KV Max
-
Wire Range: 8 AWG
-
Expanded Wire Range: 8 AWG
-
Color Code: Red
-
ID: 0.173
-
OD: 0.272
-
Brand Equivalent: Blackburn CU8 Burndy YS8C Homac C-8 Ilsco CTL8 Morris 94510 Panduit SCL8-L Penn Union BBCU-8 Thomas & Betts 54804
-
Manufacturer: NSi Industries
-
Part Number: C-8
-
Voltage Rating: 600 VAC
-
Conductor Type: Stranded
-
Series: C Series
-
Inner Diameter: 0.173 Inch
-
Outer Diameter: 0.272 Inch
-
Body Material: Tin Plated Copper
-
Approval: UL 486A/B, UL (Canada and US)
-
UNSPSC: 39121449
-
Barrel Type: Long
