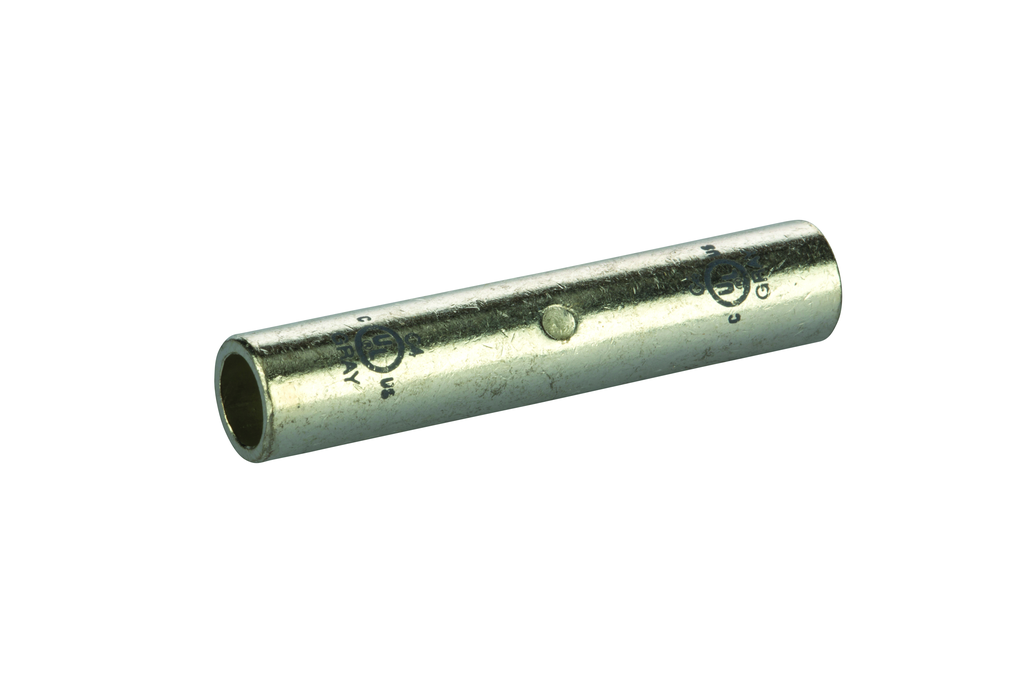

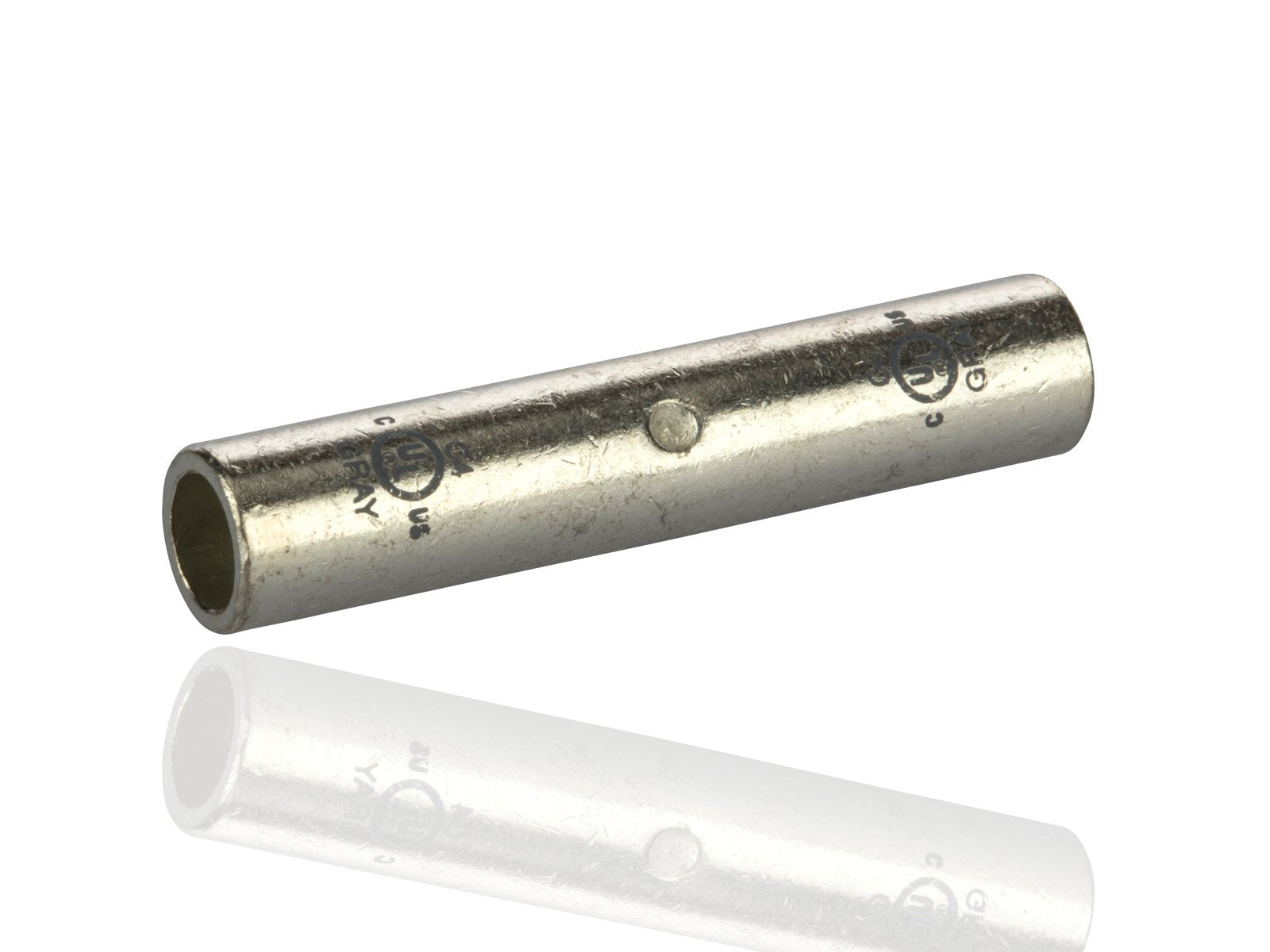

Nsi Industries C-4 copper compression splice 4 AWG long barrel

Product Description

The NSI INDUSTRIES C-4 is a copper compression connector produced from high conductivity copper tubing. It is tin-plated for corrosion resistance and marked with a die index and color code for easy reference. It is suitable for use at voltages up to 35kV when properly installed.

• Produced from high conductivity copper tubing
• Serrations indicate proper crimp locations
• Tin-plated to provide corrosion resistance

Product Highlights

This copper compression splice is ideal for terminating, splicing and tapping power connectors.

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: C-4
• Country of Origin: India

Technical Specifications

• GTIN: 00662381037510
• Size: L=1.75 - OD=.340 - ID=.250
• Type: Long Barrel - CU Splice
• Brand: NSI Industries
• Color: Gray
• Width: 0.34 in
• Finish: Tin Plated
• Height: 0.34 Inch
• Length: 1-3/4 Inch
• Voltage: 600 Volt
• Material: Copper
• Standard: UL486
• Sub Brand: Copper Compression
• Product UPC: 66238103751
• 12-Digit UPC: 662381037510
• Applications: Terminate, Splice, Tap Power Connectors
• Conductor Size: 4 AWG
• Max Temperature: 194 degrees F
• Number of Poles: 1 Pole
• Country of Origin: India
• Temperature Rating: 90 degrees C
• Number of Conductors: 2
• Environmental Conditions: 90 degrees C
• Manufacturer: NSi Industries
• Model / MPN: C-4
• Voltage Rating: 600 VAC
• Barrel Size: 0.25 in ID x 0.34 in OD
• Barrel Type: Long
• Conductor Type: Stranded Copper
• Standard & Approvals: UL486 Listed
