Nsi Industries C-4/0 Long Barrel Tinned Copper Splice 4/0 AWG

Product Description

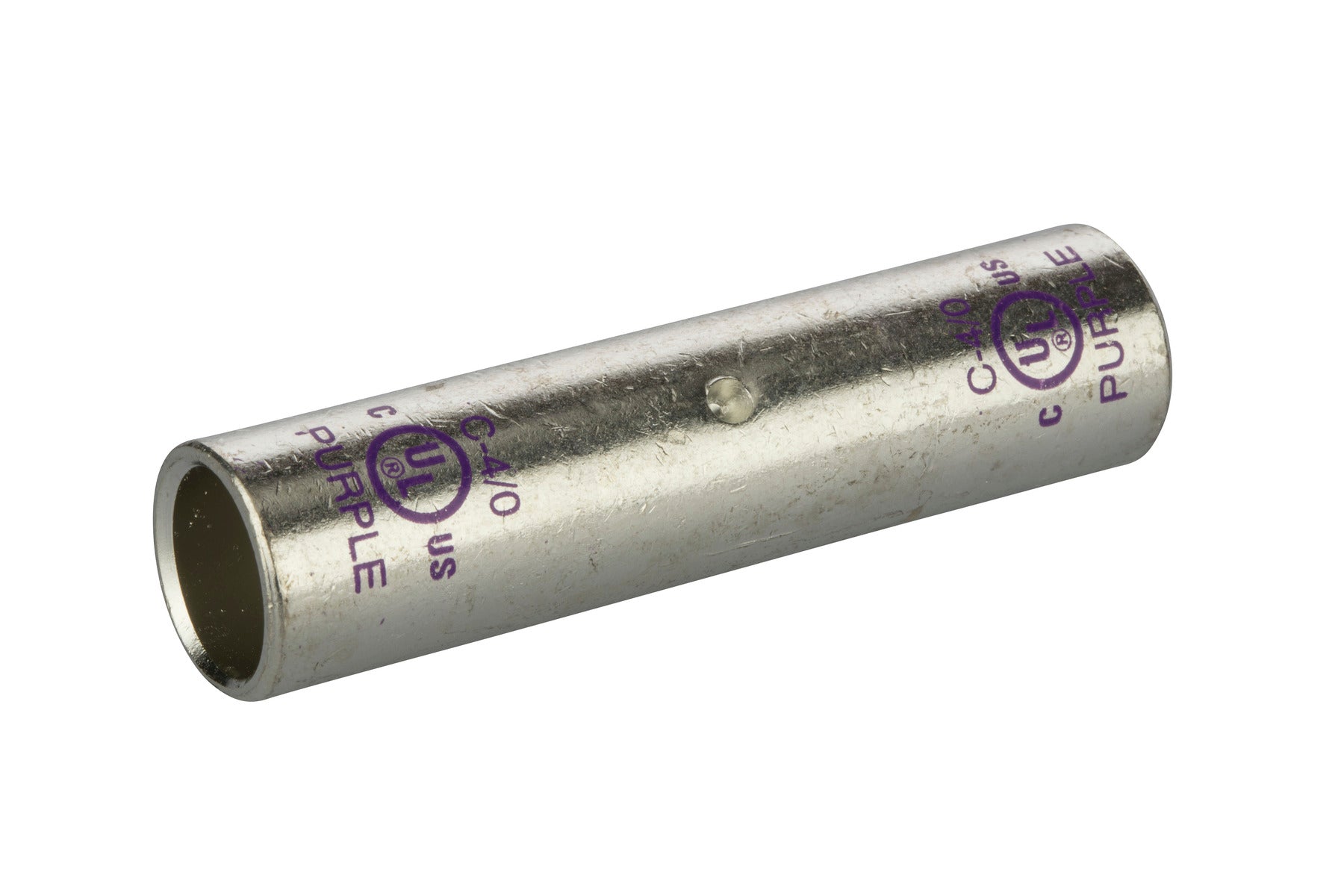

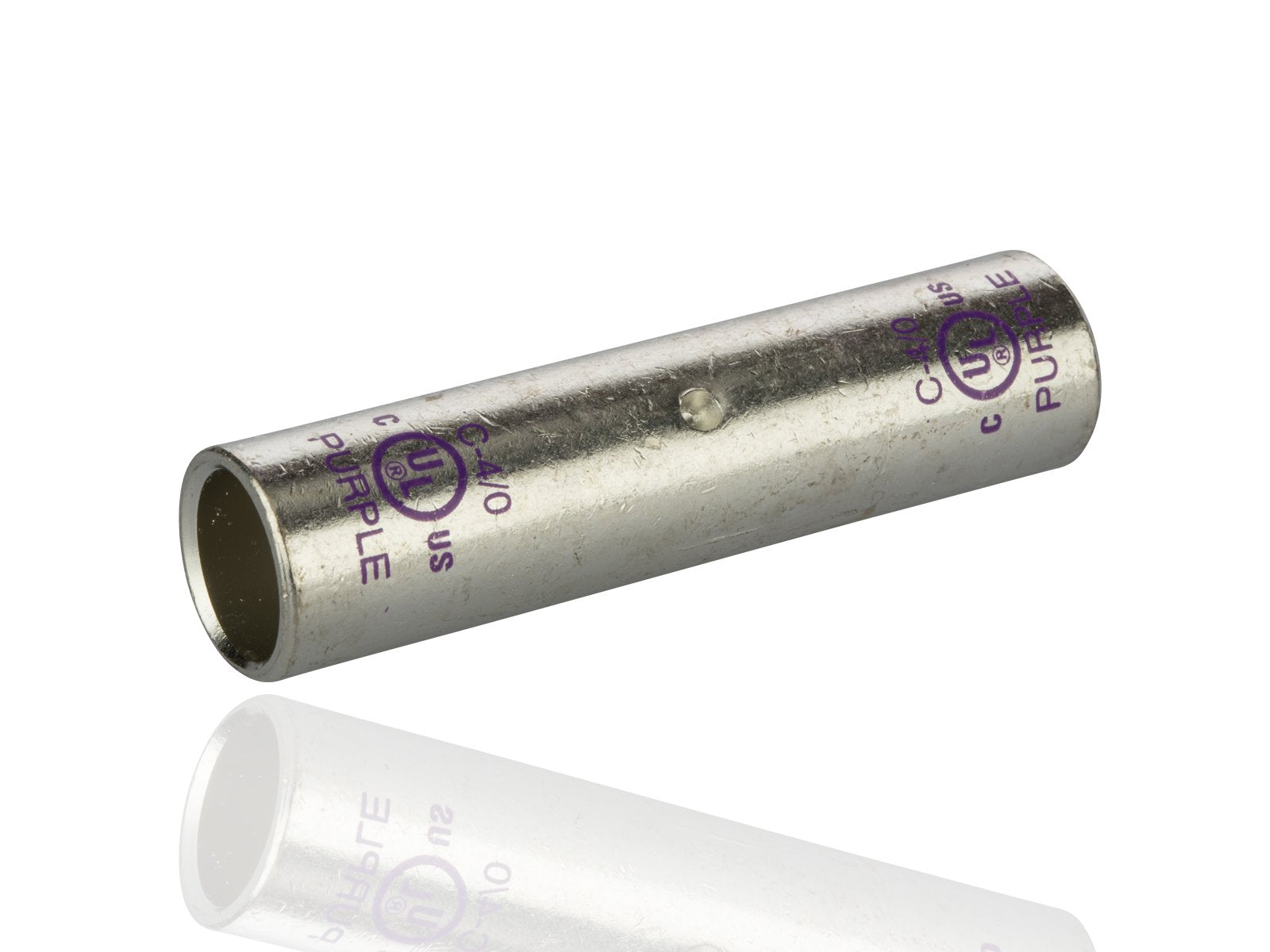

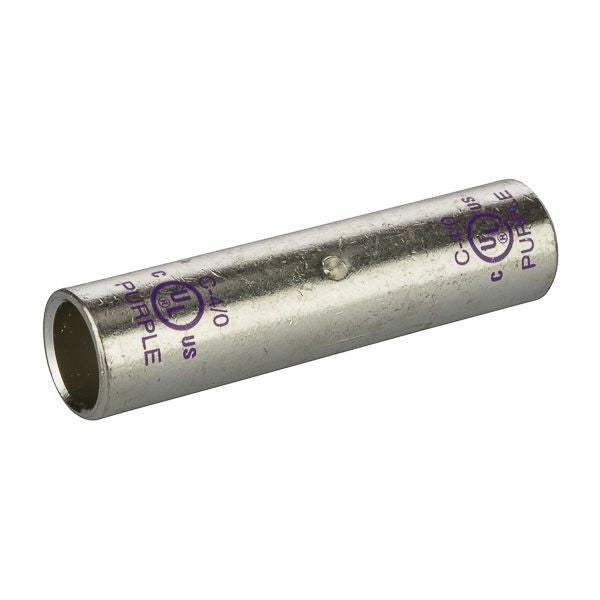

The NSI INDUSTRIES C-4/0 is a long barrel tinned copper splice designed for 4/0 AWG conductors. It is constructed from high conductivity copper tubing and tin-plated for corrosion resistance. Serrations indicate proper crimp locations, and it is marked with die index and color coded for easy reference. It is UL486 listed.

• Produced from high conductivity copper tubing
• Serrations indicate proper crimp locations
• Tin-plated to provide corrosion resistance

Product Highlights

This copper splice is ideal for making quick in-line connections and repairing damaged wiring in indoor and outdoor environments.

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: C-4/0
• Country of Origin: India

Technical Specifications

• Conductor Size: 4/0 AWG
• Termination/Splice: SPLICE
• Indoor/Outdoor: INDOOR/OUTDOOR
• Voltage: 600V
• Size: L=2.75 - OD=.690 - ID=.550
• Type: Long Barrel - CU Splice
• Brand: NSI Industries
• Width: 0.69 in
• Finish: Tin Plated
• Height: 0.69 Inch
• Length: 2-3/4 Inch
• Material: Copper
• Standard: UL486
• Sub Brand: Copper Compression
• Product UPC: 66238103758
• 12-Digit UPC: 662381037589
• Applications: Terminate, Splice, Tap Power Connectors
• Max Temperature: 194 degrees F
• Number of Poles: 1 Pole
• Country of Origin: India
• Temperature Rating: 90 degrees C
• Number of Conductors: 2
• Buy American Compliant: Y
• Environmental Conditions: 90 degrees C
• Model / MPN: C-4/0
• Wire Cable Class: Class B, Class C
• Conductor Type: Stranded
• Wire Range: 4/0 AWG
• Assortment: Copper Compression Splices
• Expanded Wire Range: 4/0 AWG ">– 1 AWG
• Die Color Code: Purple
• Barrel Length: 2.75
• Series: C Series
• Voltage Rating: 600 VAC
• Dimensions: 0.55 in ID x 0.69 in OD
• Approval: UL 486A/B, UL (Canada and US)
• Color Code: Purple
• Barrel Type: Long
• Body Material: Tin Plated Copper
• Inner Diameter: 0.547 Inch
• Outer Diameter: 0.689 Inch
• Application: Terminate, Splice and Tap Power Connector Applications
• Standard & Approvals: cULus Listed, UL 486A/467, NEC 310.15, KM Approved
