Nsi Industries C-250 Series C Copper Compression Long Barrel Tinned Splice 250 MCM

Product Description

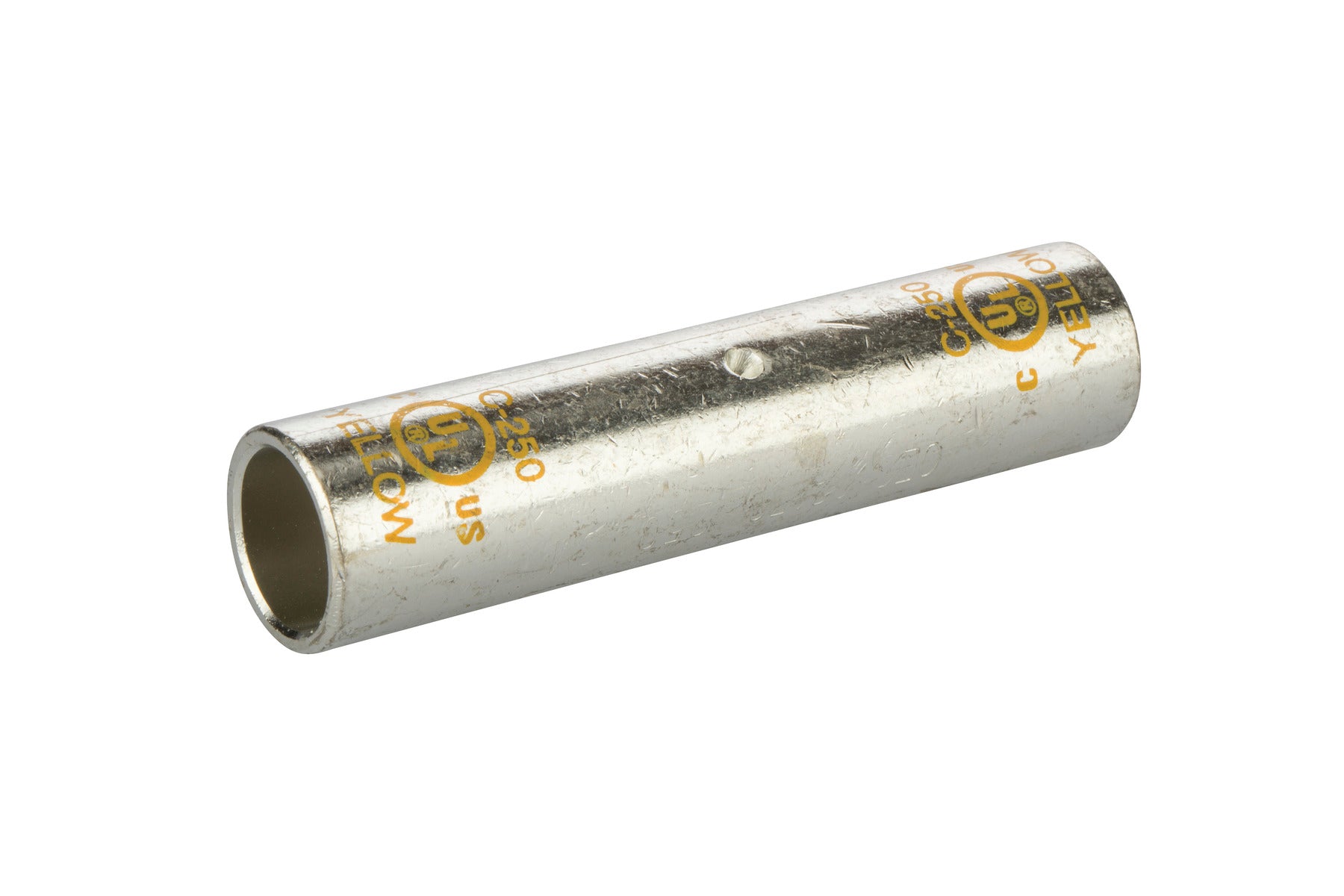

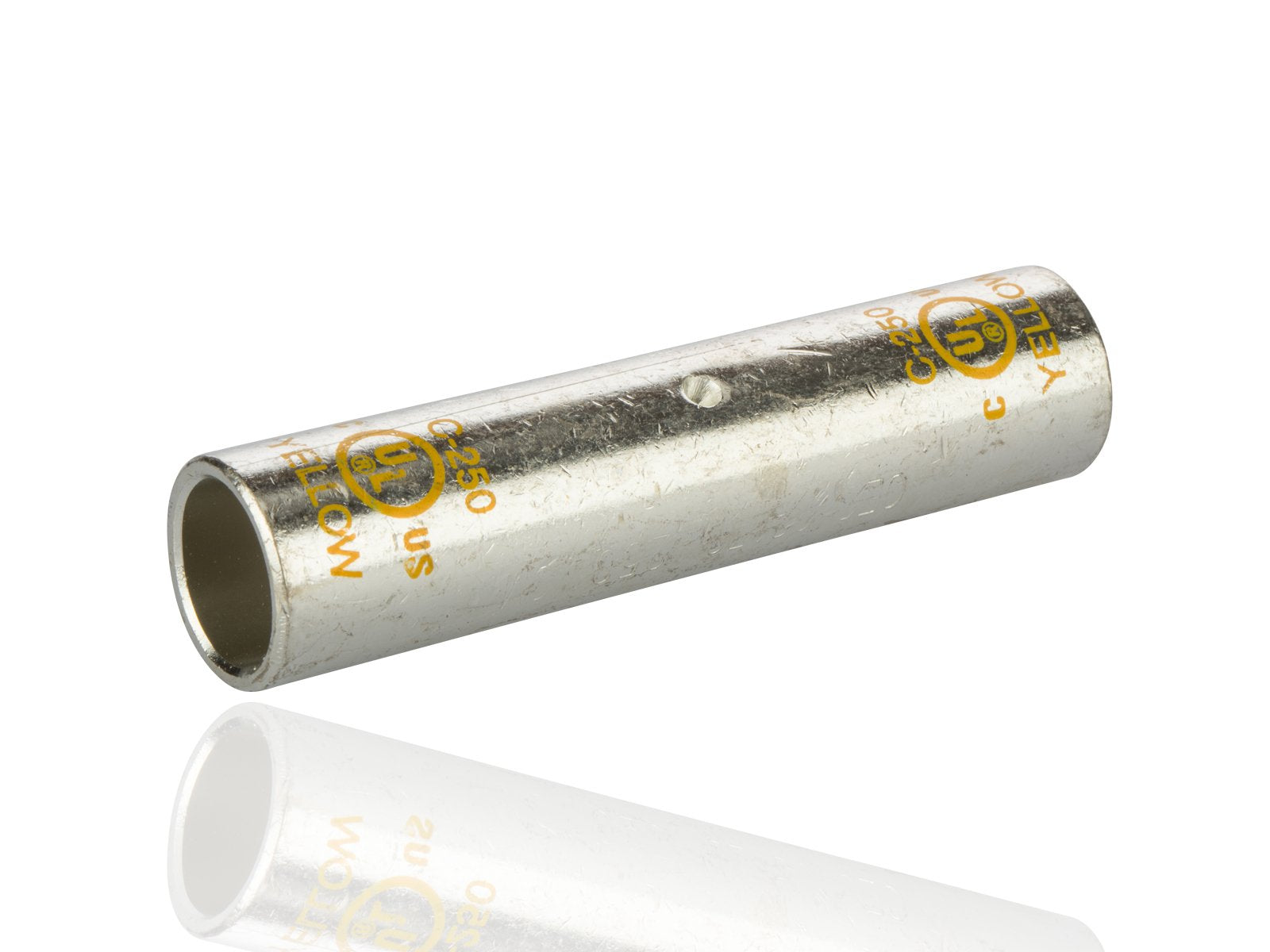

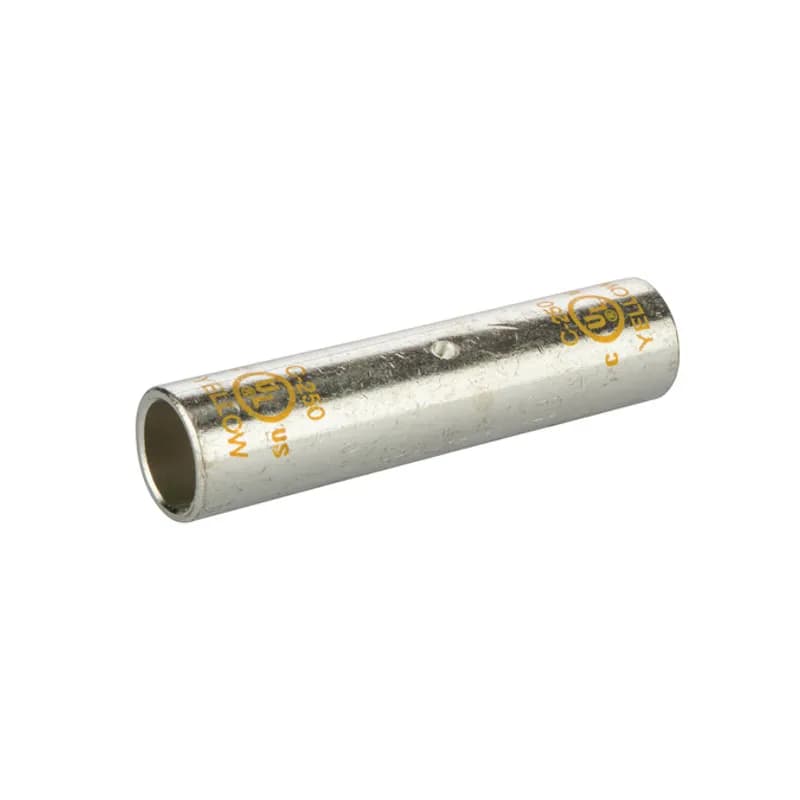

The NSI INDUSTRIES C-250 series C copper compression connector is produced from high conductivity copper tubing. Serrations indicate proper crimp locations. It is tin plated to provide corrosion resistance and marked with die index and color code. Suitable for use at voltages up to 35 KV with proper taping.

• Produced from high conductivity copper tubing
• Serrations indicate proper crimp locations
• Tin plated to provide corrosion resistance
• Marked with die index and color code

Product Highlights

The NSI C-250 is ideal for making quick in-line connections and repairing damaged wiring. It is flex rated for use with K, H, G, I, M and DLO cable.

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: C-250
• Country of Origin: India

Technical Specifications

• Brand: NSI
• Series: C-250
• Material: Copper
• Finish: Tin Plated
• Strip Length: 1.75"
• Outer Diameter (OD): 0.75"
• Inner Diameter (ID): 0.59"
• Length: 3.25"
• Voltage: Up to 35 KV (with proper taping), 5 KV (bare splices)
• Wire Range: 250 MCM
• Expanded Wire Range: 250 MCM - 1/0 AWG
• Color Code: Yellow
• ID: 0.594
• OD: 0.752
• Brand Equivalent: Blackburn CU250 Burndy YS29 Ilsco CTL250 Homac C-250 Morris Products 94528 Panduit SCL250-X Penn Union BBCU-025
• Manufacturer: NSI Industries
• Part Number: C-250
• Item [Specifications]: Compression Splice Long,250 MCM
• Voltage Rating: 600V
• Wire Cable Class: Class B, Class C
• Conductor Type: Copper
• Assortment: Copper Compression Splices
• Die Color Code: Yellow
• Barrel Length: 3.25
• Certifications: cULus
• Ul File No: E155027
• Temp Rating: 90C, 9CU
• Application: Terminate, Splice, Tap Power Connectors
• Color: Yellow
• Conductor Range: 250 MCM (STR)
• Connection Type: Compression
• Environmental Conditions: 90 C
• Number Of Conductors: 2
• Number Of Poles: 1
• Size: L=3.25 - OD=.750 - ID=.590
• Special Features: 250 MCM (STR) - CU Splice
• Temperature Rating: 90 C
• Type: Long Barrel - CU Splice
