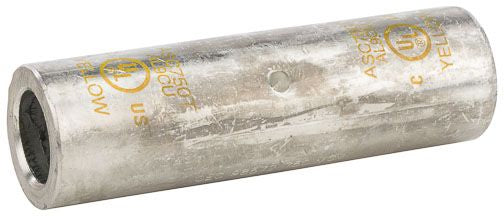

Nsi Industries ASC750T Aluminum Compression Splice 750 Mcm

Product Description

The NSI INDUSTRIES ASC750T is an aluminum compression splice connector rated for 750 MCM aluminum conductors. It joins two aluminum cable ends in a permanent, low-resistance connection using a hydraulic or mechanical compression tool. Compression splices of this type are standard hardware in utility distribution, industrial feeder runs, and large commercial electrical installations. The connector is installed by a licensed electrician and provides a secure, gas-tight termination that resists vibration loosening over the service life of the conductor.

This connector is suited for high-capacity aluminum feeder and distribution circuits where a permanent in-line splice is required. Typical applications include underground feeder splices, overhead aluminum conductor joints, and industrial panel feed extensions. At 750 MCM, this is a large-conductor fitting used in commercial and industrial work rather than residential branch circuits.

Key Features

• Rated for 750 MCM aluminum conductors
• Compression-style installation for a permanent, gas-tight connection
• Aluminum body construction compatible with aluminum conductor systems
• Suitable for in-line splicing on large feeder and distribution runs
• Compatible with standard hydraulic and mechanical compression tooling

Compatibility

Designed as an OEM-style compression splice for 750 MCM aluminum conductors in commercial and industrial electrical distribution systems.

Installation Notes

Installation should be performed by a licensed electrician in accordance with the National Electrical Code (NEC). De-energize and lock out the circuit before beginning any splice work. Use a calibrated hydraulic or ratchet compression tool sized for the connector and conductor to achieve a proper crimp. Inspect the completed crimp for proper die index marks before re-energizing the circuit.

Technical Specifications

• Conductor Size: 750 MCM
• Conductor Material Compatibility: Aluminum
• Connector Type: Compression Splice
• UPC: 66238103214

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: ASC750T
