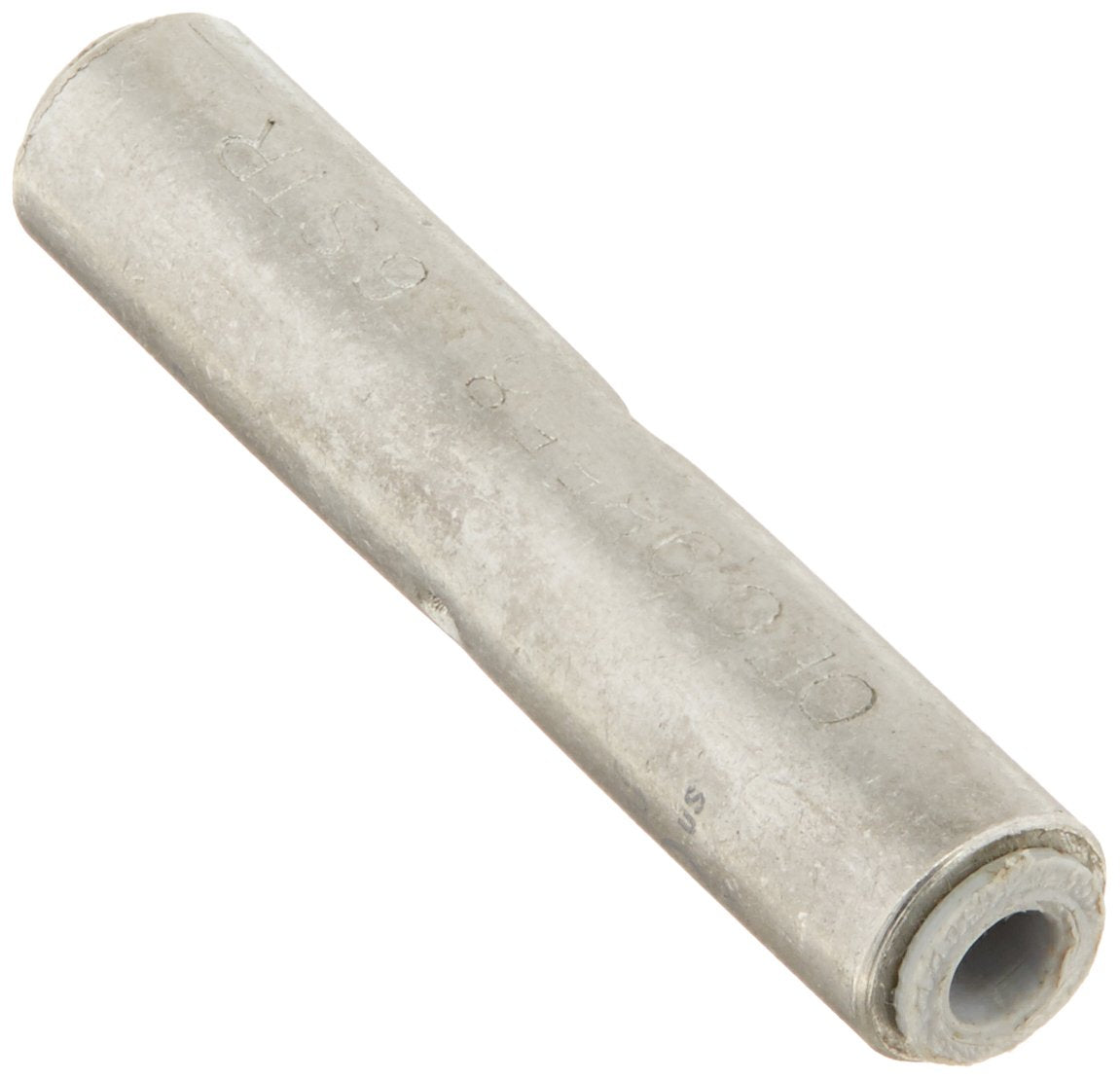

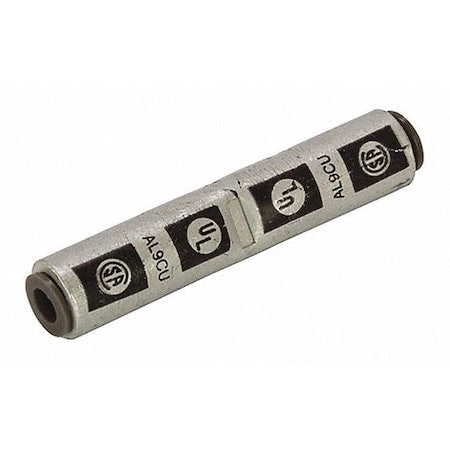

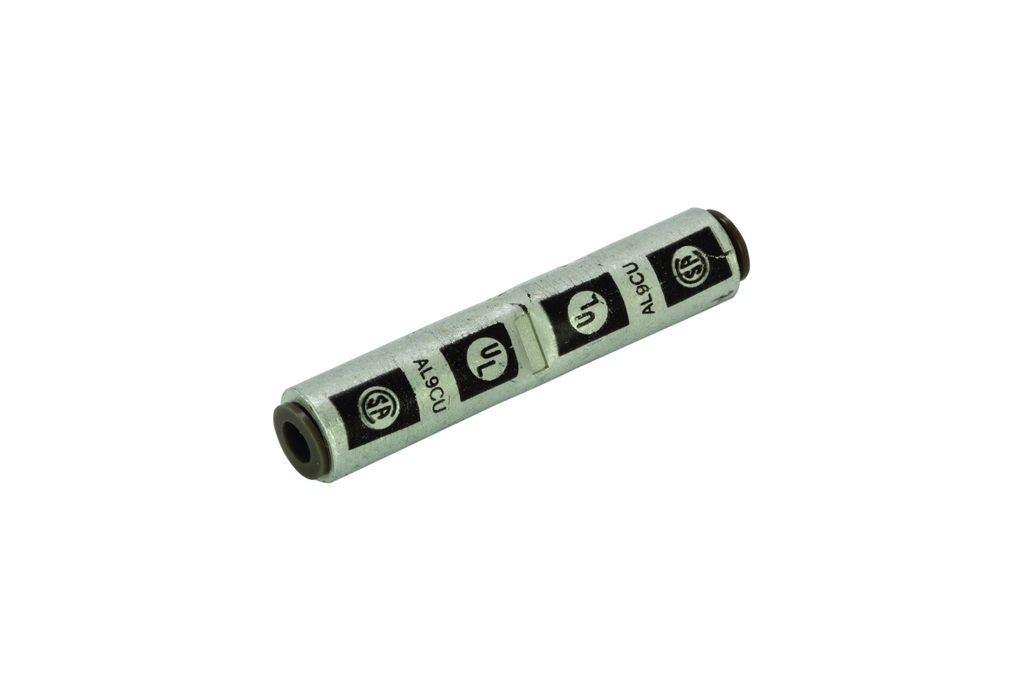

Nsi Industries ASC6T Aluminum Compression Splice 6 AWG

Product Description

The NSI Industries ASC6T is a dual-rated aluminum splice designed for 6 AWG conductors. Constructed from high conductivity aluminum tubing, it features a center stop to ensure proper cable installation. The splice is electro-tin plated for enhanced corrosion resistance and pre-filled with oxide inhibitor.

• Produced from high conductivity aluminum tubing
• Center stop assures proper cable installation
• Electro-tin plated for corrosion resistance

Product Highlights

This aluminum compression connector ensures reliable splicing and termination for power connectors, suitable for both indoor and outdoor applications.

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: ASC6T
• Country of Origin: India

Technical Specifications

• Conductor Size: 6 AWG
• Termination/Splice: SPLICE
• Indoor/Outdoor: INDOOR/OUTDOOR
• Voltage: 600V
• Size: L=1.62 - OD=.338 - ID=.196
• Type: Standard Barrel - ALCU Splice
• Brand: NSI Industries
• Finish: Tin Plated
• Material: Aluminum
• Standard: UL486
• Sub Brand: Aluminum Compression
• Product UPC: 66238103200
• 12-Digit UPC: 662381032003
• Applications: Terminate, Splice, Tap Power Connectors
• Max Temperature: 194 degrees F
• Number of Poles: 1 Pole
• Country of Origin: India
• Temperature Rating: 90 degrees C
• Number of Conductors: 2
• Buy American Compliant: Y
• Environmental Conditions: 90 degrees C
• ECCN: EAR99
• Lug Wire Size: 6 AWG
• Rated: 35KV Max
• Wire Range: 6 AWG
• Expanded Wire Range: 6 - 8 AWG
• Color Code: Gray
• O.D.: 0.339
• I.D.: 0.197
• Part Number: ASC6T
• Series: ASC-T
• Specifications: 1 Pole, 2 Conductor
• Voltage Rating: 600 VAC
• Conductor Type: Stranded
