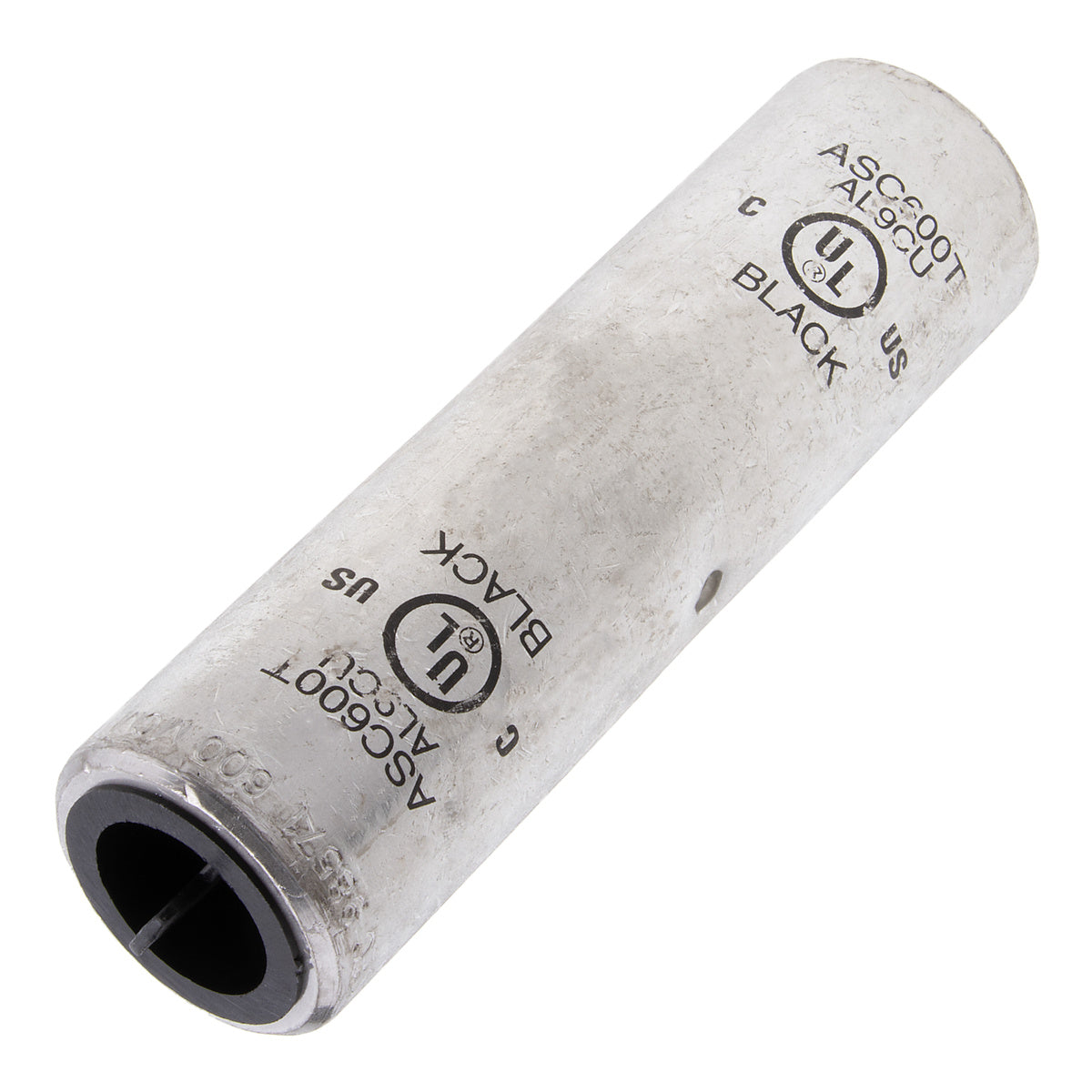

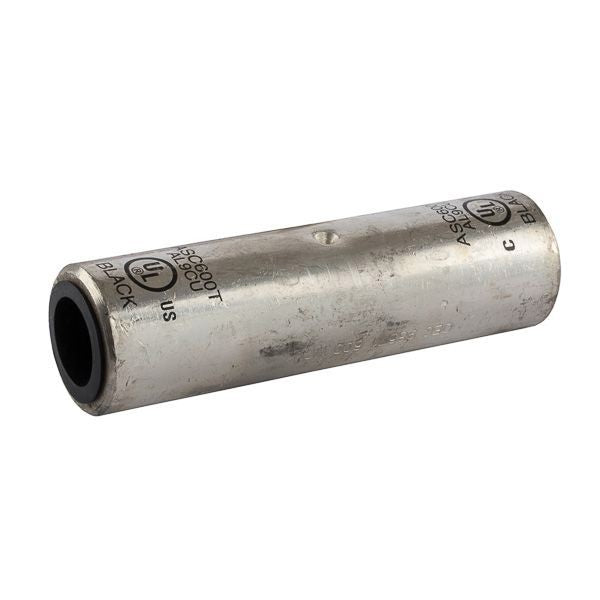

Nsi Industries ASC600T Dual Rated Aluminum Splice, 600 MCM

Product Description

The NSI INDUSTRIES ASC600T is a dual-rated aluminum splice designed for 600 MCM conductors. It is produced from high conductivity aluminum tubing. The splice features a center stop to ensure proper cable installation and is electro-tin plated for corrosion resistance. It is pre-filled with oxide inhibitor and capped with a color-coded cap.

• Made from high conductivity aluminum tubing
• Features a center stop for proper cable installation
• Electro-tin plated for corrosion resistance

Product Highlights

This aluminum compression splice is ideal for making quick in-line connections and repairing damaged wiring in harsh environments.

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: ASC600T
• Country of Origin: India

Technical Specifications

• Item [Specifications]: Compression Splice,Aluminum,600 MCM
• Country of Origin (subject to change) [Specifications]: India
• Voltage Rating: 600V
• Material: Aluminum
• Finish: Tin Plated
• Pack Qty: 6
• UPC: 662381032133
• UNSPSC: 39121449
• Ul Standard: UL 486A-486B
• Wire Cable Class: Class B, Class C
• Conductor Cu Size Range: 250 MCM – 6 AWG
• Conductor Al Size Range: 250 MCM – 6 AWG
• Conductor Type: Stranded Aluminum/Copper
• Wire Range: 600 MCM
• Assortment: Aluminum Compression Splices
• Expanded Wire Range: 600 MCM – 250 MCM
• Die Color Code: Black
• Barrel Length: 5.13
• Brand: NSI
• MPN: ASC600T
• Number of Pins: 6
• Connector Style: Crimp
• Termination Type: Compression
• Compatible Mounting Type: In-Line
• Type: Dual Rated Standard Barrel
• Number of Poles: 1
• Series: ASC-T Series
• Specifications: 2-Conductor, 1-Pole
• Temperature Rating: 90 deg C
• Application: Terminate, Splice and Tap Power Connector Applications
• Standard & Approvals: cULus Listed, UL 486A/B, KM Approved
• Color: Black
• Conductor Size: 600 kcmil
• Dimensions: 0.92 in ID x 1.44 in OD
• Length: 5.12 in
• Applications: Terminate, Splice, Tap Power Connectors
• Max Temperature: 194 degrees F
• Number of Conductors: 2
• Size: L=5.12 - OD=1.44 - ID=.920
• Standard: UL486
• Voltage: 600 Volt
• Sub Brand: Aluminum Compression
• 12-Digit UPC: 662381032133
• Environmental Conditions: 90 degrees C
• Height: 1.44 Inch
• Width: 1.44 in
