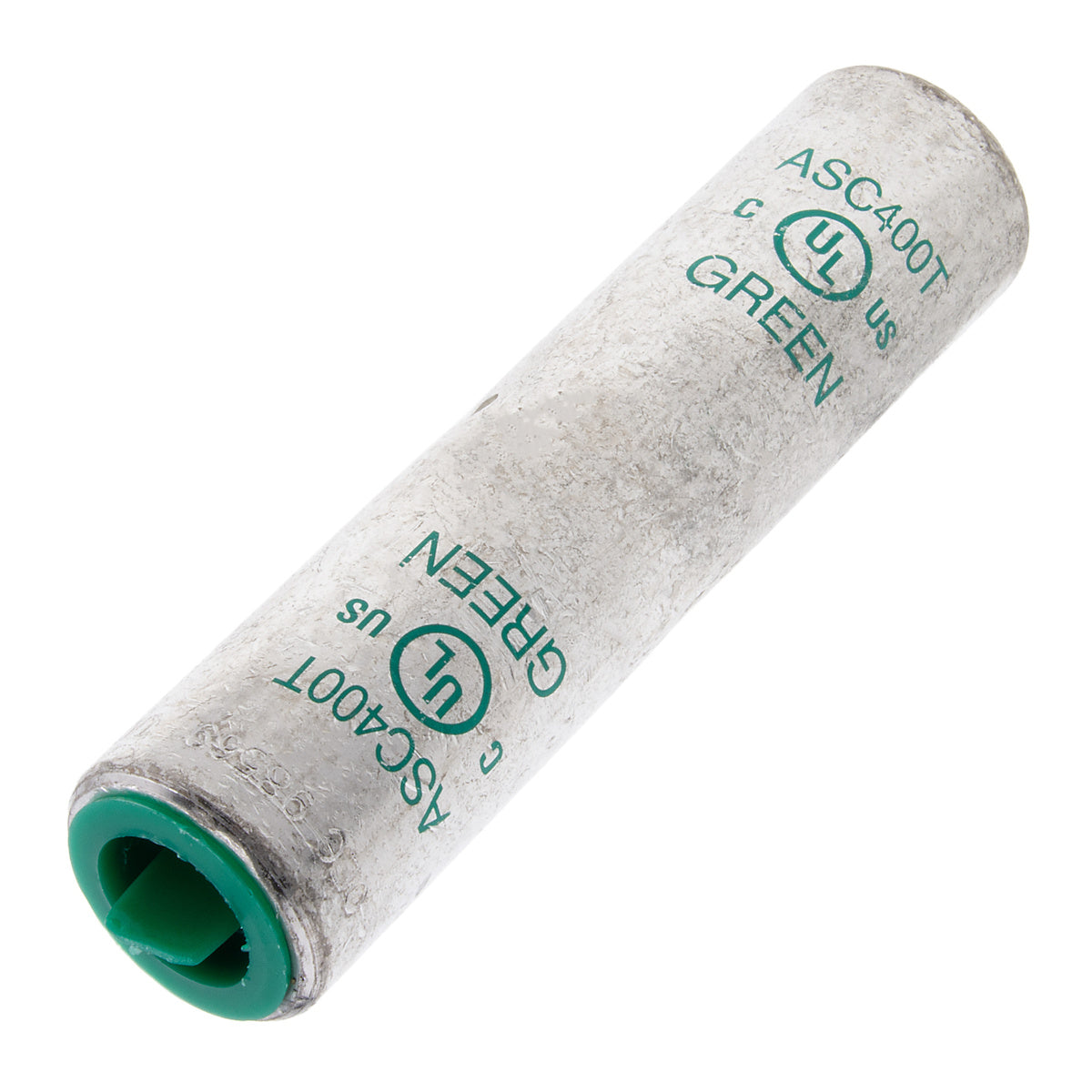

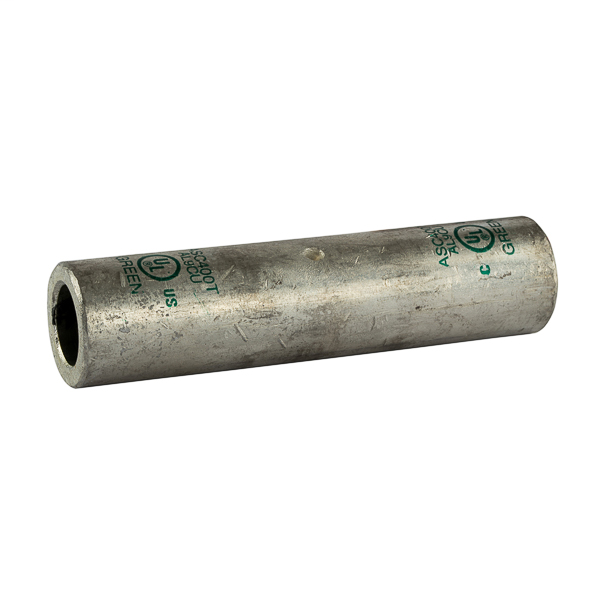

Nsi Industries ASC400T 400 MCM Green Tinned Aluminum Standard Barrel 2-Conductor Dual Rated Compression Splice

Product Description

The NSI INDUSTRIES ASC400T is a dual-rated aluminum splice produced from high conductivity aluminum tubing. It features a center stop to ensure proper cable installation and is electro-tin plated for corrosion resistance. Color-coded and marked with die index information, it is pre-filled with oxide inhibitor and capped with a color-coded cap.

• Produced from high conductivity aluminum tubing
• Center stop assures proper cable installation
• Electro-tin plated for corrosion resistance

Product Highlights

This aluminum compression splice is ideal for making quick in-line connections and repairing damaged wiring in harsh environments.

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: ASC400T
• Country of Origin: India

Technical Specifications

• Type: Standard Barrel - ALCU Splice
• Brand: NSI Industries
• Color: Green
• Finish: Tin Plated
• Material: Aluminum
• Voltage: 600 Volt
• Standard: UL486
• Sub Brand: Aluminum Compression
• Applications: Terminate, Splice, Tap Power Connectors
• Conductor Size: 400 kcmil
• Max Temperature: 194 degrees F
• Number of Poles: 1 Pole
• Country of Origin: India
• Temperature Rating: 90 degrees C
• Number of Conductors: 2
• Environmental Conditions: 90 degrees C
• GTiN: 00662381032119
• Size: L=4.87 - OD=1.19 - ID=.759
• Width: 1.19 in
• Height: 1.19 Inch
• Length: 4.88 Inch
• Voltage Rating: 600V
• Ul Standard: UL 486A-486B
• Wire Cable Class: Class B, Class C
• Conductor Type: Stranded Aluminum/Copper
• Wire Range: 400 MCM
• Assortment: Aluminum Compression Splices
• Expanded Wire Range: 400 MCM – 4/0 AWG
• Die Color Code: Green
• Barrel Length: 4.88
• Series: ASC-T Series
• Dimensions: 0.759 in ID x 1.19 in OD
