Nsi Industries ASC300T 300 MCM Alum Compression Splice(Al/Cu)

Product Description

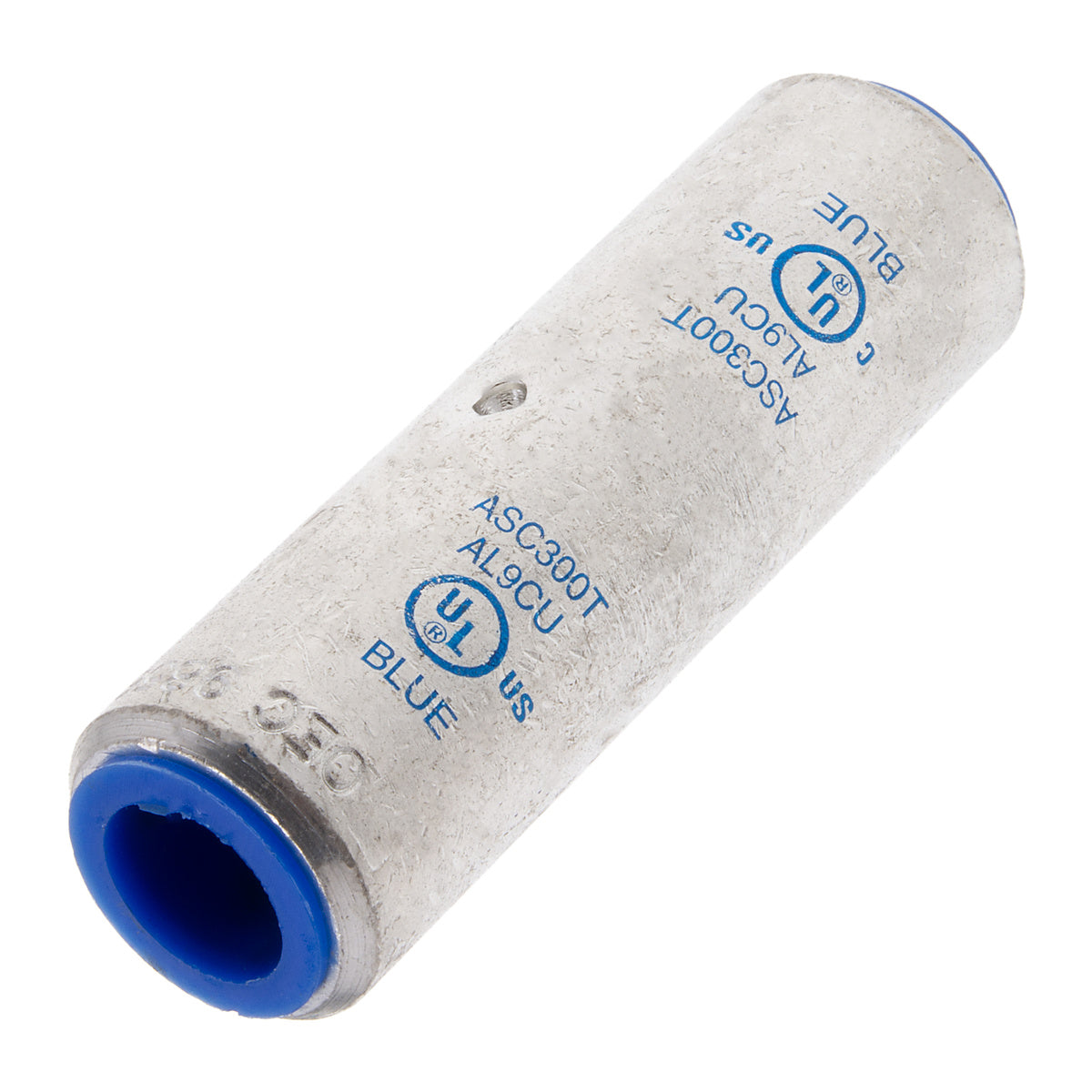

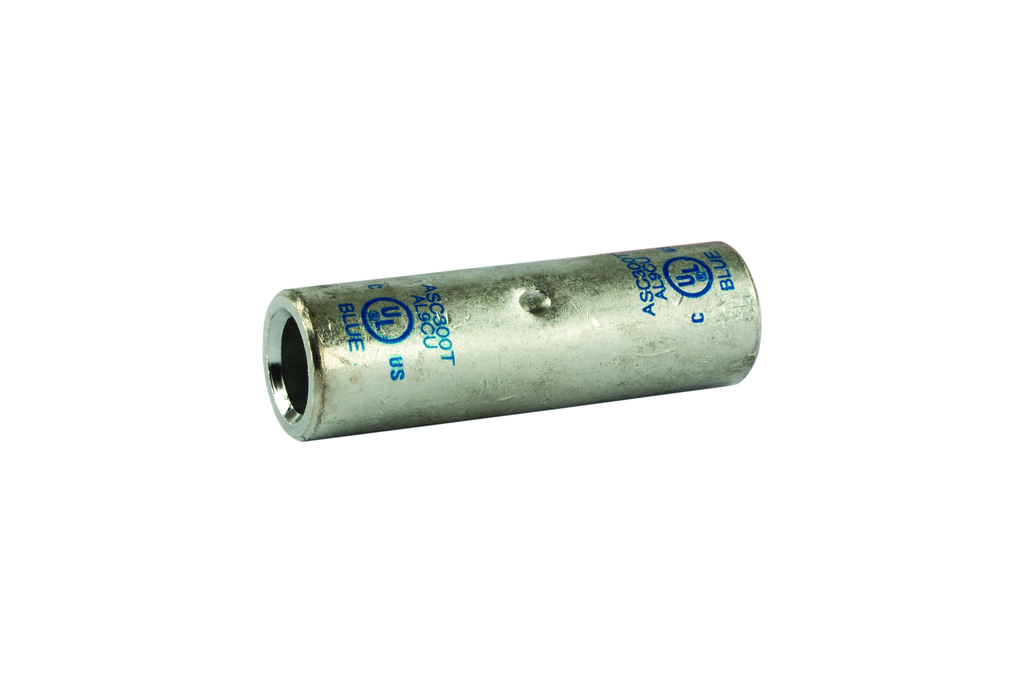

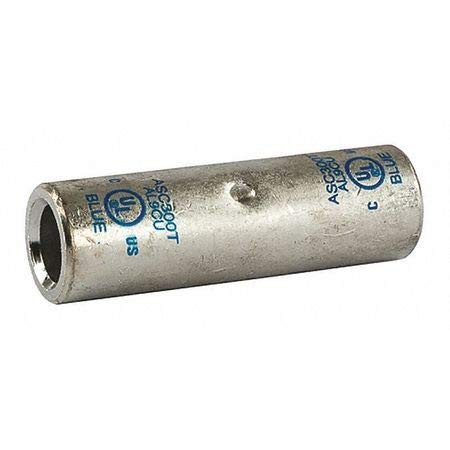

The NSI INDUSTRIES ASC300T is a dual-rated aluminum splice designed for 300 MCM conductors. Constructed from high conductivity aluminum tubing with a tin-plated finish for corrosion resistance. It features a center stop to ensure proper cable installation. This splice is pre-filled with oxide inhibitor and capped with a color-coded cap.

• High conductivity aluminum tubing and corrosive resistant tin-plated finish
• Center stop assures proper cable installation
• Die cast color-coded identification

Product Highlights

Dual-rated aluminum compression splice made from high-conductivity aluminum, ensuring reliable connections and corrosion resistance.

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: ASC300T
• Country of Origin: India

Technical Specifications

• Voltage Rating: 600V
• Material: Aluminum
• Finish: Tin Plated
• Pack Qty: 6
• UPC: 662381032096
• UNSPSC: 39121449
• Ul Standard: UL 486A-486B
• Wire Cable Class: Class B, Class C
• Conductor Cu Size Range: 250 MCM – 6 AWG
• Conductor Al Size Range: 250 MCM – 6 AWG
• Conductor Type: Aluminum, Copper
• Wire Range: 300 MCM
• Assortment: Aluminum Compression Splices
• Expanded Wire Range: 300 MCM – 2/0 AWG
• Die Color Code: Blue
• Barrel Length: 3.25
• Applications: Terminate, Splice, Tap Power Connectors
• Conductor Size: 300 kcmil
• Max Temperature: 194 degrees F
• Number of Conductors: 2
• Number of Poles: 1 Pole
• Size: L=3.24 - OD=1.00 - ID=.649
• Standard: UL486
• Temperature Rating: 90 deg C
• Type: Standard Barrel - ALCU Splice
• Voltage: 600 Volt
• Brand: NSI Industries
• Sub Brand: Aluminum Compression
• 12-Digit UPC: 662381032096
• Environmental Conditions: 90 degrees C
• Height: 1.01 Inch
• Length: 3-1/4 Inch
• Width: 1.01 in
• Series: ASC-T Series
• Specifications: 2-Conductor, 1-Pole
• Country of Origin: India
