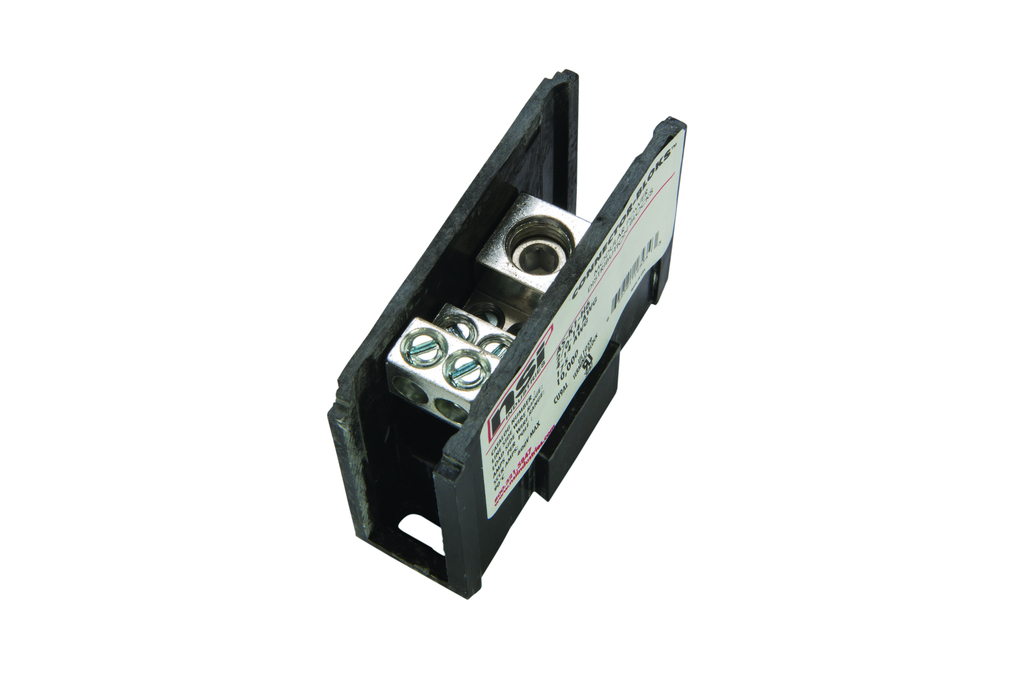

NSI Industries AS-K1-H6 Power Distribution Block (1) 2/0-14 AWG (6) 4-14 AWG

Product Description

The NSI Industries AS-K1-H6 is a power distribution block designed for efficient electrical connections. This block accommodates one two over zero to fourteen American Wire Gauge for the line side and six four to fourteen American Wire Gauge for the load side. The robust design allows for easy mounting and versatile application in various electrical setups.

• Uses high strength aluminum alloy for maximum conductivity.
• Mountable in a durable, glass-filled polyester base.
• Can be combined with other blocks for expanded functionality.

Product Highlights

This power distribution block is suitable for use in multiple configurations, allowing for high capacity power distribution in electrical panels and systems.

Product Information

Standard Information

• Manufacturer: NSI Industries
• Part Number: AS-K1-H6

Technical Specifications

• Type: Single Primary
• Wire Size: 1-2/0 AWG (Line) and 6-4 AWG (Load)
• Voltage Rating: 600 Volts
• Amperage Rating: 175 Amps
• Number of Terminals: 7
• Mounting Type: 2 mounting holes
• Material: Aluminum and glass-filled polyester
• Standard: Recognized to UL1059
