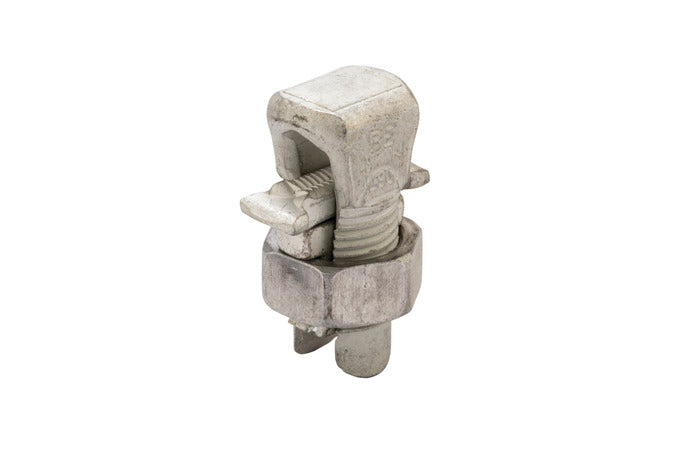

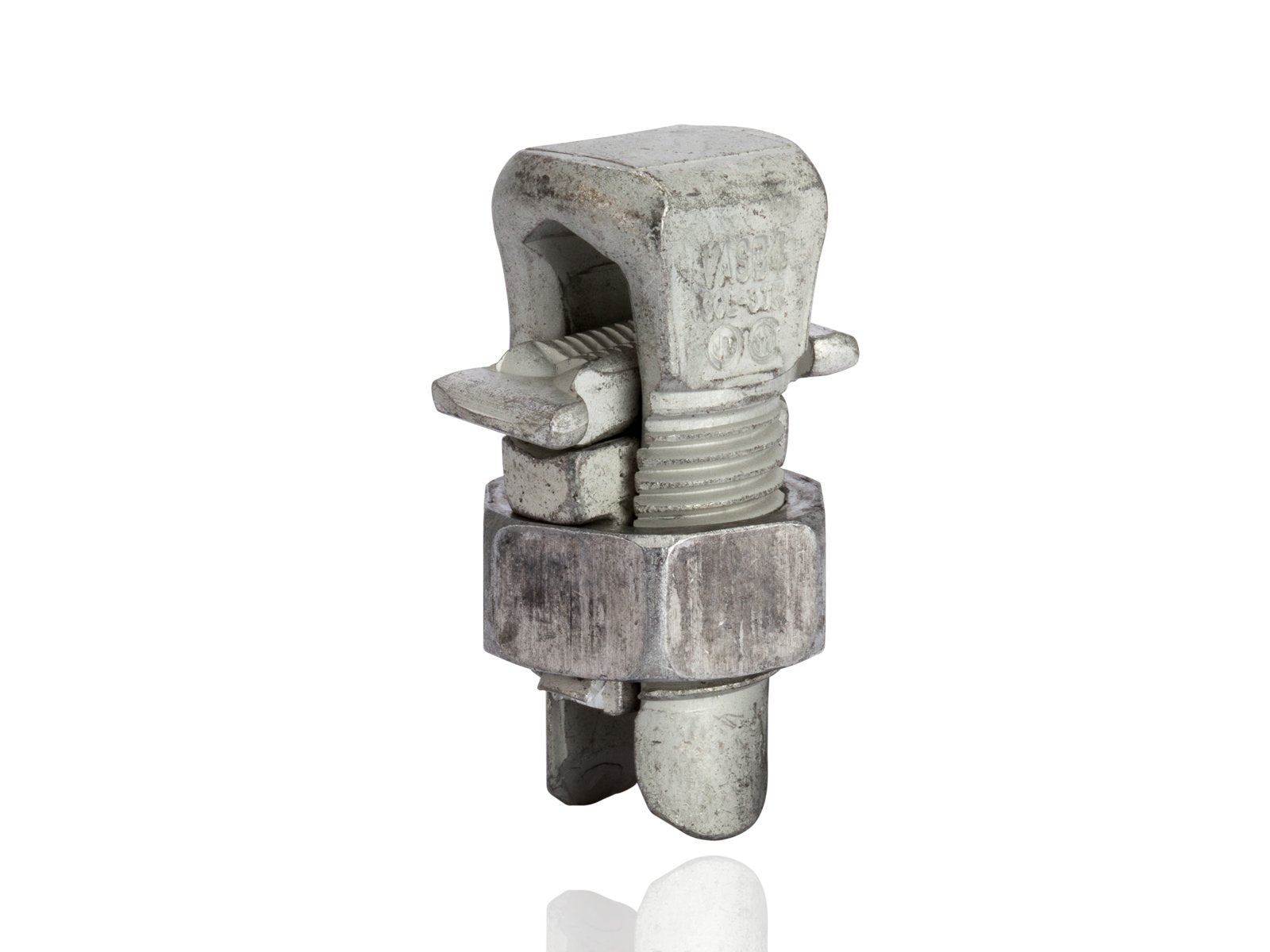

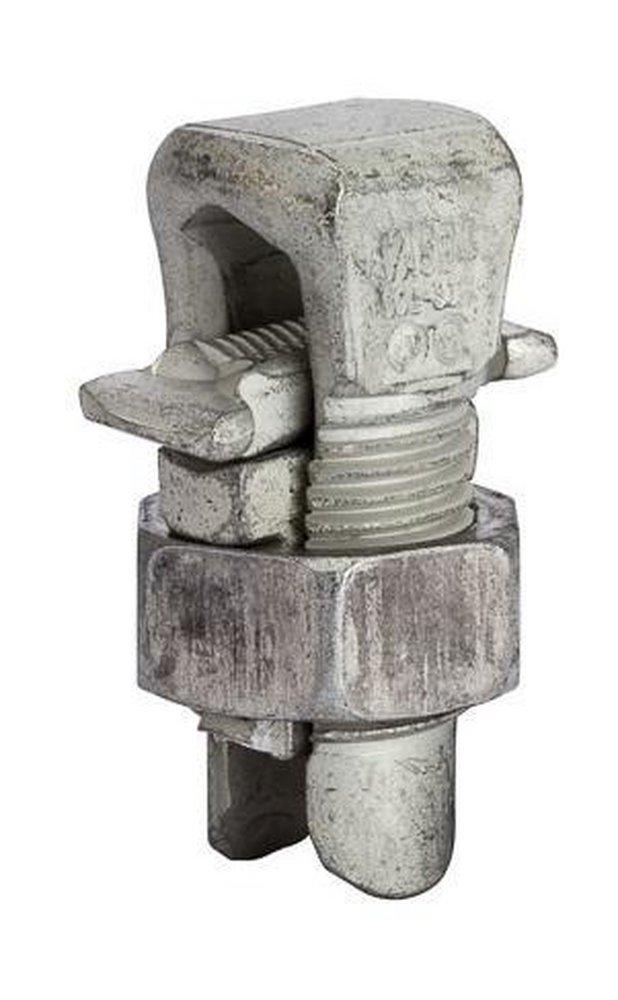

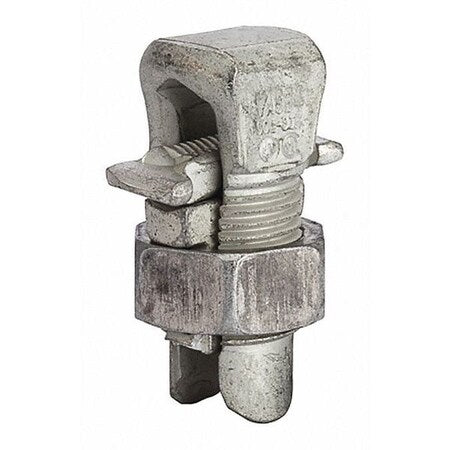

Nsi Industries APS04 10 - 4 AWG Aluminum Split Bolt Connector (Each) NAPS04

Product Description

NSI Industries APS04 is an aluminum split-bolt connector for splicing or connecting conductors in the 10 to 4 AWG range. The APS04 is tin-plated and dual-rated for aluminum and copper per UL-486B, accepts wire diameters from 0.101 to 0.232 in, and is suitable for equal main-and-tap combinations, wire termination, and grounding. It is rated to 600 V and 90 C.

• Tin-plated aluminum construction; UL-486B listed for aluminum and copper conductor combinations
• Accepts 10 AWG solid to 4 AWG stranded conductors; wire diameter range 0.101�0.232 in
• Electrical ratings: 600 V, 90 C; torque specification 165 lbs

Product Highlights

Dual-rated tin-plated aluminum split bolt for 10�4 AWG splicing; UL-486B; 0.101�0.232 in wire diameter

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: APS04
• Country of Origin: United States

Technical Specifications

• Brand: NSI Industries
• Manufacturer Part Number: APS04
• Replacement Part Number: NAPS04
• Product Name: 10 - 4 AWG Aluminum Split Bolt Connector
• Unit of Measure: Each
• Material: Tin-plated aluminum
• Finish: Tin-plated
• UL Listing: UL-486B (listed for aluminum and copper conductor combinations)
• Wire Range: 10 solid - 4 stranded
• Wire Diameter Range: 0.101 - 0.232 in
• Conductor Type: Solid/Stranded; Aluminum/Copper
• Voltage Rating: 600 V
• Temperature Rating: 90 C
• Torque Rating: 165 lbs (note: unit ambiguous � likely 165 in-lb)
• Dimensions: 1.38 in L x 0.62 in W
• Number Of Conductors: 2
• Type: Dual Rated split bolt
• Series: APS Series
• Certifications/Standards: UL 486A/B; CSA Certified; ARRA Compliant; Buy American Act Compliant
• Country of Origin: United States
• UPC: 662381982407
• GTIN / EAN: 0662381982407
• Weight: 0.06 lb
