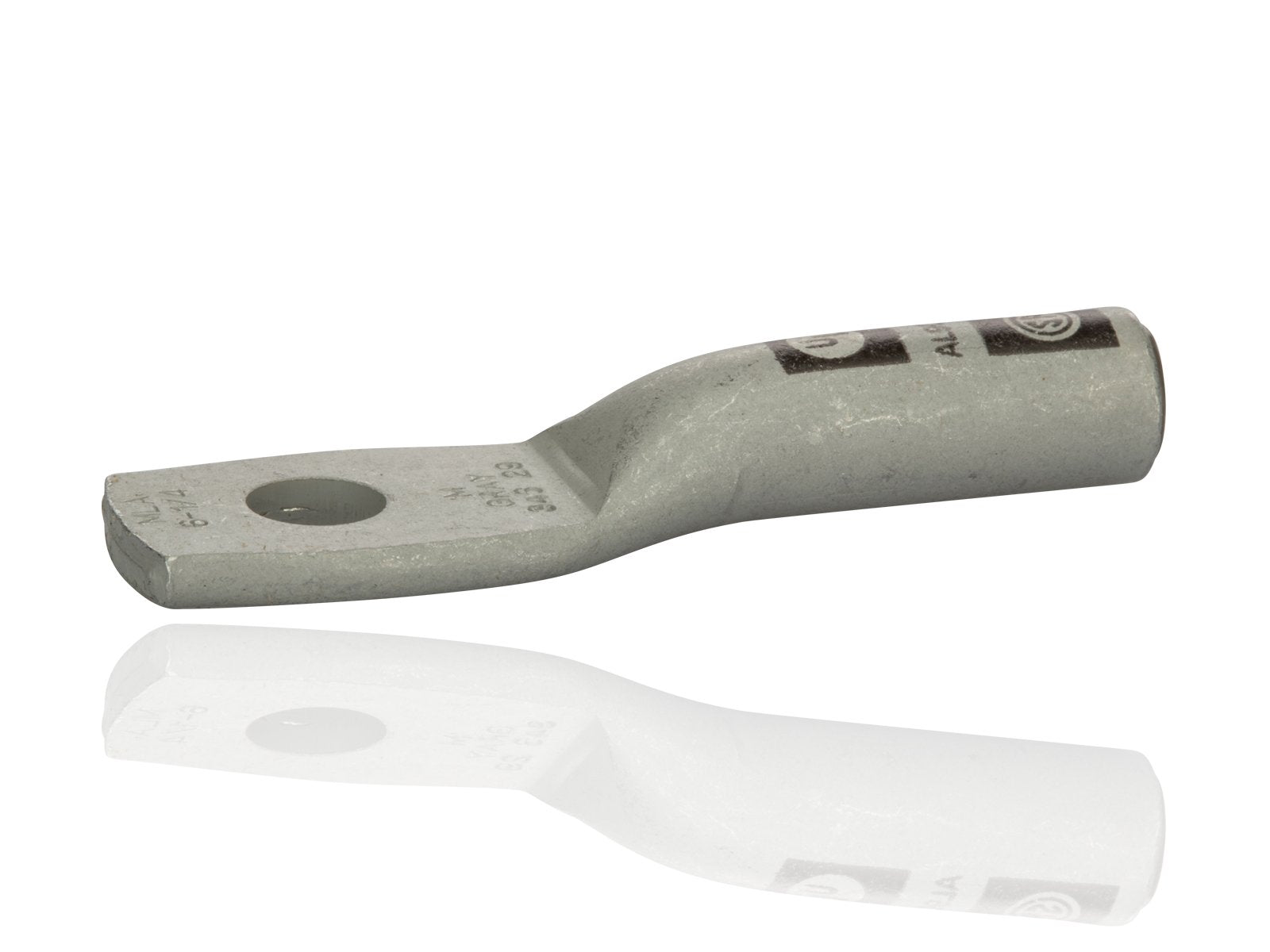

Nsi Industries Al6-14 Al6-14 1/4 Inch 6 Awg Standard Barrel 1-Hole Compression Lug

Product Description

The NSI INDUSTRIES AL6-14 is an aluminum compression lug designed for terminating, splicing, and tapping power connectors. Constructed from high conductivity aluminum tubing, it features a center stop to ensure proper cable installation. Tin plating provides corrosion resistance. This lug is marked with a die index and the connector bores are coated with oxide inhibitor.

• Produced from high conductivity aluminum tubing
• Center stop assures proper cable installation
• Tin plated to provide corrosion resistance

Product Highlights

This aluminum compression lug is dual rated for both copper and aluminum conductors and UL listed to 35kV when properly installed.

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: AL6-14
• Country of Origin: IN

Technical Specifications

• GTiN: 00662381030009
• Size: L=2.00 - W=.566 - OD=.338 - ID=.200
• Type: Standard Barrel - One Hole
• Brand: NSI Industries
• Voltage: 600 Volt
• Material: Aluminum
• Standard: UL486
• Stud Size: 1/4 in
• Sub Brand: Aluminum Compression
• Cable Size: 6 AWG
• Product UPC: 66238103000
• 12-Digit UPC: 662381030009
• Applications: Terminate, Splice, Tap Power Connectors
• Mounting Type: 1/4 Mounting Hole
• Number of Holes: 1 Hole
• Buy American Compliant: Y
• Environmental Conditions: 90 degrees C
• Width: 0.57"
• Length: 2.00"
• Thickness: 0.10"
• Outside Diameter: 0.34"
• Inside Diameter: 0.20"
• Finish: Tin Plated
• UPC: 662381030009
• EAN: 0662381030009
• UNSPSC: 39121405
• Ul Standard: UL 486A-486B
• Wire Cable Class: Class B, Class C
• Conductor Type: Aluminum, Copper
• Tang Thickness: 0.1
• Tang Length: 0.88
• Wire Range: 6 AWG
• Assortment: Aluminum Compression Terminations
• Expanded Wire Range: 6 AWG ">– 8 AWG
• Die Color Code: Gray
• Mounting Bolt Size: 0.25
• Mounting Hole Diameter: 0.25
• Barrel Length: 0.86
• Voltage Rating: 35kV
• Origin Country: IN
• Certifications: cULus
• Ul File No: E155027
• Temp Rating: 90C, AL9CU
• Hole Count: 1
• Barrel Inside Diameter: 0.2
• Barrel Outside Diameter: 0.34
