Nsi Industries AL4-14 Aluminum Standard Barrel 1-Hole Compression Lug 4 AWG 1/4 Inch

Product Description

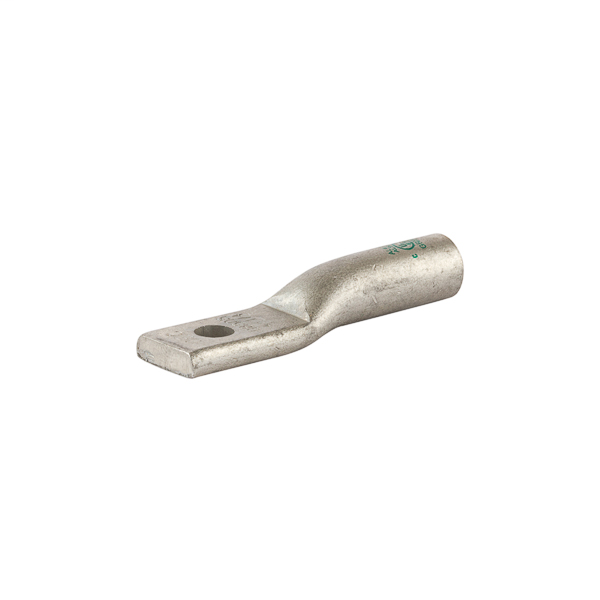

The NSI INDUSTRIES AL4-14 is an aluminum compression lug designed for terminating, splicing, and tapping power connectors. This standard barrel, one-hole lug accommodates a 4 AWG cable size and features a 1/4 inch stud size. Constructed from aluminum, it is suitable for applications requiring a 600 Volt connection and can withstand environmental conditions up to 90 degrees C.

• Terminate
• Splice
• Tap Power Connectors

Product Highlights

Aluminum compression lug with 1/4 inch bolt size for terminating, splicing, and tapping power connectors.

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: AL4-14

Technical Specifications

• Type: Standard Barrel - One Hole
• Brand: NSI Industries
• Voltage: 600 Volt
• Material: Aluminum
• Standard: UL486
• Stud Size: 1/4 in
• Sub Brand: Aluminum Compression
• Cable Size: 4 AWG
• Applications: Terminate, Splice, Tap Power Connectors
• Mounting Type: 1/4 Mounting Hole
• Number of Holes: 1 Hole
• Environmental Conditions: 90 degrees C
