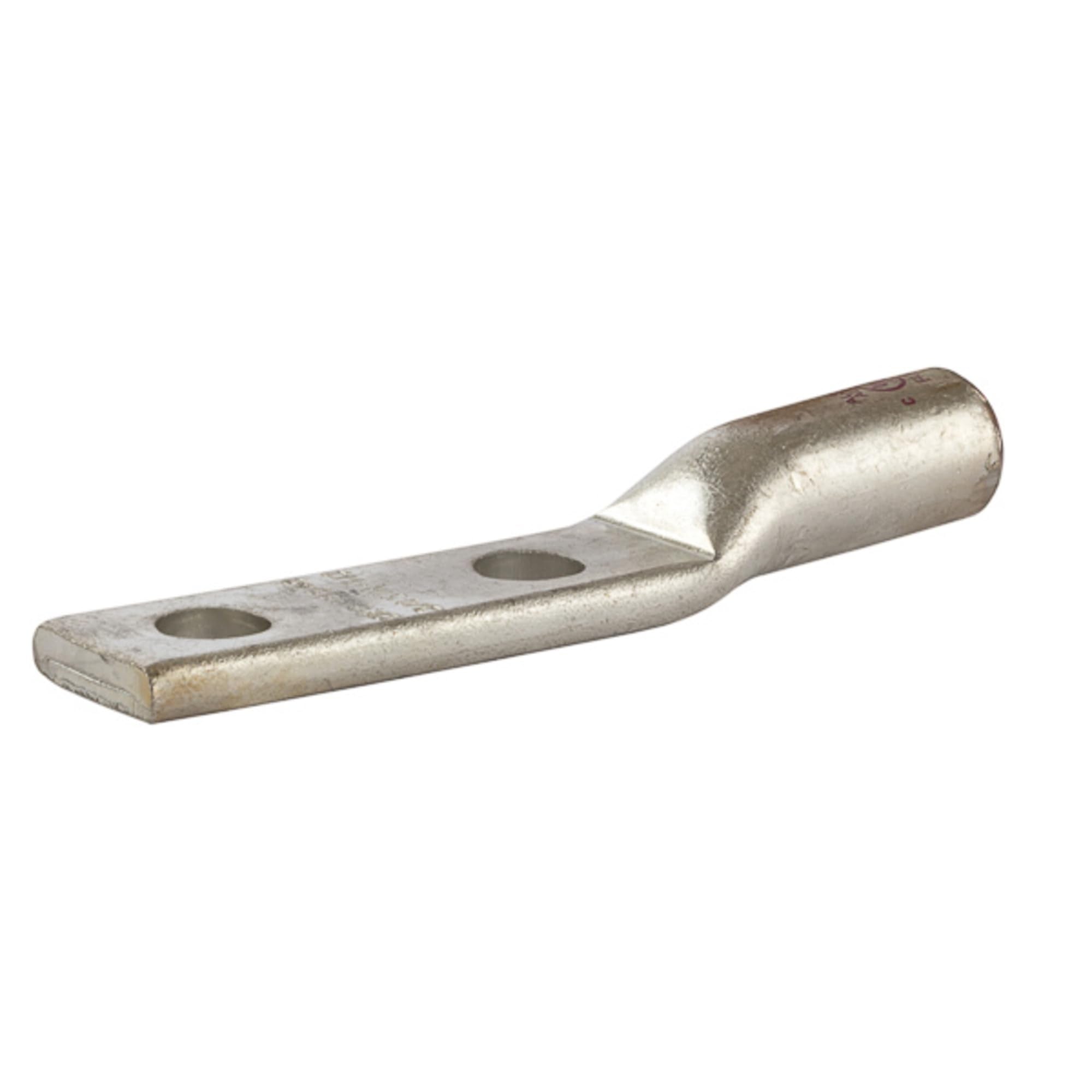

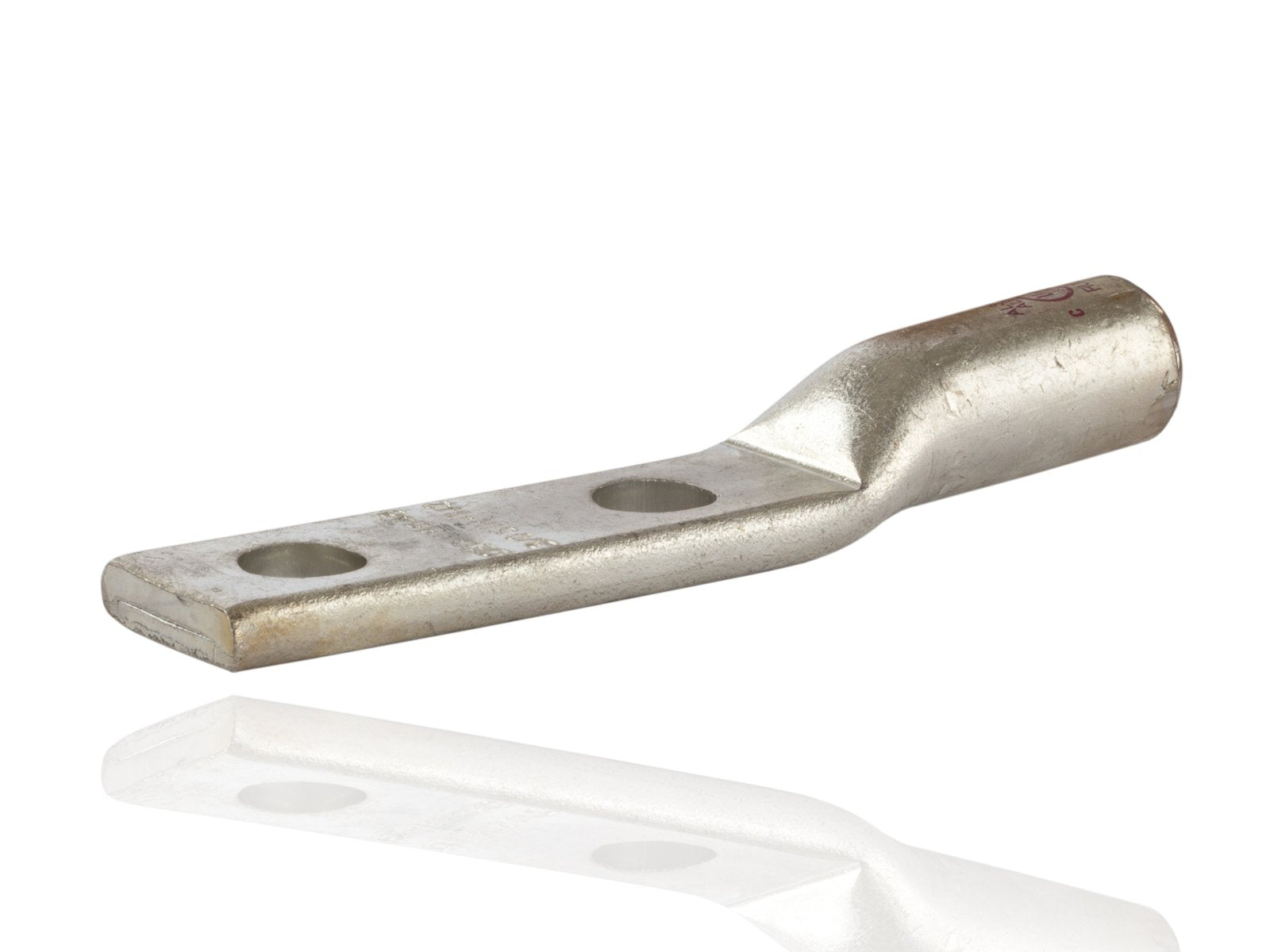

Nsi Industries AL3/0N AL3/0N 1/2 Inch 3/0 AWG Ruby Aluminum Standard Barrel 2-Hole Compression Lug

Product Description

The NSI INDUSTRIES AL3/0N is an aluminum compression lug designed for terminating, splicing and tapping power connectors. It accommodates a 3/0 AWG cable size and features a 1/2" stud size with 2 mounting holes. Constructed from aluminum with a ruby finish, it meets UL486 standards and is rated for 600V applications.

• Made from high conductivity aluminum tubing
• Center stop assures proper cable installation
• Tin plated to provide corrosion resistance

Product Highlights

This compression lug ensures a secure and corrosion-resistant connection for power distribution, grounding, and data transmission applications.

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: AL3/0N
• Country of Origin: India

Technical Specifications

• Type: Standard Barrel - Two Hole
• Brand: NSI Industries
• Voltage: 600 Volt
• Material: Aluminum
• Standard: UL486
• Stud Size: 0.5 inch
• Sub Brand: Aluminum Compression
• Cable Size: 3/0 AWG
• Applications: Terminate, Splice, Tap Power Connectors
• Number of Holes: 2 Hole
• Environmental Conditions: 90 degrees C
• Die Color: Ruby
• Color Family: Red
• Stud Hole Spacing: 1.75 in.
• Wire Size: 3/0
• Width: 1.03"
• Length: 5.00"
• Thickness: 0.24"
• OD: 0.76-inches
• ID: 0.48-inches
• RATED: 35KV Max
• HOLES: 2
• WIRE RANGE: 3/0 AWG
• EXPANDED WIRE RANGE: 3/0 - 2 AWG
• COLOR CODE: Ruby
• BOLT SIZE: 1/2
• O.D.: 0.480
• I.D.: 0.760
• MTG. HOLE DIA.: .508
• MTG. HOLE SPACING: 1.750
• PART NUMBER: AL3/0N
• Item [Specifications]: Two-Hole Lug Compression Connector
• Width [Specifications]: 1.028"
• Length [Specifications]: 5"
• Material [Specifications]: Electro-Tin Plated High-Conductivity Aluminum
• Cable Size [Specifications]: 3/0 AWG
• Color Code [Specifications]: Ruby
• Connector Type [Specifications]: Standard Barrel
• Voltage Rating: 35kV
• Finish: Tin Plated
• Ul Standard: UL 486A-486B
• Wire Cable Class: Class B, Class C
• Conductor Type: Aluminum, Copper
• Tang Thickness: 0.28
• Tang Length: 3.12
• Hole Spacing: 1.75
• Wire Range: 3/0 AWG
• Expanded Wire Range: 3/0 AWG ">– 2 AWG
• Die Color Code: Ruby
• Mounting Bolt Size: 1/2
• Mounting Hole Diameter: 0.51
• Barrel Length: 1.4
• No. of Holes: 2
• MPN: AL3/0N
• Conductor Size: 3/0 AWG
• Barrel Type: Standard
• Barrel Size: 0.479 in ID x 0.759 in OD x 1.402 in L
• Tongue Size: 3.118 in L x 1.02 in W x 0.28 in THK
• Temperature Rating: 90 deg C
• Mounting Hole Size: 1/2 in
• Overall Length: 5 in
• Series: AL-N Series
