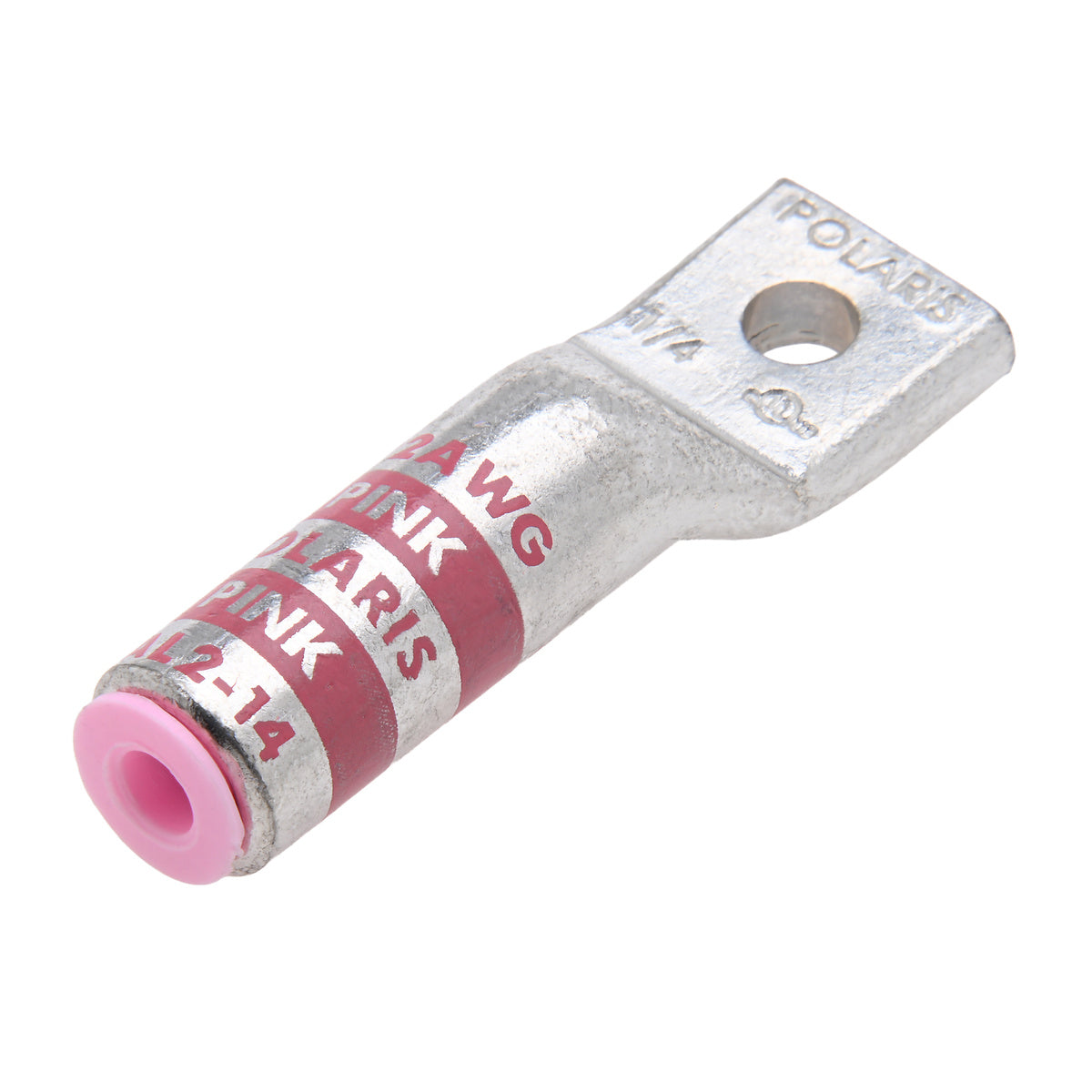

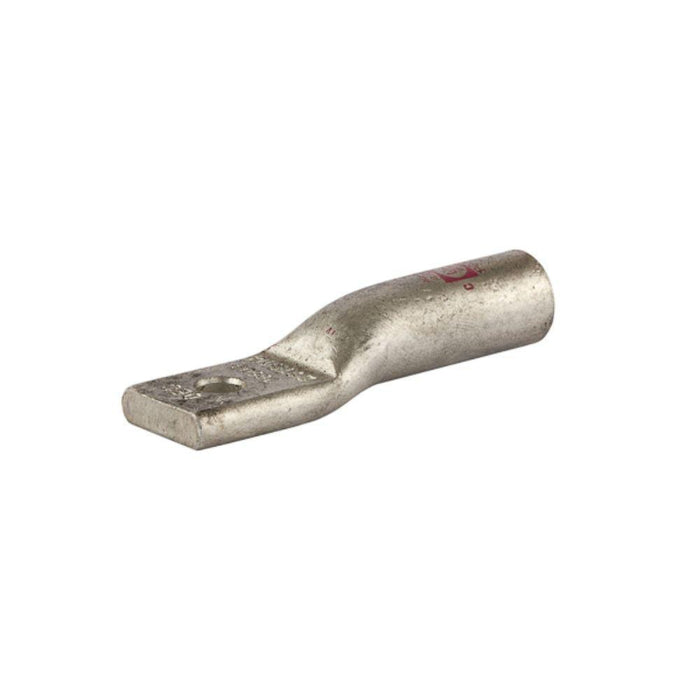

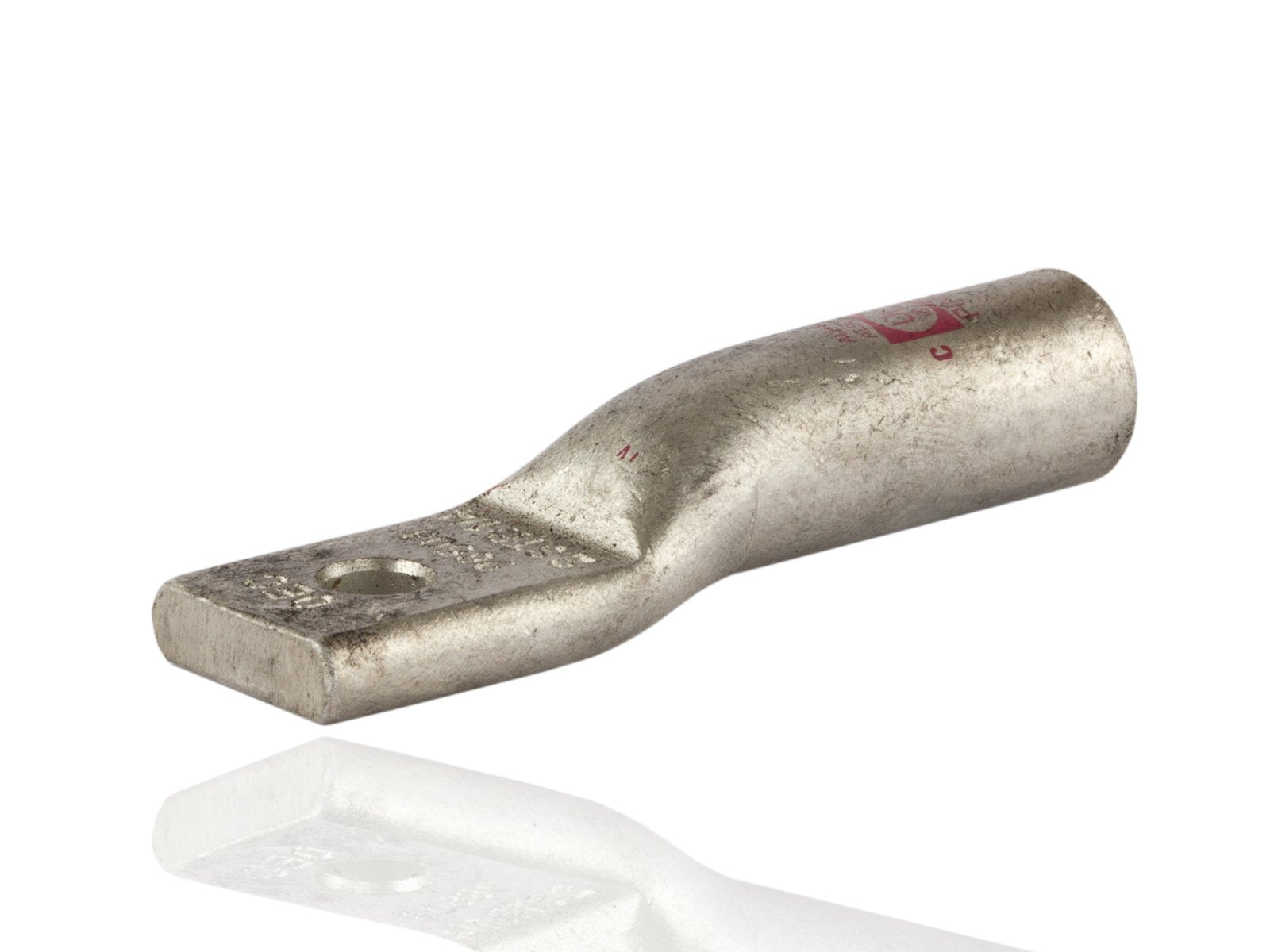

Nsi Industries AL2-14 Al Dual Rated Compression Aluminum Lug, One Hole, 2 Wire Size, 1/4 inches Stud Size

Product Description

The NSI INDUSTRIES AL2-14 is a dual-rated compression connector made from high conductivity aluminum tubing. It features a center stop to ensure proper cable installation and is tin-plated for corrosion resistance. Marked with a die index, the connector bores are coated with oxide inhibitor and capped. It is UL listed for up to 35kV when properly installed.

• Produced from high conductivity aluminum tubing
• Center stop assures proper cable installation
• Tin plated to provide corrosion resistance

Product Highlights

This aluminum compression lug is dual-rated for both copper and aluminum conductors and is suitable for power distribution, grounding, and data transmission applications.

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: AL2-14
• Country of Origin: United States

Technical Specifications

• Brand: NSI Industries
• Model / MPN: AL2-14
• Voltage Rating: 35kV
• Material: Aluminum
• Finish: Tin Plated
• GTIN: 662381030023
• UPC: 662381030023
• EAN: 0662381030023
• UNSPSC: 39121405
• Ul Standard: UL 486A-486B
• Wire Cable Class: Class B, Class C
• Conductor Type: Aluminum, Copper
• Tang Thickness: 0.22
• Tang Length: 0.88
• Wire Range: 2 AWG
• Assortment: Aluminum Compression Terminations
• Expanded Wire Range: 2 AWG ">– 6 AWG
• Die Color Code: Pink
• Mounting Bolt Size: 1/4
• Mounting Hole Diameter: 0.25
• Barrel Length: 1.2
• Country of Origin: United States
