Nsi Industries Al1000n Al/Cu Cmp Lug 1000 Mcm 1/2 inches Bolt Size 2 Hole

Product Description

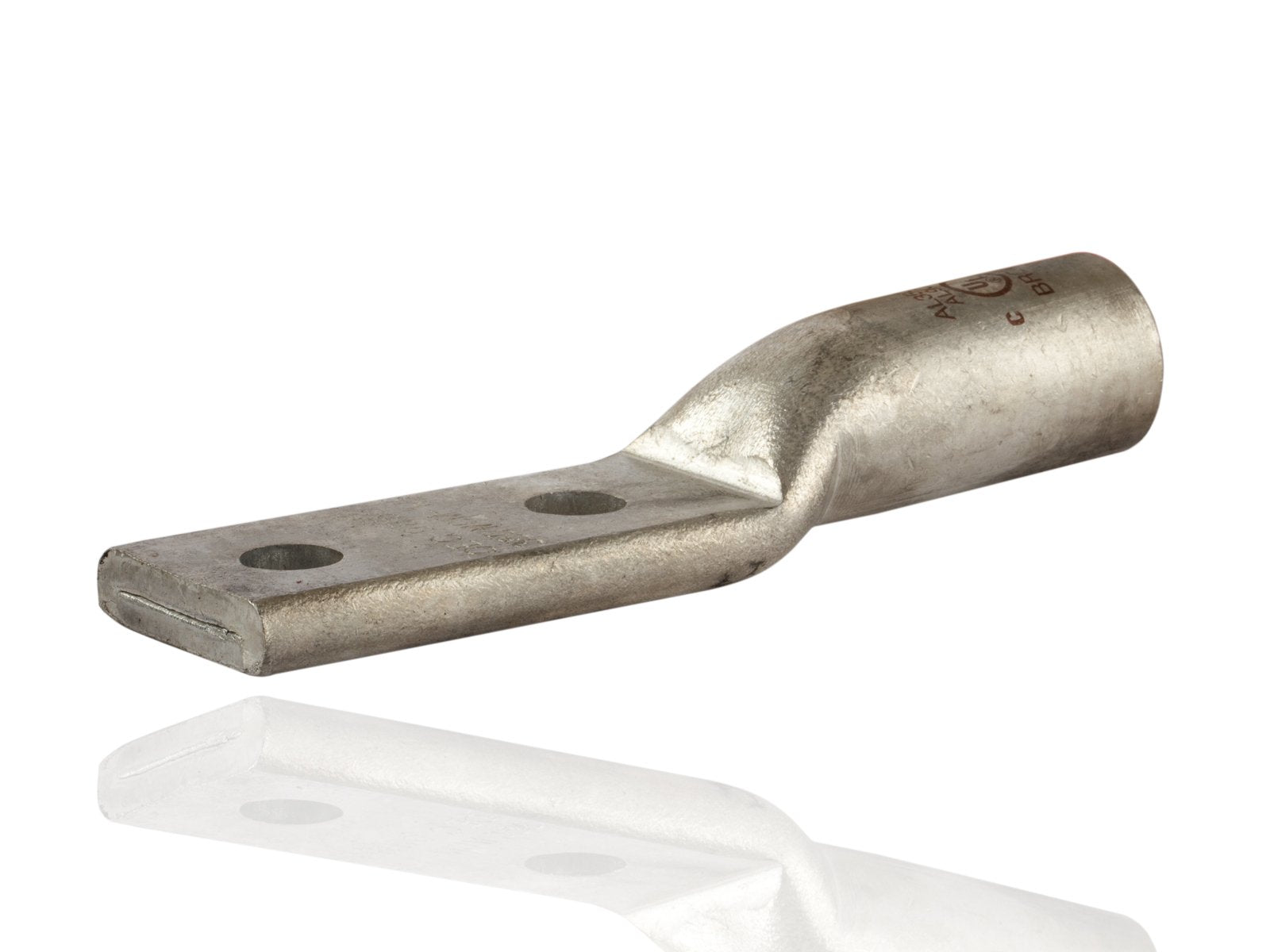

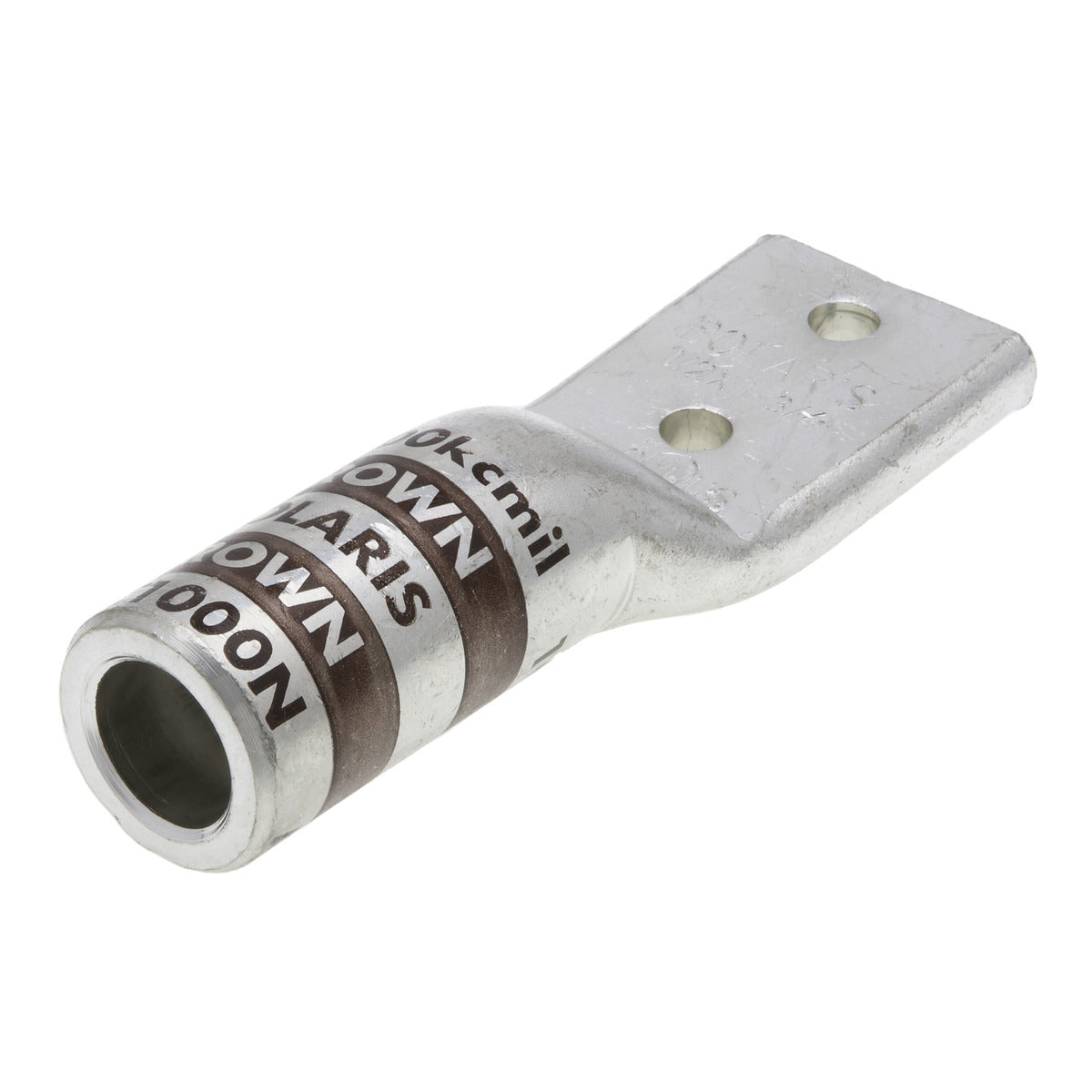

The NSI INDUSTRIES AL1000N is an aluminum compression lug designed for terminating, splicing and tapping power connectors. Constructed from high conductivity aluminum tubing, it features a center stop to ensure proper cable installation. It is tin plated for corrosion resistance and marked with a die index. The connector bores are coated with oxide inhibitor and capped.

• Aluminum Compression Lug
• 1000 MCM
• 1/2" Bolt Size

Product Highlights

High-conductivity aluminum tubing, corrosion resistance, and proper cable installation make this lug a reliable choice.

Product Information

Standard Information

• Brand: NSI INDUSTRIES
• Manufacturer Part Number: AL1000N

Technical Specifications

• Brand: NSI Industries
• Material: Aluminum
• Standard: UL486
• Stud Size: 1/2 in
• Sub Brand: Aluminum Compression
• Cable Size: 1000 MCM
• Applications: Terminate, Splice, Tap Power Connectors
• Mounting Type: 1/2 Mounting Holes
• Number of Holes: 2 Hole
• Environmental Conditions: 90 degrees C
• Finish: Tin Plated
• Wire Range: 1000 MCM
• Wire Cable Class: Class B, Class C
• Conductor Type: Aluminum, Copper
• Mounting Bolt Size: 1/2
• Mounting Hole Diameter: 0.51
• Barrel Length: 3.62
• Tang Thickness: 0.62
• Tang Length: 3.22
• Hole Spacing: 1.75
• Voltage Rating: 35kV
