Product Description

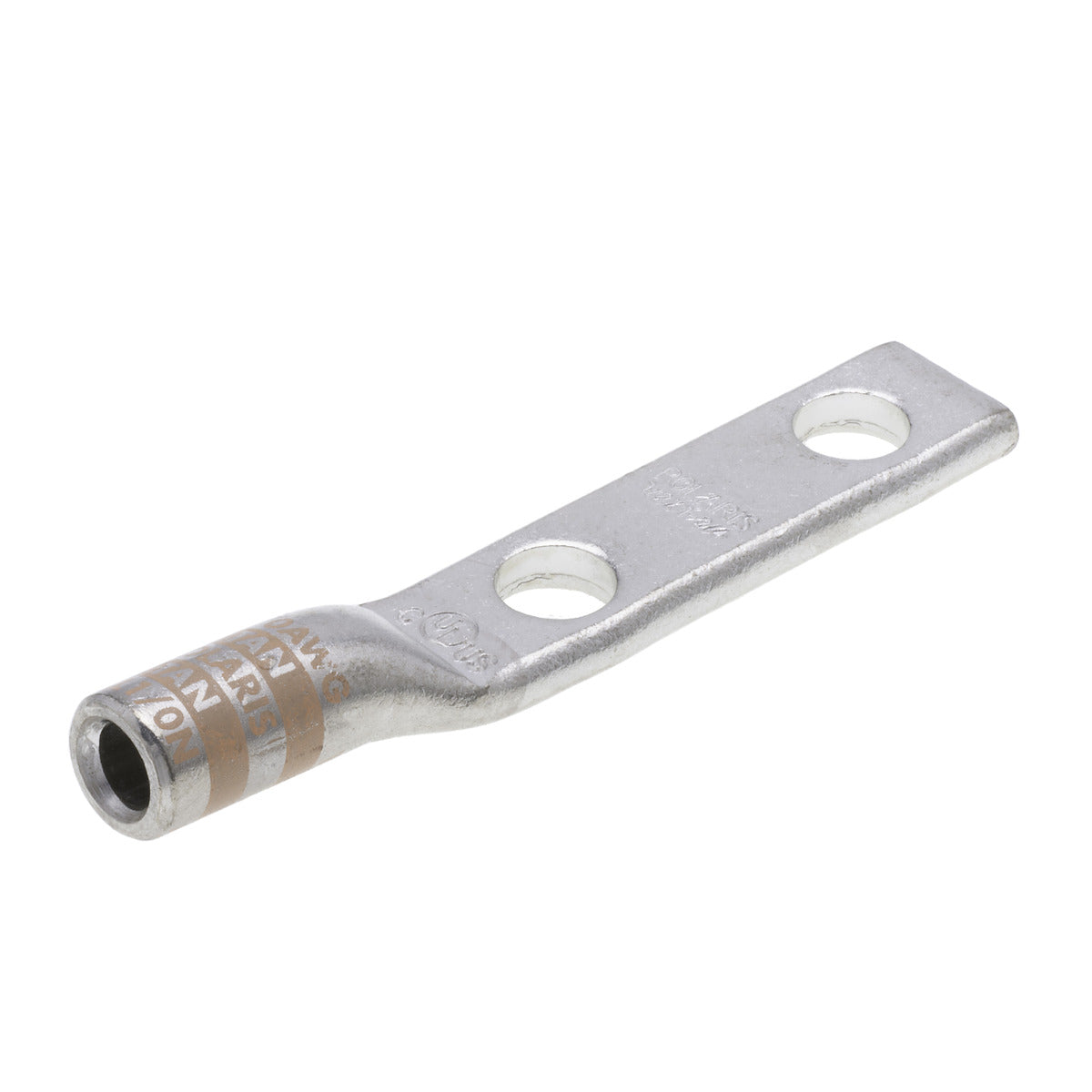

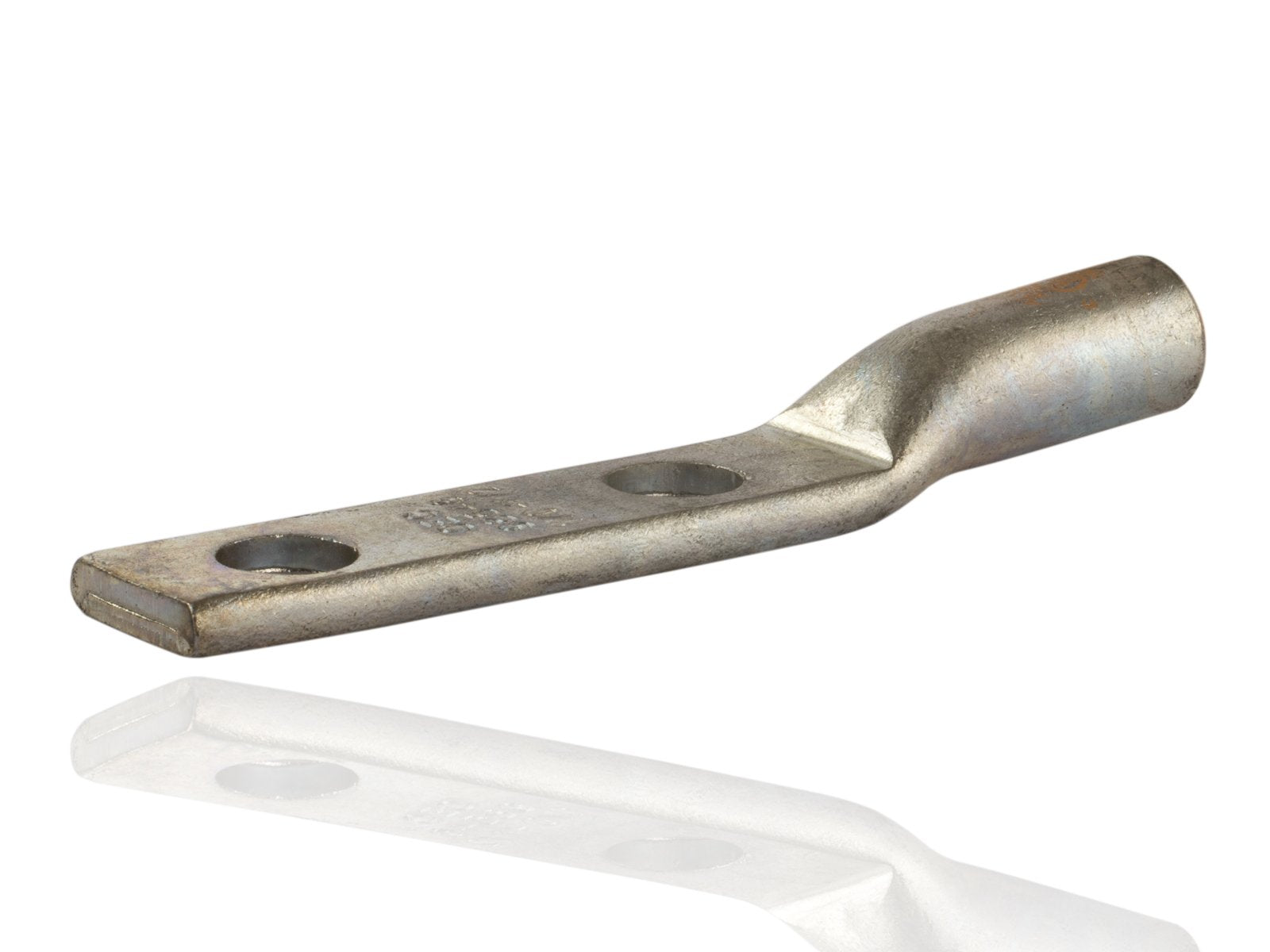

The NSI INDUSTRIES AL1/0N Al-N Series Compression Lug terminates large, high-current wires safely. It has a tin-plated aluminum body for corrosion resistance and a chamfered entry. This lug features two standard installation holes sized for 1/2
bolts and spaced 1-3/4
apart, and one chamfered port to terminate a 1/0 AWG conductor.
- Terminates large, high-current wires safely
- Max voltage rating of 35kV when properly installed
- Tin-plated aluminum body for corrosion resistance
Product Highlights
This compression lug is built for professionals, with a reliable one-piece construction and closed barrel design that protects against moisture and contaminants.
Product Information
Standard Information
-
Brand: NSI INDUSTRIES
-
Manufacturer Part Number: AL1/0N
-
Country of Origin: India
Technical Specifications
-
ECCN: EAR99
-
Country of Origin: IN - India
-
UNSPSC: 39121405
-
Series: AL-N Series
-
Die Color: Tan
-
Color Family: Brown
-
Stud Hole Spacing: 1.75 in.
-
Stud Size: 1/2 in.
-
Wire Size: 1/0
-
Width: 0.85"
-
Length: 4.75"
-
Thickness: 0.24"
-
Outside Diameter: 0.63 inches
-
Inside Diameter: 0.39 inches
-
QUANTITY: 1 Count
-
RATED: 35KV Max
-
HOLES: 2
-
WIRE RANGE: 1/0 AWG
-
EXPANDED WIRE RANGE: 1/0 - 6 AWG
-
COLOR CODE: Tan
-
BOLT SIZE: 1/2
-
O.D.: 0.390
-
I.D.: 0.630
-
MTG. HOLE DIA.: .508
-
MTG. HOLE SPACING: 1.750
-
TEMPERATURE RATING: 90 degrees C
-
VOLTAGE: 600V (2000V max. per UL486)
-
Item [Specifications]: Two-Hole Lug Compression Connector
-
Material [Specifications]: Electro-Tin Plated High-Conductivity Aluminum
-
Cable Size [Specifications]: 1/0 AWG
-
Connector Type [Specifications]: Standard Barrel
-
Voltage Rating: 35kV
-
Material: Aluminum
-
Finish: Tin Plated
-
GTIN: 662381031006
-
UPC: 662381031006
-
EAN: 0662381031006
-
Ul Standard: UL 486A-486B
-
Wire Cable Class: Class B, Class C
-
Conductor Type: Aluminum, Copper
-
Tang Thickness: 0.24
-
Tang Length: 3.12
-
Hole Spacing: 1.75
-
Wire Range: 1/0 AWG
-
Assortment: Aluminum Compression Terminations
-
Expanded Wire Range: 1/0 AWG – 6 AWG
-
Die Color Code: Tan
-
Mounting Bolt Size: 1/2
-
Mounting Hole Diameter: 0.51
-
Barrel Length: 1.2
-
Number of Ports: 2
-
Compatible Mounting Type: Wire
-
Connector Style: Crimp
-
MPN: AL1/0N
-
Brand: NSI
-
Termination Type: Compression
-
Type: Compression Terminal
-
Barrel Length/ Type: Standard
-
Lug L x Tongue W: 4.74 x 0.84 in.
-
Stud Holes: 2
-
Conductor Size - Code: 1/0 AWG
-
Screw/ Stud Size: 1/2 in.
-
Rated Voltage: 600 V
-
Application: Terminate, Splice, Tap Power Connectors
-
Use With: Aluminum, Copper Conductors
