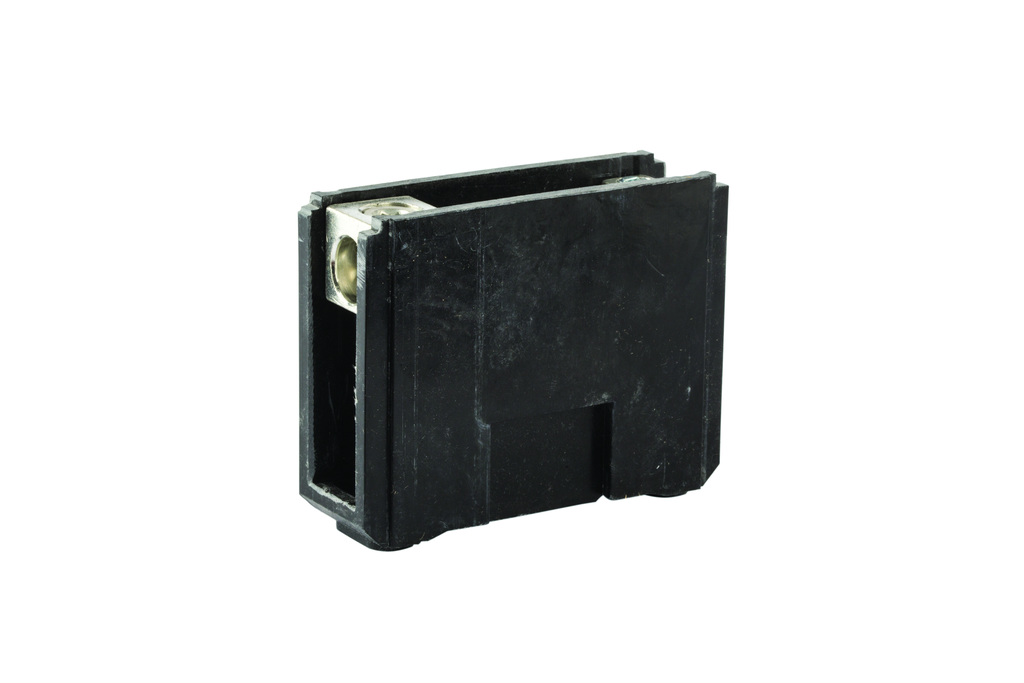

NSI Industries AL-R2-K6 4 AWG to 500 MCM Line 14 to 2/0 AWG Load 8-Terminal Black Aluminum Double Primary Power Distribution Block

Product Description

The NSI AL-R2-K6 is a power distribution block that supports wire sizes from four AWG to five hundred MCM. This block is designed to handle primary loads of 760 Amps and secondary loads of 14 to 2/0 AWG. Made of high-strength aluminum alloy, it offers excellent conductivity and is mounted on a durable glass-filled polyester base. Each block can be used independently or connected with other blocks to create a larger set.

• Supports wire sizes from 4 AWG to 500 MCM
• Built from high-strength aluminum for durability
• Rated for 600 volts

Product Highlights

This distribution block is versatile, compact, and designed for easy installation without the need for assembly on-site.

Product Information

Standard Information

• Brand: NSI Industries
• Manufacturer: NSI
• Country of Origin: USA

Technical Specifications

• MPN: AL-R2-K6
• Voltage: 600 Volt
• Amperage: 760 Amp
• Material: Aluminum
• Base Material: Glass-Filled Polyester
• Size: L=5.50 - H=3.25 - W=2.90 IN
• Max Temperature: 90 degrees C
• Number of Terminations: 8
