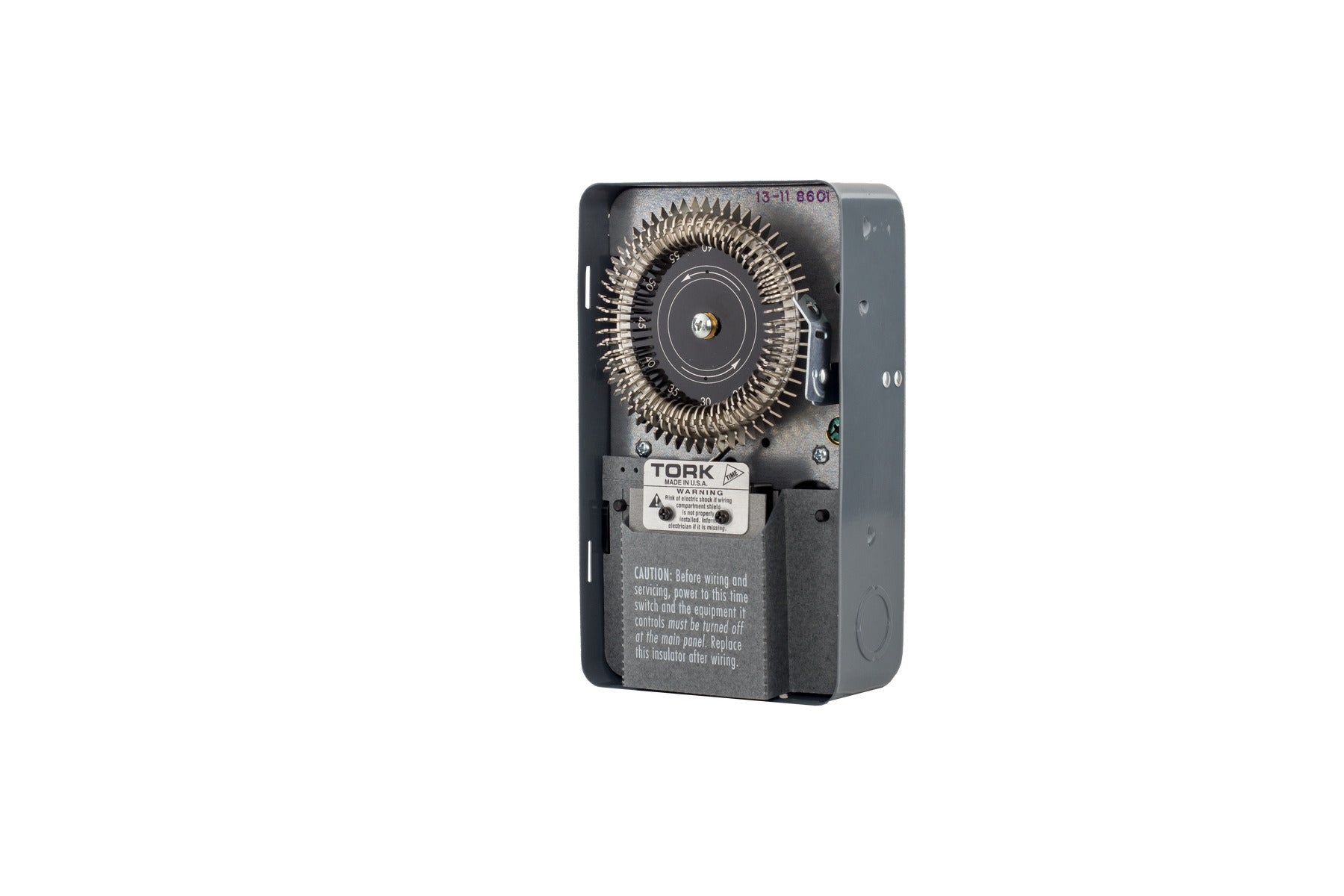

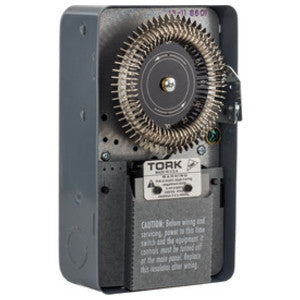

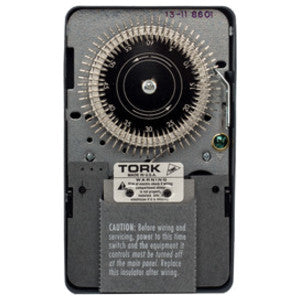

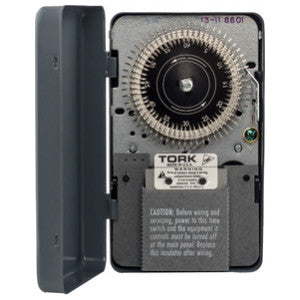

NSI INDUSTRIES 8601 TORK 60-Minute Repeating Timer 20A 120V SPDT

Product Description

The NSI INDUSTRIES 8601 TORK 60-minute repeating timer automates duty cycles effectively for various applications. With settings allowing for one to thirty ON/OFF operations per hour, this timer is ideal for ventilation fans, pumps, irrigation systems, and process controls. This versatile tool features sixty captive tabs to facilitate minute-by-minute switching changes. The TORK 8601 is also cULus-listed for twenty Amps at one hundred twenty Volts, with SPDT output contacts.

• Easy programming via captive tabs for ON/OFF cycles.
• Includes a 60-minute dial with 60 captive tabs for flexible timing.
• Applicable for duty cycling across multiple uses such as ventilation and irrigation.

Product Highlights

This timer simplifies control operations for different devices, ensuring automated functionality without manual intervention.

Product Information

Standard Information

• Weight: 2.4 pounds
• Dimensions: 5 inches L x 9.25 inches H x 3.75 inches W

Technical Specifications

• Voltage: 120V AC
• Amperage: 20A
• Poles: 1-Pole
• Phase: 1-Phase
• Frequency: 60Hz
• Time Setting: 60 min
• Contact Form: SPDT
• Horsepower: 3/4 hp
• Temperature Rating: -40 to 165 degrees F
• Enclosure Type: NEMA 1
• Mounting Type: Threaded
• Series: 8000 Series
